0R4271 CAT 768B Starter Motor Wholesale Supply

0R4271 Starter Motor Wholesale Fitment for Caterpillar 768B wheel dozer

Caterpillar equipment distributors, mine fleets and heavy-duty electrical wholesalers use 0R4271 to keep Caterpillar 768B wheel dozer demand tied to one 24V, 9.0kW, 11T CW configuration. The practical distinction is the 24V 9.0kW 11T module-4.233 drive and large three-hole mounting face for the 768B record, which should be checked before a similar heavy-duty housing is accepted.

Build the 0R4271 RFQ around the complete removed-unit number, exact machine or engine information, mounting-face and terminal-side photographs, quantity and delivery point. These details let Elecdura quote the specified starter, export packing and timing without turning the offer into a general application guess.

0R4271 Starter Motor Specifications and Drawing for Wholesale Buyers

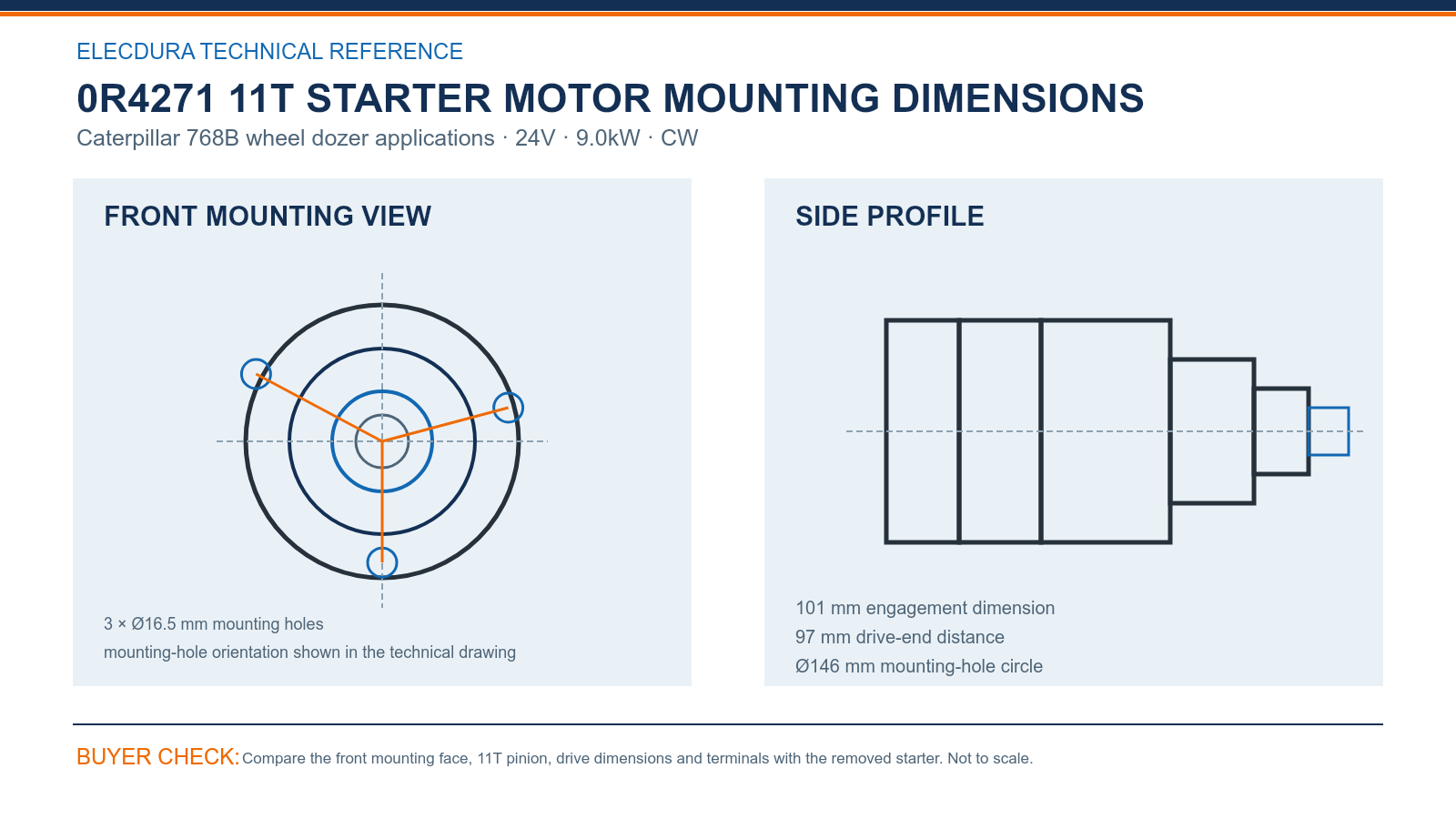

Compare 0R4271 at the 3 × Ø16.5 mm mounting holes, Ø146 mm mounting-hole circle and 101 mm engagement dimension. The 97 mm drive-end distance helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

For 0R4271, count the 11T pinion and confirm module 4.233, CW rotation, 24V and 9.0kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

0R4271 Starter Motor OE Cross-References for Distributor Enquiries

1. Search group: 112254, 0R4271, 0R5212, 10R1917, 1M7039, 1P7112, 2M1431 can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 9.0kW, 11T, CW, the drawing and terminal photographs before accepting one physical unit.

0R4271 Starter Motor Wholesale Supply and Export Planning

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested 0R4271 quantity, destination and required arrival date.

Retain the approved large-flange dimensions for mine-site spares and repeat fleet orders. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of 0R4271 remains tied to the stated Caterpillar 768B wheel dozer application, 11T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

0R4271 Starter Motor Questions from Commercial Buyers

What should a distributor match before ordering 0R4271 for Caterpillar 768B wheel dozer during fleet sourcing?

Use the complete removed-unit number and exact Caterpillar 768B wheel dozer record. Compare the 11T pinion, 3 × Ø16.5 mm mounting holes, 101 mm engagement dimension and terminal side with the old starter. A housing resemblance is insufficient when the drive position, mounting face or cable connection differs.

What is the safe way to order 0R4271 from an alternate OE number in a CAT 768B fleet sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the 0R4271 electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

Which electrical conditions can imitate a failed 0R4271 starter motor in a CAT 768B fleet workshop?

Before fitting 0R4271, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

How does the 0R4271 mounting drawing support product approval during a CAT 768B fleet inspection?

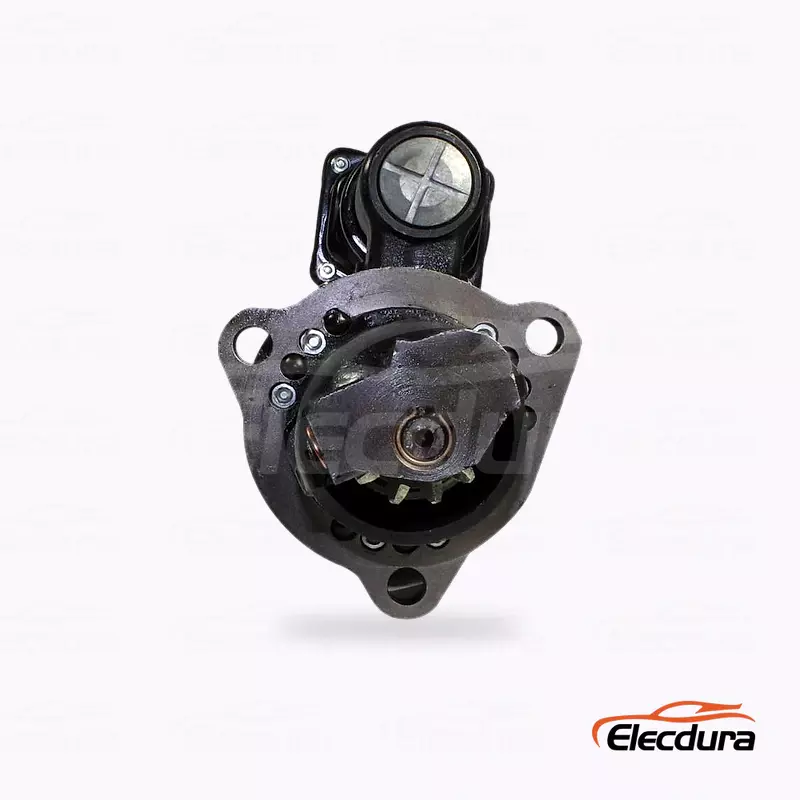

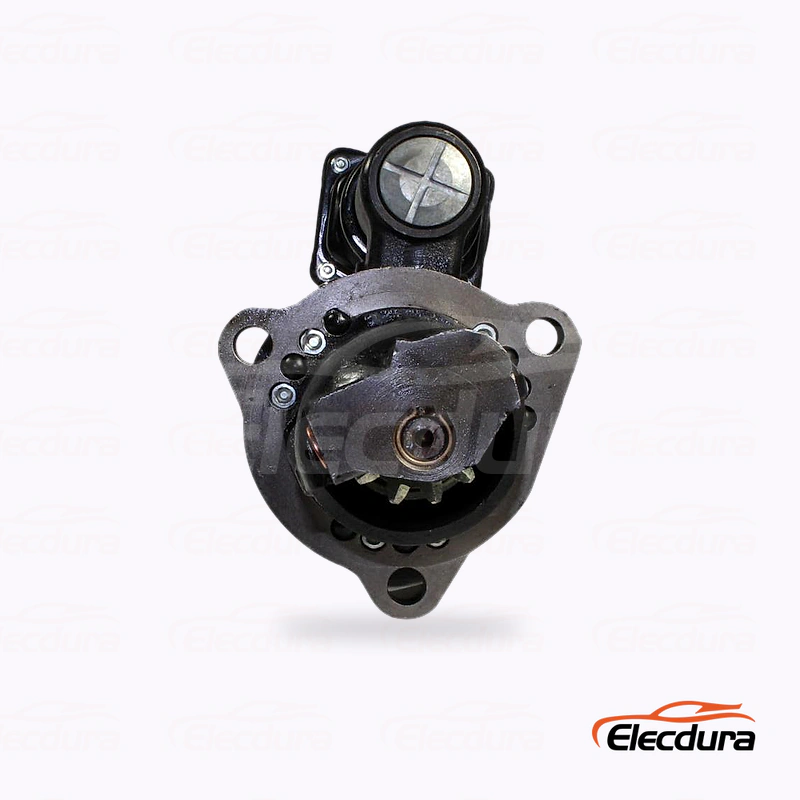

For 0R4271, use a straight front view to compare the 3 × Ø16.5 mm mounting holes and Ø146 mm mounting-hole circle; use the side view for 101 mm engagement dimension and 97 mm drive-end distance. Complete the check with 11T, CW and terminal orientation. This combination is more reliable than an angled overall photograph alone.

How can branches reduce emergency transfers of 0R4271 stock in a CAT 768B fleet program?

Retain the approved large-flange dimensions for mine-site spares and repeat fleet orders. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Which arrival photographs help trace a shipment of 0R4271 during a CAT 768B fleet receiving check?

Receiving should verify the 0R4271 label, quantity and packaging before opening sampled cartons. Compare the 11T drive, 101 mm engagement dimension, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How can an importer obtain an accurate delivered price for 0R4271 in a CAT 768B fleet sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For 0R4271, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

Which installation facts help review unusual performance from 0R4271 in a CAT 768B fleet review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate 0R4271 without assuming that every no-crank complaint originates inside the starter.

0R4271 Request Starter Motor Wholesale Pricing

Send the complete 0R4271 reference, Caterpillar 768B wheel dozer details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 24V, 9.0kW, 11T CW starter, MOQ, packing, lead time, warranty and freight.
