0R5209 Caterpillar 112F Starter Motor Wholesale

0R5209 Starter Motor Aftermarket Supply for Caterpillar 112F equipment

The buyer value of 0R5209 is a clear stock definition for Caterpillar 112F equipment: 24V, 6.5kW, 11T and CW. The deciding physical detail is the 24V 6.5kW 11T module-4.233 interface with a large three-hole flange, so the application name alone is not enough to release a first order or replace an approved sample.

For the first 0R5209 order, include the removed-unit label, application details and straight photographs of the drive end and terminals. Quantity, destination, delivery target and any private-label requirement complete the commercial brief and reduce the risk of pricing a related but physically different starter.

0R5209 Starter Motor Specification Table for B2B Sourcing

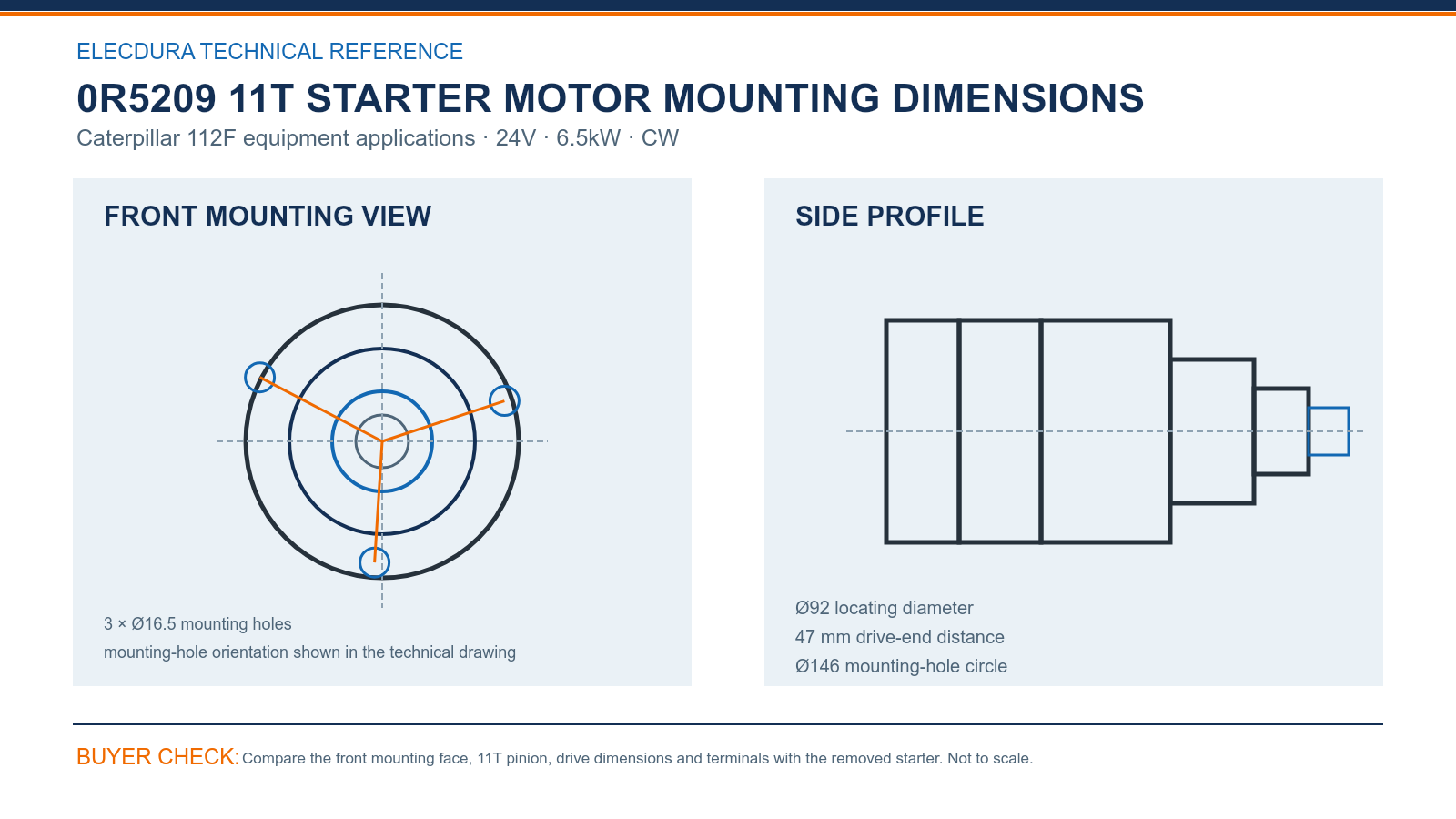

A warehouse can confirm the 0R5209 interface without dismantling the unit. Measure Ø92 locating diameter and Ø146 mounting-hole circle, inspect 3 × Ø16.5 mounting holes, then verify the 47 mm drive-end distance. Photograph the pinion and terminal side so workshop staff can review details that a carton label cannot show.

For 0R5209, record 11T, CW, 24V and 6.5kW, including module 4.233. Inspect the pinion, solenoid orientation and terminal access from the same side as the removed unit. A first sample should pass both the label check and this physical comparison.

0R5209 Starter Motor Reference Matching for B2B Quotations

• Use the full number: Start with 111000, 0R5209, 3T2646, 3T2649, 3T2650, 3T2654, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

0R5209 Starter Motor Aftermarket Supply for Regional Distributors

Distributors can combine an initial 0R5209 sample plan with a later replenishment forecast. MOQ is 20 pieces, normal lead time is 7–15 days after confirmation and warranty is 18 months under agreed terms; packing and shipping are quoted for the actual route and arrival requirement.

A first-lot sample is useful when the fleet carries related starters with similar housings. Retain the approved 0R5209 label, front view and terminal view, then use recent demand and branch transfer time to set reserve stock and delivery priorities.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for 0R5209 continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

0R5209 Starter Motor Questions from Commercial Buyers

What should a distributor match before ordering 0R5209 for Caterpillar 112F equipment during regional sourcing?

Use the complete removed-unit number and exact Caterpillar 112F equipment record. Compare the 11T pinion, 3 × Ø16.5 mounting holes, Ø92 locating diameter and terminal side with the old starter. A housing resemblance is insufficient when the drive position, mounting face or cable connection differs.

Which mounting-face points distinguish the specified 0R5209 version during a Caterpillar 112F regional inspection?

Place the removed starter and 0R5209 on the same mounting-face orientation. Compare Ø92 locating diameter, Ø146 mounting-hole circle, the 3 × Ø16.5 mounting holes and the 47 mm drive-end distance. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

Why is the 0R5209 reference match only the start of product selection in a Caterpillar 112F regional sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The 0R5209 group is acceptable only when 24V, 6.5kW, 11T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

What electrical checks help confirm that 0R5209 is actually required in a Caterpillar 112F regional workshop?

Measure cranking voltage and voltage loss across the positive and negative paths, not only open-circuit battery voltage. Review the solenoid command, cable terminals, engine ground and ring gear. The results provide a useful baseline for 0R5209 installation and for any later service discussion with the supplier.

How can branches reduce emergency transfers of 0R5209 stock in a Caterpillar 112F regional program?

Retain dimensional inspection results for first-lot and repeat fleet purchasing. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Which arrival photographs help trace a shipment of 0R5209 during a Caterpillar 112F regional receiving check?

Receiving should verify the 0R5209 label, quantity and packaging before opening sampled cartons. Compare the 11T drive, Ø92 locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How can an importer obtain an accurate delivered price for 0R5209 in a Caterpillar 112F regional sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For 0R5209, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

Which installation facts help review unusual performance from 0R5209 in a Caterpillar 112F regional review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate 0R5209 without assuming that every no-crank complaint originates inside the starter.

0R5209 Start a Starter Motor Wholesale Enquiry

To discuss 0R5209 supply, send the complete application and old-unit identification, mounting-face and terminal photos, requested quantity, destination and timing to info@elecdurauto.com. The reply will address the specified starter, sample or bulk availability, export packing, commercial terms and delivery route.
