10R-0392 CAT 3116 Starter Motor Wholesale Supply

10R-0392 Starter Motor Distributor Application Guide for Caterpillar 3116 engine

For a fleet parts team, 10R-0392 identifies one Caterpillar 3116 engine requirement. The compact CAT 3116 drive end with Ø89 locating diameter and Ø126 mounting circle provides a clear fitment boundary for sample, stock and replacement reviews.

A useful enquiry pairs 10R-0392 with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

10R-0392 Starter Motor Mounting Dimensions for Distributor Approval

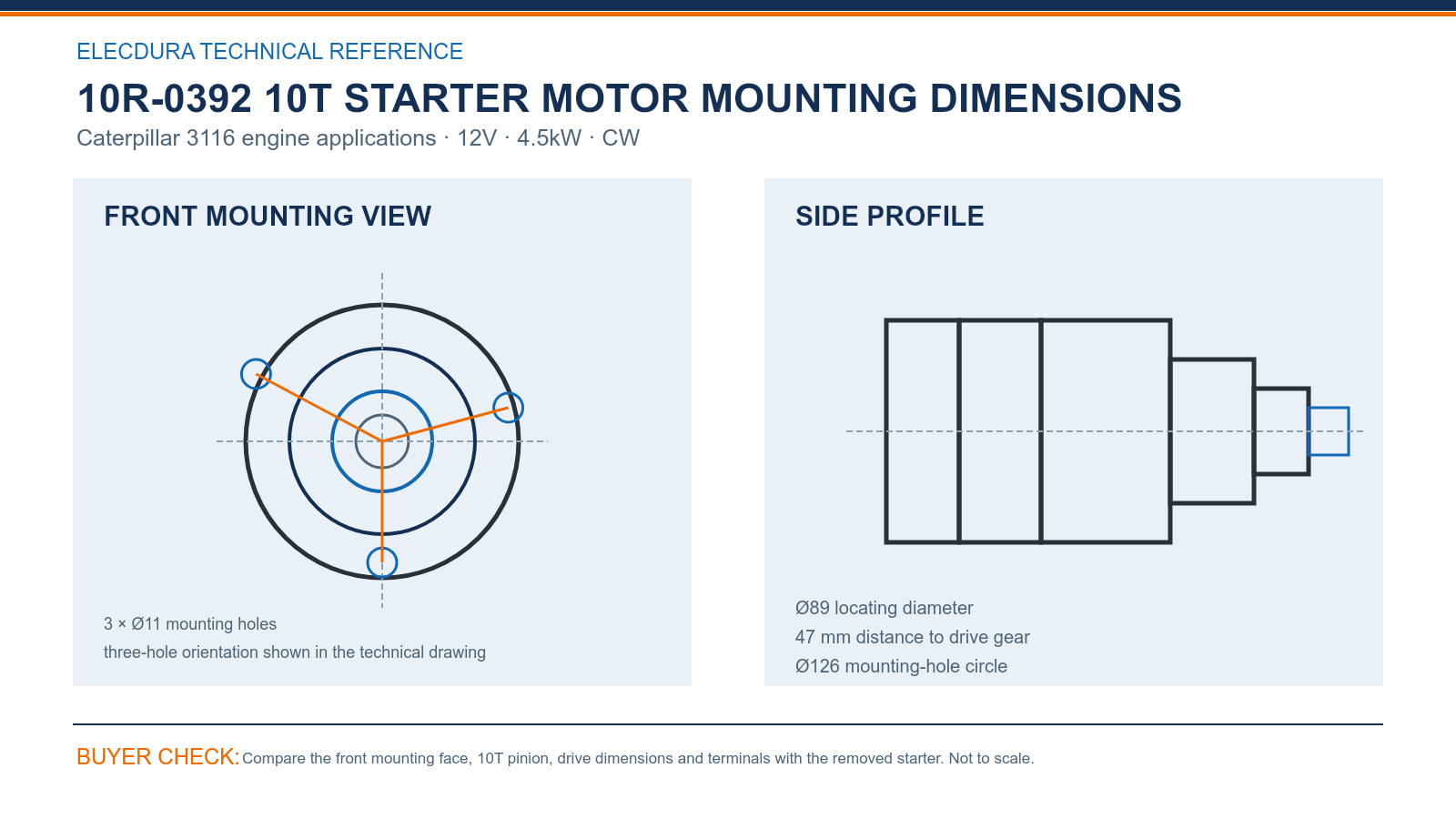

10R-0392 Caterpillar 3116 12V 4.5kW 10T starter mounting dimensions.

Use the 10R-0392 technical drawing to check Ø89 locating diameter, 47 mm distance to drive gear and Ø126 mounting-hole circle. Add the 3 × Ø11 mounting holes to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

Complete the 10R-0392 comparison with 12V, 4.5kW, the 10T drive and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

10R-0392 Starter Motor Reference Group for Wholesale Sourcing

• Use the full number: Start with 10R-0392, 0R0392, 6V4237, 7X5987, 9X1490, 3675167RX, retaining prefixes, suffixes and separators in the RFQ.

• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

10R-0392 Starter Motor Distributor Stock and Delivery Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For 10R-0392, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

Use the 10R-0392/0R0392 reference together with the measured physical interface and exact CAT 3116 application. Once that boundary is fixed, purchasing can separate urgent units from routine replenishment and define branch quantities, stock labels and freight timing without encouraging an unverified substitute.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for 10R-0392; the product decision itself still depends on the complete reference, 12V 4.5kW rating, drive end, mounting face and terminal layout.

10R-0392 Starter Motor Questions from Commercial Buyers

Which mounting-face points distinguish the specified 10R-0392 version during a CAT 3116 branch inspection?

Place the removed starter and 10R-0392 on the same mounting-face orientation. Compare Ø89 locating diameter, Ø126 mounting-hole circle, the 3 × Ø11 mounting holes and the 47 mm distance to drive gear. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

Which electrical conditions can imitate a failed 10R-0392 starter motor in a CAT 3116 branch workshop?

Before fitting 10R-0392, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

Which details separate 10R-0392 from similar starters used around Caterpillar 3116 engine during branch sourcing?

For 10R-0392, ask the workshop for the removed starter label and the exact equipment record. Match 12V, 4.5kW, 10T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Can a purchasing team consolidate every 10R-0392 reference into one stock line in a CAT 3116 branch sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use 10R-0392, 0R0392, 6V4237, 7X5987, 9X1490 to locate possible matches, then confirm 12V, 4.5kW, 10T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

Which usage records improve purchasing decisions for 10R-0392 in a CAT 3116 branch program?

Review workshop consumption by the stated Caterpillar 3116 engine population instead of pooling every visually similar starter. Record monthly issues, lead-time exposure and the reserve required at each branch. That information supports a practical 10R-0392 reorder point and avoids holding the wrong drive-end version as emergency stock.

How should incoming 10R-0392 units be sampled before shelving during a CAT 3116 branch receiving check?

Use a first-lot sample to confirm 10R-0392, 12V, 4.5kW, 10T and CW. Inspect the mounting face, terminals and protective packing, then retain the lot reference and images. This gives warehouse and sales teams a shared record before units are distributed to branches or workshops.

What makes the fleet quotation for 10R-0392 ready for review in a CAT 3116 branch sourcing program?

List 10R-0392 together with the supported equipment record, 12V, 4.5kW, 10T and CW. Send old-unit photos, order volume, destination and requested timing, plus any private-label or staged-delivery requirement. This keeps the technical selection and the commercial offer aligned from the first response.

What records support an after-sales review of 10R-0392 in a CAT 3116 branch review?

For 10R-0392, provide the delivery lot, installation date, operating hours and a clear fault description. Include photographs of the label, pinion, mounting face and terminals, together with battery and voltage-drop results under cranking load. These records help separate product condition from application, installation, electrical-system or transport-related causes.

10R-0392 Send a Starter Motor Distributor Enquiry

For a focused 10R-0392 quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
