128000-7600 Volvo F610 9T Starter Motor Distributor

128000-7600 Volvo F610 9T Starter Motor Distributor Value

For legacy Volvo stock, the most useful sales description combines F610 TD60C with 9T rather than listing only 128000-7600. That wording helps counter staff, warehouse pickers and fleet workshops recognise the requested version before a mixed family of starters reaches the loading area.

The three-hole housing closely resembles an 11T related product. Count the pinion from a clear end view and compare the 47 mm drive position; a shared OE, matching voltage and similar case shape are not enough to justify substituting one version for the other.

128000-7600 Volvo 9T Starter Motor Specifications and Drawing

This unit uses 24V, 4.5kW, 9T, module 3 and clockwise rotation. These values should appear together on distributor offers, item labels and packing lists so the pinion distinction remains visible throughout the transaction.

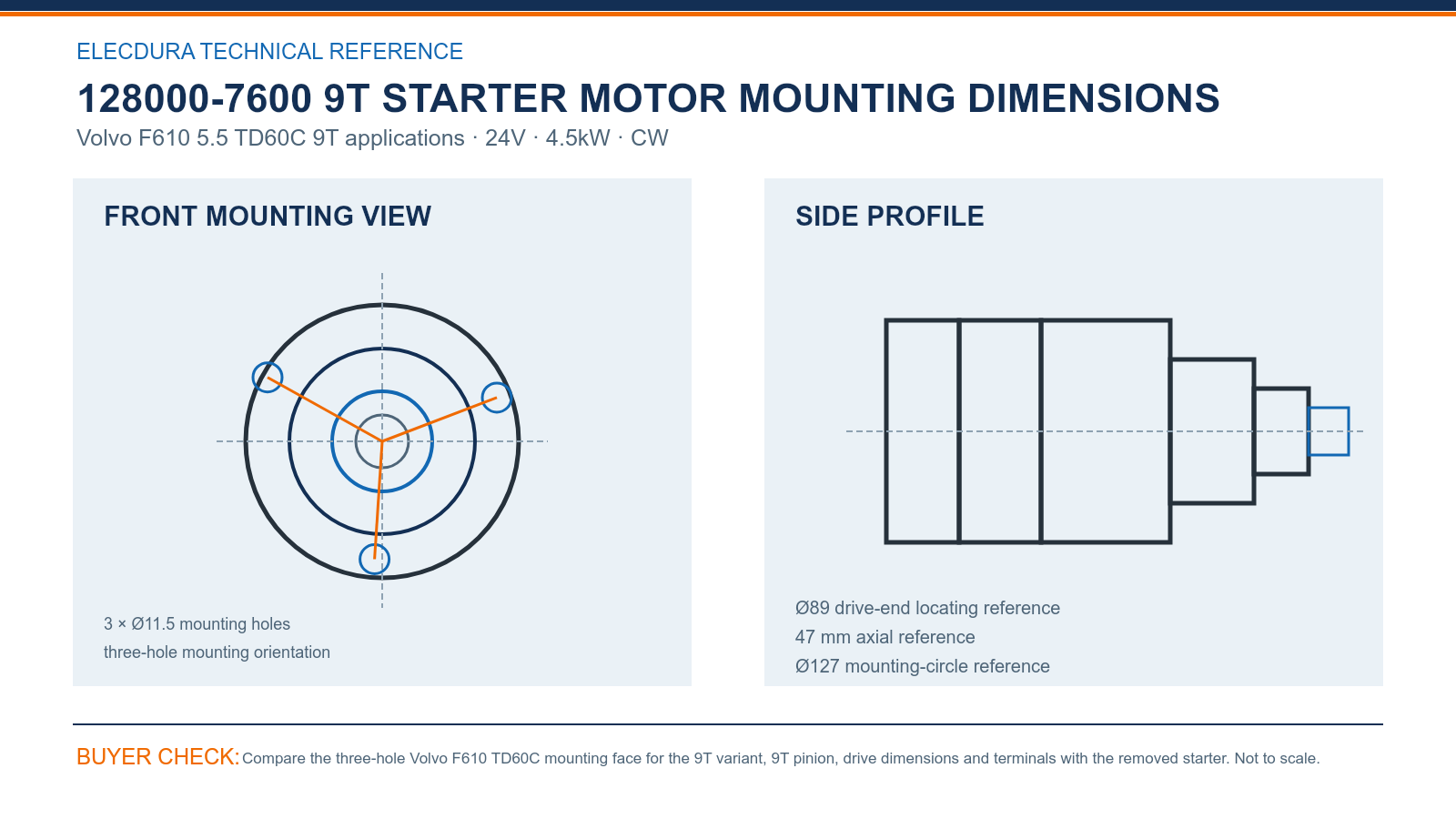

128000-7600 9T Starter Dimensions for Volvo F610 Distributor Supply — compare the drawing with the removed starter before placing a volume order.

Confirm three Ø11.5 holes, the Ø127 mounting circle, Ø89 locating reference and 47 mm axial position. Matching the flange establishes the housing family, while the visible nine-tooth count proves which drive version belongs in the order.

128000-7600 Volvo F610 Pinion and Fitment Checks

Use 128000-7600 through 128000-7602, 1676822, 420760, STB1443MN and 19789N as the search group. Add 9T and Volvo F610 TD60C on every RFQ because the same numbers also appear beside other tooth counts.

Warehouses should create a dedicated 9T item and photograph the pinion on the product record. If a fleet operates several TD60C vehicles, keep the confirmed old-unit images with each customer account before combining annual quantities for replenishment.

128000-7600 Volvo 9T Starter Motor Export Supply Support

Mixed Volvo shipments need separate 9T and 11T carton marks, line quantities and pallet positions. Protect the drive and terminals equally, but make the tooth count visible without opening the box so receiving teams can place each unit in the correct bin.

The factory video below presents Elecdura starter assembly and electrical testing for wholesale buyers. It supports supplier assessment while the Volvo distributor retains responsibility for clear 9T labeling, physical comparison, export packing and branch allocation.

128000-7600 Starter Motor FAQs for B2B Buyers

What is the first check for the 9T Volvo F610 variant?

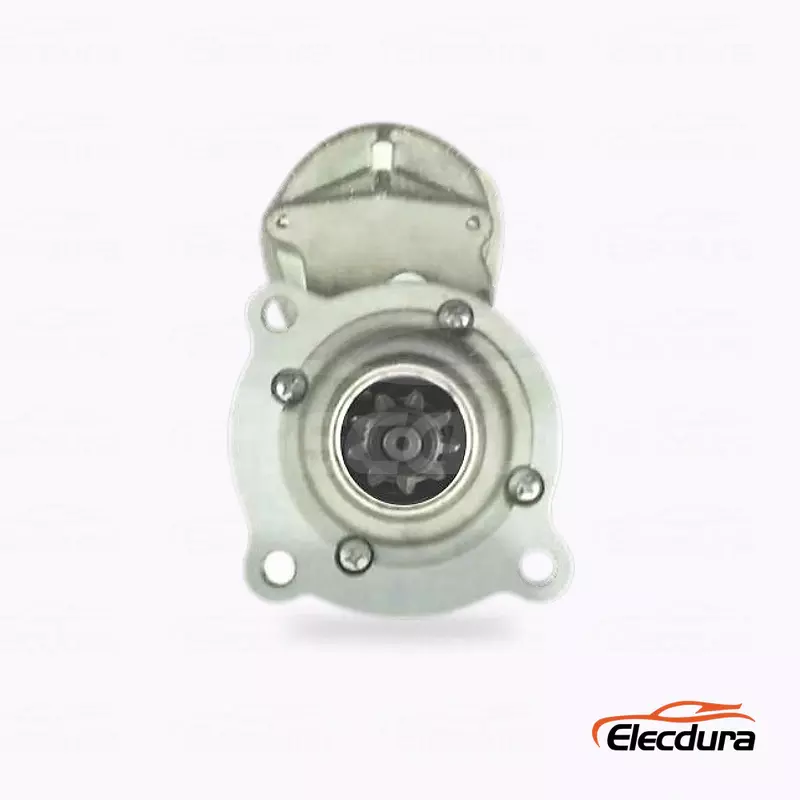

Count all nine pinion teeth from a clear end view and state 9T on the enquiry. Keep module 3 and clockwise rotation with the photograph. The shared 128000-7600 number and similar three-hole housing cannot determine the drive version, so Elecdura reviews the pinion before discussing a substitute or volume order.

Why is 128000-7600 alone not enough for this product?

The reference family appears across several tooth counts and more than one mounting construction. Add the actual 9T count, F610 TD60C identity, three-hole flange and 47 mm drive position. This complete description lets purchasing use the OE for search without allowing it to override the physical version required by the vehicle.

Which housing dimensions accompany the 9T pinion?

The 9T product uses three Ø11.5 mounting holes on the Ø127 reference circle, an Ø89 locating diameter and a 47 mm axial position. Compare these values with a square old-unit image. Matching the three-hole housing does not prove the pinion, so the nine-tooth photograph remains a separate required check.

What should a fleet retain for repeat 9T orders?

Keep the Volvo F610 and TD60C details, accepted nine-tooth and mounting photographs, complete OE group and previous delivery lot with the purchase history. Refer to that package on replenishment. If a new vehicle supplies an 11T old unit, create a separate request rather than changing the existing 9T product description.

How can warehouses reduce 9T and 11T picking mistakes?

Give the 9T starter its own item code, bin and barcode, print 9T prominently on every carton, and attach a clear pinion image to the picking screen. When mixed variants arrive, keep pallets separated until checking is complete. A picker should never choose the product from 128000-7600 alone.

What should the workshop compare before installing the 9T starter?

Compare the nine-tooth pinion and three-hole flange directly with the removed unit, confirm the locating face seats correctly, and verify that cables reach the intended studs without strain. Inspect the ring gear if the old starter showed abnormal engagement. These checks reduce the chance that a shared OE hides a drive mismatch.

How should the 9T starter be packed when 11T units ship too?

Use separate cartons with 9T visible beside the full OE and protect the pinion from impact. Place 9T and 11T quantities on different packing-list lines and, where possible, different pallet rows. Destination receiving can then count and store each version without opening every carton or relying on housing appearance.

How will the distributor offer identify the 9T product?

Elecdura's offer will state Volvo F610 TD60C, 128000-7600, 9T module 3 and the reviewed three-hole 47 mm configuration before listing price, quantity basis, lead time, packing and delivery terms. Any unresolved photograph or measurement will be identified clearly so the buyer does not confuse the offer with an 11T version.

Request 128000-7600 Volvo F610 9T Distributor Pricing

Send the F610 and TD60C details, a straight photograph showing all nine pinion teeth, three-hole flange and terminal views, required quantity, packing needs and destination to info@elecdurauto.com. Elecdura will review the 9T version and provide distributor pricing and supply timing.
