199-2334 Caterpillar Cub Cadet Starter Motor Wholesale

199-2334 Starter Motor Wholesale for Caterpillar and Cub Cadet Equipment

Caterpillar and Cub Cadet buyers may use different names for the same Mitsubishi-based reference group. A quotation should include the machine model, year range and 199-2334 identity before quantities are combined.

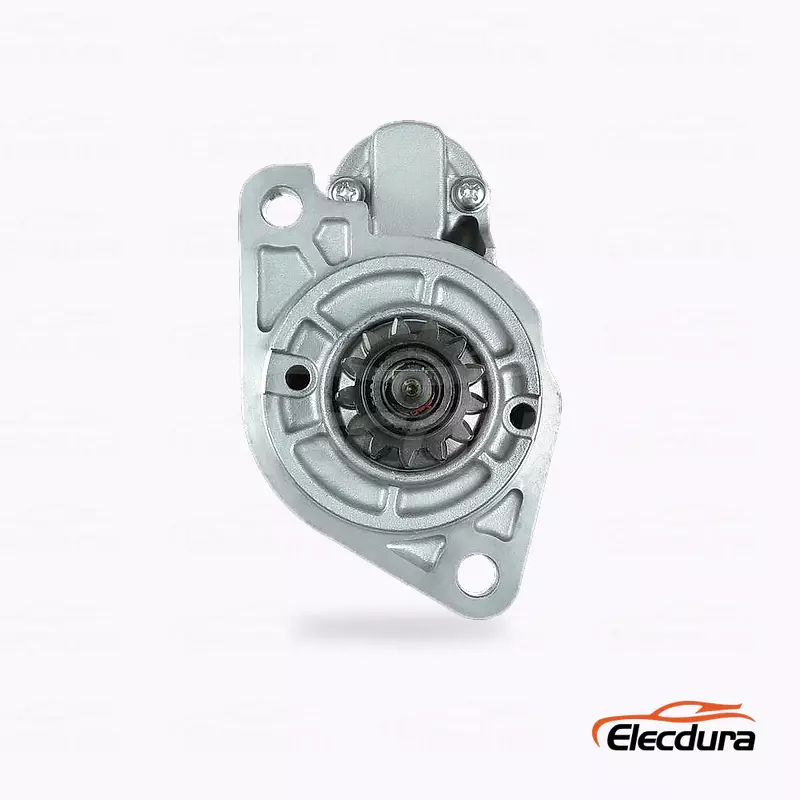

The 13T pinion, compact PMGR body and two-hole face should be compared with the removed starter. Caterpillar equipment outside the listed period may use a nearby reference with another flange or drive position.

199-2334 Starter Motor PMGR Dimensions for Parts Buyers

The product is specified as 12V, 1.7kW, 13T, module 2.54 and CW. Keep the full set on purchasing and receiving labels so the compact unit remains separate from heavier Caterpillar starters.

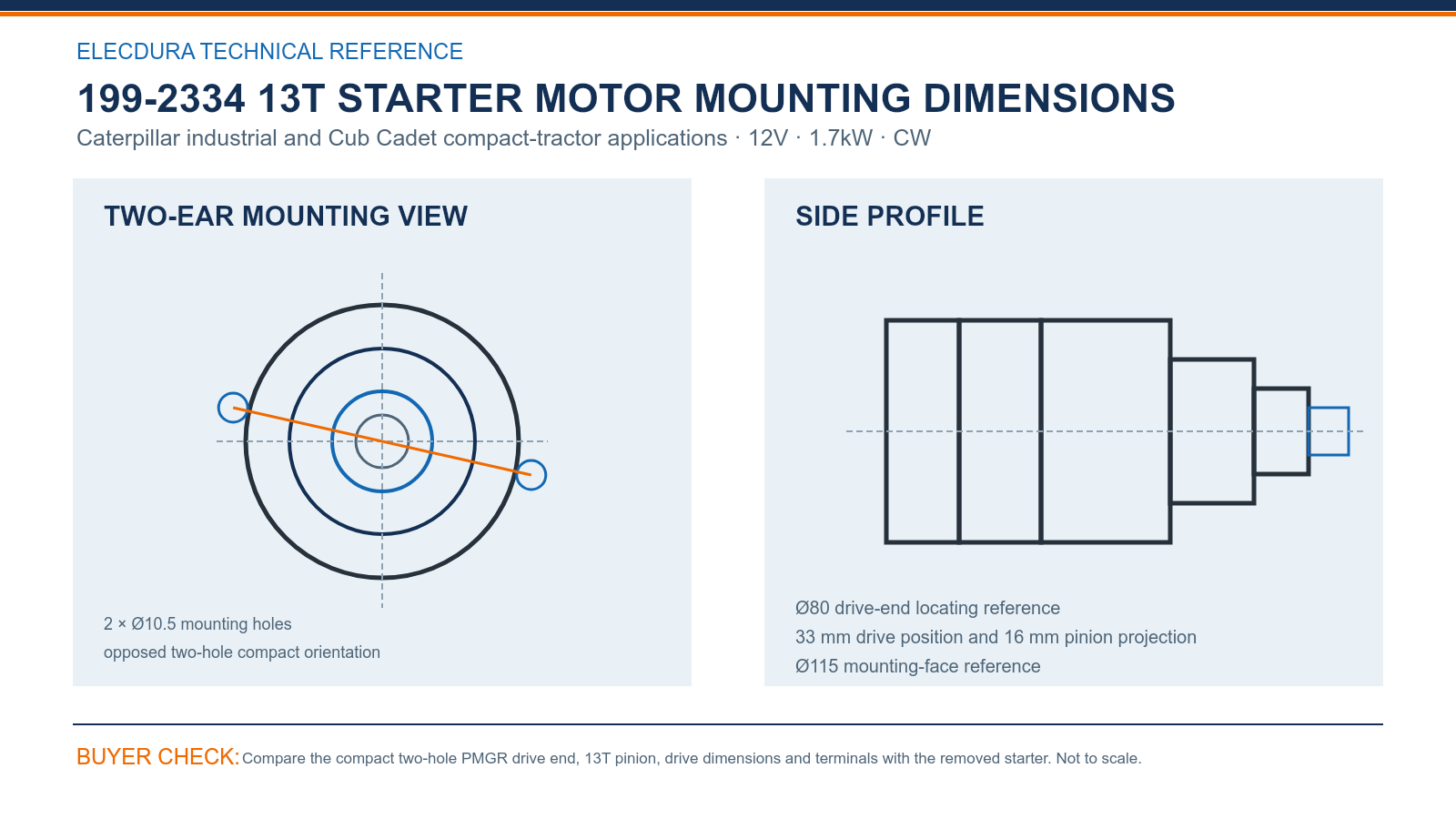

199-2334 Caterpillar Cub Cadet Starter Dimensions for Wholesalers — compare the drawing with the removed starter before placing a volume order.

Check the Ø115 face, Ø80 locating section, two Ø10.5 holes, 33 mm drive position and 16 mm projection. A straight front image should show both ears and the terminal-side view should capture cable clearance.

199-2334 Starter Motor Cross-References for Caterpillar Wholesalers

199-2334 connects with M001T68281/68282, M1T68281/68282, S5211, Cargo 113995 and WAI 19975N. Add the Caterpillar or Cub Cadet model and year whenever a cross-reference drives the enquiry.

Stock can be shared after the machine, year and compact mounting form match. Keep Caterpillar industrial demand separate from Cub Cadet tractor demand in forecasts even when both use the same confirmed physical product.

199-2334 Starter Motor Receiving Checks for Compact Fleet Stock

Receiving should count thirteen teeth, verify the 1.7kW label and inspect the compact two-ear housing. Protect both ears and the pinion from impact when cartons are shipped to small-equipment dealer branches.

Elecdura's production video introduces starter assembly and electrical testing. Caterpillar and compact-tractor buyers can pair it with model-year screening, sample checks and branch-stock planning for 199-2334.

199-2334 Starter Motor FAQs for Caterpillar and Cub Cadet Buyers

Why should the machine year accompany 199-2334?

The listed Caterpillar and Cub Cadet applications cover defined production periods. A model and year help the buyer avoid extending the compact starter to equipment outside that supported range. For Caterpillar industrial and Cub Cadet compact-tractor applications, the RFQ should keep 199-2334, 12V, 1.7kW, 13T, module 2.54 and CW on one purchasing line.

What identifies the compact PMGR product?

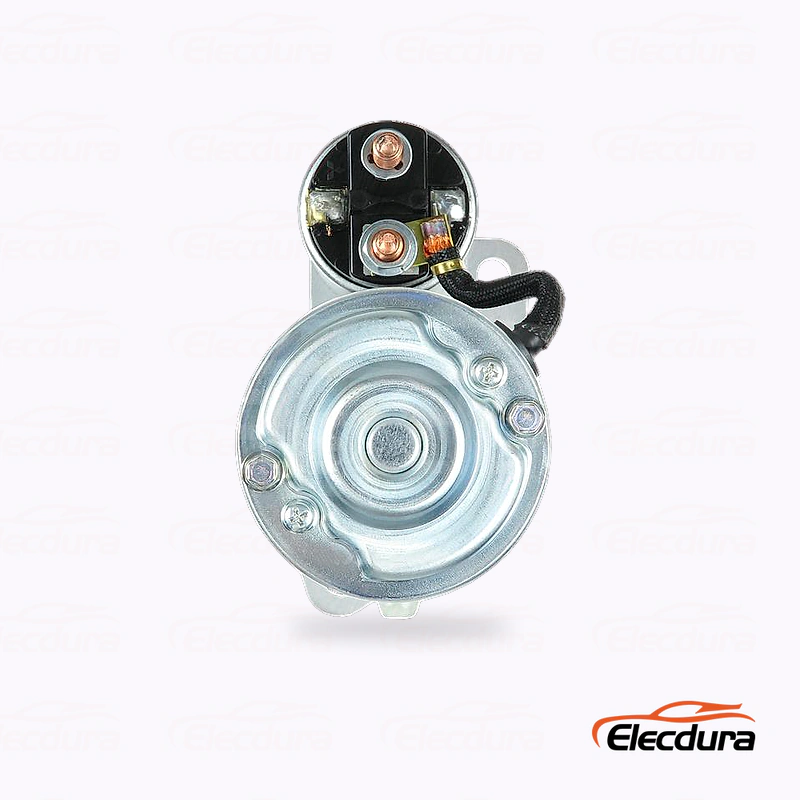

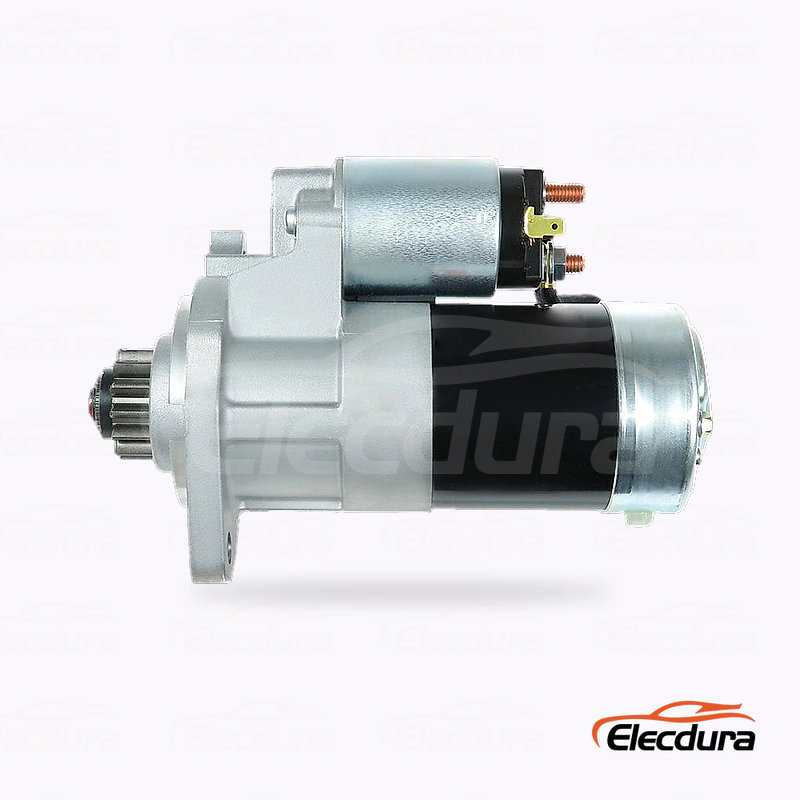

Use 12V, 1.7kW, 13T and the two-hole compact housing together. A straight side image should show the body length, solenoid position and cable clearance. Before Caterpillar industrial and Cub Cadet compact-tractor applications stock is picked or received, warehouse staff should see the 1.7kW version and 199-2334 identity together.

Which dimensions should be checked before volume supply?

Compare the Ø115 face, Ø80 locating section and two Ø10.5 holes. Confirm the 33 mm drive position and 16 mm pinion projection against the removed starter. A shared-stock decision is valid only for the supported caterpillar industrial and cub cadet compact-tractor applications shown by the retained records.

How do M001T68281 and M001T68282 support sourcing?

They identify the Mitsubishi reference family connected to Caterpillar 199-2334. Keep the machine model, year and accepted PMGR image attached whenever either number is quoted. Those checks give receiving a repeatable physical baseline for the 199-2334 product serving Caterpillar industrial and Cub Cadet compact-tractor applications.

Can Caterpillar and Cub Cadet demand share inventory?

They can share one confirmed item after model year, mounting and terminal details match. Track the two customer groups separately so replenishment reflects actual equipment populations. For Caterpillar industrial and Cub Cadet compact-tractor applications, cross references widen sourcing while the accepted 199-2334 application and product images guide selection.

What should receiving inspect on compact starter cartons?

Count thirteen teeth, read the 1.7kW label and inspect both mounting ears. Check terminal caps and pinion protection before transferring units to equipment dealers. The Caterpillar industrial and Cub Cadet compact-tractor applications shipping record should preserve the 199-2334 label, destination allocation and inspected product version.

Which machine checks should precede installation?

Test the 12V battery under load and measure voltage drop through both cables. Verify start-signal voltage and inspect the ring gear so a wiring fault does not cause a repeat complaint. For Caterpillar industrial and Cub Cadet compact-tractor applications, diagnostic evidence protects the buyer and supplier from a return caused by the vehicle electrical system.

What should a 199-2334 enquiry include?

Provide model, year, engine, full old-unit reference, photographs and requested quantity. Add destination, packing preference and delivery target for a useful wholesale response. Elecdura can then review the exact 199-2334 configuration for Caterpillar industrial and Cub Cadet compact-tractor applications and propose suitable supply terms. State 199-2334 and Caterpillar industrial and Cub Cadet compact-tractor applications in the enquiry notes so the response remains tied to this product version.

Request 199-2334 Caterpillar Starter Motor Wholesale Pricing

Email the Caterpillar or Cub Cadet model, year and engine, complete old-unit number, face and terminal photographs, quantity and destination to info@elecdurauto.com. Elecdura will compare 199-2334 and prepare wholesale pricing.
