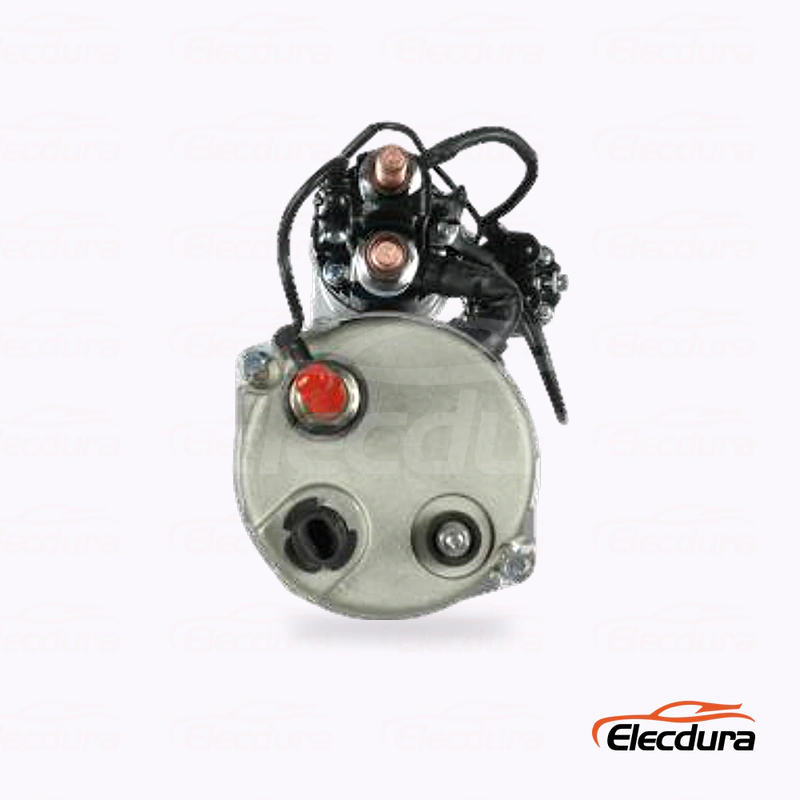

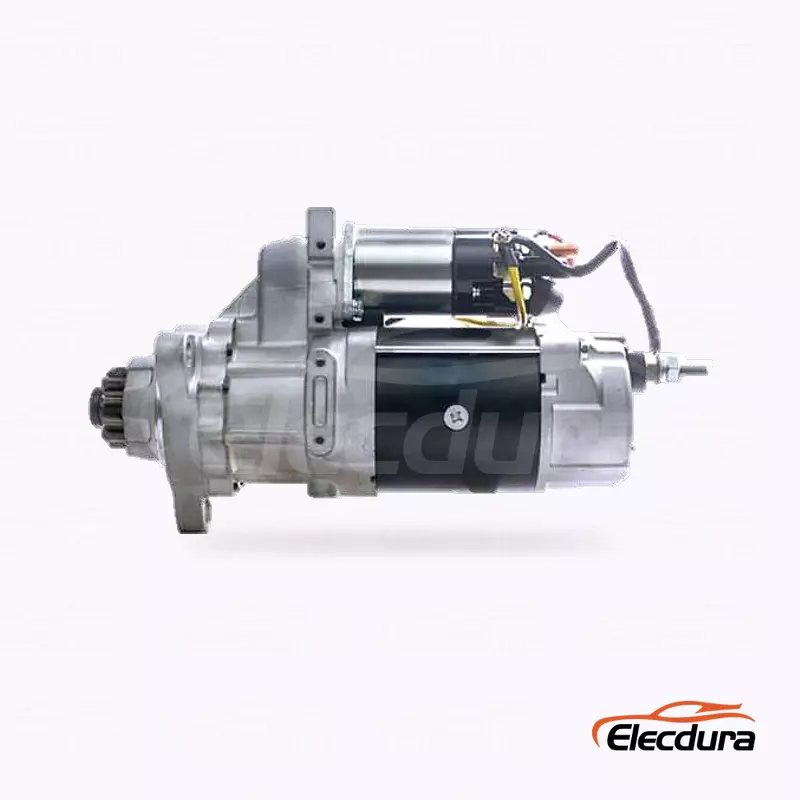

1990402 Cummins 8.0kW Starter Motor Wholesale Supply

1990402 Starter Motor Distributor Application Guide for Caterpillar agricultural and industrial equipment with Cummins engines

For a fleet parts team, 1990402 identifies one Caterpillar agricultural and industrial equipment with Cummins engines requirement. The supplier-defined 24V 8.0kW 12T module-3.175 unit for the 1990402 equipment record provides a clear fitment boundary for sample, stock and replacement reviews.

A useful enquiry pairs 1990402 with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

1990402 Starter Motor Mounting Dimensions for Distributor Approval

Use the 1990402 technical drawing to check Ø92 locating diameter, 47 mm distance to drive gear and Ø146 mounting-hole circle. Add the 3 × Ø16.5 mounting holes to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

Complete the 1990402 comparison with 24V, 8.0kW, the 12T drive, module 3.175 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

1990402 Starter Motor Reference Group for Wholesale Sourcing

• Use the full number: Start with 6823, 6836, 1990402, 1990413, 1993796, 8200435, retaining prefixes, suffixes and separators in the RFQ.
• Release the 8.0kW configuration: Approve 24V, 8.0kW, 12T and CW together with the Cummins application, mounting drawing and terminal photographs before ordering.

1990402 Starter Motor Distributor Stock and Delivery Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For 1990402, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

Use 1990402, the exact equipment record and required output together when approving supply. Once that boundary is fixed, purchasing can separate urgent units from routine replenishment and define branch quantities, stock labels and freight timing without encouraging an unverified substitute.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for 1990402; the product decision itself still depends on the complete reference, 24V 8.0kW rating, drive end, mounting face and terminal layout.

1990402 Starter Motor Questions from Commercial Buyers

Which checks should follow an OE-number match for 1990402 in a Cummins 8.0kW branch sourcing program?

A 1990402 match begins approval; keep the 8.0kW unit separate from lower-output starters in the same reference family. For 1990402, compare the stated application, electrical output, 12T drive, mounting geometry and terminal side. List each Cummins or Delco reference separately and attach its old-unit image so a different output or housing receives its own quotation.

How should Caterpillar distributors plan stock for 1990402 in a Cummins 8.0kW branch program?

Segregate the 8.0kW stock line through quotation, warehouse labeling and repeat-order review. Base Cummins 8.0kW stock on active machine population, seasonal duty, recent failure demand and transfer time between service points. Elecdura can use that demand profile to split validation units, urgent replacements and scheduled replenishment, then align packing and dispatch dates with the buyer’s plan.

How should a fleet workshop verify 1990402 against the removed starter during branch sourcing?

For 1990402, begin with the machine, truck or engine identification, then read the full old-unit label. The physical check should cover 12T, Ø146 mounting-hole circle, Ø92 locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item, even when an application description overlaps.

Which electrical conditions can imitate a failed 1990402 starter motor in a Cummins 8.0kW branch workshop?

Before fitting 1990402, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

How does the 1990402 mounting drawing support product approval during a Cummins 8.0kW branch inspection?

For 1990402, use a straight front view to compare the 3 × Ø16.5 mounting holes and Ø146 mounting-hole circle; use the side view for Ø92 locating diameter and 47 mm distance to drive gear. Complete the check with 12T, CW and terminal orientation. This combination is more reliable than an angled overall photograph alone.

Which physical points should be checked before 1990402 enters branch stock during a Cummins 8.0kW branch receiving check?

For 1990402, match carton and product labels to the purchase order, then sample 24V, 12T, 3 × Ø16.5 mounting holes and terminal protection. Check the flange and pinion for shipping damage. Record lot numbers and arrival photographs, and isolate any different configuration before it is placed in saleable stock.

Which order conditions should be stated when asking about 1990402 in a Cummins 8.0kW branch sourcing program?

A useful RFQ states 1990402, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

Which test results help investigate a returned 1990402 starter in a Cummins 8.0kW branch review?

For a service review of 1990402, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

1990402 Send a Starter Motor Distributor Enquiry

For a focused 1990402 quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
