2071513 CAT 3126 Western Star Starter Motor Distributor

2071513 Starter Motor Wholesale Application Support for Caterpillar 3126 and Western Star heavy-duty truck

For Caterpillar 3126 and Western Star heavy-duty truck, 2071513 gives distributors a focused starting point for quotation and branch inventory. Confirm 12V, 4.5kW, 12T and CW, with particular attention to 2071513-labelled configuration with a visibly different unit and lead arrangement, before combining demand from different fleets or workshops.

Separate different old-unit numbers from the 2071513 enquiry and attach images for each configuration. State which line is a sample and which is a replenishment quantity, together with destination and timing. This gives the quotation a practical fitment boundary and a realistic packing and delivery plan.

2071513 Starter Motor Mounting Reference for Commercial Buyers

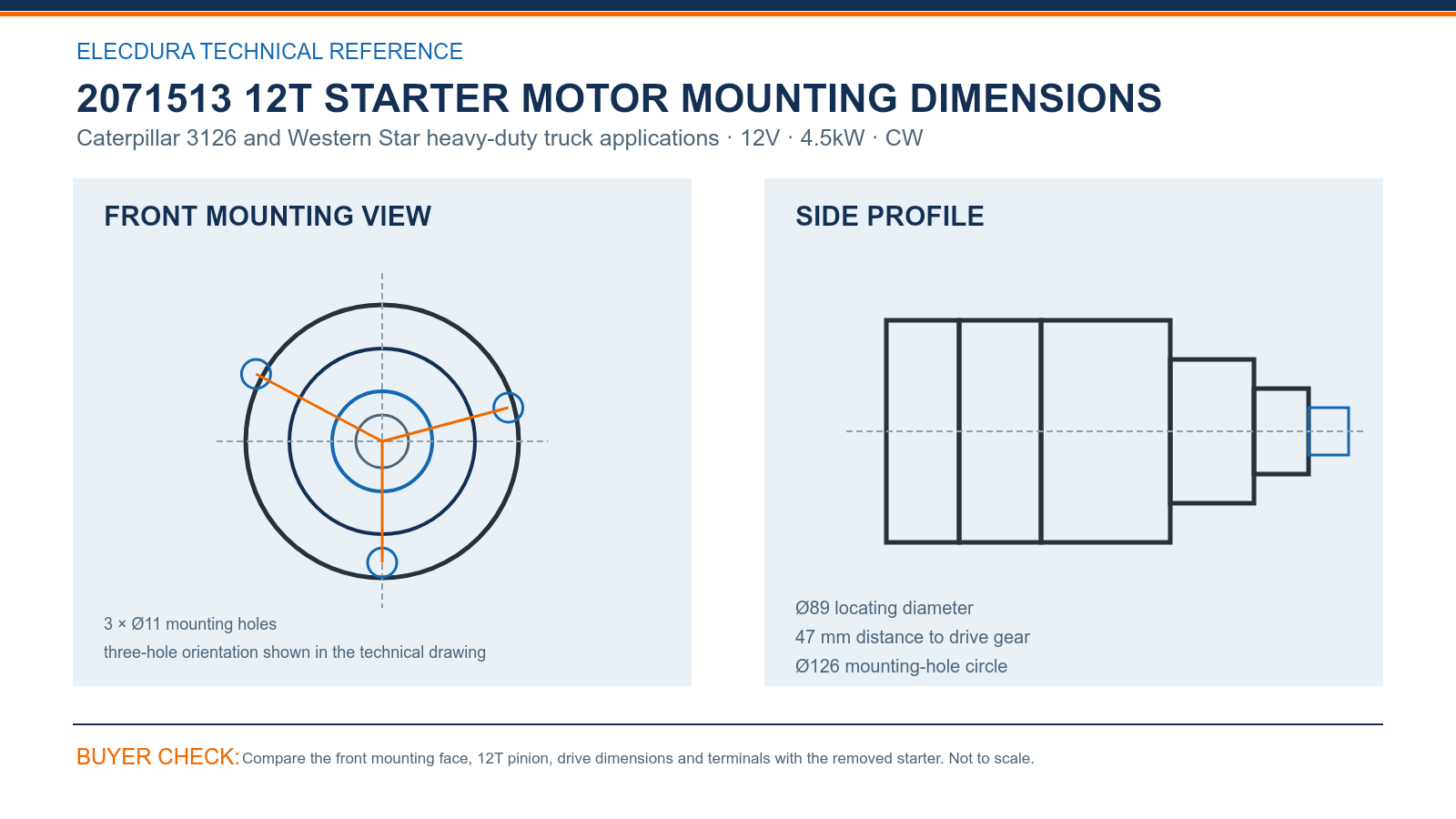

2071513 Caterpillar 3126 Western Star 12V 4.5kW 12T starter dimensions.

Check the 2071513 drawing against the removed starter at the mounting face and drive end. The critical references are 3 × Ø11 mounting holes, Ø89 locating diameter, Ø126 mounting-hole circle and 47 mm distance to drive gear. A physical mismatch should stop the unit from entering ordinary stock until the application is clarified.

The 2071513 drive-end decision is completed by 12T, module 3.175 and CW, together with 12V and 4.5kW. Confirm main-terminal and control-terminal positions under the actual cable routing. Similar dimensions do not compensate for the wrong rotation, pinion or electrical rating.

2071513 Starter Motor Cross-Reference Boundary for Importers

The 2071513 cross-reference group includes 2071513, 10R1718, 1757332, 10461431, 10461434, 10461496, 10479206. These numbers improve search coverage across fleets and supplier systems, but they do not replace a check of 12V, 4.5kW, 12T, CW, mounting geometry and terminals.

If a mixed 2071513 enquiry contains different pinions, drive positions or connector layouts, list each complete reference and photograph separately. Elecdura can then return distinct offers instead of placing unlike starters under one broad reference family.

2071513 Starter Motor Wholesale Ordering and Export Support

Elecdura can prepare 2071513 orders for regional inventory, fleet workshops or industrial service demand. The standard starting point is 20 pieces, normally 7–15 days after order confirmation, with an 18-month warranty under agreed terms and packing selected for the destination and shipment method.

Buyers can state service urgency, supported equipment count and expected monthly use in the same RFQ. Elecdura can then discuss stock, production, packaging and staged delivery while maintaining the specified 2071513 drive end and electrical rating throughout the order.

For supplier evaluation, the video presents Elecdura starter-motor assembly and testing. A 2071513 order should still be released against the complete OE number, Caterpillar 3126 and Western Star heavy-duty truck details, electrical specification and physical comparison, giving purchasing both capability information and a clear product boundary.

2071513 Starter Motor Questions from Commercial Buyers

How should buyers use the 2071513 cross-reference group in a CAT 3126 Western Star service-network sourcing program?

A number match narrows the search but does not finish it. For 2071513, compare the stated application, electrical output, 12T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

How should a buyer compare the old unit with the 2071513 technical image during a CAT 3126 Western Star service-network inspection?

For 2071513, sample the 3 × Ø11 mounting holes, Ø89 locating diameter, Ø126 mounting-hole circle and 47 mm distance to drive gear. Count the 12T pinion and photograph the terminal side in the same inspection. These points can be checked without dismantling the unit and give receiving teams a practical comparison with the approved sample.

How can an importer avoid mixing 2071513 with a similar drive-end version during service-network sourcing?

For 2071513, begin with the machine, truck or engine identification, then read the full old-unit label. The physical check should cover 12T, Ø126 mounting-hole circle, Ø89 locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item, even when an application description overlaps.

Before removing 2071513, what should the workshop test under load in a CAT 3126 Western Star service-network workshop?

Before fitting 2071513, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

What should an importer include in the replenishment forecast for 2071513 in a CAT 3126 Western Star service-network program?

Build the forecast around actual equipment counts, failure history and the time needed to replenish each service location. For 2071513, keep the specified pinion and mounting interface visible in the stock record. This reduces emergency substitutions and gives purchasing a clearer basis for MOQ, packing and delivery discussions.

What should a warehouse inspect when 2071513 starter motors arrive during a CAT 3126 Western Star service-network receiving check?

For 2071513, match carton and product labels to the purchase order, then sample 12V, 12T, 3 × Ø11 mounting holes and terminal protection. Check the flange and pinion for shipping damage. Record lot numbers and arrival photographs, and isolate any different configuration before it is placed in saleable stock.

What information should accompany a distributor RFQ for 2071513 in a CAT 3126 Western Star service-network sourcing program?

A useful RFQ states 2071513, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

What evidence separates an electrical-system fault from a concern involving 2071513 in a CAT 3126 Western Star service-network review?

For a service review of 2071513, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

2071513 Email for Starter Motor B2B Pricing

A complete RFQ for 2071513 should state the application, removed-unit number, physical photographs, quantity, destination and delivery target. Send these details to info@elecdurauto.com for a direct response on the correct 12V 4.5kW 12T CW starter, MOQ, packaging, warranty and shipping choices.
