28100-56110
28100-56110 / 028000-7840 / 028000-7841
Elecdura
Available for qualified orders
20 pcs
7 - 15 Days
Neutral packaging / private-label review
18 Months
28100-56110 / 028000-7840 / 028000-7841
Toyota Land Cruiser 3.4 applications using the 28100-56110 starter family
Confirm 12V, 2.5kW, 11T, CW, 3 mounting positions: 1 × Ø12 upper hole and 2 × Ø14 lower holes, Ø105 drive-end locating reference, 18 mm and 13 mm axial references, mounting orientation and terminal layout against the removed starter before volume supply.
| Quantity: | |
|---|---|
Older Land Cruiser inquiries frequently begin with a restored vehicle, a rebuilt starter or a worn label. The correct buying line should keep 28100-56110, the 3.4 application and the 11T drive together instead of relying on the familiar Toyota housing shape.
Ask the workshop for the chassis, market, engine details and photographs from the front, side and terminal end. Elecdura can compare those points with the three-point mounting face and give the distributor a clear basis for stocking a lower-volume classic 4x4 item.
Primary OE reference | 28100-56110 |
Target application | Toyota Land Cruiser 3.4 applications using the 28100-56110 starter family |
Voltage and output | 12V / 2.5kW |
Pinion, module and rotation | 11 teeth / module 3 / CW |
Mounting-hole reference | 3 mounting positions: 1 × Ø12 upper hole and 2 × Ø14 lower holes; 80° and 27.5° mounting-angle references |
Drive-end reference | Ø105 drive-end locating reference; 18 mm and 13 mm axial references; Ø148 mounting-circle reference |
OE and cross-reference group | 28100-56110 / 028000-7840 / 028000-7841 |
Wholesale terms | MOQ 20 pcs / normally 7–15 days after order confirmation |
Warranty | 18 months under agreed sales terms |

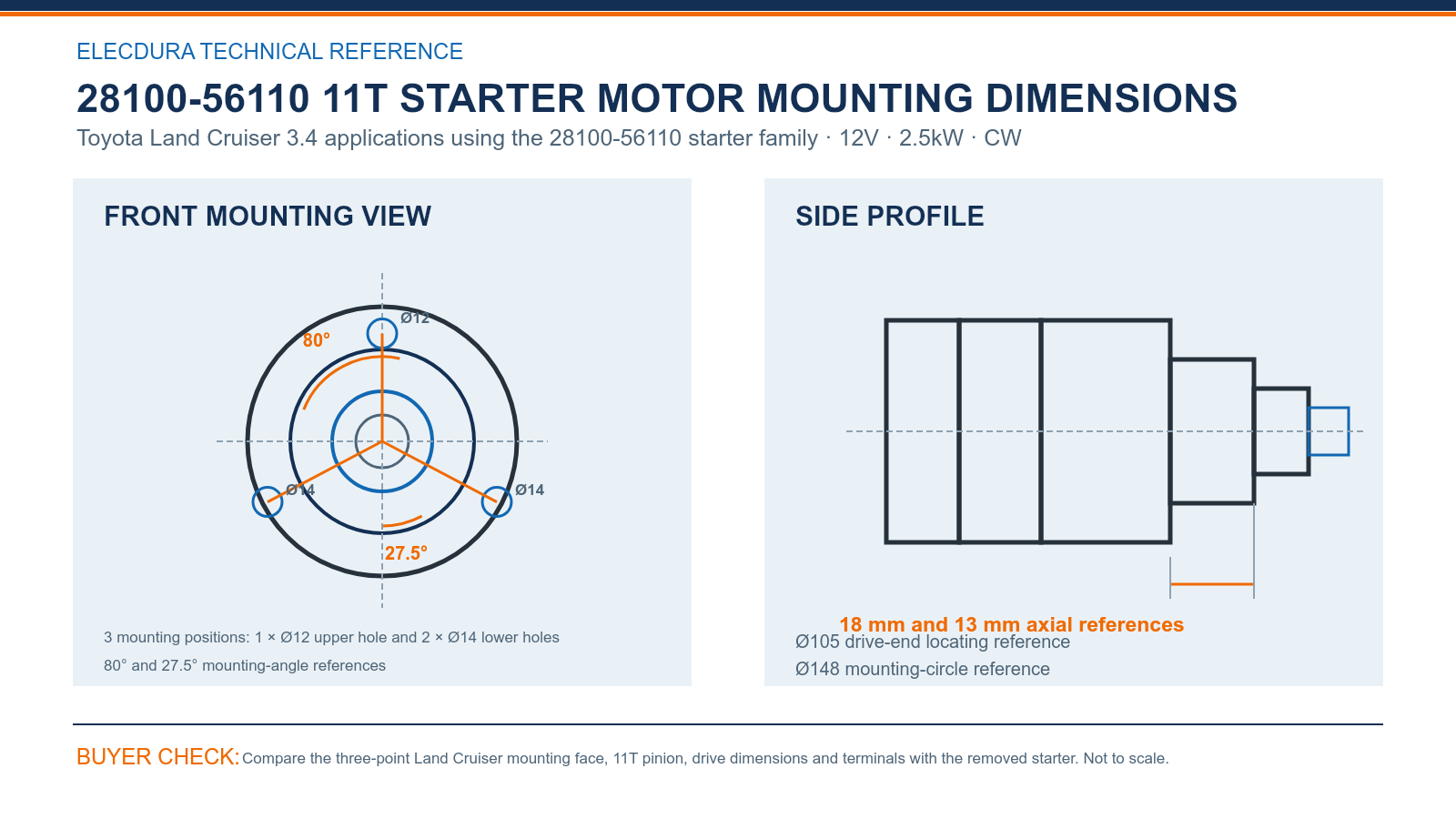

28100-56110 11T starter motor mounting and drive-end dimensions for buyer-side comparison.
The 28100-56110 mounting face uses one Ø12 upper hole and two Ø14 lower holes on an Ø148 circle. The 80° and 27.5° references, Ø105 locator and 18 mm and 13 mm axial points give restoration suppliers specific checks for the drive-end casting.
Use the drawing with straight photographs of the removed starter and confirm the 11-tooth pinion at rest. Terminal reach and cable routing matter on an older vehicle where previous repairs may have changed the starting system.
Denso 028000-7840 and 028000-7841 support the OE trail for 28100-56110. Preserve the complete number and any suffix on the old unit, because restoration vehicles may already contain a rebuilt or regionally substituted starter.
Identify the vehicle chassis and 3.4 application.
Count the 11T pinion and confirm clockwise rotation.
Compare the three mounting points and terminal reach before placing the order.
Classic 4x4 demand is often irregular, so a dealer may begin with a small replenishment quantity and retain the successful vehicle details for future sales. Elecdura can discuss neutral cartons and customer labels when the product identity and expected annual usage are defined.
Protect the drive and mounting ears during freight, then inspect the complete OE, 11T pinion and terminal condition on arrival. A low-volume item should still have enough receiving detail to prevent a similar Toyota starter entering the same shelf position.
The video shows Elecdura starter-motor assembly and electrical testing. Send the Land Cruiser chassis, 3.4 application details, complete old-unit number, photographs, quantity and destination for a focused supply reply.
Treat 028000-7840 and 028000-7841 as supporting Denso references for the Toyota OE. Keep the complete number found on the removed unit and confirm the Land Cruiser chassis, 12V, 2.5kW, 11 teeth, module 3 and clockwise rotation. The reference history is useful, but the face and terminal checks still define the supplied unit.
Confirm that the Ø105 locating surface seats freely, all three bolts align and the cable ends reach without extension or strain. Check smooth 11-tooth engagement, normal release and cranking voltage after installation. Retain photographs of the vehicle, labels and cable routing so later sales can use the same verified Land Cruiser configuration.
Measure one Ø12 upper hole and two Ø14 lower holes on the Ø148 circle, together with the 80° and 27.5° orientation references. Check the Ø105 locator and 18 mm and 13 mm axial points. These dimensions are particularly useful when a rebuilt unit has lost its label but still retains the original nose casting.
Provide the chassis code or VIN, market, production year and available 3.4 application information. Add the complete starter label, a square face image, side profile, pinion count and terminal photograph. Older vehicles may have received previous electrical changes, so combining vehicle and physical information gives a better purchasing basis than the model name alone.
Begin with a quantity that reflects actual classic 4x4 demand and retain the chassis and old-unit details from successful sales. Mark the bin with the full OE, 11T and the mixed Ø12/Ø14 mounting face. Review usage before expanding inventory so another Toyota starter is not merged into a slow-moving restoration line.
Use a drive-end protector, terminal caps and internal support that prevents movement inside the carton. Inspect the mounting ears and pinion after long-distance transport, especially in mixed export shipments. If customer labels are required, keep 28100-56110 and the 11T identity prominent so the receiving dealer can verify the unit quickly.
Check battery capacity, voltage drop across positive and ground cables, terminal condition, switch signal and engine mechanical resistance. A new starter cannot correct a weak supply circuit or poor ground. Share measured values and installation photographs with the distributor before treating the 28100-56110 unit as the source of the continuing symptom.
Send the complete Toyota or Denso number, Land Cruiser chassis and market, 3.4 application details, old-unit images, confirmed 11T drive, requested quantity, delivery country, target date and carton preference. Elecdura can then state the specified configuration, MOQ, normal lead time, warranty and available export packing without relying on a generic 4x4 description.
Send 28100-56110 or the full Denso number, Land Cruiser chassis and market, 3.4 application details, old-unit label and mounting photographs, quantity, destination and packaging preference. Elecdura will quote the 12V 2.5kW 11T starter for B2B supply.
When the old label is damaged, include direct measurements and clear terminal images so the response can address the actual restored vehicle rather than a broad model assumption.
