3971603 Cummins Fire Pump Starter Motor B2B Supply

3971603 Starter Motor Wholesale Supply for Fire-Pump Engine Distributors, Maintenance Contractors And Facility Operators

For fire-pump engine distributors, maintenance contractors and facility operators, the cost of an incorrect unit includes workshop time, freight, a second removal and maintaining standby-engine readiness between scheduled churn tests. A useful enquiry should therefore begin with 3971603 and Cummins CFP59-F10/F15/F20/F40 and CFP6E-F15/F25 fire-pump engines, then add the complete physical and electrical identity rather than relying on a broad vehicle label.

Send site name, CFP model and serial, starter label, mounting and terminal images, next test date, quantity and delivery address. Elecdura can compare the catalog-defined 12V, 4.0kW, 10T and CW specification with the illustrated drive end, then return product availability and B2B terms suitable for standby readiness.

3971603 Starter Motor Dimensions and Drive-End Checks

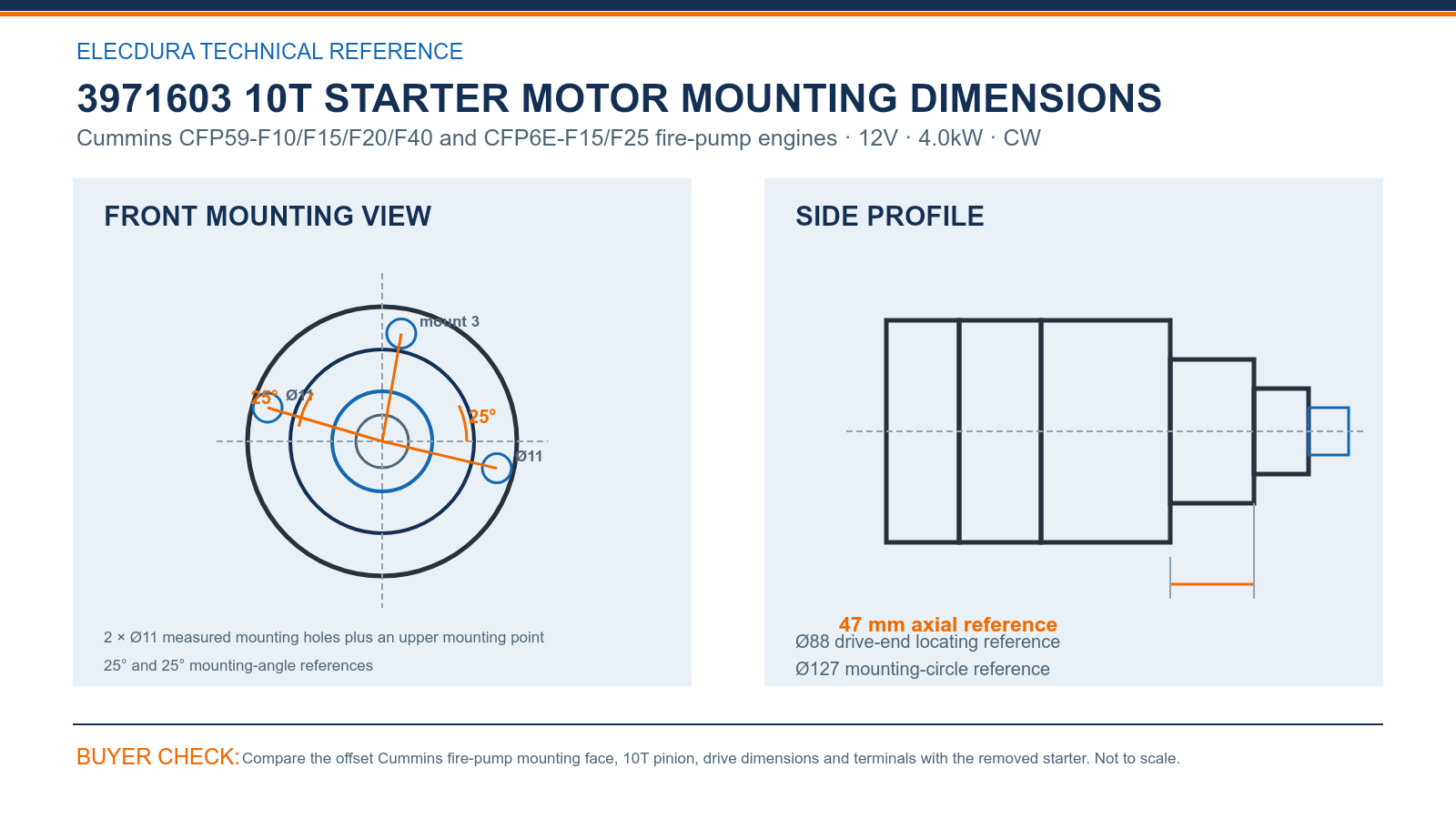

3971603 Cummins 12V 4.0kW 10T starter mounting dimensions for buyer-side comparison.

For standby readiness, the drawing identifies 2 × Ø11 measured mounting holes plus an upper mounting point in a 25° and 25° mounting-angle references. Its Ø88 drive-end locating reference, 47 mm axial reference and Ø127 mounting-circle reference give fire-pump engine distributors, maintenance contractors and facility operators practical bench measurements when the old starter and replacement have similar cylindrical bodies.

Before Cummins CFP59-F10/F15/F20/F40 and CFP6E-F15/F25 fire-pump engines returns to service, count the 10-tooth pinion and confirm module 3.175 with CW rotation. Keep the flange square to the camera and show the terminal side so fire-protection engine service can detect a cable-position or mounting-ear mismatch that a label-only search misses.

3971603 Starter Motor OE References and Sales-Line Boundaries

1. 3971603 reference use: 3971611, 428000-2860/2861, 428000-2880/2881, DSN2015 and DSN2033 can identify related supply channels, while the CFP model remains essential.

2. Commercial context: Include the maintenance deadline, site access constraints and whether the order is an installed replacement or protected standby spare.

3971603 Starter Motor Stock, Receiving and Service Support

Treat installed replacement, on-site spare and contractor pool stock as separate quantities. The required test date should drive shipping priority.

Verify the 10T pinion, Ø88 locating reference, terminal protection and site label before the unit enters the fire-pump spares cabinet. For later standby readiness replenishment, retain the carton identity and shipment lot with the fire-protection engine service record so a buyer can repeat the correct 3971603 configuration without losing the application context.

For standby readiness, the video presents Elecdura starter-motor assembly and electrical testing as one part of supplier assessment. A 3971603 purchase still depends on the named CFP engine, 10T drive, 47 mm axial reference and catalog 12V 4.0kW configuration, together with the quantity, destination and delivery requirement supplied by fire-pump engine distributors, maintenance contractors and facility operators.

3971603 Starter Motor Questions from B2B Buyers

What diagnostic evidence should a fire-pump service contractor collect before ordering 3971603?

Follow the engine maker's cranking checks: battery voltage, battery connections and cranking performance should be reviewed before a starter conclusion is made. Also check the ring gear, terminal torque and the start command during the scheduled test. A record of cranking speed and voltage gives the maintenance contractor a defensible basis for replacement rather than assuming that every failed start originates inside the starter. That record also supports standby readiness across fire-protection engine service.

How should a fire-pump service contractor set the opening stock for 3971603?

Treat installed replacement, on-site spare and contractor pool stock as separate quantities. The required test date should drive shipping priority. Review inspection frequency, criticality and travel time to the facility when deciding where a spare belongs. Elecdura can use that plan to discuss delivery, protected packing and labeling in support of standby readiness, with contractor stock separated from a dedicated site spare. That record also supports standby readiness across fire-protection engine service.

Which receiving points protect 3971603 inventory at a fire-pump service contractor?

Verify the 10T pinion, Ø88 locating reference, terminal protection and site label before the unit enters the fire-pump spares cabinet. Enter the lot number and arrival inspection in the site's maintenance records. If the pinion, face or electrical label differs, keep the unit outside the protected spare cabinet until the discrepancy is resolved before the next required test. That record also supports standby readiness across fire-protection engine service.

What makes a useful 3971603 after-sales report from a fire-pump service contractor?

A technical review should include the CFP model and serial, site, test date, shipment lot, installation history and exact event sequence. Add battery readings, cranking observations and photographs of connections, label, pinion and flange. That evidence lets Elecdura evaluate fitment, supply condition and the standby system context. That record also supports standby readiness across fire-protection engine service.

What business outcome should 3971603 deliver for a fire-pump service contractor?

The business purpose for fire-pump engine distributors, maintenance contractors and facility operators is maintaining standby-engine readiness between scheduled churn tests. A correct starter, known delivery path and traceable site label support readiness better than an unverified spare. Keeping 3971603 linked to Cummins CFP59-F10/F15/F20/F40 and CFP6E-F15/F25 fire-pump engines helps maintenance, purchasing and the engine distributor discuss the same unit. That record also supports standby readiness across fire-protection engine service.

How should a fire-pump service contractor prepare a 3971603 price request?

A fire-pump request needs site name, CFP model and serial, starter label, mounting and terminal images, next test date, quantity and delivery address. Elecdura can relate those site facts to the 12V, 4.0kW, 10T CW catalog configuration and state supply timing. Include the maintenance deadline, site access constraints and whether the order is an installed replacement or protected standby spare. The next churn or service date should be visible from the first message. That record also supports standby readiness across fire-protection engine service.

Which 3971603 drive-end checks matter to a fire-pump service contractor?

Identify 3971603 through the named CFP engine, 10T drive, 47 mm axial reference and catalog 12V 4.0kW configuration. For a bench comparison, use 2 × Ø11 measured mounting holes plus an upper mounting point, Ø88 drive-end locating reference, 47 mm axial reference and Ø127 mounting-circle reference. Photograph the terminal layout as well; a standby engine should not wait until installation day to expose a mounting or cable mismatch. That record also supports standby readiness across fire-protection engine service.

How can a fire-pump service contractor use the 3971603 cross-reference group?

3971611, 428000-2860/2861, 428000-2880/2881, DSN2015 and DSN2033 can identify related supply channels, while the CFP model remains essential. They are useful when contractors, engine distributors and facility records use different part numbers. The CFP model and site identity should remain in the enquiry, because a numerical cross alone cannot describe commissioning conditions or the exact starter position. That record also supports standby readiness across fire-protection engine service.

Request 3971603 Starter Motor Wholesale Pricing

For 3971603 pricing in fire-protection engine service, send site name, CFP model and serial, starter label, mounting and terminal images, next test date, quantity and delivery address. Elecdura will quote the catalog-specified 12V, 4.0kW, 10T CW starter motor with MOQ, lead time, packing, warranty and shipment terms suited to standby readiness.

Include the maintenance deadline, site access constraints and whether the order is an installed replacement or protected standby spare. For fire-pump engine distributors, maintenance contractors and facility operators, any urgent field-down unit should be stated separately so the reply can distinguish immediate availability from scheduled replenishment for standby readiness.
