3E8845 Caterpillar Marine Starter Motor Wholesale

3E8845 Starter Motor Wholesale Fitment for Caterpillar marine engine

Caterpillar marine parts distributors, vessel workshops and export starter buyers use 3E8845 to keep Caterpillar marine engine demand tied to one 24V, 7.5kW, 12T CCW configuration. The practical distinction is the separate 24V 7.5kW 12T counterclockwise catalog product represented by its own image, which should be checked before a similar heavy-duty housing is accepted.

Build the 3E8845 RFQ around the complete removed-unit number, exact machine or engine information, mounting-face and terminal-side photographs, quantity and delivery point. These details let Elecdura quote the specified starter, export packing and timing without turning the offer into a general application guess.

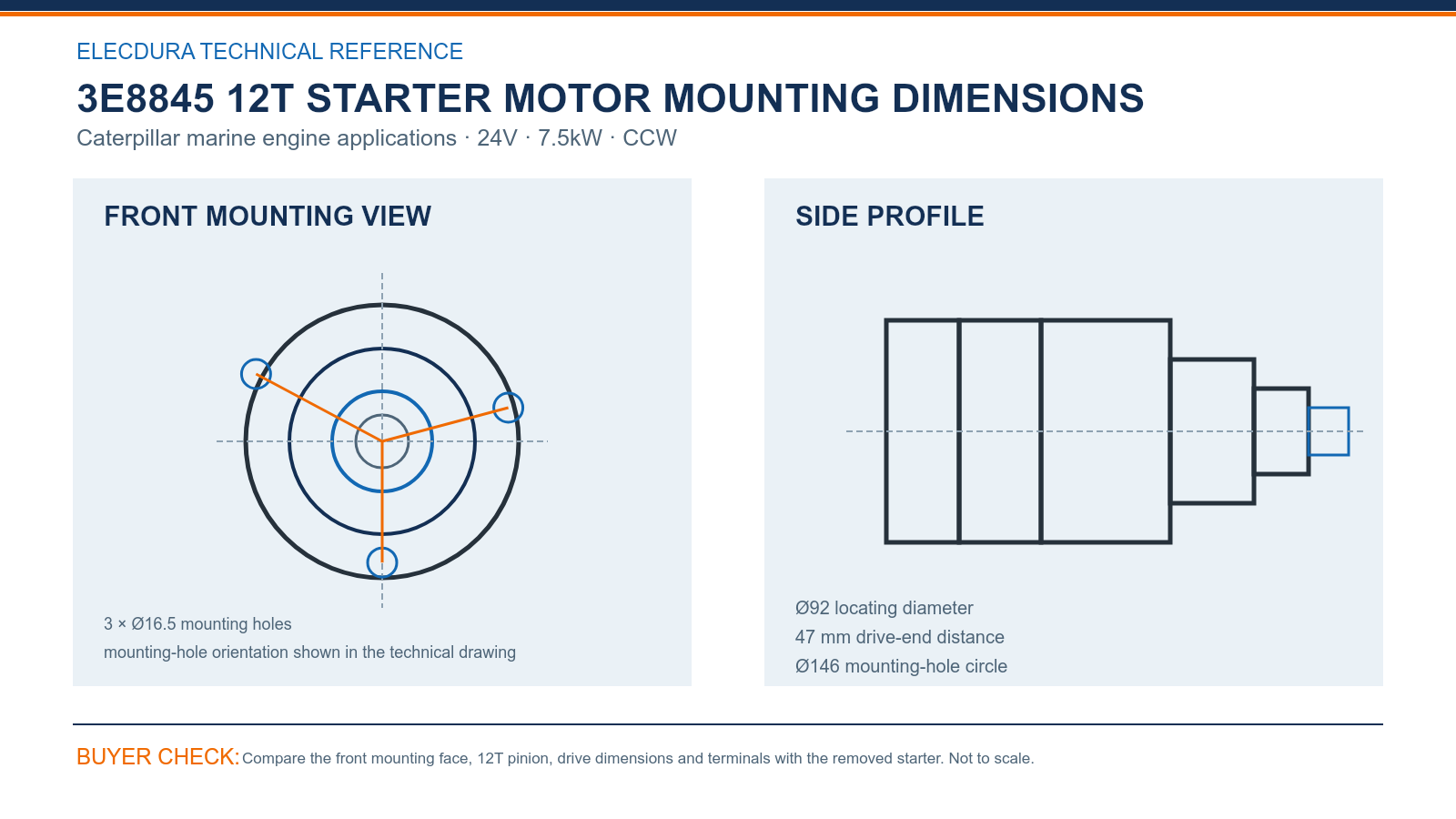

3E8845 Starter Motor Specifications and Drawing for Wholesale Buyers

Compare 3E8845 at the 3 × Ø16.5 mounting holes, Ø146 mounting-hole circle and Ø92 locating diameter. The 47 mm drive-end distance helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

For 3E8845, count the 12T pinion and confirm module 3.175, CCW rotation, 24V and 7.5kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

3E8845 Starter Motor OE Cross-References for Distributor Enquiries

1. Search group: 10R0398, 3E8845, 4N7153, 4P9359, 8C4090, 10461029, 10461396 can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 7.5kW, 12T, CCW, the drawing and terminal photographs before accepting one physical unit.

3E8845 Starter Motor Wholesale Supply and Export Planning

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested 3E8845 quantity, destination and required arrival date.

Keep product-photo and rotation approval records with vessel and destination-specific orders. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of 3E8845 remains tied to the stated Caterpillar marine engine application, 12T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

3E8845 Starter Motor Questions from Commercial Buyers

What should a distributor match before ordering 3E8845 for Caterpillar marine engine during fleet sourcing?

Use the complete removed-unit number and exact Caterpillar marine engine record. Compare the 12T pinion, 3 × Ø16.5 mounting holes, Ø92 locating diameter and terminal side with the old starter. A housing resemblance is insufficient when the drive position, mounting face or cable connection differs.

Which operating factors should guide a fleet's 3E8845 reserve quantity in a Caterpillar Marine fleet program?

Review workshop consumption by the stated Caterpillar marine engine population instead of pooling every visually similar starter. Record monthly issues, lead-time exposure and the reserve required at each branch. That information supports a practical 3E8845 reorder point and avoids holding the wrong drive-end version as emergency stock.

Why is the 3E8845 reference match only the start of product selection in a Caterpillar Marine fleet sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The 3E8845 group is acceptable only when 24V, 7.5kW, 12T, CCW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

What electrical checks help confirm that 3E8845 is actually required in a Caterpillar Marine fleet workshop?

Measure cranking voltage and voltage loss across the positive and negative paths, not only open-circuit battery voltage. Review the solenoid command, cable terminals, engine ground and ring gear. The results provide a useful baseline for 3E8845 installation and for any later service discussion with the supplier.

How should a buyer compare the old unit with the 3E8845 technical image during a Caterpillar Marine fleet inspection?

For 3E8845, sample the 3 × Ø16.5 mounting holes, Ø92 locating diameter, Ø146 mounting-hole circle and 47 mm drive-end distance. Count the 12T pinion and photograph the terminal side in the same inspection. These points can be checked without dismantling the unit and give receiving teams a practical comparison with the approved sample.

Which arrival photographs help trace a shipment of 3E8845 during a Caterpillar Marine fleet receiving check?

Receiving should verify the 3E8845 label, quantity and packaging before opening sampled cartons. Compare the 12T drive, Ø92 locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How can an importer obtain an accurate delivered price for 3E8845 in a Caterpillar Marine fleet sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For 3E8845, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

Which installation facts help review unusual performance from 3E8845 in a Caterpillar Marine fleet review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate 3E8845 without assuming that every no-crank complaint originates inside the starter.

3E8845 Request Starter Motor Wholesale Pricing

Send the complete 3E8845 reference, Caterpillar marine engine details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 24V, 7.5kW, 12T CCW starter, MOQ, packing, lead time, warranty and freight.
