4996707 Cummins ISB6.7 24V 4.8kW 10T Starter Motor Wholesale

4996707 Cummins ISB6.7 Starter Motor for Fleet Parts Buyers

Bus, truck and equipment parts distributors can use 4996707 or 428000-7100 as a dependable search starting point. Adding the ISB6.7 engine, host vehicle and old-unit photographs gives sales staff the details needed for a useful fleet quotation.

ISB6.7 appears with several Denso starter designs. This line requires the 10T module-3.175 drive, two Ø11 holes, Ø127 face and Ø89 locating reference; do not substitute an 11T module-3 unit simply because the engine family is the same.

4996707 24V 4.8kW 10T Starter Motor Technical Details

The defined combination is 24V, 4.8kW, 10T, module 3.175 and clockwise rotation. These values should remain together in the product name, quote and bin label so the lower tooth count is visible throughout the supply chain.

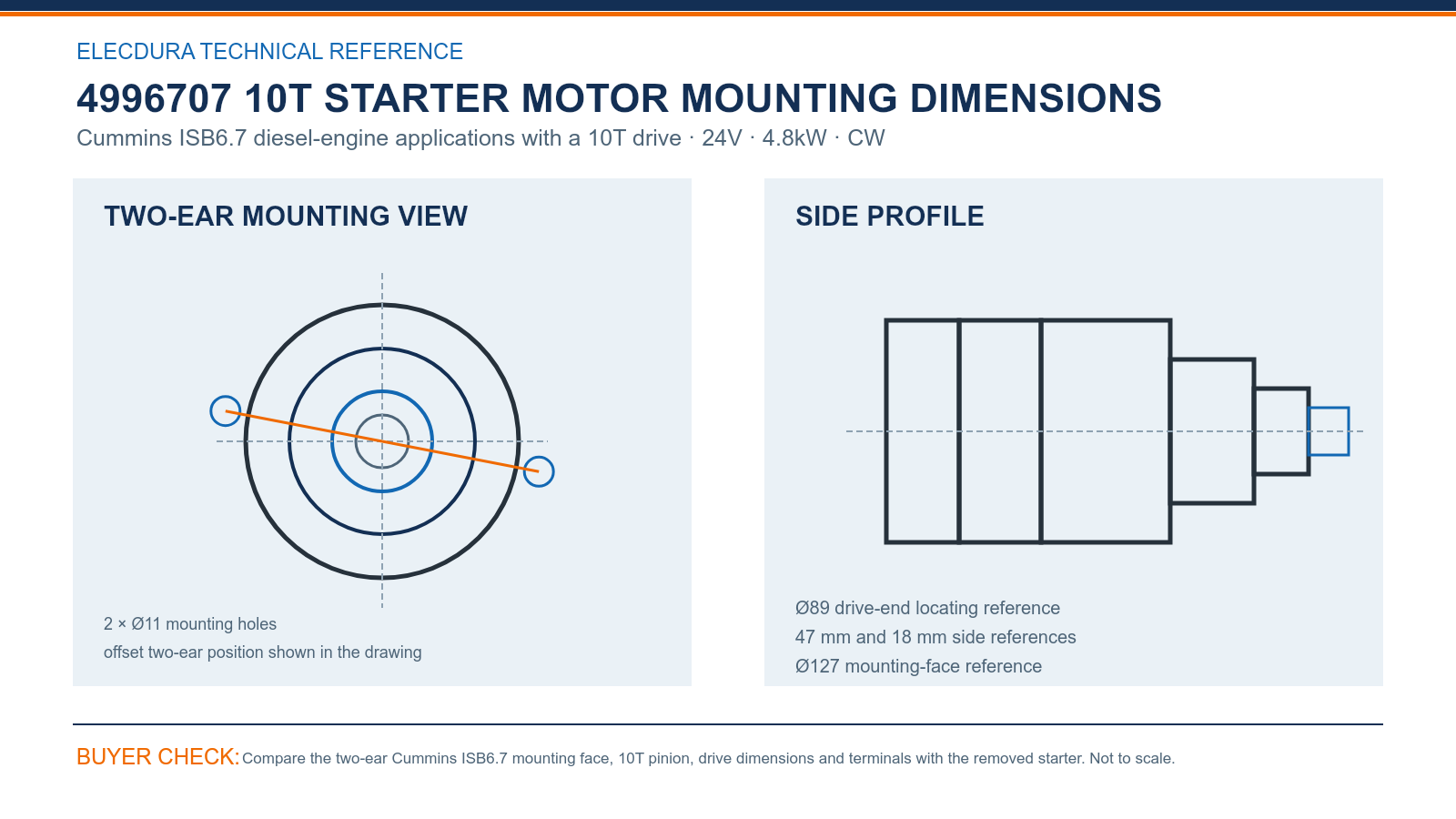

4996707 Cummins ISB6.7 Starter Motor Dimensions for Fleet Supply — compare the drawing with the removed starter before placing a volume order.

Measure the two Ø11 mounting holes across the Ø127 face, check the Ø89 locating diameter and compare the 47 mm and 18 mm side positions. Straight front and side photographs should also show the solenoid and cable orientation.

4996707 Cummins Cross-Reference and Two-Ear Checks

The reference set includes 4996707, 428000-7100, related 438000-006 numbers, STR70415, S6225S and 33321N. Use the complete Denso suffix where present, then retain ISB6.7 and 10T on the same purchasing line.

Fleet buyers can group demand across supported ISB6.7 vehicles only after the two-ear face and 10T drive match. Keep vehicle-level usage in reorder notes so a branch can plan reserve stock without losing the physical product definition.

4996707 Starter Motor Stock Support for ISB6.7 Fleets

Sample the first delivery for pinion count, locating face, terminal condition and agreed electrical test. Carton and shelf labels showing 4996707, ISB6.7 and 10T help a busy fleet warehouse avoid mixing it with the nearby 11T starter.

Elecdura's production video shows starter assembly and electrical testing for wholesale programs. Cummins buyers can use it while discussing sampled testing, lot identification, branch packing and replenishment schedules for the 4996707 line.

4996707 Starter Motor FAQs for B2B Buyers

How does 4996707 differ from the 11T ISB6.7 starter?

4996707 uses a 10T module-3.175 pinion, two Ø11 holes and an Ø127 face. The 90032414 line uses an 11T module-3 drive, even though both are described for ISB6.7 and listed at 24V 4.8kW. Keep tooth count, module and physical views together so the shared engine family does not create a wrong substitution.

Which Denso numbers support a 4996707 request?

Use 4996707 with 428000-7100 and the complete related 438000-0060 or 438000-0061 number where visible. STR70415, S6225S and 33321N can provide additional search support. Keep ISB6.7, 10T and the two-ear images beside the references so a Denso family number is not separated from the actual product.

What dimensions define the 4996707 two-ear mounting face?

Compare two Ø11 holes on the Ø127 face, the Ø89 locating diameter and the 47 mm and 18 mm side references. Photograph the old starter straight from the front and from the terminal side. These views show the compact flange and cable arrangement more clearly than an equipment photo taken with the starter still installed.

Which fleet details should accompany a Cummins ISB6.7 enquiry?

State the vehicle or equipment maker, model, year or build details and the ISB6.7 engine information available. Add every starter marking and the mounting and terminal views. Fleet-level details help Elecdura match 4996707 to the buyer's installation and keep branch or customer quantities clear when planning repeat stock.

How should the first 4996707 delivery be sampled?

Select units from different cartons, count ten teeth and compare the two-ear face, locating surface and terminal position with the confirmed photographs. Inspect the pinion and flange for transport damage and record the agreed electrical test. Keep the sample images by shipment lot so later Cummins deliveries follow the same physical reference.

How should warehouses separate 4996707 from nearby Cummins starters?

Use a bin label showing 4996707, ISB6.7, 24V 4.8kW, 10T and module 3.175, and attach a small front-view image where practical. Do not store it under an ISB6.7-only description. The visible 10T identity helps branch staff avoid selecting the 11T product during an urgent repair.

What service readings help assess a no-crank complaint for 4996707?

Record battery voltage under cranking load, cable voltage drop on both high-current paths, start-signal voltage and ring-gear condition. Add the vehicle or equipment details, installation date and shipment lot. These facts let technical staff consider the ISB6.7 electrical system and the starter separately instead of basing the review on a short symptom.

What information should be emailed for 4996707 wholesale pricing?

Provide the Cummins ISB6.7 engine and host vehicle, complete 4996707 or Denso number, square mounting, pinion and terminal photographs, quantity by destination, forecast and required date. Elecdura can then compare the 10T module-3.175 two-ear starter and respond with product feedback, quantity pricing, packing choices and lead time for the actual fleet demand.

Request 4996707 Cummins Starter Motor Wholesale Terms

Email the Cummins ISB6.7 engine and vehicle details, full 4996707 or Denso number, square mounting and terminal photographs, quantity by destination and required date to info@elecdurauto.com. Elecdura will compare the 10T two-ear product and return wholesale pricing, packing and lead time.
