612600090340 Weichai WD615 Starter Motor Wholesale

612600090340 Starter Motor Distributor Application Guide for Weichai WD615 and WD618 engines in HOWO, Shaanxi and Beifang trucks

For a fleet parts team, 612600090340 identifies one Weichai WD615 and WD618 engines in HOWO, Shaanxi and Beifang trucks requirement. The 24V 7.5kW 10T module-3.5 WD615/WD618 specified configuration provides a clear fitment boundary for sample, stock and replacement reviews.

Before comparing 612600090340 prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

612600090340 Starter Motor Technical Data for Fleet Parts Buyers

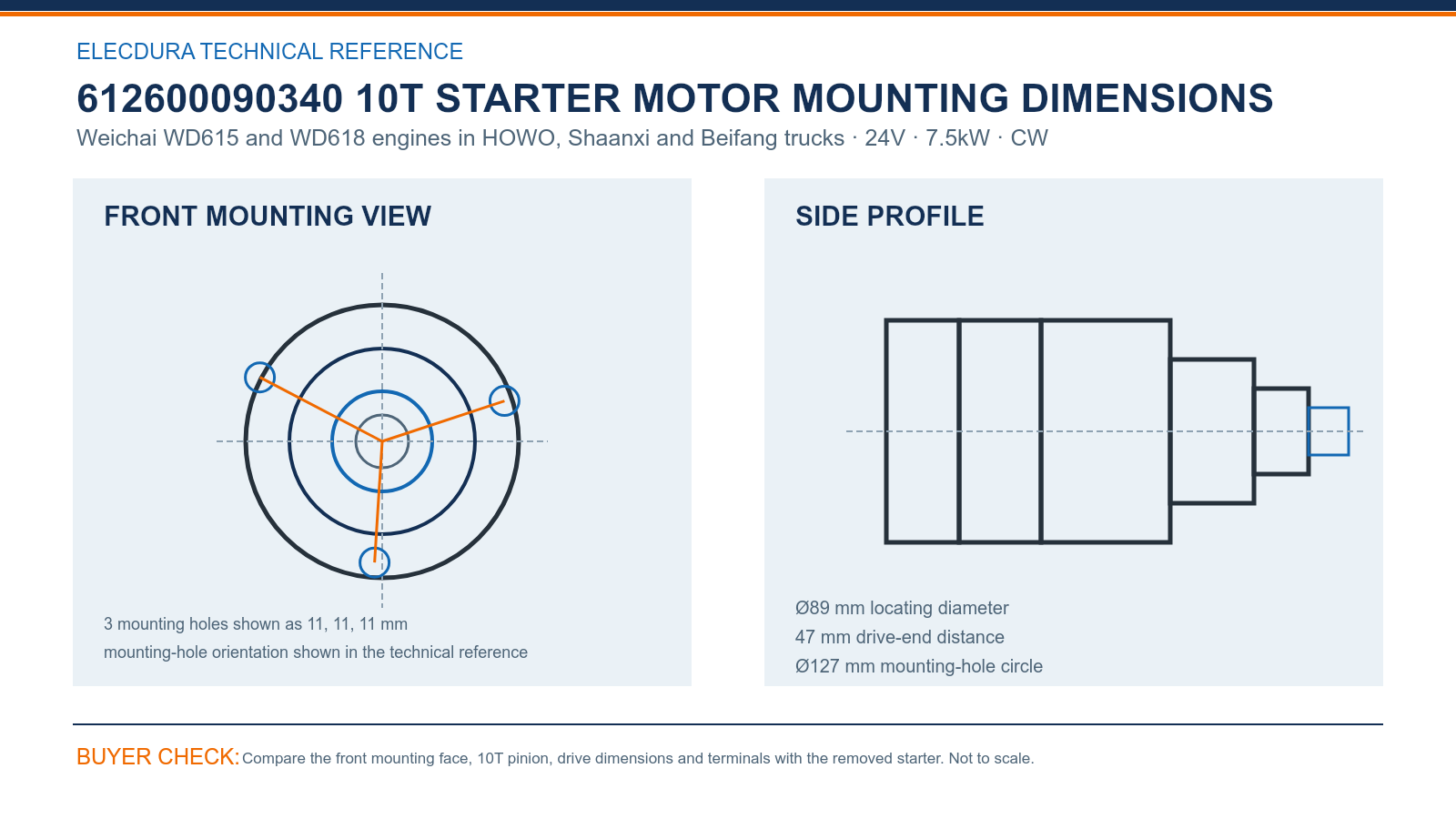

For 612600090340 first-lot sampling, place the old and new starters in the same front-facing position. Check 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 47 mm drive-end distance. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

Complete the 612600090340 comparison with 24V, 7.5kW, the 10T drive, module 3.5 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

612600090340 Starter Motor OE Number Guide for Aftermarket Supply

• Use the full number: Start with UD18492S, 612600090210, 612600090340, 612800020208, VG1560090001, STB8810MH, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

612600090340 Starter Motor Distributor Stock and Delivery Support

Elecdura can prepare 612600090340 orders for regional inventory, fleet workshops or industrial service demand. The standard starting point is 20 pieces, normally 7–15 days after order confirmation, with an 18-month warranty under agreed terms and packing selected for the destination and shipment method.

Stock planning should reflect the supported Weichai WD615 and WD618 engines in HOWO, Shaanxi and Beifang trucks population, recent consumption and transfer time between service locations. Keeping 612600090340, the 10T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

For supplier evaluation, the video presents Elecdura starter-motor assembly and testing. A 612600090340 order should still be released against the complete OE number, Weichai WD615 and WD618 engines in HOWO, Shaanxi and Beifang trucks details, electrical specification and physical comparison, giving purchasing both capability information and a clear product boundary.

612600090340 Starter Motor Questions from Commercial Buyers

Which first-lot checks protect a distributor receiving 612600090340 during a Weichai WD615 branch receiving check?

For 612600090340, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and the specified 10T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Can a purchasing team consolidate every 612600090340 reference into one stock line in a Weichai WD615 branch sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use UD18492S, 612600090210, 612600090340, 612800020208, VG1560090001 to locate possible matches, then confirm 24V, 7.5kW, 10T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

How can an importer avoid mixing 612600090340 with a similar drive-end version during branch sourcing?

For 612600090340 in Weichai WD615 and WD618 engines in HOWO, Shaanxi and Beifang trucks, confirm the machine or engine identity and read the full old-unit label. Check 10T, Ø127 mm mounting-hole circle, Ø89 mm locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item when the stated application overlaps.

Before removing 612600090340, what should the workshop test under load during a Weichai WD615 branch electrical check?

Before fitting 612600090340, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

What physical controls belong on a first-lot check for 612600090340 during a Weichai WD615 branch inspection?

For 612600090340, compare 3 mounting holes shown as 11, 11, 11 mm and Ø127 mm mounting-hole circle in a straight front view, then Ø89 mm locating diameter and 47 mm drive-end distance in the side view. Add 10T, CW and terminal orientation; this is more reliable than an angled overall photograph.

How should Weichai distributors plan stock for 612600090340 in a Weichai WD615 branch program?

Plan truck-fleet reserve stock by WD615/WD618 vehicle count and service geography. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

What information should accompany a distributor RFQ for 612600090340 in a Weichai WD615 branch sourcing program?

A useful RFQ states 612600090340, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

What evidence separates an electrical-system fault from a concern involving 612600090340 in a Weichai WD615 branch review?

For a service review of 612600090340, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

612600090340 Email for Starter Motor B2B Pricing

A complete RFQ for 612600090340 should state the application, removed-unit number, physical photographs, quantity, destination and delivery target. Send these details to info@elecdurauto.com for a direct response on the correct 24V 7.5kW 10T CW starter, MOQ, packaging, warranty and shipping choices.
