612600090806 Weichai WD615 Starter Motor Wholesale

612600090806 Starter Motor Fleet Replacement Supply for Weichai WD615 engine

612600090806 supports Weichai WD615 engine sourcing where buyers need a defined electrical and drive-end match. Its 24V, 8.0kW, 10T CW specification must remain linked to the 24V 8.0kW 10T module-3.5 catalog configuration; a visually related unit may belong on a different RFQ line.

Send the full 612600090806 application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

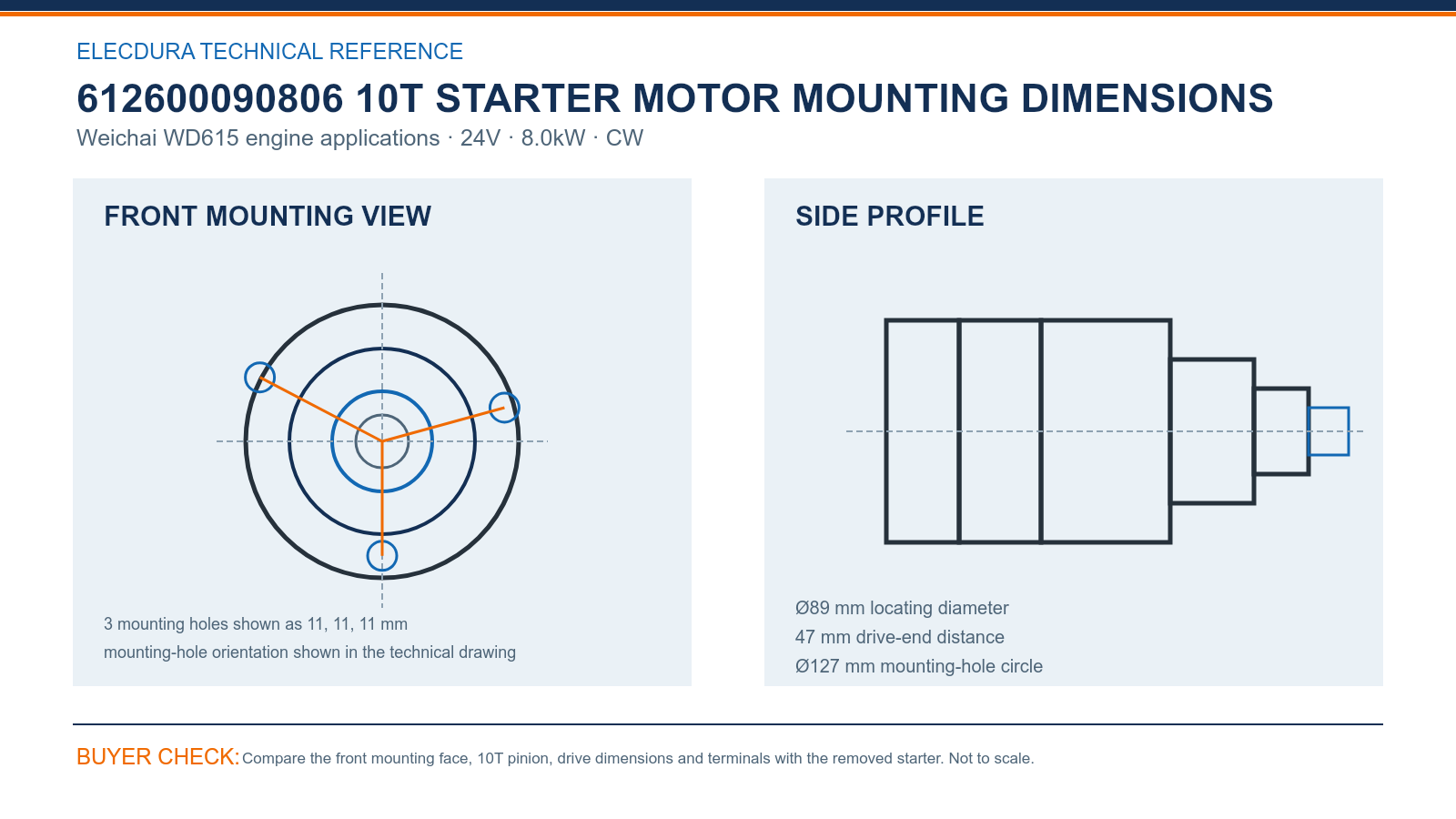

612600090806 Starter Motor Drive-End Drawing for Aftermarket Distributors

612600090806 Weichai WD615 engine 24V 8.0kW 10T starter mounting dimensions.

Check the 612600090806 drawing against the removed starter at the mounting face and drive end. The critical references are 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 47 mm drive-end distance. A physical mismatch should stop the unit from entering ordinary stock until the application is clarified.

Complete the 612600090806 comparison with 24V, 8.0kW, the 10T drive, module 3.5 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

612600090806 Starter Motor OE Cross-References for Distributor Enquiries

The 612600090806 cross-reference group includes 612600090806, 612600090983, 612600091075, 612600091078, STB4114BA, STB4114MH, STB4114MN. Use these numbers to search supplier systems, then confirm 24V, 8.0kW, 10T, CW, mounting geometry and terminals.

For 612600090806, list and photograph each complete reference when pinions, drive positions or connectors differ. Elecdura can quote each physical starter independently.

612600090806 Starter Motor Fleet Supply and Replenishment Support

Distributors can combine an initial 612600090806 sample plan with a later replenishment forecast. MOQ is 20 pieces, normal lead time is 7–15 days after confirmation and warranty is 18 months under agreed terms; packing and shipping are quoted for the actual route and arrival requirement.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted 612600090806 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For 612600090806, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

612600090806 Starter Motor Questions from Commercial Buyers

How can branches reduce emergency transfers of 612600090806 stock in a Weichai WD615 workshop program?

Keep this catalog-defined 10T WD615 item clearly identified in labels and bin records. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

What pre-installation circuit review supports replacement with 612600090806 during a Weichai WD615 workshop diagnosis?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for 612600090806 helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

Can 612600090806 be selected from the application name alone during workshop sourcing?

Confirm 612600090806 with the complete OE number, Weichai WD615 engine record and clear front, side and terminal photographs. Check 10T, 3 mounting holes shown as 11, 11, 11 mm and 47 mm drive-end distance so visually related starters stay on separate order lines.

Which checks should follow an OE-number match for 612600090806 in a Weichai WD615 workshop sourcing program?

A number match narrows the search but does not finish it. For 612600090806, compare the stated application, electrical output, 10T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

Which dimensions in the 612600090806 drawing should receiving teams sample during a Weichai WD615 workshop inspection?

For 612600090806, check 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 47 mm drive-end distance. Count the 10T pinion and photograph the terminal side. Record these checks against the approved sample without dismantling the unit.

What receiving records are useful for a shipment of 612600090806 during a Weichai WD615 workshop receiving check?

Receiving should verify the 612600090806 label, quantity and packaging before opening sampled cartons. Compare the 10T drive, Ø89 mm locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How should a buyer request samples and bulk pricing for 612600090806 in a Weichai WD615 workshop sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For 612600090806, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

How should a workshop document a service issue involving 612600090806 in a Weichai WD615 workshop review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate 612600090806 without assuming that every no-crank complaint originates inside the starter.

612600090806 Ask for Starter Motor Export Pricing

Prepare the 612600090806 enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
