612600090828 Weichai WD615 Starter Motor Wholesale

612600090828 Starter Motor Wholesale Application Support for HOWO, Weichai and Scania trucks using WD615 engines

For HOWO, Weichai and Scania trucks using WD615 engines, 612600090828 gives distributors a focused starting point for quotation and branch inventory. Confirm 24V, 7.5kW, 11T and CW, with particular attention to 612600090828-focused 24V 7.5kW 11T module-3.5 WD615 specified configuration, before combining demand from different fleets or workshops.

A useful enquiry pairs 612600090828 with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

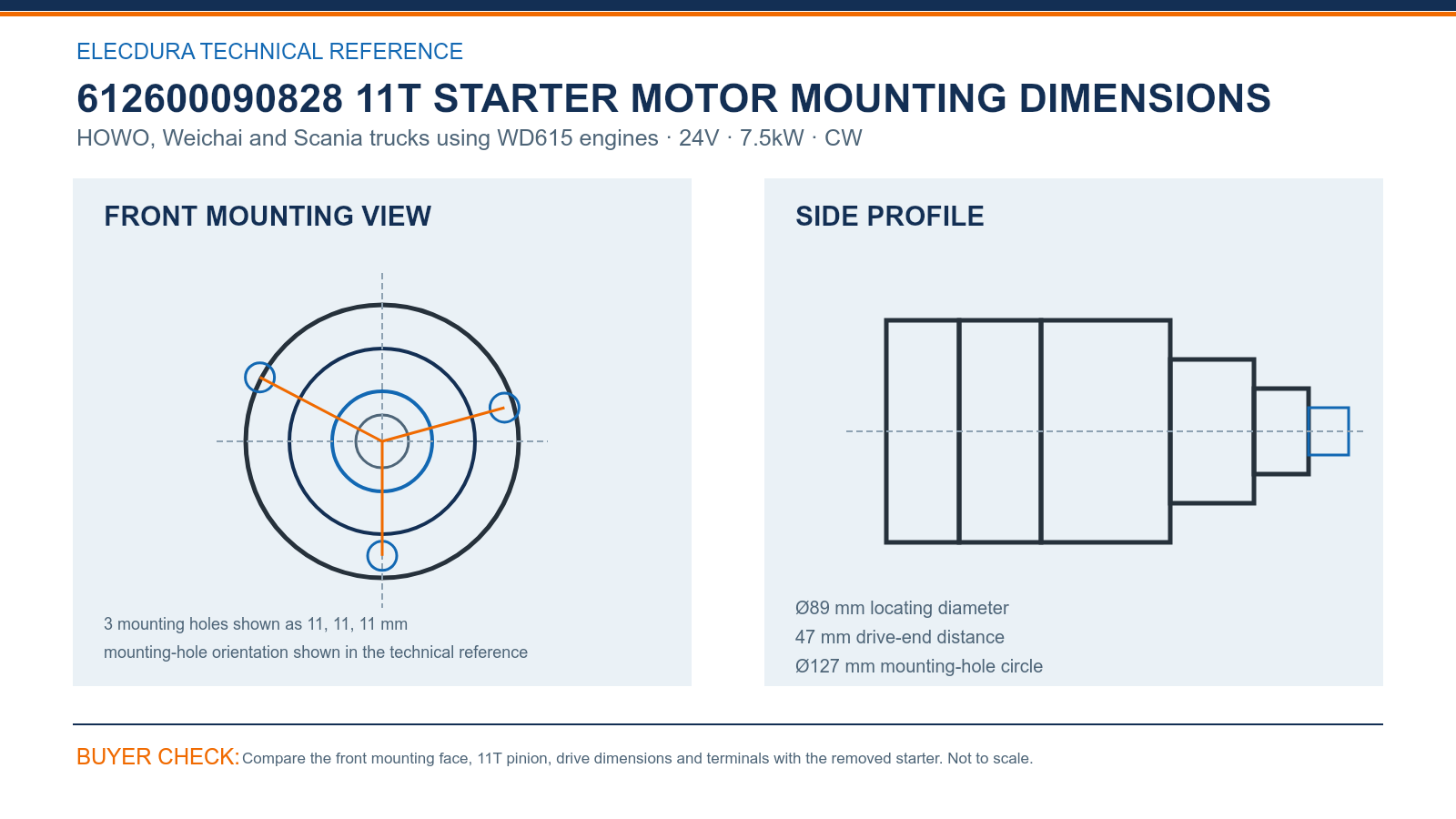

612600090828 Starter Motor Mounting Dimensions for Distributor Approval

Compare 612600090828 at the 3 mounting holes shown as 11, 11, 11 mm, Ø127 mm mounting-hole circle and Ø89 mm locating diameter. The 47 mm drive-end distance helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

For 612600090828, electrical and mechanical identity must agree: 24V, 7.5kW, 11T, module 3.5 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

612600090828 Starter Motor Reference Group for Wholesale Sourcing

The 612600090828 cross-reference group includes 114327, 30051600029, 612600090409, 11131564, AZF4563, MS741, MS744. Use these numbers to search supplier systems, then confirm 24V, 7.5kW, 11T, CW, mounting geometry and terminals.

For 612600090828, list and photograph each complete reference when pinions, drive positions or connectors differ. Elecdura can quote each physical starter independently.

612600090828 Starter Motor Bulk Order Packing and Lead-Time Support

Elecdura can prepare 612600090828 orders for regional inventory, fleet workshops or industrial service demand. The standard starting point is 20 pieces, normally 7–15 days after order confirmation, with an 18-month warranty under agreed terms and packing selected for the destination and shipment method.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted 612600090828 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For 612600090828, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

612600090828 Starter Motor Questions from Commercial Buyers

Why is a straight mounting-face photo useful for confirming 612600090828 during a Weichai WD615 service-network inspection?

Align the removed starter and 612600090828 at the mounting face. Compare Ø89 mm locating diameter, Ø127 mm mounting-hole circle, 3 mounting holes shown as 11, 11, 11 mm and 47 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

When does a cross-reference related to 612600090828 need a separate quotation in a Weichai WD615 service-network sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The 612600090828 group is acceptable only when 24V, 7.5kW, 11T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

Why does 612600090828 require a physical comparison for Weichai applications during service-network sourcing?

For 612600090828, ask the workshop for the removed starter label and the exact equipment record. Match 24V, 7.5kW, 11T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Which cranking-circuit tests should precede replacement of 612600090828 during a Weichai WD615 service-network electrical check?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing 612600090828. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

Which operating factors should guide a fleet's 612600090828 reserve quantity in a Weichai WD615 service-network program?

Review workshop consumption by the stated HOWO, Weichai and Scania trucks using WD615 engines population instead of pooling every visually similar starter. Record monthly issues, lead-time exposure and the reserve required at each branch. That information supports a practical 612600090828 reorder point and avoids holding the wrong drive-end version as emergency stock.

What carton-to-product checks are appropriate for 612600090828 during a Weichai WD615 service-network receiving check?

Use a first-lot sample to confirm 612600090828, 24V, 7.5kW, 11T and CW. Inspect the mounting face, terminals and protective packing, then retain the lot reference and images. This gives warehouse and sales teams a shared record before units are distributed to branches or workshops.

Which details allow Elecdura to quote 612600090828 without delay in a Weichai WD615 service-network sourcing program?

List 612600090828 together with the supported equipment record, 24V, 7.5kW, 11T and CW. Send old-unit photos, order volume, destination and requested timing, plus any private-label or staged-delivery requirement. This keeps the technical selection and the commercial offer aligned from the first response.

How can a distributor prepare a complete claim file for 612600090828 in a Weichai WD615 service-network review?

For 612600090828, provide the delivery lot, installation date, operating hours and a clear fault description. Include photographs of the label, pinion, mounting face and terminals, together with battery and voltage-drop results under cranking load. These records help separate product condition from application, installation, electrical-system or transport-related causes.

612600090828 Ask for Starter Motor Export Pricing

Send the complete 612600090828 reference, HOWO, Weichai and Scania trucks using WD615 engines details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 24V, 7.5kW, 11T CW starter, MOQ, packing, lead time, warranty and freight.
