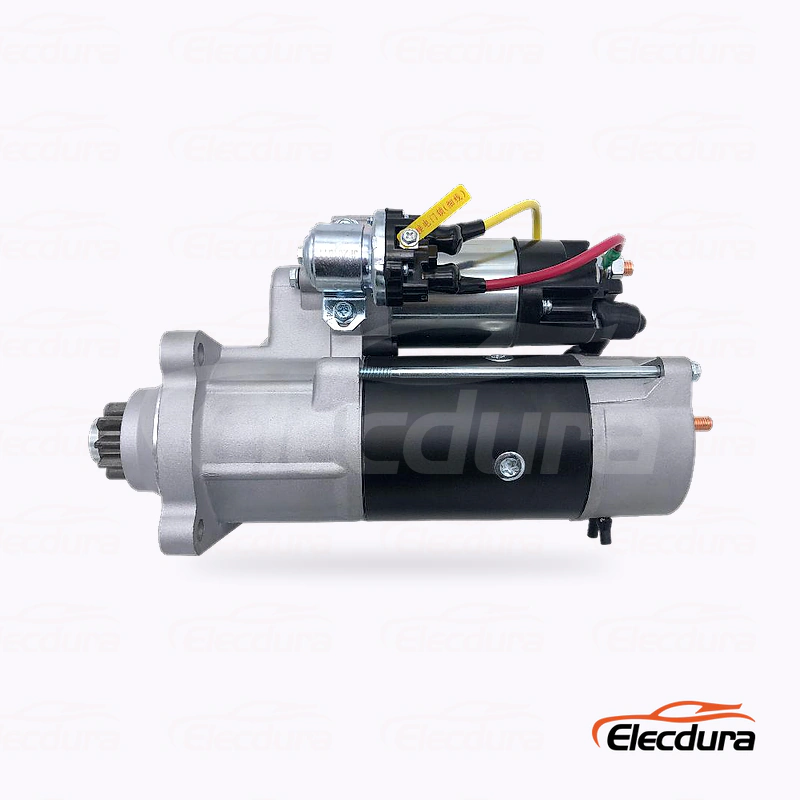

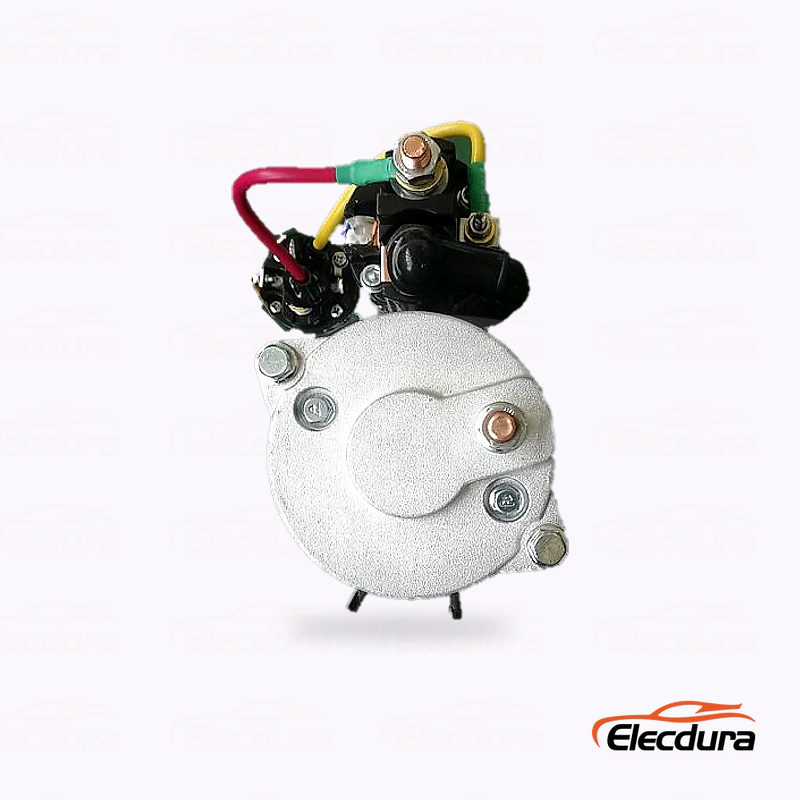

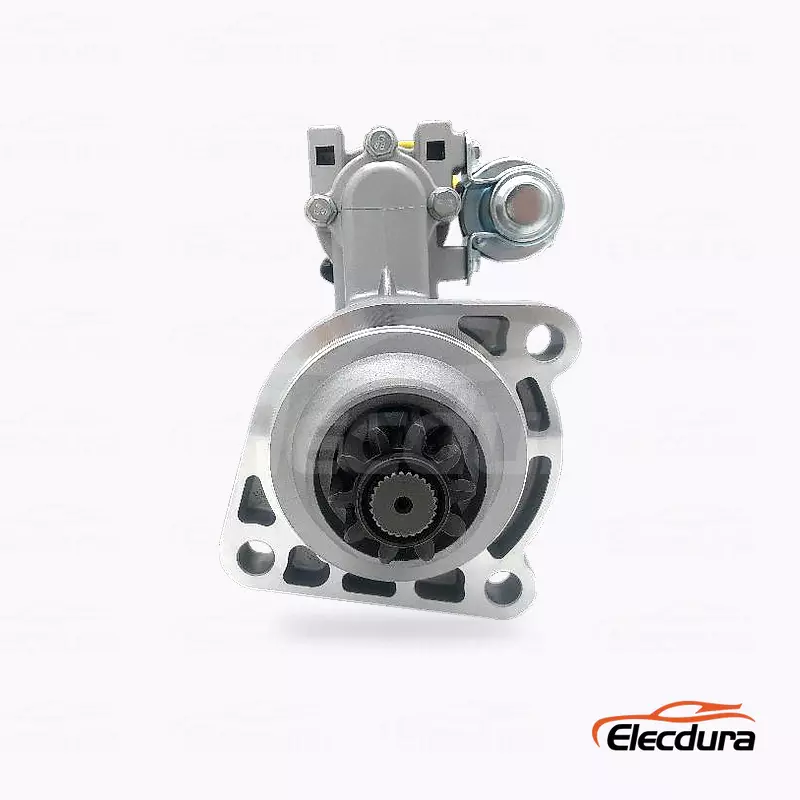

61260009130A HOWO WD615 Starter Motor Wholesale

61260009130A Starter Motor Wholesale Fitment for HOWO, Weichai and Foton Auman trucks with WD615 or WD618 engines

HOWO and Foton truck distributors, Weichai fleets and starter importers use 61260009130A to keep HOWO, Weichai and Foton Auman trucks with WD615 or WD618 engines demand tied to one 24V, 7.5kW, 10T CW configuration. The practical distinction is the 24V 7.5kW 10T module-3.5 WD615/WD618 specified configuration, which should be checked before a similar heavy-duty housing is accepted.

Before comparing 61260009130A prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

61260009130A Starter Motor Technical Data for Fleet Parts Buyers

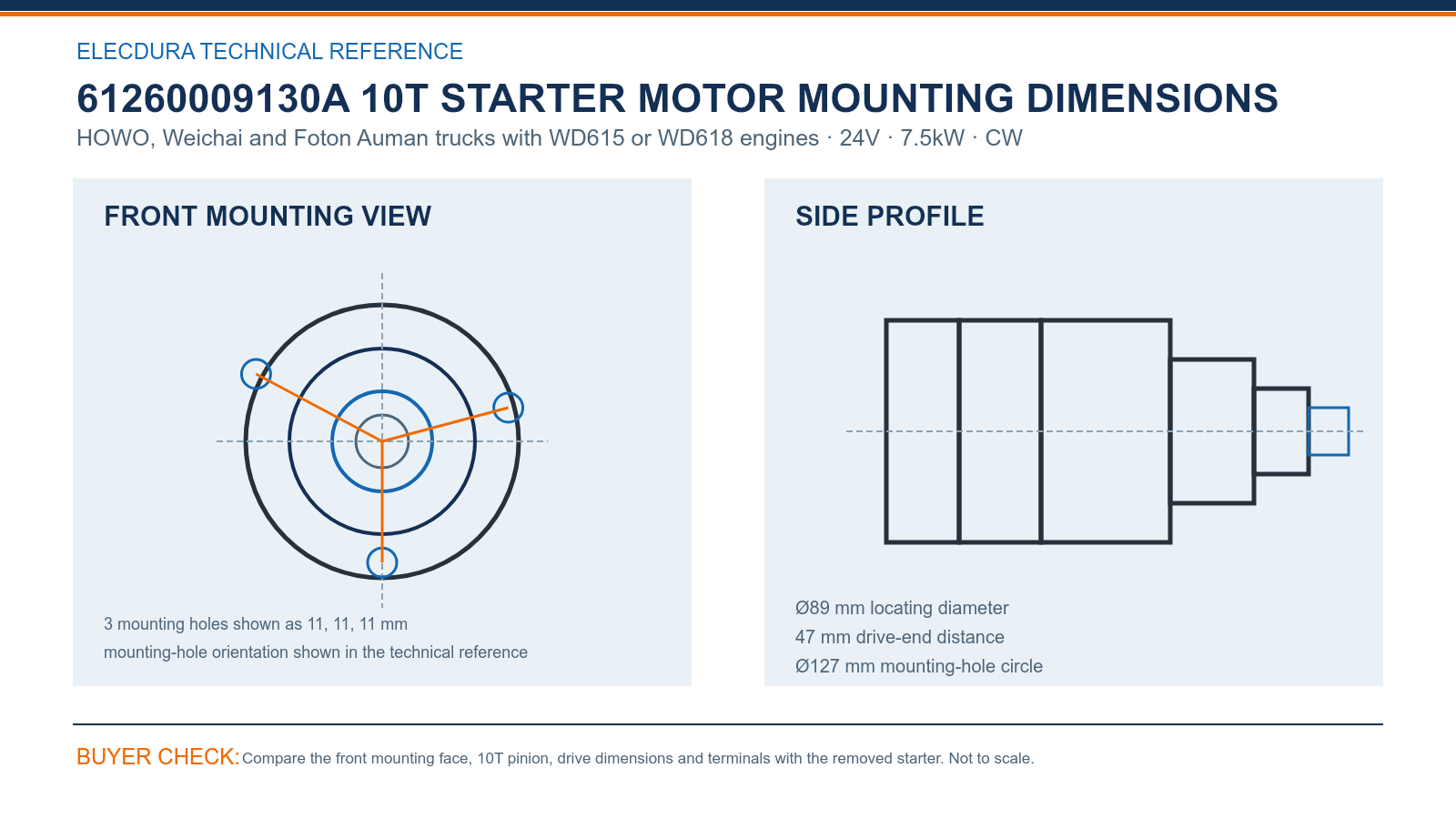

The 61260009130A dimensional review starts at the mounting face: verify 3 mounting holes shown as 11, 11, 11 mm, Ø127 mm mounting-hole circle and Ø89 mm locating diameter. Then compare the 47 mm drive-end distance. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For 61260009130A, electrical and mechanical identity must agree: 24V, 7.5kW, 10T, module 3.5 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

61260009130A Starter Motor Cross-Reference Review for Fleet Buyers

1. Search group: 61260009130A, WD615, STD5210MH, M98R3510SE can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 7.5kW, 10T, CW, the drawing and terminal photographs before accepting one physical unit.

61260009130A Starter Motor Fleet Supply and Replenishment Support

Wholesale planning for 61260009130A can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted 61260009130A sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for 61260009130A continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

61260009130A Starter Motor Questions from Commercial Buyers

How can branches reduce emergency transfers of 61260009130A stock in a HOWO WD615 fleet program?

Split HOWO and Foton Auman replenishment by engine and vehicle population. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

How should a mixed-reference enquiry for 61260009130A be prepared in a HOWO WD615 fleet sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the 61260009130A electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

Can 61260009130A be selected from the application name alone during fleet sourcing?

Confirm 61260009130A with the complete OE number, HOWO, Weichai and Foton Auman trucks with WD615 or WD618 engines record and clear front, side and terminal photographs. Check 10T, 3 mounting holes shown as 11, 11, 11 mm and 47 mm drive-end distance so visually related starters stay on separate order lines.

Why should voltage-drop results accompany an enquiry for 61260009130A during a HOWO WD615 fleet electrical check?

Measure cranking voltage and voltage loss across the positive and negative paths, not only open-circuit battery voltage. Review the solenoid command, cable terminals, engine ground and ring gear. The results provide a useful baseline for 61260009130A installation and for any later service discussion with the supplier.

Which dimensions in the 61260009130A drawing should receiving teams sample during a HOWO WD615 fleet inspection?

For 61260009130A, check 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 47 mm drive-end distance. Count the 10T pinion and photograph the terminal side. Record these checks against the approved sample without dismantling the unit.

What receiving records are useful for a shipment of 61260009130A during a HOWO WD615 fleet receiving check?

Receiving should verify the 61260009130A label, quantity and packaging before opening sampled cartons. Compare the 10T drive, Ø89 mm locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How should a buyer request samples and bulk pricing for 61260009130A in a HOWO WD615 fleet sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For 61260009130A, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

How should a workshop document a service issue involving 61260009130A in a HOWO WD615 fleet review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate 61260009130A without assuming that every no-crank complaint originates inside the starter.

61260009130A Start a Starter Motor Wholesale Enquiry

Send the complete 61260009130A reference, HOWO, Weichai and Foton Auman trucks with WD615 or WD618 engines details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 24V, 7.5kW, 10T CW starter, MOQ, packing, lead time, warranty and freight.
