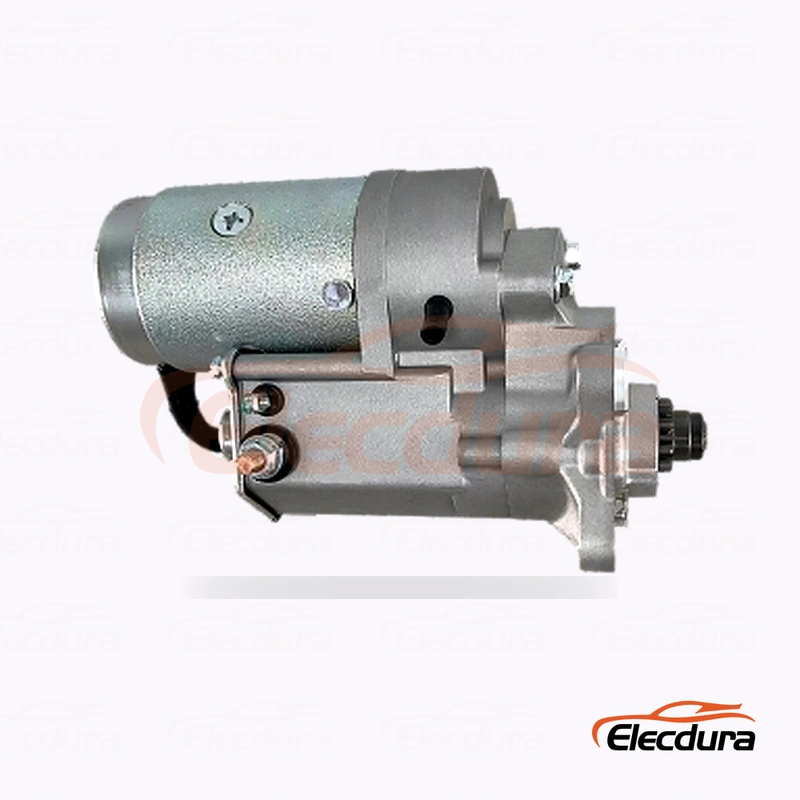

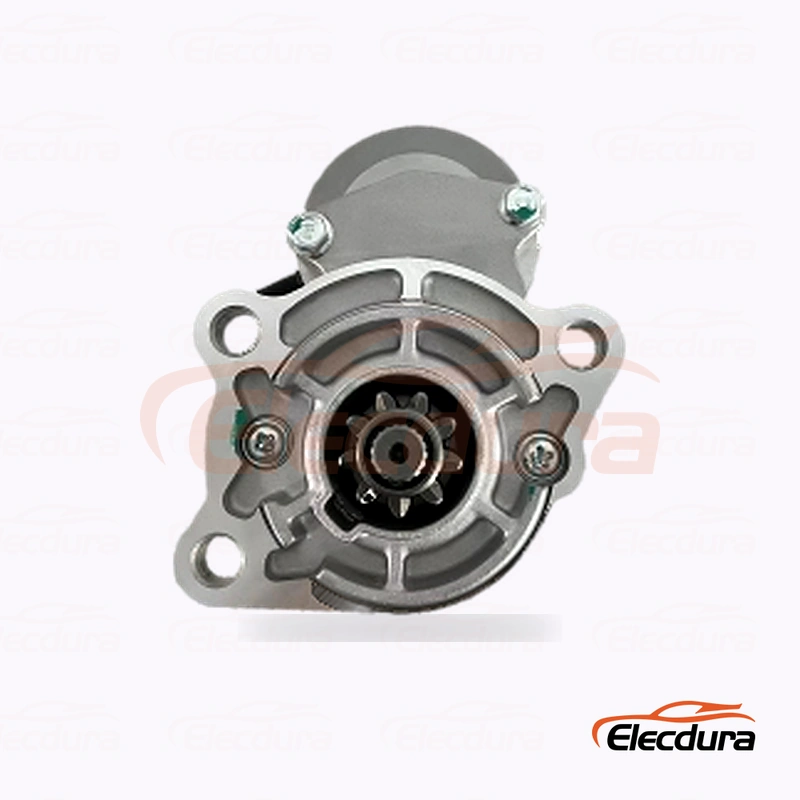

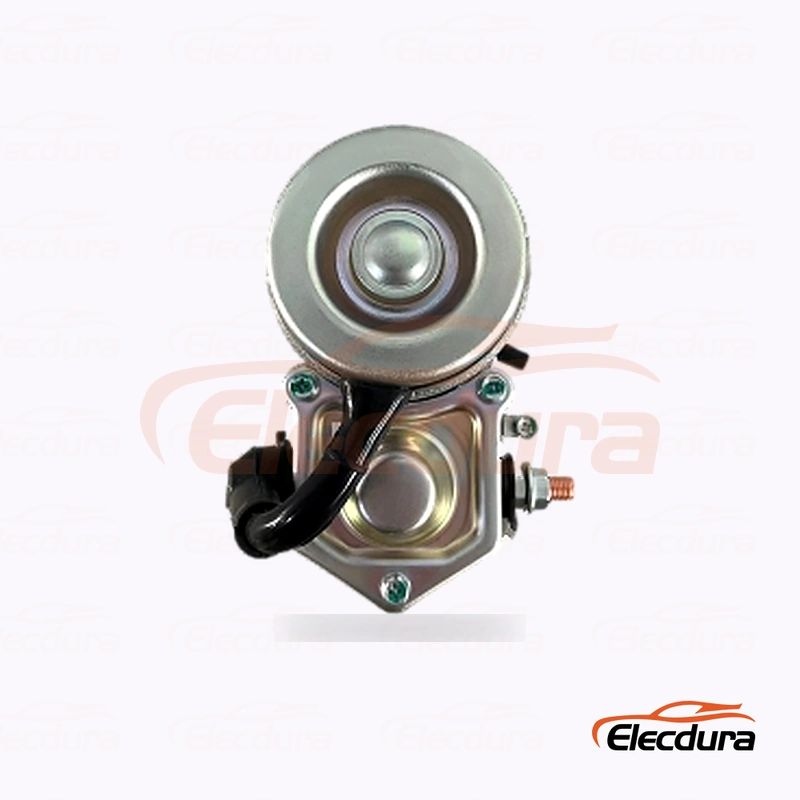

CST40139AS Caterpillar Starter Motor 12V 1.4kW 9T

CST40139AS Caterpillar Starter Motor Distributor Supply and Fitment Control

For repeat wholesale supply, CST40139AS should remain tied to Caterpillar vehicles and equipment cross-referenced to CST40139AS and the exact 12V, 1.4kW, 9-tooth clockwise configuration. Record the accepted old-unit label and physical sample so purchasing, receiving and warranty teams do not mix an adjacent starter variant with the approved item.

For repeat sourcing of CST40139AS, use CST40139AS / 3E5127 / 1280007701 / 0280009821 as search evidence and Caterpillar vehicles and equipment cross-referenced to CST40139AS as the application checkpoint. Neither item replaces measurement of the removed starter. Archive the approved sample photos, key dimensions, carton label and inspection date under one buyer part number so purchasing, warehouse and warranty teams work from the same physical definition.

CST40139AS Starter Motor B2B Production and Test Video for B2B Supply

This video introduces Elecdura starter-motor production and supply capabilities. Use the specification, cross-reference details and fitment checks on this page when evaluating CST40139AS.

CST40139AS Starter Motor Distributor Specifications for Aftermarket Buyers

CST40139AS Starter Motor OE Cross-Reference Review for Fleet Replacement

Use CST40139AS as the primary purchasing reference and cross-check 3E5127, 1280007701, 0280009821. These numbers identify the candidate starter family, but approval still requires the exact suffix, electrical rating, drive end, mounting geometry, pinion and terminal layout to match the removed unit or signed sample.

CST40139AS Starter Motor Bulk Fitment Approval for Wholesale Supply

Fitment control for CST40139AS starts with the old starter and the application record. Compare machine serial range, engine plate, mounting nose, pinion position, terminal clocking and installed clearance, and do not force a unit into position with the mounting bolts. If the reference family includes multiple ratings or tooth counts, create separate approval and inventory records for each physical version.

CST40139AS Starter Motor Wholesale Receiving Inspection for Distributor Sourcing

Inspect incoming CST40139AS lots against the signed sample and purchase-line specification. Check electrical rating, drive-end geometry, mounting bores, terminal position, housing protection and lot identity, record the result by lot and quarantine any mixed version before it reaches saleable inventory. This prevents a low-cost receiving shortcut from becoming a fitment error can immobilize a machine, trigger emergency freight and extend paid downtime on site.

CST40139AS Starter Motor MOQ and Private-Label Supply for Bulk Procurement

CST40139AS Starter Motor Distributor FAQ for B2B Supply

What must be approved before volume supply for CST40139AS?

Confirm the complete CST40139AS / 3E5127 / 1280007701 / 0280009821 group together with the 12V, 1.4kW, 9-tooth clockwise configuration. Similar appearance or a shared partial number is not enough; compare machine serial range, engine plate, mounting nose, pinion position, terminal clocking and installed clearance against the removed unit or approved sample and keep the signed sample with the purchase record.

How can a buyer prevent a bolt-up mismatch on CST40139AS?

Compare the machine serial range, engine plate, mounting nose, pinion position, terminal clocking and installed clearance with the removed starter. Check bolt-hole spacing, locating diameter, starter clocking, pinion rest position and rear-terminal clearance instead of judging from the outer housing alone. Never pull a misaligned unit into place with mounting bolts. A measured or photographed fitment record is especially valuable when nearby references share the same voltage and tooth count but use another drive-end or solenoid orientation.

How should a wholesale shipment of CST40139AS starters be inspected?

Tie every carton and sampled unit to CST40139AS, the approved cross-reference set and the supplier lot. Inspect electrical rating, drive-end geometry, mounting bores, terminal position, housing protection and lot identity, then compare the sampled unit with the signed photos or dimensional record. Record pass and fail quantities before the stock is mixed. Quarantine any different rating, pinion, mounting face or terminal layout, because a fitment error can immobilize a machine, trigger emergency freight and extend paid downtime on site. This receiving discipline is cheaper than sorting returns after distribution.

When is a cross-referenced substitute acceptable for CST40139AS?

A substitute is acceptable only when its complete OE relationship, 12V system, 1.4kW rating, 9T, rotation and mounting geometry agree with the approved unit. Similar appearance or a shared partial number is not enough. Ask for application and old-unit evidence, then test or approve a sample prior to changing the purchase line. Retain materially different versions separate in inventory so warehouse staff cannot fulfil one inquiry with the wrong variant.

Which system checks should precede a CST40139AS warranty claim?

Inspect battery bank balance, cranking voltage, cable and ground drop, control relay, ring gear and engine drag before condemning the starter. Record battery voltage at rest and during the start command, then measure voltage drop under load; a weak supply or poor ground can imitate starter failure. Inspect the mounting surface and gear engagement as well. Attach these results, the old-unit label and failure symptoms to the claim so the supplier can distinguish a product defect from an upstream electrical or mechanical problem.

What information is needed for a CST40139AS wholesale quotation?

Send CST40139AS and all visible OE numbers, the full application or engine record, required quantity, destination and target delivery date. Add clear photos of the label, drive end, mounting face and terminals, plus any dimensional drawing available. State packaging, private-label, sample and inspection requirements at the start. A technically complete RFQ lets the supplier quote one verified configuration and reduces clarification delays after price approval.

Can CST40139AS be sampled before a distributor order?

The standard MOQ is 20 pieces, subject to final order confirmation, and a sample or pre-production approval should precede volume release when fitment evidence is incomplete. Mark the approved sample with CST40139AS, buyer application and revision date. Repeat orders should reference that same approval plus any packaging specification. If the supplier, suffix or physical design changes, treat it as a new approval rather than assuming the previous decision still applies.

How should CST40139AS packaging support aftermarket traceability?

Neutral packaging and private-label review are available for qualified orders. The carton and inner protection should prevent movement, terminal damage and contamination while keeping the product reference, lot identity and quantity readable. Private-label artwork must not remove the technical identifiers used for fitment and claims. Agree label content, barcode needs, carton strength and destination handling prior to production so the packaging supports both sales presentation and receiving control.

How should warranty evidence be prepared for CST40139AS?

The standard warranty is 18 months under agreed sales terms, but a claim still needs traceable supporting evidence. Record the invoice or lot, installed application, old and supplied references, installation date, symptoms and electrical test results. Include photographs of the unit, terminals, mounting and pinion. Do not dismantle or discard the product before instructions are agreed. Complete supporting evidence speeds technical review and prevents a battery, wiring or ring-gear problem from being misclassified.

Request a B2B Quote for CST40139AS Starter Motors

Send the complete reference, Caterpillar vehicles and equipment cross-referenced to CST40139AS, old-unit photos, quantity, destination and packaging or inspection requirements. Elecdura will use that evidence to review one defined aftermarket starter configuration for your quotation.
