KDRDE5K-20/40C04-109-T
KDRDE5K-20/40C04-109 / V9406235760
OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
50 pcs
7 - 15 Days
12 Months
KDRDE5K-20/40C04-109 / V9406235760
Volvo excavator hydraulic pump control using the exact 40C04-109 model
Confirm 12v, connector, threaded cartridge with lead connector, seals and hydraulic circuit before installation.
| Quantity: | |
|---|---|
KDRDE5K-20/40C04-109-T is a 12V hydraulic pump solenoid valve for Volvo excavator hydraulic pump control using the exact 40C04-109 model. Buyers should confirm the complete old marking, electrical version, connector, threaded cartridge with lead connector and hydraulic function before approving replacement stock.
Specification | Value |
|---|---|
Product Type | Hydraulic Pump Solenoid Valve |
Primary Reference | KDRDE5K-20/40C04-109-T |
Cross References | KDRDE5K-20/40C04-109 / V9406235760 |
Electrical Version | 12V |
Working Pressure Reference | 41 bar |
Interface | Threaded cartridge with lead connector |
Application Scope | Volvo excavator hydraulic pump control using the exact 40C04-109 model |
MOQ | 50 pcs |
Delivery Time | 7 to 15 Days |
Warranty | 12 Months |

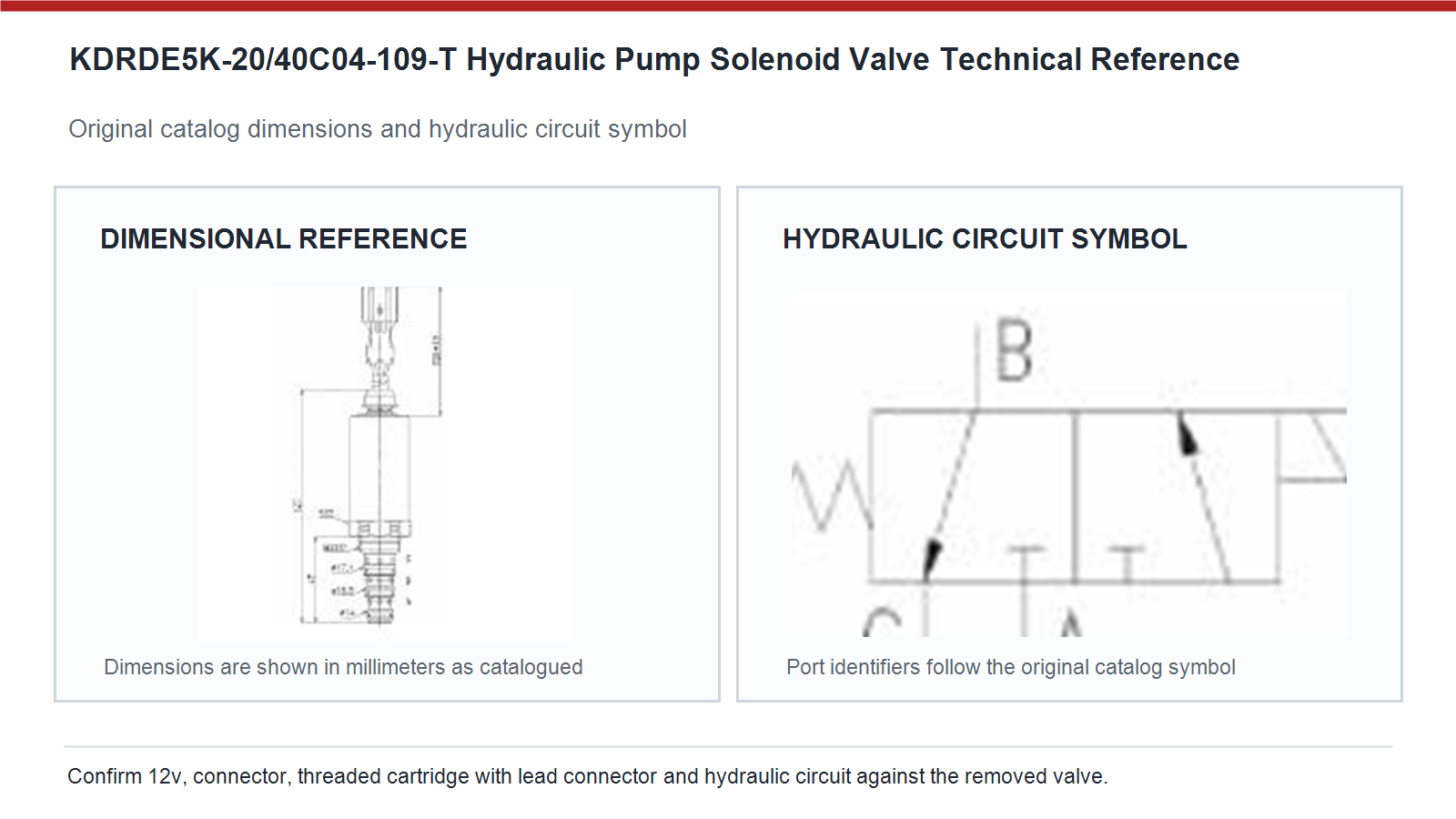

Use the original catalog dimensional reference and hydraulic symbol to compare the valve with the removed component and the machine schematic before purchase approval.
Complete every control point below before a sample or bulk order is released.
Approval Point | Buyer Review |
|---|---|
Reference | KDRDE5K-20/40C04-109 / V9406235760 |
Electrical | 12V; verify at the loaded connector during the actual command |
Mechanical | Compare threaded cartridge with lead connector, cartridge length, seals and installed clearance |
Hydraulic | Confirm normal state, energized state and manifold port relationship |
Machine Evidence | Volvo excavator hydraulic pump control using the exact 40C04-109 model |
Separate electrical command, cartridge movement and machine response so the actual wiring or hydraulic fault is not hidden by a parts replacement.
Observed Condition | Recommended Check |
|---|---|
No movement | Check loaded connector voltage, ground, controller command and coil resistance. |
Slow response | Inspect oil cleanliness, filter condition, viscosity and cartridge movement. |
Reversed response | Stop operation and compare normal and energized port logic with the original valve. |
External leakage | Inspect seals, cartridge surface, manifold bore and correct seating depth. |
Repeated heating | Confirm voltage, duty cycle, connector resistance and full magnetic movement. |
During a distributor separates similar suffix variants, keep the verified reference, measurements and test result in the service record. Approve KDRDE5K-20/40C04-109-T from the complete old valve marking, 12v electrical version, connector keying, threaded cartridge with lead connector, sealing lands and normal hydraulic state. A shared equipment model does not prove interchangeability because pump and manifold revisions can change during production. Send the machine model, serial number and clear removed part photos with the inquiry.
During a first article sample is reviewed, keep the verified reference, measurements and test result in the service record. The 41 bar figure is a catalog or verified product reference, not permission to ignore the equipment hydraulic schematic. Confirm which ports see pressure in both de-energized and energized states, review return line conditions and follow the machine service limits. Pressure capability does not correct a wrong spool function, cartridge depth or manifold port relationship.
During contaminated hydraulic oil has been discovered, keep the verified reference, measurements and test result in the service record. Two valves can share a coil diameter and connector yet use different cartridge lengths, metering notches, spring forces or port logic. In Volvo service, compare the full reference, manifold bore, installed depth, connector direction and hydraulic symbol. A valve that screws in but routes pressure differently can create weak response, reversed motion or continuous pump loading.
During a service kit is packed for remote repair, keep the verified reference, measurements and test result in the service record. Provide the complete old label, machine model and serial number, confirmed voltage, connector face photo, cartridge or flange measurements, hydraulic function, required quantity and destination. For mixed fleets, separate each electrical and suffix version on the inquiry. This evidence allows a sample approval plan and prevents similar looking hydraulic pump solenoid valve variants from being combined in one bulk order.
During a customer reports reversed machine response, keep the verified reference, measurements and test result in the service record. Serial number evidence is essential whenever the same equipment family used more than one pump, manifold or electrical harness. Use it with the parts diagram rather than as a substitute for physical checks. If the old valve label is damaged, collect connector, mounting, cartridge and installed location photos so the application can be narrowed without guessing from the machine name alone.
During contaminated hydraulic oil has been discovered, keep the verified reference, measurements and test result in the service record. A controlled sample review should confirm physical fit, connector engagement, coil current, leakage and the machine response in both normal and energized states. For this hydraulic pump solenoid valve, record warm oil behavior and response time as well as cold start operation. Retain the approved label photos and measurements so the production lot can be checked against the same acceptance record.
During a manifold bore shows possible wear, keep the verified reference, measurements and test result in the service record. Fine debris can restrict the moving element, damage sealing lands or block a pilot passage even when the coil energizes normally. Review the equipment filtration requirement, inspect the removed valve for particles and flush the affected circuit when contamination is found. Replacing KDRDE5K-20/40C04-109-T without correcting dirty oil can reproduce slow response, sticking or repeated coil stress soon after installation.
Send the complete old valve marking, confirmed voltage, machine model and serial number, connector photos, interface dimensions and required quantity for a fitment focused B2B quotation.
