M105R3040SE Weichai WD615 Starter Motor Wholesale

M105R3040SE Starter Motor Aftermarket Supply for HOWO, Weichai and Scania trucks using WD615 engines

M105R3040SE defines stock for HOWO, Weichai and Scania trucks using WD615 engines as 24V, 7.5kW, 11T and CW. Confirm M105R3040SE-focused 24V 7.5kW 11T module-3.5 WD615 specified configuration before releasing a first order or replacing an approved sample.

A useful enquiry pairs M105R3040SE with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

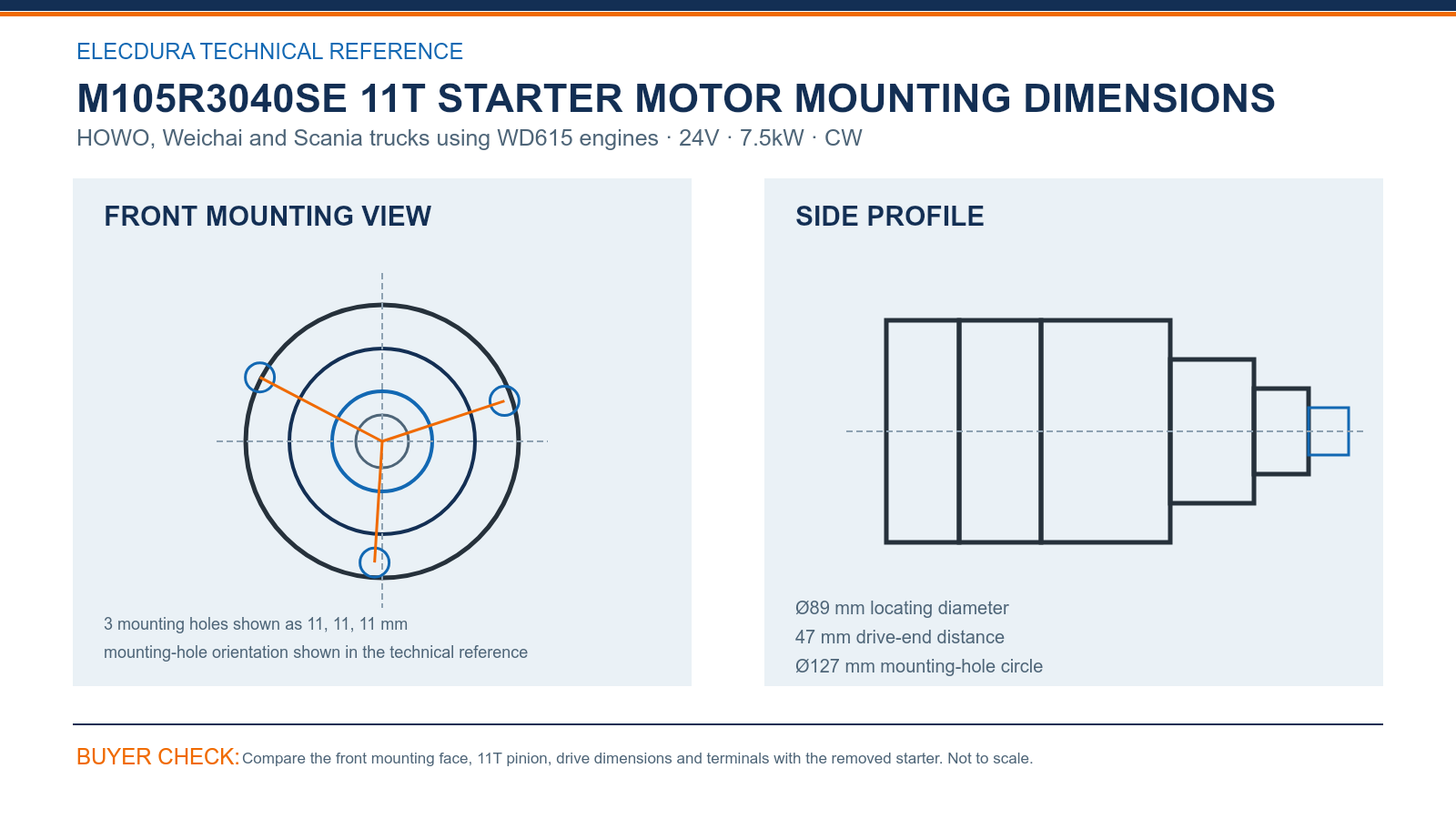

M105R3040SE Starter Motor Mounting Dimensions for Distributor Approval

Check the M105R3040SE drawing against the removed starter at the mounting face and drive end. The critical references are 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 47 mm drive-end distance. A physical mismatch should stop the unit from entering ordinary stock until the application is clarified.

After the M105R3040SE mounting check, verify 24V, 7.5kW, 11T and CW with module 3.5. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

M105R3040SE Starter Motor OE Cross-References for Distributor Enquiries

• Use the full number: Start with 114327, 30051600029, 612600090409, 11131564, AZF4563, MS741, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

M105R3040SE Starter Motor Aftermarket Supply for Regional Distributors

Wholesale planning for M105R3040SE can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

A first-lot sample is useful when the fleet carries related starters with similar housings. Retain the approved M105R3040SE label, front view and terminal view, then use recent demand and branch transfer time to set reserve stock and delivery priorities.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for M105R3040SE; the product decision itself still depends on the complete reference, 24V 7.5kW rating, drive end, mounting face and terminal layout.

M105R3040SE Starter Motor Questions from Commercial Buyers

Before removing M105R3040SE, what should the workshop test under load during a Weichai WD615 regional electrical check?

Before fitting M105R3040SE, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

Which checks should follow an OE-number match for M105R3040SE in a Weichai WD615 regional sourcing program?

A number match narrows the search but does not finish it. For M105R3040SE, compare the stated application, electrical output, 11T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

What should a distributor match before ordering M105R3040SE for HOWO, Weichai and Scania trucks using WD615 engines during regional sourcing?

Use the full old-unit number and HOWO, Weichai and Scania trucks using WD615 engines record. Compare the 11T pinion, 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and terminal side. Reject a candidate when its drive position, mounting face or cable connection differs.

Which mounting-face points distinguish the specified M105R3040SE version during a Weichai WD615 regional inspection?

Align the removed starter and M105R3040SE at the mounting face. Compare Ø89 mm locating diameter, Ø127 mm mounting-hole circle, 3 mounting holes shown as 11, 11, 11 mm and 47 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

How can M105R3040SE stock be separated by application risk in a Weichai WD615 regional program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent M105R3040SE usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Which first-lot checks protect a distributor receiving M105R3040SE during a Weichai WD615 regional receiving check?

For M105R3040SE, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and the specified 11T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which commercial details belong in an export enquiry for M105R3040SE in a Weichai WD615 regional sourcing program?

Send the complete OE number, exact HOWO, Weichai and Scania trucks using WD615 engines details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 24V 7.5kW 11T CW starter with packing, lead time, warranty and freight options.

Which photographs and readings help Elecdura review M105R3040SE after installation in a Weichai WD615 regional review?

Keep the carton or product traceability code and note when and where M105R3040SE was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete records allow technical support to respond without repeated requests for basic information.

M105R3040SE Send a Starter Motor Distributor Enquiry

For a focused M105R3040SE quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
