S0486 Steyr Volvo Starter Motor Wholesale Supply

S0486 Starter Motor Aftermarket Supply for Steyr WD411 and cataloged Volvo

S0486 defines stock for Steyr WD411 and cataloged Volvo as 12V, 3.0kW, 10T and CW. Confirm 12V 3.0kW 10T catalog configuration for the WD411 reference group before releasing a first order or replacing an approved sample.

A useful enquiry pairs S0486 with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

S0486 Starter Motor Mounting Dimensions for Distributor Approval

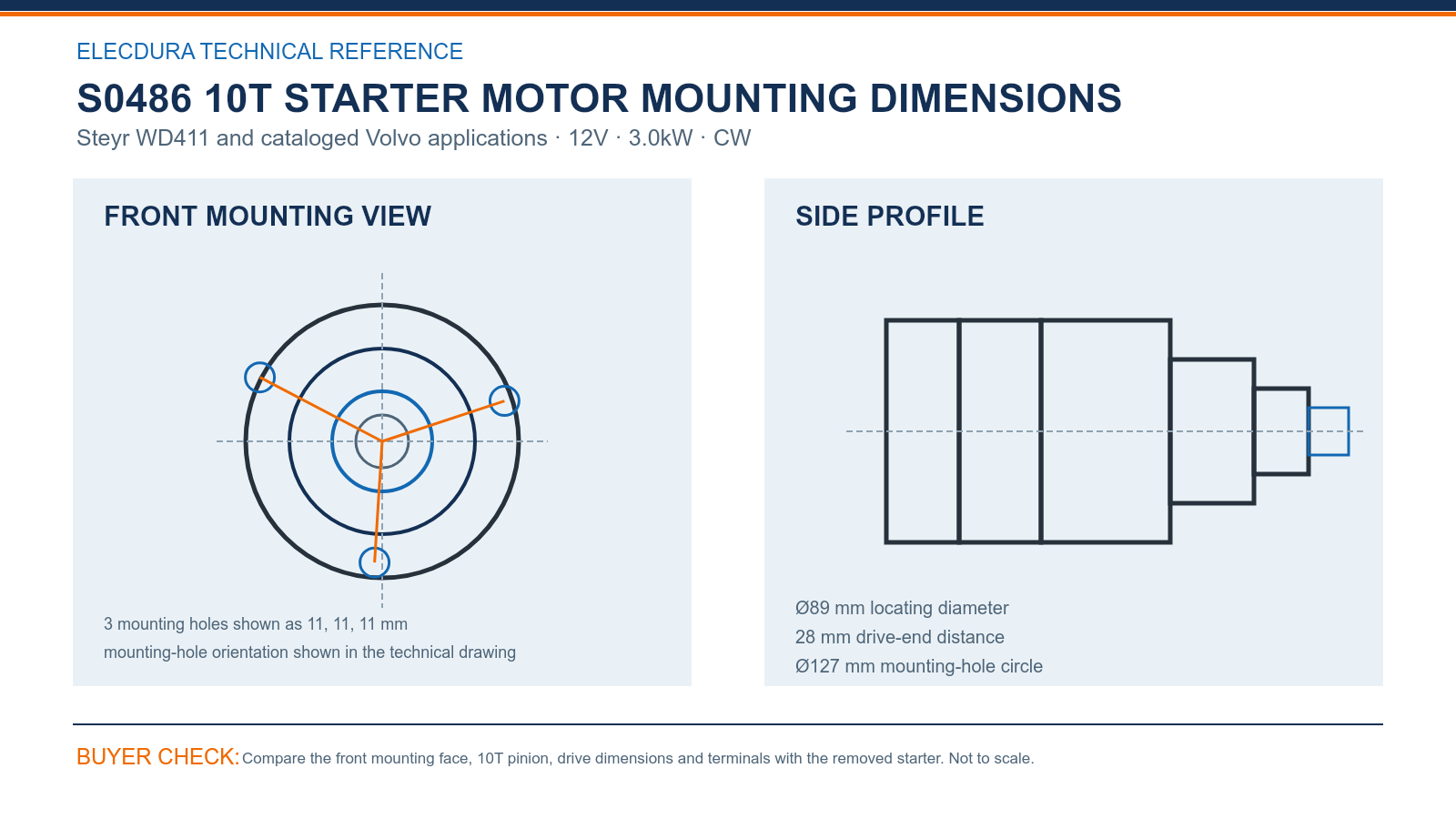

S0486 Steyr WD411 and cataloged Volvo 12V 3.0kW 10T starter mounting dimensions.

Check the S0486 drawing against the removed starter at the mounting face and drive end. The critical references are 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 28 mm drive-end distance. A physical mismatch should stop the unit from entering ordinary stock until the application is clarified.

After the S0486 mounting check, verify 12V, 3.0kW, 10T and CW with module 3.175. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

S0486 Starter Motor OE Cross-References for Distributor Enquiries

• Use the full number: Start with S0486, 110460, 0001359126, 0001367022, 0001369002, 3T8832, retaining prefixes, suffixes and separators in the RFQ.

• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

S0486 Starter Motor Aftermarket Supply for Regional Distributors

Wholesale planning for S0486 can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

A first-lot sample is useful when the fleet carries related starters with similar housings. Retain the approved S0486 label, front view and terminal view, then use recent demand and branch transfer time to set reserve stock and delivery priorities.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for S0486; the product decision itself still depends on the complete reference, 12V 3.0kW rating, drive end, mounting face and terminal layout.

S0486 Starter Motor Questions from Commercial Buyers

Before removing S0486, what should the workshop test under load during a Steyr Volvo regional electrical check?

Before fitting S0486, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

Which checks should follow an OE-number match for S0486 in a Steyr Volvo regional sourcing program?

A number match narrows the search but does not finish it. For S0486, compare the stated application, electrical output, 10T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

What should a distributor match before ordering S0486 for Steyr WD411 and cataloged Volvo during regional sourcing?

Use the full old-unit number and Steyr WD411 and cataloged Volvo record. Compare the 10T pinion, 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and terminal side. Reject a candidate when its drive position, mounting face or cable connection differs.

Which mounting-face points distinguish the specified S0486 version during a Steyr Volvo regional inspection?

Align the removed starter and S0486 at the mounting face. Compare Ø89 mm locating diameter, Ø127 mm mounting-hole circle, 3 mounting holes shown as 11, 11, 11 mm and 28 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

How can S0486 stock be separated by application risk in a Steyr Volvo regional program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent S0486 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Which first-lot checks protect a distributor receiving S0486 during a Steyr Volvo regional receiving check?

For S0486, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and the specified 10T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which commercial details belong in an export enquiry for S0486 in a Steyr Volvo regional sourcing program?

Send the complete OE number, exact Steyr WD411 and cataloged Volvo details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 12V 3.0kW 10T CW starter with packing, lead time, warranty and freight options.

Which photographs and readings help Elecdura review S0486 after installation in a Steyr Volvo regional review?

Keep the carton or product traceability code and note when and where S0486 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete records allow technical support to respond without repeated requests for basic information.

S0486 Send a Starter Motor Distributor Enquiry

For a focused S0486 quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
