S1020 CAT 3116 Ford L6000 Starter Motor Wholesale

S1020 Starter Motor B2B Fitment Guide for Caterpillar 3116 and Ford L6000 Caterpillar 3126

Medium-duty truck-parts importers, Caterpillar service buyers and distributors can use S1020 as the commercial identity for the starter required in Caterpillar 3116 and Ford L6000 Caterpillar 3126. The order should preserve the 10T pinion and the compact Ø126 face for Caterpillar 3116 and Ford L6000 procurement, avoiding a broad substitution based only on engine family or overall housing appearance.

Send the full S1020 application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

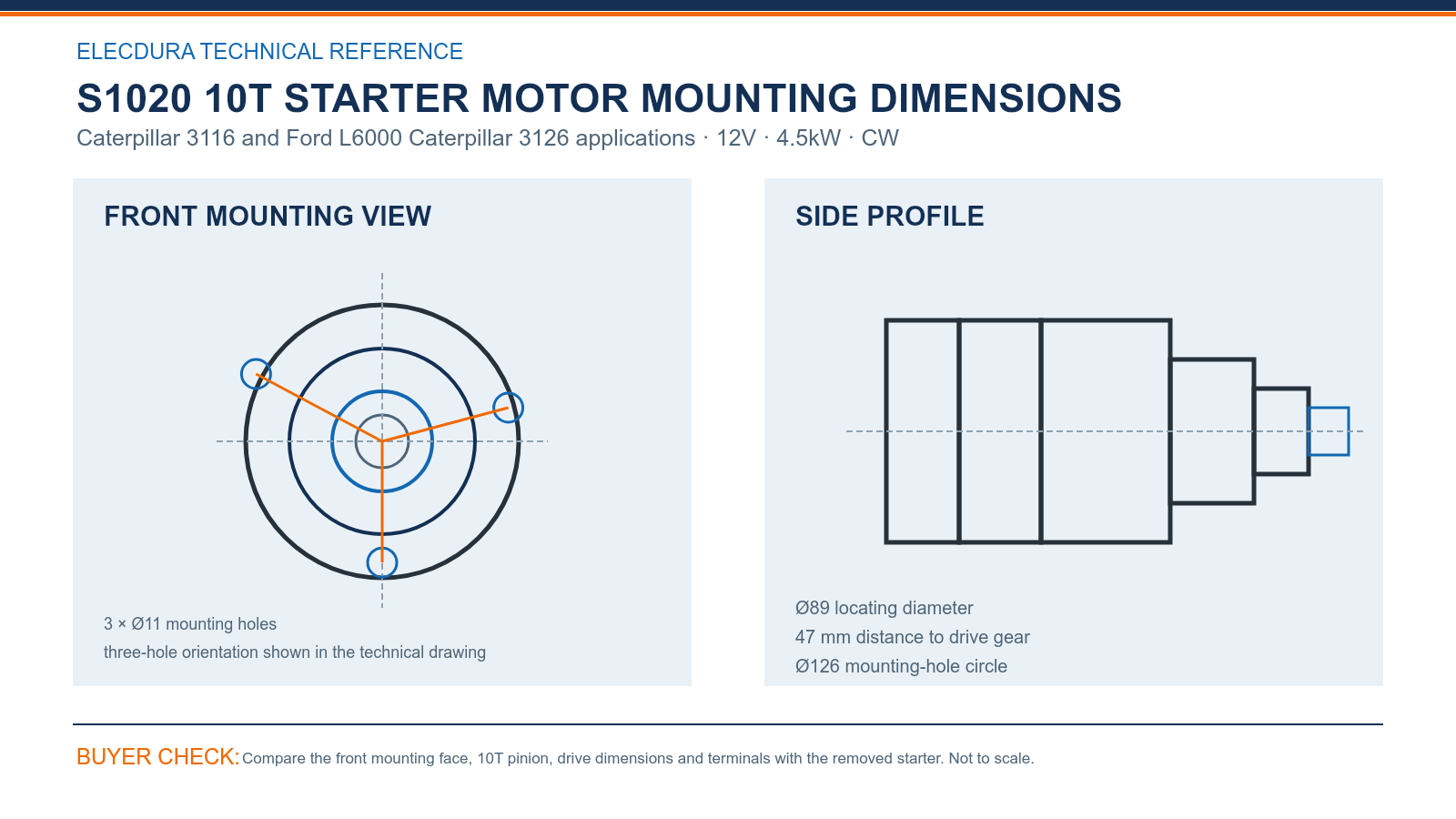

S1020 Starter Motor Drive-End Drawing for Aftermarket Distributors

S1020 Caterpillar 3116 Ford L6000 12V 4.5kW 10T starter dimensions.

For S1020 first-lot sampling, place the old and new starters in the same front-facing position. Check 3 × Ø11 mounting holes, Ø89 locating diameter, Ø126 mounting-hole circle and 47 mm distance to drive gear. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

After the S1020 mounting check, verify 12V, 4.5kW, 10T and CW with module 3.175. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

S1020 Starter Motor OE Number Guide for Aftermarket Supply

1. Search group: S1020, 10461081, 10461098, 10461207, 10478806, 1993963, 1993964 can help distributor teams locate the relevant starter family.

2. Order boundary: Confirm the complete reference with 12V, 4.5kW, 10T, CW, the drawing and terminal photographs before accepting one physical unit.

S1020 Starter Motor Bulk Order Packing and Lead-Time Support

For a bulk order of S1020, Elecdura confirms availability, packing, lead time and freight against the required quantity and destination. Standard terms begin at 20 pieces, normally require 7–15 days after confirmation and include an 18-month warranty under the final sales agreement.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted S1020 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

B2B buyers can use the video to review Elecdura’s starter-motor assembly and test process. The approved S1020 configuration remains defined by 12V, 4.5kW, 10T, CW, mounting geometry and terminals, which should be retained in the purchase record.

S1020 Starter Motor Questions from Commercial Buyers

Which photographs and readings help Elecdura review S1020 after installation in a CAT 3116 Ford L6000 dealer review?

Keep the carton or product traceability code and note when and where S1020 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

When does a cross-reference related to S1020 need a separate quotation in a CAT 3116 Ford L6000 dealer sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The S1020 group is acceptable only when 12V, 4.5kW, 10T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

Why does S1020 require a physical comparison for Caterpillar applications during dealer sourcing?

For S1020, ask the workshop for the removed starter label and the exact equipment record. Match 12V, 4.5kW, 10T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Which cranking-circuit tests should precede replacement of S1020 in a CAT 3116 Ford L6000 dealer workshop?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing S1020. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

Which mounting-face points distinguish the specified S1020 version during a CAT 3116 Ford L6000 dealer inspection?

Place the removed starter and S1020 on the same mounting-face orientation. Compare Ø89 locating diameter, Ø126 mounting-hole circle, the 3 × Ø11 mounting holes and the 47 mm distance to drive gear. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

How can S1020 stock be separated by application risk in a CAT 3116 Ford L6000 dealer program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent S1020 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Which first-lot checks protect a distributor receiving S1020 during a CAT 3116 Ford L6000 dealer receiving check?

For S1020, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø11 mounting holes, Ø89 locating diameter and the specified 10T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which commercial details belong in an export enquiry for S1020 in a CAT 3116 Ford L6000 dealer sourcing program?

Send the complete OE number, exact Caterpillar 3116 and Ford L6000 Caterpillar 3126 details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 12V 4.5kW 10T CW starter with packing, lead time, warranty and freight options.

S1020 Request a Starter Motor Fleet Supply Quote

Email info@elecdurauto.com with S1020, the supported Caterpillar 3116 and Ford L6000 Caterpillar 3126 record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 12V, 4.5kW, 10T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
