S1131 CAT 3406 Cummins Starter Motor Wholesale

S1131 Starter Motor Fleet Replacement Supply for Caterpillar 3406 and Cummins V8-265

S1131 supports Caterpillar 3406 and Cummins V8-265 sourcing where buyers need a defined electrical and drive-end match. Its 12V, 4.0kW, 11T CW specification must remain linked to the 11T large-pitch drive for Caterpillar 3406 and Cummins V8-265 records; a visually related unit may belong on a different RFQ line.

Before comparing S1131 prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

S1131 Starter Motor Technical Data for Fleet Parts Buyers

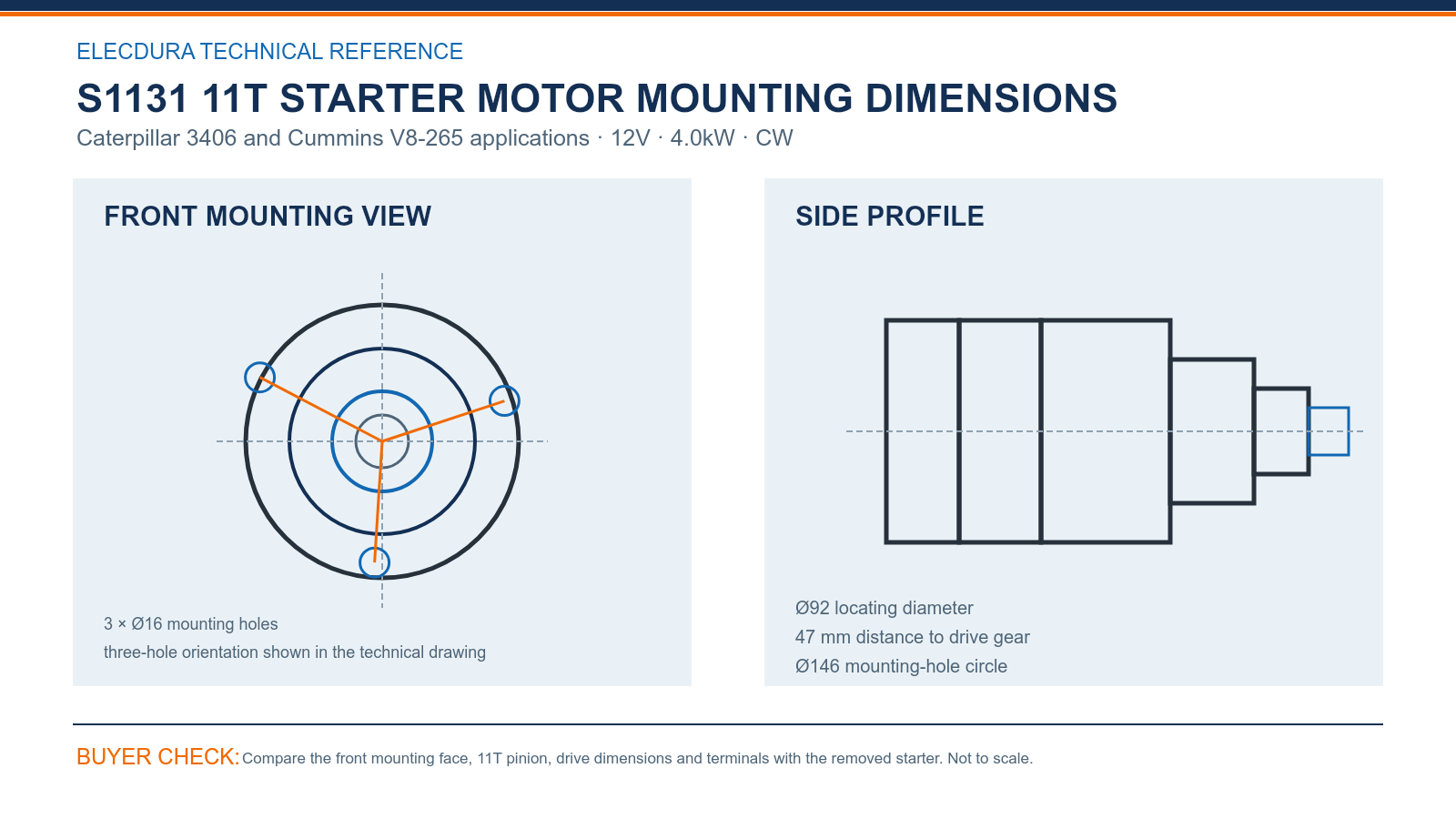

S1131 Caterpillar 3406 Cummins V8-265 12V 4.0kW 11T starter dimensions.

The S1131 dimensional review starts at the mounting face: verify 3 × Ø16 mounting holes, Ø146 mounting-hole circle and Ø92 locating diameter. Then compare the 47 mm distance to drive gear. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For S1131, electrical and mechanical identity must agree: 12V, 4.0kW, 11T, module 4.233 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

S1131 Starter Motor Cross-Reference Review for Fleet Buyers

The S1131 cross-reference group includes S1131, 121555C91, 201295T91, 0R5347, 3T2654, 3T2879, 4L9547. These numbers improve search coverage across fleets and supplier systems, but they do not replace a check of 12V, 4.0kW, 11T, CW, mounting geometry and terminals.

If a mixed S1131 enquiry contains different pinions, drive positions or connector layouts, list each complete reference and photograph separately. Elecdura can then return distinct offers instead of placing unlike starters under one broad reference family.

S1131 Starter Motor Fleet Supply and Replenishment Support

Wholesale planning for S1131 can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

Stock planning should reflect the supported Caterpillar 3406 and Cummins V8-265 population, recent consumption and transfer time between service locations. Keeping S1131, the 11T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For S1131, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

S1131 Starter Motor Questions from Commercial Buyers

Before removing S1131, what should the workshop test under load in a CAT 3406 Cummins workshop workshop?

Before fitting S1131, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

What should an importer include in the replenishment forecast for S1131 in a CAT 3406 Cummins workshop program?

Build the forecast around actual equipment counts, failure history and the time needed to replenish each service location. For S1131, keep the specified pinion and mounting interface visible in the stock record. This reduces emergency substitutions and gives purchasing a clearer basis for MOQ, packing and delivery discussions.

What should a distributor match before ordering S1131 for Caterpillar 3406 and Cummins V8-265 during workshop sourcing?

Use the complete removed-unit number and exact Caterpillar 3406 and Cummins V8-265 record. Compare the 11T pinion, 3 × Ø16 mounting holes, Ø92 locating diameter and terminal side with the old starter. A housing resemblance is insufficient when the drive position, mounting face or cable connection differs.

What is the safe way to order S1131 from an alternate OE number in a CAT 3406 Cummins workshop sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the S1131 electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

Which S1131 dimensions are practical for a warehouse inspection during a CAT 3406 Cummins workshop inspection?

The first-lot check should cover 3 × Ø16 mounting holes, Ø92 locating diameter and 47 mm distance to drive gear. Add the 11T pinion, rotation and terminal position to the inspection sheet. Recording those details helps a warehouse identify a mixed or incorrectly labelled unit before it reaches a workshop or customer.

Which first-lot checks protect a distributor receiving S1131 during a CAT 3406 Cummins workshop receiving check?

For S1131, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø16 mounting holes, Ø92 locating diameter and the specified 11T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which commercial details belong in an export enquiry for S1131 in a CAT 3406 Cummins workshop sourcing program?

Send the complete OE number, exact Caterpillar 3406 and Cummins V8-265 details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 12V 4.0kW 11T CW starter with packing, lead time, warranty and freight options.

Which photographs and readings help Elecdura review S1131 after installation in a CAT 3406 Cummins workshop review?

Keep the carton or product traceability code and note when and where S1131 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

S1131 Ask for Starter Motor Export Pricing

Prepare the S1131 enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
