S1134 CAT 3406 Starter Motor Wholesale

S1134 Starter Motor Distributor Application Guide for Caterpillar 3406 engine

For a fleet parts team, S1134 identifies one Caterpillar 3406 engine requirement. The 7.5kW 11T module-4.23 drive assigned to the Caterpillar 3406 catalog record provides a clear fitment boundary for sample, stock and replacement reviews.

A useful enquiry pairs S1134 with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

S1134 Starter Motor Mounting Dimensions for Distributor Approval

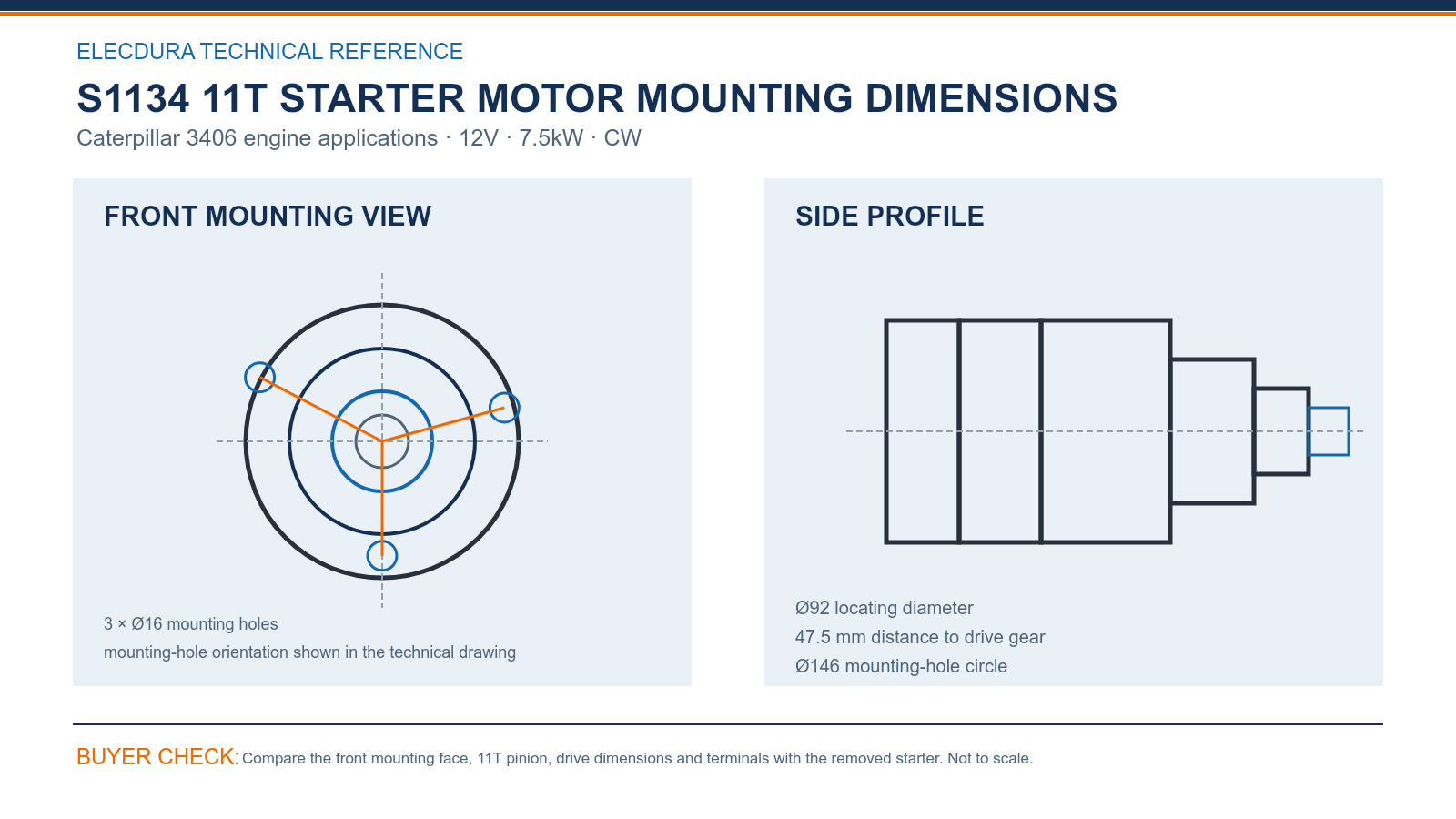

Use the S1134 technical drawing to check Ø92 locating diameter, 47.5 mm distance to drive gear and Ø146 mounting-hole circle. Add the 3 × Ø16 mounting holes to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

Complete the S1134 comparison with 12V, 7.5kW, the 11T drive, module 4.23 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

S1134 Starter Motor Reference Group for Wholesale Sourcing

• Use the full number: Start with S1134, 112089, 107717A1, 202383T91, 202384T91, 263819C91, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

S1134 Starter Motor Distributor Stock and Delivery Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For S1134, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

Keep the 3406 engine identity visible when cross-references overlap the 0R2191 family and confirm the old-unit terminal orientation. Once that boundary is fixed, purchasing can separate urgent units from routine replenishment and define branch quantities, stock labels and freight timing without encouraging an unverified substitute.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for S1134; the product decision itself still depends on the complete reference, 12V 7.5kW rating, drive end, mounting face and terminal layout.

S1134 Starter Motor Questions from Commercial Buyers

What traceability details should accompany a warranty enquiry for S1134 in a CAT 3406 branch review?

Keep the carton or product traceability code and note when and where S1134 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

Which old-unit checks matter most when sourcing S1134 during branch sourcing?

Confirm S1134 against the complete OE number, the stated Caterpillar 3406 engine use and clear front, side and terminal photographs. The decisive points are 11T, 3 × Ø16 mounting holes and 47.5 mm distance to drive gear. Those controls keep visually related starters from being combined in one order.

How should buyers use the S1134 cross-reference group in a CAT 3406 branch sourcing program?

A number match narrows the search but does not finish it. For S1134, compare the stated application, electrical output, 11T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

What workshop readings are useful when diagnosing a starting complaint involving S1134 in a CAT 3406 branch workshop?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing S1134. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

Why is a straight mounting-face photo useful for confirming S1134 during a CAT 3406 branch inspection?

Place the removed starter and S1134 on the same mounting-face orientation. Compare Ø92 locating diameter, Ø146 mounting-hole circle, the 3 × Ø16 mounting holes and the 47.5 mm distance to drive gear. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

Can urgent service demand and routine S1134 replenishment share one enquiry in a CAT 3406 branch program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent S1134 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

How can a buyer quarantine a mismatched S1134 unit quickly during a CAT 3406 branch receiving check?

For S1134, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø16 mounting holes, Ø92 locating diameter and the specified 11T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

What should be included in a wholesale enquiry for S1134 in a CAT 3406 branch sourcing program?

Send the complete OE number, exact Caterpillar 3406 engine details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 12V 7.5kW 11T CW starter with packing, lead time, warranty and freight options.

S1134 Send a Starter Motor Distributor Enquiry

For a focused S1134 quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
