S1169 CAT 345D L Starter Motor Wholesale Supply

S1169 Starter Motor Aftermarket Supply for Caterpillar 345D L excavator

The buyer value of S1169 is a clear stock definition for Caterpillar 345D L excavator: 24V, 9.0kW, 11T and CW. The deciding physical detail is the 24V 9.0kW 11T module-4.233 product for the CAT 345D L catalog record, so the application name alone is not enough to release a first order or replace an approved sample.

For the first S1169 order, include the removed-unit label, application details and straight photographs of the drive end and terminals. Quantity, destination, delivery target and any private-label requirement complete the commercial brief and reduce the risk of pricing a related but physically different starter.

S1169 Starter Motor Specification Table for B2B Sourcing

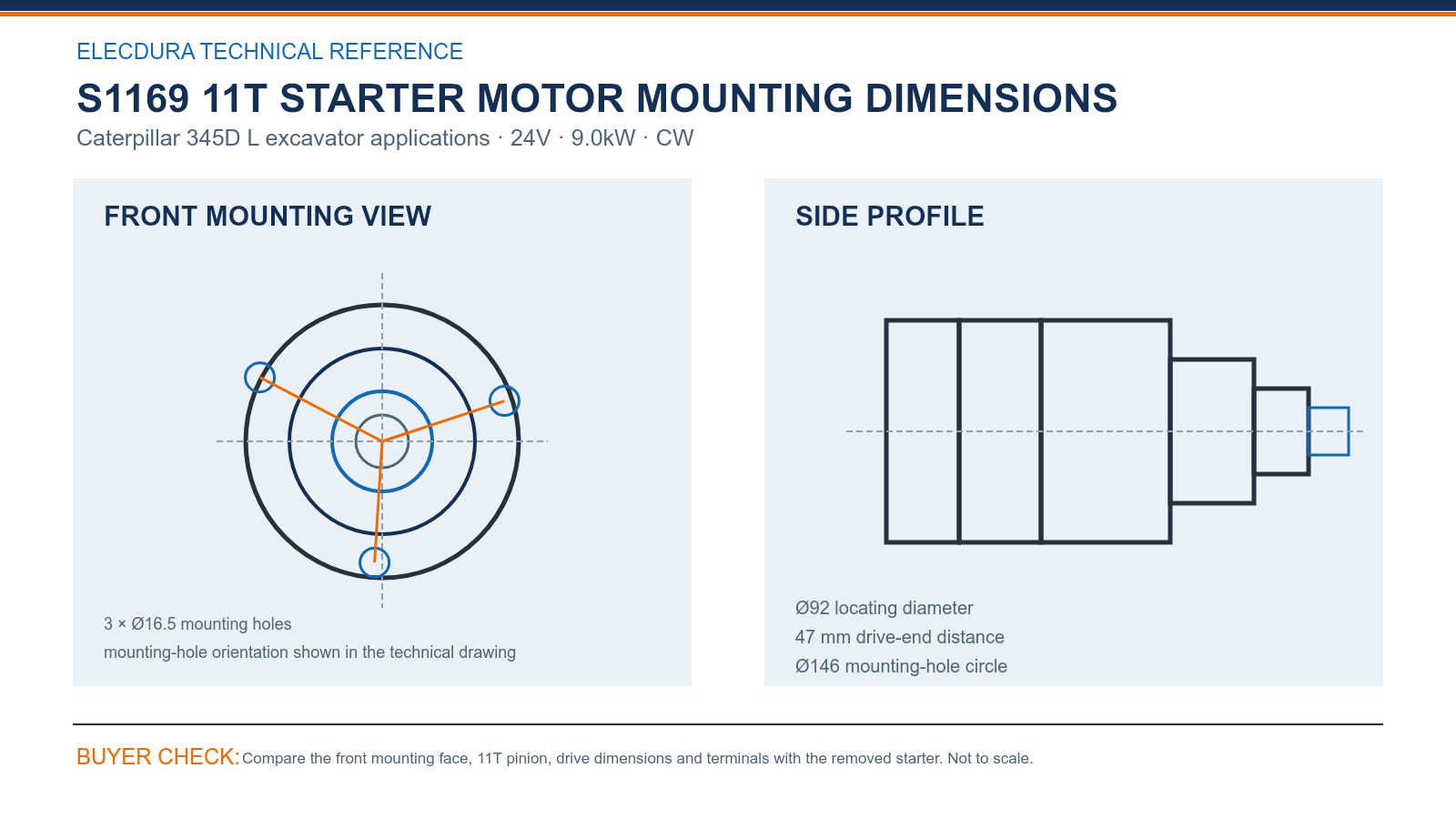

A warehouse can confirm the S1169 interface without dismantling the unit. Measure Ø92 locating diameter and Ø146 mounting-hole circle, inspect 3 × Ø16.5 mounting holes, then verify the 47 mm drive-end distance. Photograph the pinion and terminal side so workshop staff can review details that a carton label cannot show.

For S1169, record 11T, CW, 24V and 9.0kW, including module 4.233. Inspect the pinion, solenoid orientation and terminal access from the same side as the removed unit. A first sample should pass both the label check and this physical comparison.

S1169 Starter Motor Reference Matching for B2B Quotations

• Use the full number: Start with S1169, 20R3250, 2692757, 3487651, 3646795, 5593352, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

S1169 Starter Motor Aftermarket Supply for Regional Distributors

Distributors can combine an initial S1169 sample plan with a later replenishment forecast. MOQ is 20 pieces, normal lead time is 7–15 days after confirmation and warranty is 18 months under agreed terms; packing and shipping are quoted for the actual route and arrival requirement.

A first-lot sample is useful when the fleet carries related starters with similar housings. Retain the approved S1169 label, front view and terminal view, then use recent demand and branch transfer time to set reserve stock and delivery priorities.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for S1169 continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

S1169 Starter Motor Questions from Commercial Buyers

How can branches reduce emergency transfers of S1169 stock in a CAT 345D L regional program?

Set critical-spare quantities from excavator utilization and site-to-branch delivery time. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Why is a straight mounting-face photo useful for confirming S1169 during a CAT 345D L regional inspection?

Place the removed starter and S1169 on the same mounting-face orientation. Compare Ø92 locating diameter, Ø146 mounting-hole circle, the 3 × Ø16.5 mounting holes and the 47 mm drive-end distance. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

Can S1169 be selected from the application name alone during regional sourcing?

Confirm S1169 against the complete OE number, the stated Caterpillar 345D L excavator use and clear front, side and terminal photographs. The decisive points are 11T, 3 × Ø16.5 mounting holes and 47 mm drive-end distance. Those controls keep visually related starters from being combined in one order.

Which checks should follow an OE-number match for S1169 in a CAT 345D L regional sourcing program?

A number match narrows the search but does not finish it. For S1169, compare the stated application, electrical output, 11T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

Which cranking-circuit tests should precede replacement of S1169 in a CAT 345D L regional workshop?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing S1169. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

What receiving records are useful for a shipment of S1169 during a CAT 345D L regional receiving check?

Receiving should verify the S1169 label, quantity and packaging before opening sampled cartons. Compare the 11T drive, Ø92 locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How should a buyer request samples and bulk pricing for S1169 in a CAT 345D L regional sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For S1169, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

How should a workshop document a service issue involving S1169 in a CAT 345D L regional review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate S1169 without assuming that every no-crank complaint originates inside the starter.

S1169 Start a Starter Motor Wholesale Enquiry

To discuss S1169 supply, send the complete application and old-unit identification, mounting-face and terminal photos, requested quantity, destination and timing to info@elecdurauto.com. The reply will address the specified starter, sample or bulk availability, export packing, commercial terms and delivery route.
