S1241S Caterpillar D342 Starter Motor Wholesale

S1241S Starter Motor Distributor Application Guide for Caterpillar D342 engine

For a fleet parts team, S1241S identifies one Caterpillar D342 engine requirement. The 24V 9.0kW 12T module-3.175 configuration assigned to the Caterpillar D342 reference group provides a clear fitment boundary for sample, stock and replacement reviews.

A useful enquiry pairs S1241S with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

S1241S Starter Motor Mounting Dimensions for Distributor Approval

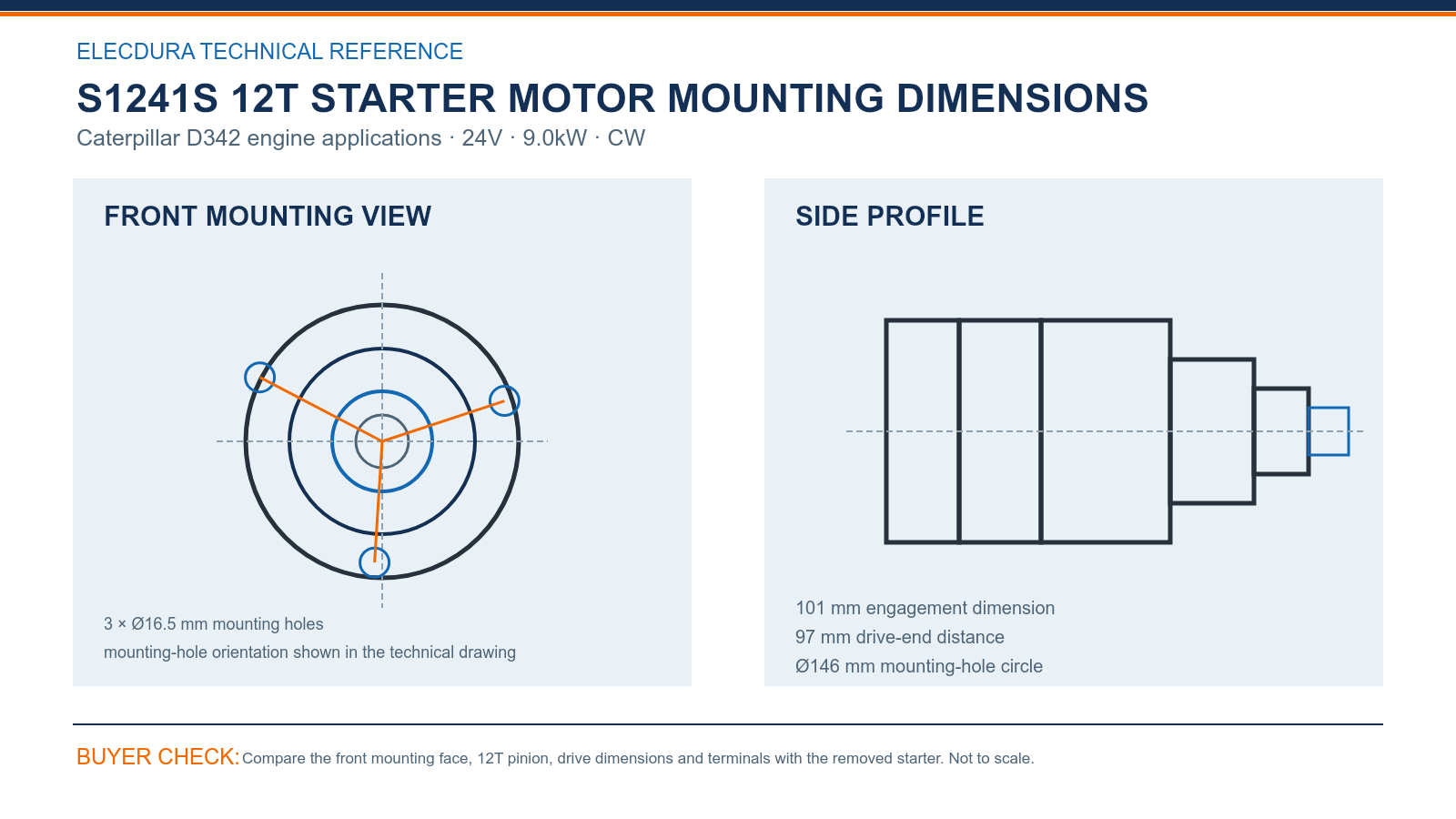

Use the S1241S technical drawing to check 101 mm engagement dimension, 97 mm drive-end distance and Ø146 mm mounting-hole circle. Add the 3 × Ø16.5 mm mounting holes to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

Complete the S1241S comparison with 24V, 9.0kW, the 12T drive, module 3.175 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

S1241S Starter Motor Reference Group for Wholesale Sourcing

• Use the full number: Start with S1241S, 0R5214, 10R1913, 1P9162, 1P9182, 3S4458, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

S1241S Starter Motor Distributor Stock and Delivery Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For S1241S, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

Confirm S1241S or the full CAT number and check the 12T pinion before approving interchange. Once that boundary is fixed, purchasing can separate urgent units from routine replenishment and define branch quantities, stock labels and freight timing without encouraging an unverified substitute.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for S1241S; the product decision itself still depends on the complete reference, 24V 9.0kW rating, drive end, mounting face and terminal layout.

S1241S Starter Motor Questions from Commercial Buyers

Which checks should follow an OE-number match for S1241S in a Caterpillar D342 branch sourcing program?

A number match narrows the search but does not finish it. For S1241S, compare the stated application, electrical output, 12T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

What should a distributor match before ordering S1241S for Caterpillar D342 engine during branch sourcing?

Use the complete removed-unit number and exact Caterpillar D342 engine record. Compare the 12T pinion, 3 × Ø16.5 mm mounting holes, 101 mm engagement dimension and terminal side with the old starter. A housing resemblance is insufficient when the drive position, mounting face or cable connection differs.

How can a service team rule out cable or battery faults before fitting S1241S in a Caterpillar D342 branch workshop?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for S1241S helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

Which S1241S dimensions are practical for a warehouse inspection during a Caterpillar D342 branch inspection?

The first-lot check should cover 3 × Ø16.5 mm mounting holes, 101 mm engagement dimension and 97 mm drive-end distance. Add the 12T pinion, rotation and terminal position to the inspection sheet. Recording those details helps a warehouse identify a mixed or incorrectly labelled unit before it reaches a workshop or customer.

What demand information helps set a sensible reorder level for S1241S in a Caterpillar D342 branch program?

Build the forecast around actual equipment counts, failure history and the time needed to replenish each service location. For S1241S, keep the specified pinion and mounting interface visible in the stock record. This reduces emergency substitutions and gives purchasing a clearer basis for MOQ, packing and delivery discussions.

Which physical points should be checked before S1241S enters branch stock during a Caterpillar D342 branch receiving check?

For S1241S, match carton and product labels to the purchase order, then sample 24V, 12T, 3 × Ø16.5 mm mounting holes and terminal protection. Check the flange and pinion for shipping damage. Record lot numbers and arrival photographs, and isolate any different configuration before it is placed in saleable stock.

Which order conditions should be stated when asking about S1241S in a Caterpillar D342 branch sourcing program?

A useful RFQ states S1241S, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

Which test results help investigate a returned S1241S starter in a Caterpillar D342 branch review?

For a service review of S1241S, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

S1241S Send a Starter Motor Distributor Enquiry

For a focused S1241S quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
