S1255S CAT 815F Starter Motor Wholesale Supply

S1255S Starter Motor Distributor Application Guide for Caterpillar 815F compactor

For a fleet parts team, S1255S identifies one Caterpillar 815F compactor requirement. The 24V 7.5kW 13T module-3.175 drive for the supplier-listed 815F record provides a clear fitment boundary for sample, stock and replacement reviews.

A useful enquiry pairs S1255S with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

S1255S Starter Motor Mounting Dimensions for Distributor Approval

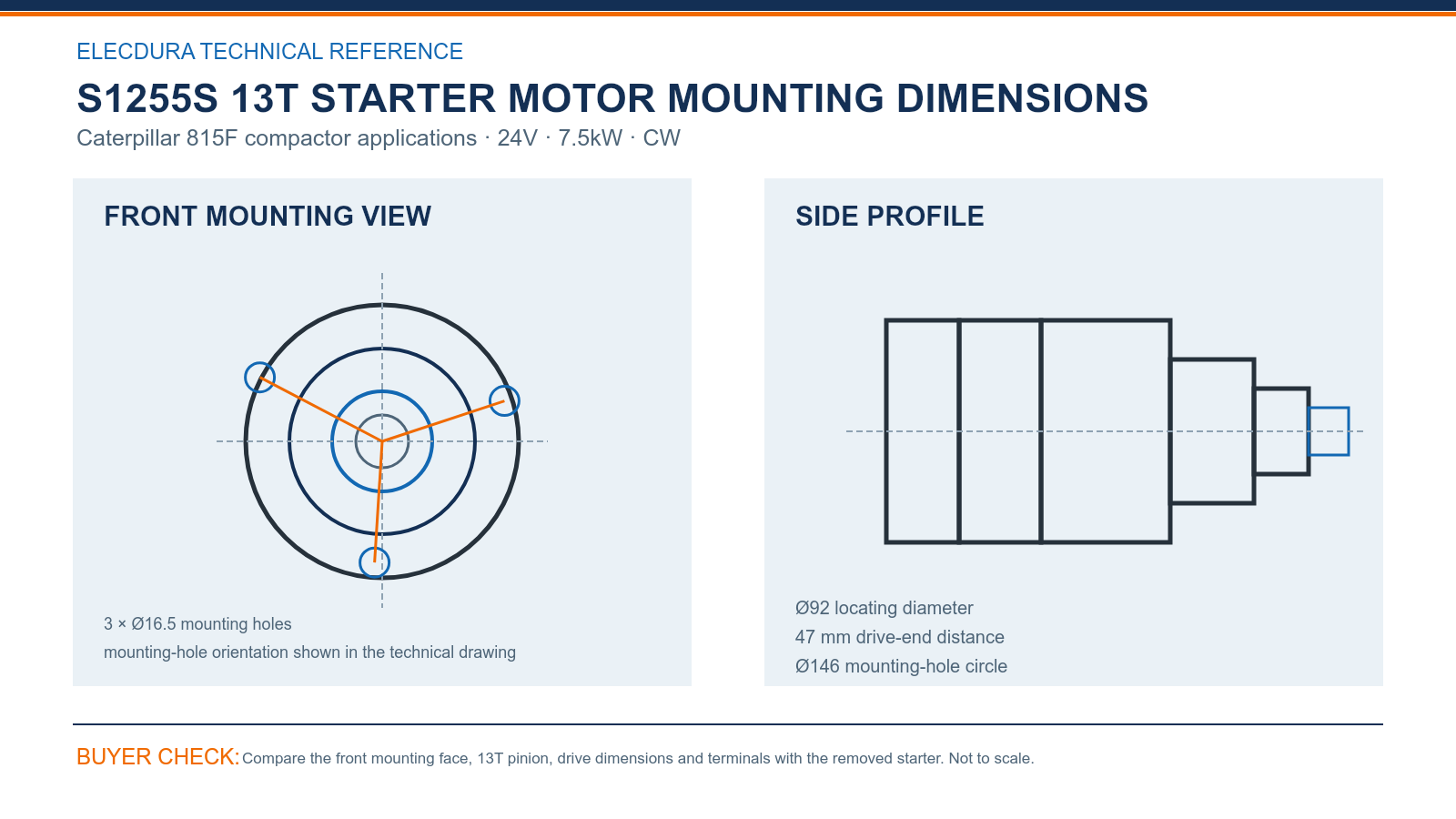

Use the S1255S technical drawing to check Ø92 locating diameter, 47 mm drive-end distance and Ø146 mounting-hole circle. Add the 3 × Ø16.5 mounting holes to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

Complete the S1255S comparison with 24V, 7.5kW, the 13T drive, module 3.175 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

S1255S Starter Motor Reference Group for Wholesale Sourcing

• Use the full number: Start with S1255S, 0R6657, 0R7757, 10R8909, 1654619, 174062, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

S1255S Starter Motor Distributor Stock and Delivery Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For S1255S, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

Confirm the uncommon 13T pinion, 815F machine record and complete S1255S reference. Once that boundary is fixed, purchasing can separate urgent units from routine replenishment and define branch quantities, stock labels and freight timing without encouraging an unverified substitute.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for S1255S; the product decision itself still depends on the complete reference, 24V 7.5kW rating, drive end, mounting face and terminal layout.

S1255S Starter Motor Questions from Commercial Buyers

Which checks should follow an OE-number match for S1255S in a CAT 815F branch sourcing program for 13-tooth CAT 815F stock control?

A number match narrows the search but does not finish it. For S1255S, compare the stated application, electrical output, 13T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

How should Caterpillar distributors plan stock for S1255S in a CAT 815F branch program for 13-tooth CAT 815F stock control?

Mark tooth count prominently for receiving and urgent road-equipment replenishment. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

How should a fleet workshop verify S1255S against the removed starter during branch sourcing for 13-tooth CAT 815F stock control?

For S1255S, begin with the machine, truck or engine identification, then read the full old-unit label. The physical check should cover 13T, Ø146 mounting-hole circle, Ø92 locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item, even when an application description overlaps.

Which electrical conditions can imitate a failed S1255S starter motor in a CAT 815F branch workshop for 13-tooth CAT 815F stock control?

Before fitting S1255S, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

How does the S1255S mounting drawing support product approval during a CAT 815F branch inspection for 13-tooth CAT 815F stock control?

For S1255S, use a straight front view to compare the 3 × Ø16.5 mounting holes and Ø146 mounting-hole circle; use the side view for Ø92 locating diameter and 47 mm drive-end distance. Complete the check with 13T, CW and terminal orientation. This combination is more reliable than an angled overall photograph alone.

Which physical points should be checked before S1255S enters branch stock during a CAT 815F branch receiving check for 13-tooth CAT 815F stock control?

For S1255S, match carton and product labels to the purchase order, then sample 24V, 13T, 3 × Ø16.5 mounting holes and terminal protection. Check the flange and pinion for shipping damage. Record lot numbers and arrival photographs, and isolate any different configuration before it is placed in saleable stock.

Which order conditions should be stated when asking about S1255S in a CAT 815F branch sourcing program for 13-tooth CAT 815F stock control?

A useful RFQ states S1255S, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

Which test results help investigate a returned S1255S starter in a CAT 815F branch review for 13-tooth CAT 815F stock control?

For a service review of S1255S, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

S1255S Send a Starter Motor Distributor Enquiry

For a focused S1255S quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
