S6126 Scania Cummins 24V Starter Motor Wholesale

S6126 Wholesale Starter Motor for Cummins engines and Scania K94 or T114 fleets

For Scania bus and truck parts networks maintaining K94 and T114 fleets with Cummins-linked reference demand, the decisive S6126 check is the S6126 reference, 10T module-3.175 pinion and exact cable-side arrangement. Fleet downtime grows when a cross-reference is accepted without checking the K94 or T114 chassis and the removed starter.

Provide vehicle model, chassis or fleet number, engine data, old-unit label, mounting photograph, shipment quantity, packing needs and destination for S6126 10T. The quotation can then address realistic availability, warranty and logistics for Cummins engines and Scania K94 or T114 fleets instead of a generic replacement.

S6126 Starter Motor Dimensions for Scania Fleet Distributors

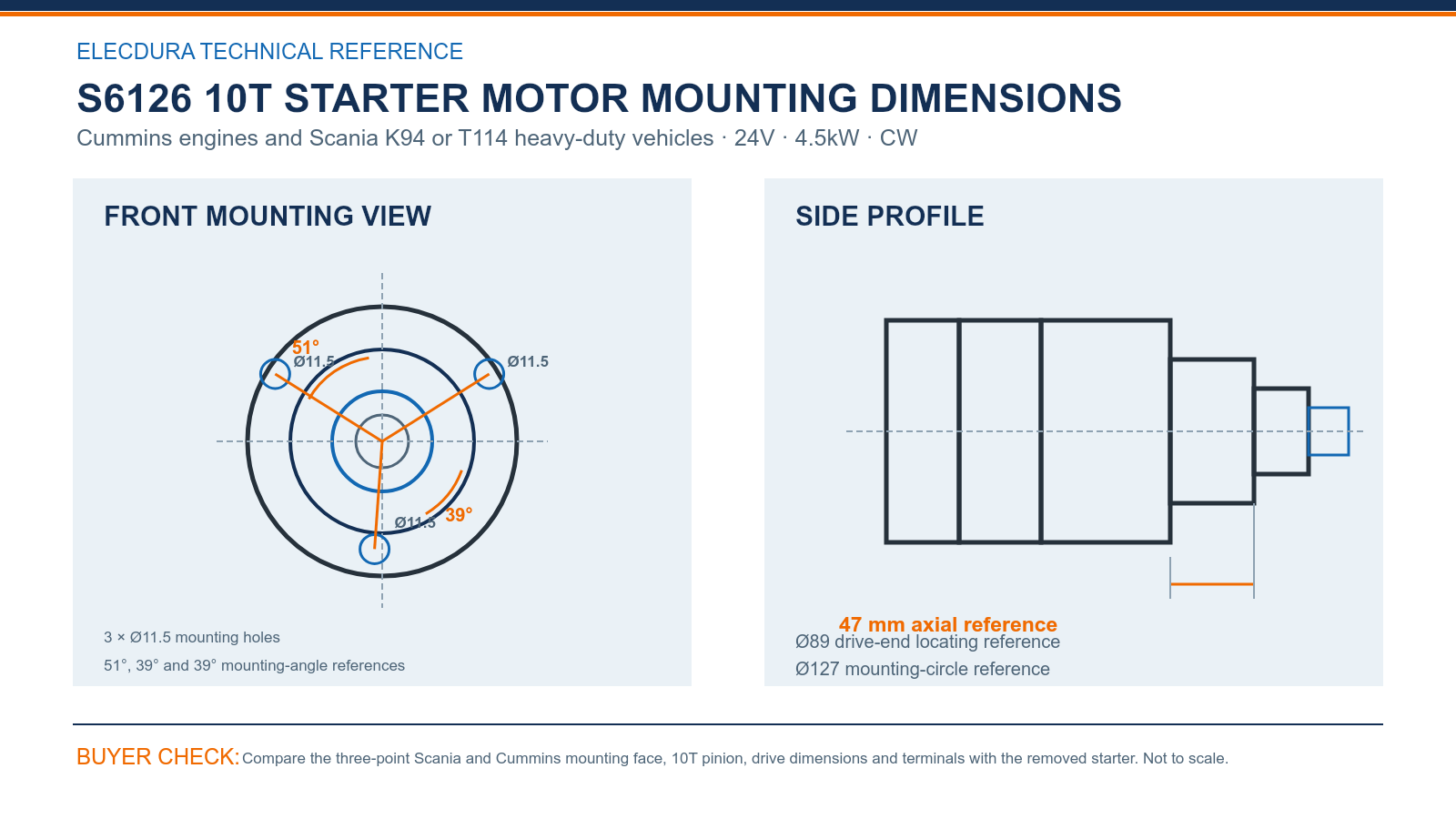

S6126 Scania Cummins 24V 4.5kW 10T starter mounting dimensions.

Start the S6126 10T drive-end comparison with Ø89 drive-end locating reference, 47 mm axial reference and Ø127 mounting-circle reference. A straight old-unit photograph helps reveal a different pilot, offset or pinion position for Cummins engines and Scania K94 or T114 fleets.

Confirm S6126 10T as 24V, 4.5kW, 10T, module 3.175, CW, then verify the Ø127 circle, Ø89 location, 47 mm drive position, pinion and terminal protection at the central depot. For Cummins engines and Scania K94 or T114 fleets, a changed pinion, flange or terminal side identifies another starter even when voltage and output agree.

S6126 Starter Motor Cross-References and Fitment Checks

1. Reference group: Begin with S6126 10T and record every complete number on the removed unit. Related references help locate S6126 10T, but buyers must still confirm the S6126 reference, 10T module-3.175 pinion and exact cable-side arrangement.

2. Fitment check: Keep Cummins engines and Scania K94 or T114 heavy-duty vehicles, 24V, 4.5kW, 10T, module 3.175, CW and the confirmed product photographs together on the S6126 10T quotation. A different pinion, flange, rotation or cable position requires a separate comparison for Cummins engines and Scania K94 or T114 fleets.

S6126 Starter Motor MOQ, Lead Time and Export Supply

Elecdura supports S6126 10T wholesale orders from 20 pieces, normally 7–15 days after confirmation, with an 18-month warranty under agreed terms. Forecast by supported fleet and depot transfer time, with S6126 and the ten-tooth drive printed on every internal movement.

Use the S6126 10T video to review Elecdura's starter production and testing process. The footage complements, but does not replace, comparison of S6126 10T with the removed starter and target equipment.

S6126 Starter Motor FAQs for Cummins Scania Parts Buyers

How can buyers distinguish S6126 10T from a similar starter?

Fleet downtime grows when a cross-reference is accepted without checking the K94 or T114 chassis and the removed starter. Confirm S6126 10T by comparing the S6126 reference, 10T module-3.175 pinion and exact cable-side arrangement against the old unit's label, pinion and terminals. Keep Cummins engines and Scania K94 or T114 fleets on the enquiry; a matching rating or housing is not enough.

Which details are needed for a S6126 10T wholesale quotation?

Send vehicle model, chassis or fleet number, engine data, old-unit label, mounting photograph, quantity, destination and target date for S6126 10T. For Cummins engines and Scania K94 or T114 fleets, list immediate service quantity separately from routine stock and state allocation needs. Elecdura can then price 24V, 4.5kW, 10T, module 3.175, CW with MOQ, timing, warranty and freight options for S6126.

What drive-end dimensions should be compared for S6126 10T?

For S6126 10T, compare 3 × Ø11.5 mounting holes, Ø89 drive-end locating reference and 47 mm axial reference. Relate those dimensions to Ø127 mounting-circle reference and the 10T pinion for Cummins engines and Scania K94 or T114 fleets. Request a square-on drive-end photograph, to avoid perspective masking hole position, pilot diameter or pinion depth for Cummins engines and Scania K94 or T114 fleets.

How should distributors plan stock for S6126 10T?

Forecast by supported fleet and depot transfer time, with S6126 and the ten-tooth drive printed on every internal movement. Plan the S6126 10T reserve from supported machines, recent withdrawals and transfer time. Keeping the Cummins engines and Scania K94 or T114 fleets and drive description on the bin helps branches avoid issuing another Cummins Scania starter during an urgent repair.

Which electrical checks should precede starter replacement on Cummins engines and Scania K94 or T114 fleets?

Capture battery-load and voltage-drop readings before workshop removal, especially for intermittent route failures. After removing the old starter from Cummins engines and Scania K94 or T114 fleets, check the flange, drive teeth and ring gear for unusual marks. Those readings on Cummins engines and Scania K94 or T114 fleets distinguish starter condition from weak batteries, cable resistance, poor grounding, a start-control fault or mechanical resistance.

What belongs in receiving inspection for this Cummins Scania starter?

Verify the Ø127 circle, Ø89 location, 47 mm drive position, pinion and terminal protection at the central depot. Match the S6126 10T label and 24V, 4.5kW, 10T, module 3.175, CW specification to the order, photograph the confirmed construction and retain the shipment lot. Isolate damaged connections, changed flanges or different pinions before releasing stock for Cummins engines and Scania K94 or T114 fleets.

What should remain on a repeat order for Cummins engines and Scania K94 or T114 fleets?

Keep S6126 10T, Cummins engines and Scania K94 or T114 fleets, the confirmed product photographs and the previous shipment result on the repeat order. Add new quantity, destination, target date and packing instructions. This helps give fleet workshops a traceable S6126 replacement that can be reordered without reopening the fitment question.

Which records support an after-sales review for Cummins Scania buyers?

Provide vehicle number, mileage, workshop report, installation date, delivery lot and electrical readings under cranking load for a S6126 10T review. For Cummins engines and Scania K94 or T114 fleets, include operating conditions and electrical readings taken before removal, then photograph the old and returned units from matching angles.

Request S6126 Starter Motor Wholesale Pricing

Email vehicle model, chassis or fleet number, engine data, old-unit label, mounting photograph, quantity, destination and arrival date to info@elecdurauto.com. Elecdura will quote S6126 with MOQ, packing, lead time, warranty and freight options for the specified 24V, 4.5kW, 10T, module 3.175, CW unit.
