S9479 CAT 3126 Starter Motor Wholesale Supply

S9479 Starter Motor Fleet Replacement Supply for Caterpillar 3126 severe-duty

S9479 supports Caterpillar 3126 severe-duty sourcing where buyers need a defined electrical and drive-end match. Its 12V, 7.5kW, 12T CW specification must remain linked to the high-output 7.5kW 12T drive with a 46 mm pinion position and Ø13.5 mounting holes; a visually related unit may belong on a different RFQ line.

Before comparing S9479 prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

S9479 Starter Motor Technical Data for Fleet Parts Buyers

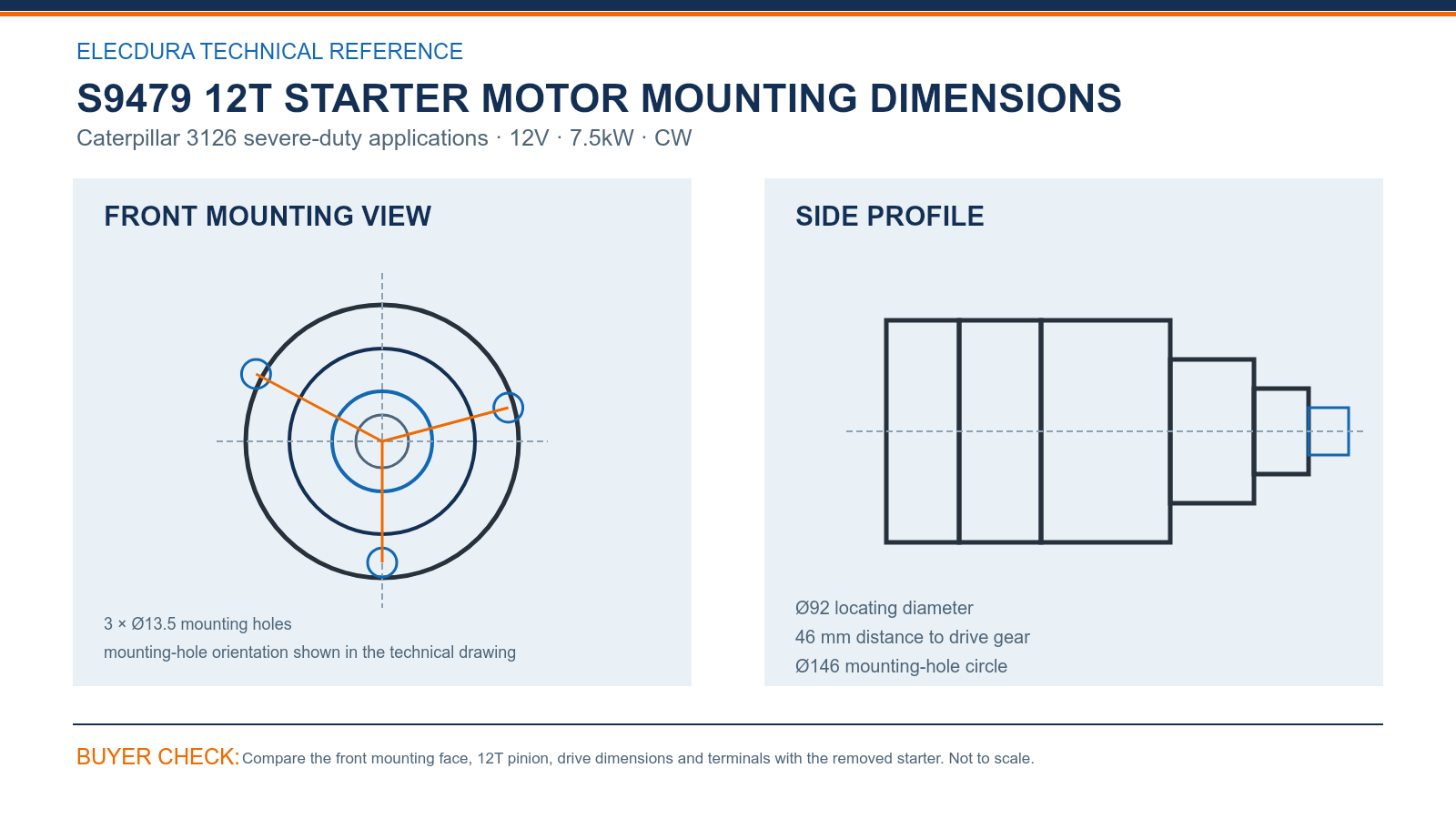

The S9479 dimensional review starts at the mounting face: verify 3 × Ø13.5 mounting holes, Ø146 mounting-hole circle and Ø92 locating diameter. Then compare the 46 mm distance to drive gear. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For S9479, electrical and mechanical identity must agree: 12V, 7.5kW, 12T and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

S9479 Starter Motor Cross-Reference Review for Fleet Buyers

The S9479 cross-reference group includes S9479, 112259, 0R2188, 0R4264, 2N2761, 3T2648, 4N9253. These numbers improve search coverage across fleets and supplier systems, but they do not replace a check of 12V, 7.5kW, 12T, CW, mounting geometry and terminals.

If a mixed S9479 enquiry contains different pinions, drive positions or connector layouts, list each complete reference and photograph separately. Elecdura can then return distinct offers instead of placing unlike starters under one broad reference family.

S9479 Starter Motor Fleet Supply and Replenishment Support

Wholesale planning for S9479 can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

Stock planning should reflect the supported Caterpillar 3126 severe-duty population, recent consumption and transfer time between service locations. Keeping S9479, the 12T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For S9479, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

S9479 Starter Motor Questions from Commercial Buyers

What should a distributor match before ordering S9479 for Caterpillar 3126 severe-duty during workshop sourcing?

Use the complete removed-unit number and exact Caterpillar 3126 severe-duty record. Compare the 12T pinion, 3 × Ø13.5 mounting holes, Ø92 locating diameter and terminal side with the old starter. A housing resemblance is insufficient when the drive position, mounting face or cable connection differs.

How can a service team rule out cable or battery faults before fitting S9479 in a CAT 3126 workshop workshop?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for S9479 helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

Why is the S9479 reference match only the start of product selection in a CAT 3126 workshop sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The S9479 group is acceptable only when 12V, 7.5kW, 12T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

How does the S9479 mounting drawing support product approval during a CAT 3126 workshop inspection?

For S9479, use a straight front view to compare the 3 × Ø13.5 mounting holes and Ø146 mounting-hole circle; use the side view for Ø92 locating diameter and 46 mm distance to drive gear. Complete the check with 12T, CW and terminal orientation. This combination is more reliable than an angled overall photograph alone.

How can branches reduce emergency transfers of S9479 stock in a CAT 3126 workshop program?

Treat this high-output unit as a controlled stock line and sample the drive-end dimensions before distributing the first shipment. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Which arrival photographs help trace a shipment of S9479 during a CAT 3126 workshop receiving check?

Receiving should verify the S9479 label, quantity and packaging before opening sampled cartons. Compare the 12T drive, Ø92 locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How can an importer obtain an accurate delivered price for S9479 in a CAT 3126 workshop sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For S9479, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

Which installation facts help review unusual performance from S9479 in a CAT 3126 workshop review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate S9479 without assuming that every no-crank complaint originates inside the starter.

S9479 Ask for Starter Motor Export Pricing

Prepare the S9479 enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
