28100-0296 Hino P11C Starter Motor Wholesale

28100-0296 Starter Motor Wholesale Fitment for Hino 390HP trucks with P11C engines

Hino truck-parts distributors, fleet workshops and heavy-duty electrical importers use 28100-0296 to keep Hino 390HP trucks with P11C engines demand tied to one 24V, 7.5kW, 11T CW configuration. The practical distinction is the 24V 7.5kW 11T module-3.5 P11C specified configuration, which should be checked before a similar heavy-duty housing is accepted.

Build the 28100-0296 RFQ around the complete removed-unit number, exact machine or engine information, mounting-face and terminal-side photographs, quantity and delivery point. These details let Elecdura quote the specified starter, export packing and timing without turning the offer into a general application guess.

28100-0296 Starter Motor Specifications and Drawing for Wholesale Buyers

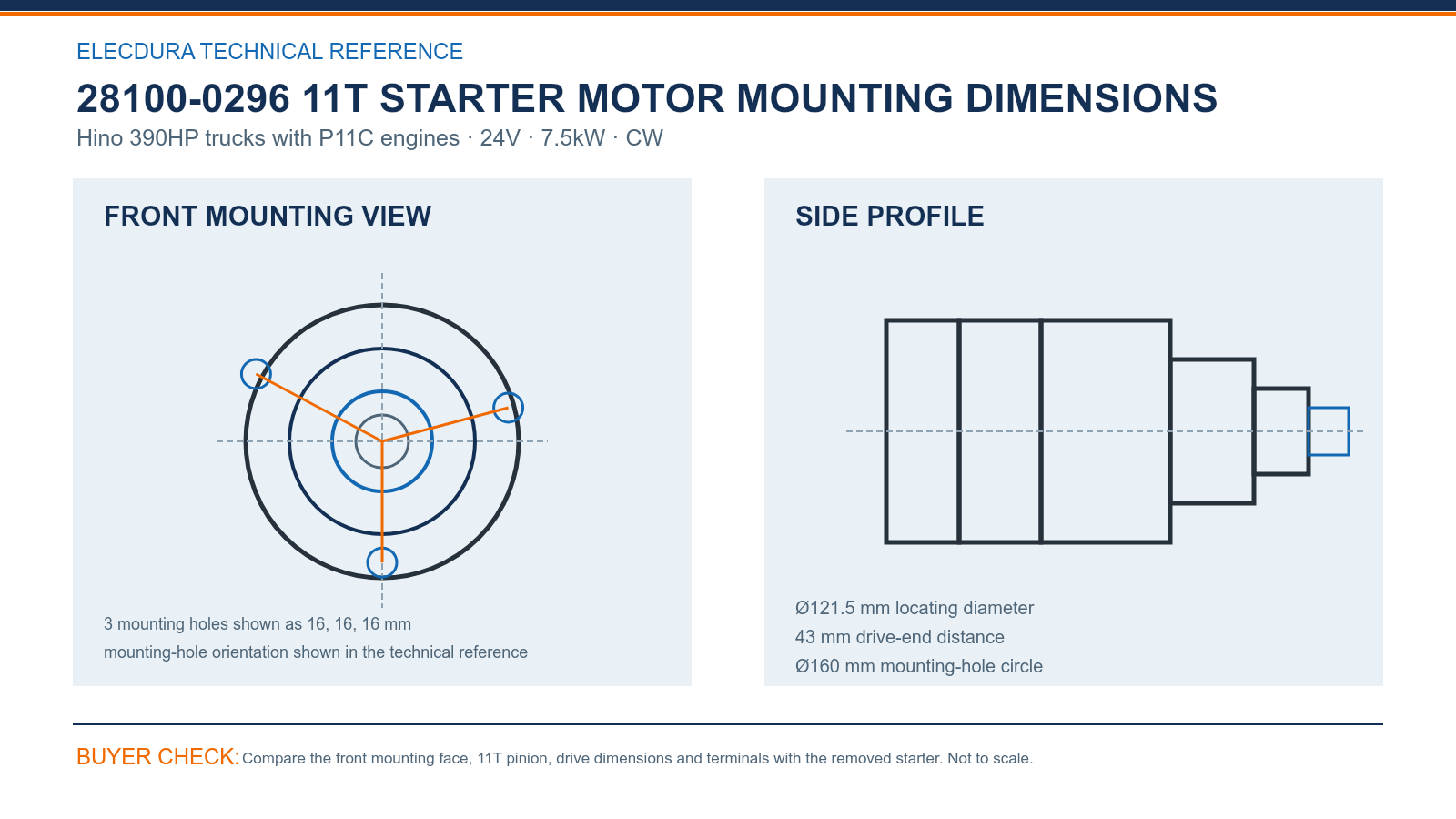

Compare 28100-0296 at the 3 mounting holes shown as 16, 16, 16 mm, Ø160 mm mounting-hole circle and Ø121.5 mm locating diameter. The 43 mm drive-end distance helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

For 28100-0296, count the 11T pinion and confirm module 3.5, CW rotation, 24V and 7.5kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

28100-0296 Starter Motor OE Cross-References for Distributor Enquiries

1. Search group: 281000296, 281002870A, 281002874, 03656020025, 1-580-25W can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 7.5kW, 11T, CW, the drawing and terminal photographs before accepting one physical unit.

28100-0296 Starter Motor Wholesale Supply and Export Planning

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested 28100-0296 quantity, destination and required arrival date.

Plan this high-output Hino line by P11C fleet population and branch response time. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of 28100-0296 remains tied to the stated Hino 390HP trucks with P11C engines application, 11T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

28100-0296 Starter Motor Questions from Commercial Buyers

What should a distributor match before ordering 28100-0296 for Hino 390HP trucks with P11C engines during fleet sourcing?

Use the full old-unit number and Hino 390HP trucks with P11C engines record. Compare the 11T pinion, 3 mounting holes shown as 16, 16, 16 mm, Ø121.5 mm locating diameter and terminal side. Reject a candidate when its drive position, mounting face or cable connection differs.

What is the safe way to order 28100-0296 from an alternate OE number in a Hino P11C fleet sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the 28100-0296 electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

Which electrical conditions can imitate a failed 28100-0296 starter motor during a Hino P11C fleet electrical check?

Before fitting 28100-0296, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

How does the 28100-0296 mounting drawing support product approval during a Hino P11C fleet inspection?

For 28100-0296, compare 3 mounting holes shown as 16, 16, 16 mm and Ø160 mm mounting-hole circle in a straight front view, then Ø121.5 mm locating diameter and 43 mm drive-end distance in the side view. Add 11T, CW and terminal orientation; this is more reliable than an angled overall photograph.

How can branches reduce emergency transfers of 28100-0296 stock in a Hino P11C fleet program?

Plan this high-output Hino line by P11C fleet population and branch response time. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Which arrival photographs help trace a shipment of 28100-0296 during a Hino P11C fleet receiving check?

Receiving should verify the 28100-0296 label, quantity and packaging before opening sampled cartons. Compare the 11T drive, Ø121.5 mm locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How can an importer obtain an accurate delivered price for 28100-0296 in a Hino P11C fleet sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For 28100-0296, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

Which installation facts help review unusual performance from 28100-0296 in a Hino P11C fleet review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate 28100-0296 without assuming that every no-crank complaint originates inside the starter.

28100-0296 Request Starter Motor Wholesale Pricing

Send the complete 28100-0296 reference, Hino 390HP trucks with P11C engines details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 24V, 7.5kW, 11T CW starter, MOQ, packing, lead time, warranty and freight.
