3957590 Cummins 8.3L Starter Motor B2B Supply

3957590 Cummins 8.3L Starter Motor Supply for Engine and Bus Buyers

A Cummins engine distributor may purchase 3957590 for rebuild support, while a bus-parts buyer may need units assigned to Blue Bird or Thomas vehicles. Identifying the service channel at enquiry stage helps keep terminal reach, mounting comparison, packing and delivery priorities relevant to the actual installation.

Send the engine serial or CPL information where available, vehicle details for bus applications, all old-unit references and photographs from the flange, drive and terminal sides. Elecdura can review the 4.8kW 10T configuration and the wide face before preparing the commercial offer.

3957590 Starter Motor Geometry for Cummins and Bus Fitment Checks

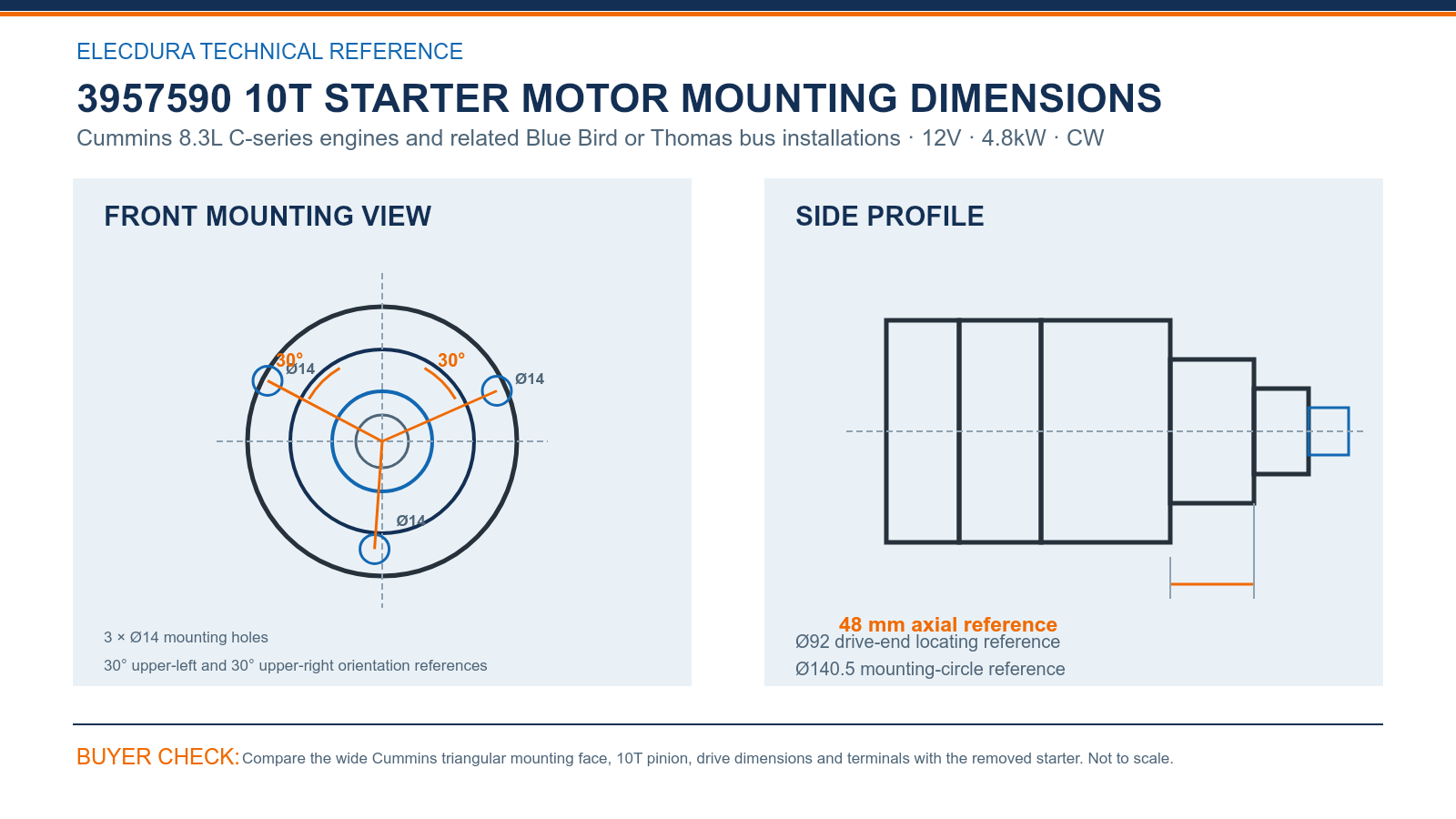

3957590 Cummins 12V 4.8kW 10T starter mounting dimensions for buyer-side comparison.

The mounting face has three Ø14 holes with 30° upper-left and 30° upper-right orientation references. An Ø140.5 mounting-circle reference surrounds the wide face, while the Ø92 locating reference and 48 mm axial reference describe the drive-end position.

The 3957590 configuration uses 12V, 4.8kW, 10T, module 3.175 and CW. On a bus installation, photograph cable reach and terminal clearance before removal; on a loose engine, retain the engine details with the starter photographs.

3957590 Starter Motor Cross-References Across Engine and Fleet Channels

The extended reference group is 3957590 / 3283815 / 3675246RX / 228000-5900 / 228000-5901 / 228000-5902 / 18508N / 18412N / 1935477 / 61230712.

3957590 Starter Motor Supply Planning for Bus and Engine Service

Bus fleets may value scheduled branch availability and reinforced export packing, while engine distributors may prefer cartons suited to mixed overhaul orders. State the intended channel, quantity by destination and requested delivery window so Elecdura can quote the same 3957590 configuration with suitable handling options.

Receiving inspection should confirm the 10T drive, 4.8kW identification, wide three-hole flange and protected terminals. Heavy units need stable carton support; any impact to the nose or solenoid should be photographed before stock is transferred to a fleet depot or rebuild shop.

Elecdura's production and electrical-test video helps engine and fleet buyers assess manufacturing capability. For 3957590 pricing, send the Cummins 8.3L or bus application, wide mounting geometry, 10T drive and documented order requirements.

3957590 Starter Motor Questions from B2B Buyers

Why should a 3957590 enquiry identify the engine or bus service channel?

The core starter specification can be the same while the purchasing priorities differ. An engine rebuilder may need mixed overhaul quantities and neutral packing; a bus fleet may need depot allocation and firm arrival dates. Naming the channel helps Elecdura address the installation evidence and commercial plan that matter to the buyer.

Which Cummins information is useful when requesting 3957590?

Provide the 8.3L C-series engine serial, CPL or equipment record where available, together with all old starter numbers. For Blue Bird or Thomas applications, add the bus model and installation photographs. That context supports the broad OE group without asking a distributor to rely on a cross-reference alone.

How does the wide mounting face help distinguish this starter?

Three Ø14 holes, the Ø140.5 mounting-circle reference and paired 30° upper orientation references describe the flange. Combine them with the Ø92 locating reference and 48 mm axial position. These points help separate a physically similar heavy-duty starter that may have a different nose, terminal position or engagement geometry.

What should a bus technician photograph before removing the starter?

Capture the vehicle identity and the starter as installed, paying attention to cable reach, nearby chassis components and terminal clearance. Photograph every visible number. After removal, add the full flange, 10T pinion and nose casting. Those images preserve installation details that are difficult to reconstruct from a loose core.

How should the long 3957590 cross-reference group be used?

Keep all complete numbers available for search, quotation and incoming-core identification, but do not shorten them into one vague Cummins line. Match the 12V, 4.8kW, 10T CW specification and wide face before merging inventory. An unexplained difference in pinion, flange or terminals belongs in a separate enquiry.

What packaging points matter for a heavy 3957590 export order?

The carton should support the starter body and drive end without loading the terminals or pinion. Ask about inner protection, outer-carton labels and pallet arrangement when requesting price. On arrival, inspect cartons from more than one pallet area for movement, nose impact or terminal damage before fleet distribution.

How can a fleet or engine shop document the first installation?

Record the engine or bus identity, supplied-unit label, shipment lot and installation date. Confirm free seating at the flange, correct cable clearance and normal pinion release. Save cranking-voltage readings and photographs. This information strengthens later replenishment and gives both parties a practical basis if an after-sales question arises.

What does Elecdura need to quote 3957590 for multiple destinations?

List quantities separately for each depot, distributor or overhaul facility and state the required date at each location. Attach the engine or vehicle information, old labels and fitment photographs. Elecdura can then present the specified unit, MOQ, packing choices, warranty, production timing and shipment basis in a structured wholesale response.

Request 3957590 Cummins Starter Motor B2B Supply Terms

Send 3957590, Cummins 8.3L engine details or the Blue Bird/Thomas vehicle information, old starter references, flange, pinion and terminal photographs, quantity by destination and delivery targets. Elecdura will quote the 12V, 4.8kW, 10T CW product and relevant B2B terms.

Identify whether the requirement serves engine overhaul, bus-fleet maintenance or mixed distribution so packing and shipment planning reflect the real supply channel.
