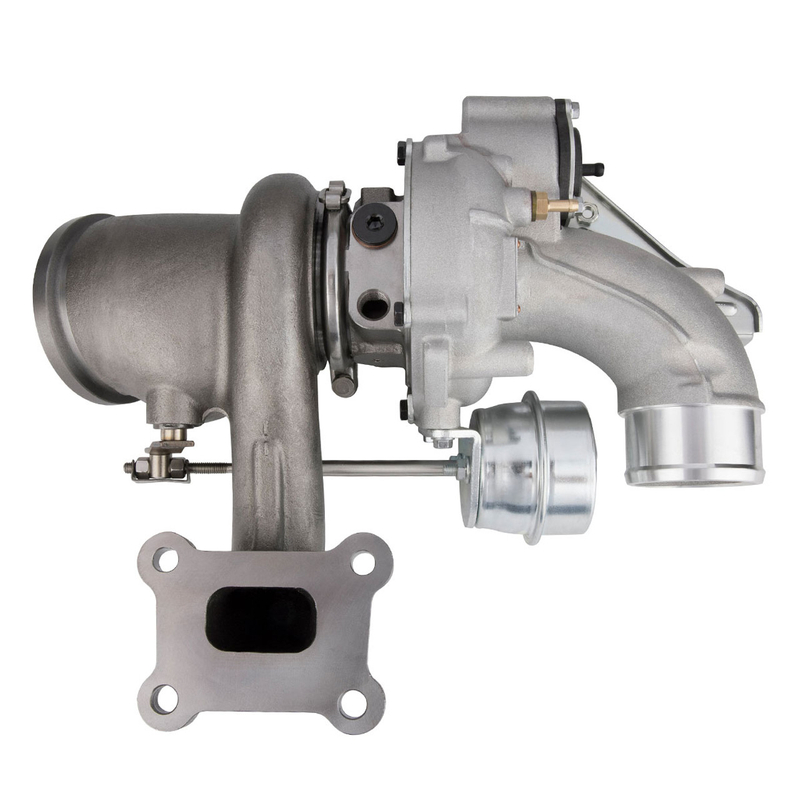

Key Benefits of the 2012 Ford Edge 2.0L Turbocharger
This is the definitive, correct-fitment replacement for the 2012 Ford Edge 2.0L EcoBoost, engineered to solve common failure points and restore the performance your vehicle has lost. This unit (replaces OE part CJ5Z-6K682-F) is a smart choice for distributors, repair shops, and DIYers who need the right part the first time.
Guaranteed Fit for Your 2012 Edge 2.0L: This is the exact, bolt-on replacement for the 4-cylinder EcoBoost engine. No modifications needed.
Restores Lost Power & Performance: Engineered to solve the common causes of the P0299 underboost code, eliminating lag and bringing back sharp throttle response.
VSR High-Speed Balanced Core: We balance every core assembly at high speed to eliminate the vibrations that cause annoying turbo whine and lead to premature bearing failure.
Built for Durability: The high-temperature Inconel turbine wheel and reinforced cast manifold are designed to handle the intense heat of modern direct-injection engines.
2012 Ford Edge 2.0L Turbocharger Technical Specifications
| Specification | Description |
| Product Name | Turbocharger Assembly |
| Compatible Vehicles | 2012–2014 Ford Edge (2.0L EcoBoost ONLY); also fits Fusion, Escape, Focus ST |
| Fitment Type | Direct Bolt-On Replacement |
| Condition | 100% Brand New |
| Dimensions (L × W × H) | 15.2 × 11.5 × 10.5 inches (estimated) |
| Weight | 19.8 lbs (9.0 kg) (estimated) |
| Actuator Included | Yes – Integrated Electronic Wastegate Actuator |
| Cooling Method | Liquid-cooled (Coolant) and Oil-cooled |
| Wastegate Type | Pneumatic Internal Wastegate |
| Gasket / Seal Kit Included | Yes (Mounting gaskets included) |
| Oil Supply Line Included | No |
| Exhaust Manifold Included | Yes – Integrated into Cylinder Head |
| Exhaust Brake Included | No |
| Temperature Sensor Included | No |
| Speed Sensor Included | No |
| Position Sensor Included | No |
| Geometry Type | Fixed Geometry |
| CHRA (Core Assembly) | Replaceable Cartridge (CHRA) |
| Compressor Wheel | Forged Aluminum – OEM Grade |
| Compressor Outlet Diameter | 1.89 in / 48 mm (estimated) |
| Balancing Method | VSR High-Speed & Thermal Balanced |
| Emission Compliance | Complies with vehicle emission standards (Euro V / Tier 4) |
Vehicle Compatibility with 2012 Ford Edge 2.0L Turbocharger
| Year | Make | Model | Body & Trim | Engine & Transmission |
| 2018 | Ford | Focus | ST | 2.0L L4 - Gas |
| 2017 | Ford | Focus | ST | 2.0L L4 - Gas |
| 2017 | Ford | Taurus | Limited, SE, SEL | 2.0L L4 - Gas |
| 2016 | Ford | Escape | SE, Titanium | 2.0L L4 - Gas |
| 2016 | Ford | Focus | ST | 2.0L L4 - Gas |
| 2016 | Ford | Fusion | SE, Titanium | 2.0L L4 - Gas |
| 2016 | Ford | Taurus | Limited, SE, SEL | 2.0L L4 - Gas |
| 2016 | Lincoln | MKC | Black Label, Premiere, Reserve, Select | 2.0L L4 - Gas |
| 2016 | Lincoln | MKZ | Black Label, Base | 2.0L L4 - Gas |
| 2015 | Ford | Escape | SE, Titanium | 2.0L L4 - Gas |
| 2015 | Ford | Focus | ST | 2.0L L4 - Gas |
| 2015 | Ford | Fusion | SE, Titanium | 2.0L L4 - Gas |
| 2015 | Ford | Taurus | Limited, SE, SEL | 2.0L L4 - Gas |
| 2015 | Lincoln | MKC | Base, Black Label | 2.0L L4 - Gas |
| 2015 | Lincoln | MKZ | Base | 2.0L L4 - Gas |
| 2014 | Ford | Edge | Limited, SE, SEL | 2.0L L4 - Gas |
| 2014 | Ford | Escape | SE, Titanium | 2.0L L4 - Gas |
| 2014 | Ford | Focus | ST | 2.0L L4 - Gas |
| 2014 | Ford | Fusion | SE, Titanium | 2.0L L4 - Gas |
| 2014 | Ford | Taurus | Limited, SE, SEL | 2.0L L4 - Gas |
| 2014 | Lincoln | MKZ | Base | 2.0L L4 - Gas |
| 2013 | Ford | Edge | Limited, SE, SEL | 2.0L L4 - Gas |
| 2013 | Ford | Escape | SE, SEL, Titanium | 2.0L L4 - Gas |
| 2013 | Ford | Focus | ST | 2.0L L4 - Gas |
| 2013 | Ford | Fusion | SE, Titanium | 2.0L L4 - Gas |
| 2013 | Ford | Taurus | Limited, SE, SEL | 2.0L L4 - Gas |
| 2013 | Lincoln | MKZ | Base | 2.0L L4 - Gas |
| 2012 | Ford | Edge | Limited, SE, SEL | 2.0L L4 - Gas |
Engineered for Professionals: The 2012 Ford Edge 2.0L Turbo
Our 2012 Ford Edge 2.0L EcoBoost turbocharger is built to be a one-to-one replacement for the correct OE part, CJ5Z-6K682-F, and the industry benchmark, 53039880462. We control the entire manufacturing line, from the integrity of the integrated manifold casting to the final high-speed VSR core balancing. For distributors and repair shops servicing the entire 2.0L platform—and fielding requests for the often-misidentified 2012 Edge turbo—our process guarantees you deliver the correct part that fits right the first time, performs like original equipment, and eliminates costly comebacks.
![OE-Level Support System Behind Every Turbocharger]()
2012 Ford Edge 2.0L Turbocharger Production Workflow
Elecdurauto follows a fully integrated production process to ensure every turbocharger meets strict quality and performance standards. From raw material inspection and CNC machining to automated assembly and dynamic testing, each step is optimized for precision, consistency, and efficiency. This end-to-end system guarantees reliable output for both OEM replacement and aftermarket demand.
![Material Incoming Quality Control]()
Material Incoming Quality Control
![Precision CNC Machining Cluster]()
Precision CNC Machining Cluster
![Automated Material Loading Lathe (LU3000EX)]()
Automated Material Loading Lathe
![Three-Axis CMM Inspection (Xondex)]()
Three-Axis CMM Inspection
![In-Process Quality Monitoring]()
In-Process Quality Monitoring ![Automated Assembly Workstation (with QR Traceability)]()
Automated Assembly Workstation
![Functional Testing & Assembly Validation]()
Functional Testing & Assembly Validation
![Turbocharger Performance Test Bench]()
Turbocharger Performance Test Bench
OEM & Aftermarket Uses for 2012 Ford Edge 2.0L Turbocharger
2012 Ford Edge 2.0L Turbocharger Certifications & Industry Standards
![ISO 9001, ISO 14001, ISO 45001, IATF 16949 certified ignition coil manufacturer for OEM and aftermarket supply]()
Why Choose Elecdurauto for Your 2012 Ford Edge 2.0L Turbocharger
Elecdurauto is more than a turbocharger supplier — we are a precision manufacturing partner trusted by global distributors, fleets, and aftermarket brands. Backed by world-class production capabilities, OEM-grade engineering, and a deep understanding of B2B demands, we deliver value far beyond the product.
1. World-Class Manufacturing Infrastructure
Over $45 million USD in total investment
Annual capacity: 1,000,000+ complete turbos and 2,000,000 CHRA units
Equipped with CNC machines and semi-automated lines from the US, UK, Germany, Japan, and Switzerland
Advanced R&D and testing center for turbochargers and core components
EMS 4.0 smart factory system with full digital integration (ERP, MES, PLM, CRM, SCM)
2. Precision. Speed. Flexibility.
Covers 500+ turbo models compatible with major OE brands
Supports small-batch, multi-spec orders with fast delivery (7–15 working days)
Maintains safety stock for fast-moving SKUs and urgent shipments
Flexible shipping: door-to-door by air, sea, or express (DHL, FedEx, Maersk)
3. Engineered for Performance & Durability
Turbochargers feature Inconel turbine wheels and forged aluminum compressors
Tested for thermal endurance (950°C–1100°C) and long-cycle durability
Designed to reduce emissions, increase torque, and improve fuel economy
Ideal for both automotive and marine applications with international-level quality
4. OEM-Standard Quality & Traceability
Manufactured to IATF 16949, ISO 9001, CE, RoHS certified standards
Strict QA at every step — from raw materials to final balance tests
Supports OEM & private label services (laser logo, QR traceability, custom packaging)
1-Year Unlimited Mileage Warranty & free QC reports included with every order
5. Customer-Driven R&D & Customization
100% customer-oriented design and reverse engineering services
Tailored development for special materials, designs, or performance upgrades
From full turbo assemblies to individual components — we are your one-stop turbo center
FAQs About the 2012 Ford Edge 2.0L Turbocharger Replacement
1. Is this the right turbo for my 2012 Edge?
Yes, if you have the 2.0L EcoBoost engine. That was the only turbo engine offered in the 2012 Edge, and this is the direct-fit part for it.
2. I see part number CB5Z-6K682-H online. What about that one?
No. That part is for the V6 engine in the Explorer and F-150. It will not fit your Edge. This is the most common mistake people make; we're making sure you get the right part.
3. What are the dead giveaways my turbo is bad?
The classic signs are a loud siren whine when you accelerate, a major loss of power, and sometimes smoke from the exhaust. If you have a P0299 underboost code, this is almost always the culprit.
4. What's in the box?
The full turbo assembly, actuator, and a new gasket set. Everything you need for the swap, so you don't have to make extra trips to the parts store.
5. What's the warranty?
It's an 18-month, unlimited mileage warranty. We can offer that because we VSR balance every single core, and the QC report is in the box to prove it.
6. How hard is the install?
For an experienced tech, it's a 3-4 hour job. It's not a backyard job—access is tight on the Edge, but it's a direct replacement with no surprises.
7. Can I tune the car with this?
It's an OE-spec replacement, not a big race turbo. But its heavy-duty construction can handle a mild "Stage 1" tune without breaking a sweat. It's built for reliability first.
8. Do you support wholesale or private label?
Yes. We are set up for wholesale, private labeling, and blind dropshipping. Our packaging is unbranded and FBA-ready. Contact us, and we'll get you sorted.
