618DA3708001A CAMC CM6D18 Starter Motor Wholesale

618DA3708001A Starter Motor Fleet Replacement Supply for CAMC CM6D18 and CM6D28 engine

618DA3708001A supports CAMC CM6D18 and CM6D28 engine sourcing where buyers need a defined electrical and drive-end match. Its 24V, 7.5kW, 11T CW specification must remain linked to the 24V 7.5kW 11T module-3.5 CM6D18/CM6D28 specified configuration; a visually related unit may belong on a different RFQ line.

A useful enquiry pairs 618DA3708001A with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

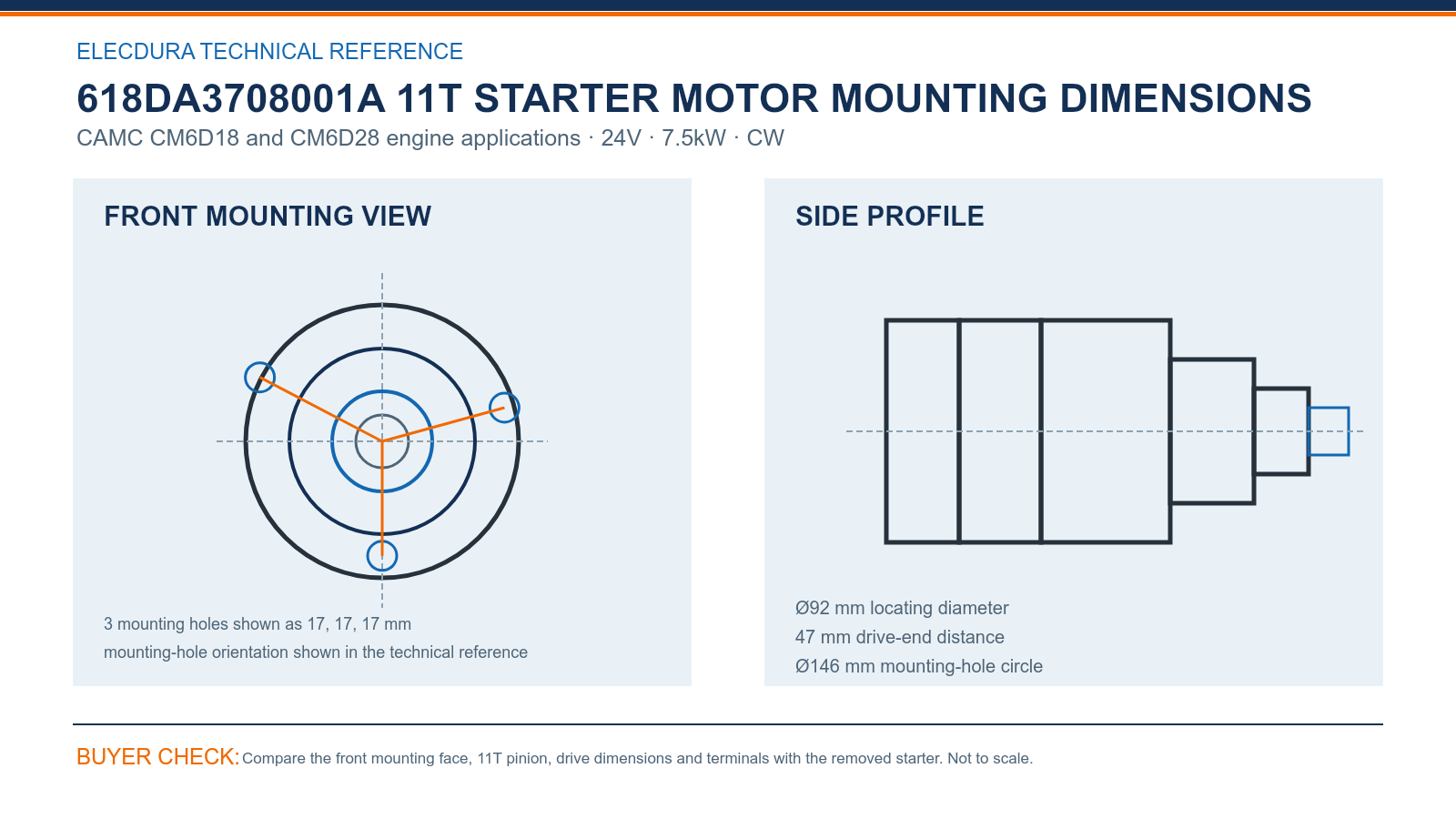

618DA3708001A Starter Motor Mounting Dimensions for Distributor Approval

For 618DA3708001A first-lot sampling, place the old and new starters in the same front-facing position. Check 3 mounting holes shown as 17, 17, 17 mm, Ø92 mm locating diameter, Ø146 mm mounting-hole circle and 47 mm drive-end distance. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

The 618DA3708001A drive-end decision is completed by 11T, module 3.5 and CW, together with 24V and 7.5kW. Confirm main-terminal and control-terminal positions under the actual cable routing. Similar dimensions do not compensate for the wrong rotation, pinion or electrical rating.

618DA3708001A Starter Motor OE Number Guide for Aftermarket Supply

The 618DA3708001A cross-reference group includes 618DA3708001A, STB1809MH, STQ1809LP, M105R3099SE. Use these numbers to search supplier systems, then confirm 24V, 7.5kW, 11T, CW, mounting geometry and terminals.

For 618DA3708001A, list and photograph each complete reference when pinions, drive positions or connectors differ. Elecdura can quote each physical starter independently.

618DA3708001A Starter Motor Wholesale Ordering and Export Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For 618DA3708001A, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

Forecast CAMC stock by supported engine family and regional truck service coverage. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for 618DA3708001A continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

618DA3708001A Starter Motor Questions from Commercial Buyers

What should a distributor match before ordering 618DA3708001A for CAMC CM6D18 and CM6D28 engine during workshop sourcing?

Use the full old-unit number and CAMC CM6D18 and CM6D28 engine record. Compare the 11T pinion, 3 mounting holes shown as 17, 17, 17 mm, Ø92 mm locating diameter and terminal side. Reject a candidate when its drive position, mounting face or cable connection differs.

How can a service team rule out cable or battery faults before fitting 618DA3708001A during a CAMC CM6D18 workshop diagnosis?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for 618DA3708001A helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

Why is the 618DA3708001A reference match only the start of product selection in a CAMC CM6D18 workshop sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The 618DA3708001A group is acceptable only when 24V, 7.5kW, 11T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

How does the 618DA3708001A mounting drawing support product approval during a CAMC CM6D18 workshop inspection?

For 618DA3708001A, compare 3 mounting holes shown as 17, 17, 17 mm and Ø146 mm mounting-hole circle in a straight front view, then Ø92 mm locating diameter and 47 mm drive-end distance in the side view. Add 11T, CW and terminal orientation; this is more reliable than an angled overall photograph.

How can branches reduce emergency transfers of 618DA3708001A stock in a CAMC CM6D18 workshop program?

Forecast CAMC stock by supported engine family and regional truck service coverage. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Which arrival photographs help trace a shipment of 618DA3708001A during a CAMC CM6D18 workshop receiving check?

Receiving should verify the 618DA3708001A label, quantity and packaging before opening sampled cartons. Compare the 11T drive, Ø92 mm locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How can an importer obtain an accurate delivered price for 618DA3708001A in a CAMC CM6D18 workshop sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For 618DA3708001A, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

Which installation facts help review unusual performance from 618DA3708001A in a CAMC CM6D18 workshop review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate 618DA3708001A without assuming that every no-crank complaint originates inside the starter.

618DA3708001A Start a Starter Motor Wholesale Enquiry

Prepare the 618DA3708001A enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
