9773535
9773535
OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
50 pcs
7 - 15 Days
12 Months
9773535
Heavy equipment hydraulic circuits using reference 9773535 and the matching cartridge geometry
Confirm 24v, connector, catalog drawing controls interface approval, seals and hydraulic circuit before installation.
| Quantity: | |
|---|---|

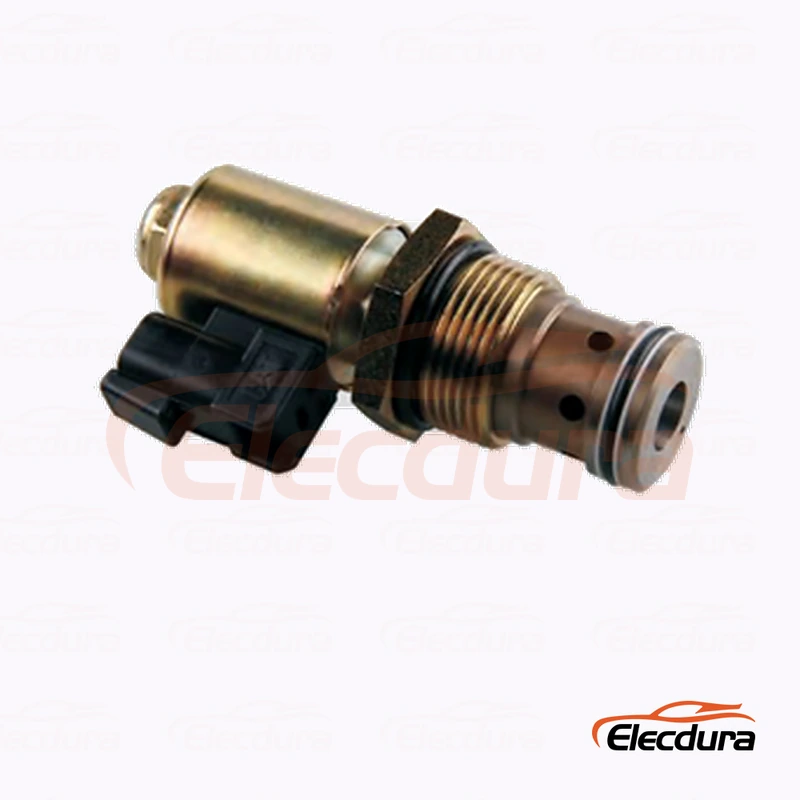

9773535 is a 24V pilot operated two position two way solenoid valve for Heavy equipment hydraulic circuits using reference 9773535 and the matching cartridge geometry. Buyers should confirm the complete old marking, electrical version, connector, catalog drawing controls interface approval and hydraulic function before approving replacement stock.
Specification | Value |
|---|---|
Product Type | Pilot Operated Two Position Two Way Solenoid Valve |
Primary Reference | 9773535 |
Cross References | 9773535 |
Electrical Version | 24V |
Working Pressure Reference | 350 bar |
Interface | Catalog drawing controls interface approval |
Application Scope | Heavy equipment hydraulic circuits using reference 9773535 and the matching cartridge geometry |
MOQ | 50 pcs |
Delivery Time | 7 to 15 Days |
Warranty | 12 Months |

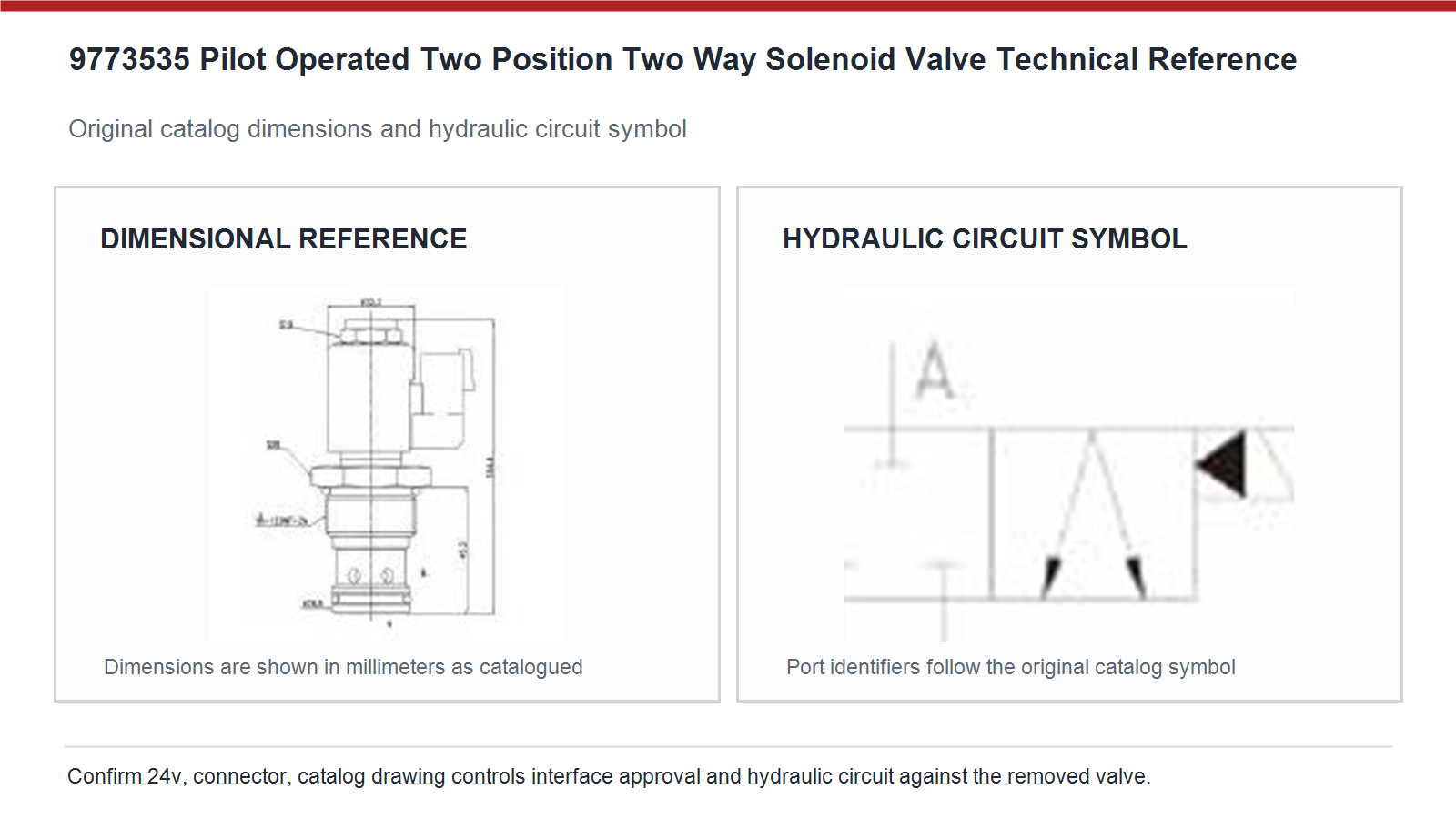

Use the original catalog dimensional reference and hydraulic symbol to compare the valve with the removed component and the machine schematic before purchase approval.
Complete every control point below before a sample or bulk order is released.
Approval Point | Buyer Review |
|---|---|
Reference | 9773535 |
Electrical | 24V; verify at the loaded connector during the actual command |
Mechanical | Compare catalog drawing controls interface approval, cartridge length, seals and installed clearance |
Hydraulic | Confirm normal state, energized state and manifold port relationship |
Machine Evidence | Heavy equipment hydraulic circuits using reference 9773535 and the matching cartridge geometry |
Separate electrical command, cartridge movement and machine response so the actual wiring or hydraulic fault is not hidden by a parts replacement.
Observed Condition | Recommended Check |
|---|---|
No movement | Check loaded connector voltage, ground, controller command and coil resistance. |
Slow response | Inspect oil cleanliness, filter condition, viscosity and cartridge movement. |
Reversed response | Stop operation and compare normal and energized port logic with the original valve. |
External leakage | Inspect seals, cartridge surface, manifold bore and correct seating depth. |
Repeated heating | Confirm voltage, duty cycle, connector resistance and full magnetic movement. |
During a warm oil response complaint is diagnosed, keep the verified reference, measurements and test result in the service record. Approve 9773535 from the complete old valve marking, 24v electrical version, connector keying, catalog drawing controls interface approval, sealing lands and normal hydraulic state. A shared equipment model does not prove interchangeability because pump and manifold revisions can change during production. Send the machine model, serial number and clear removed part photos with the inquiry.
During export packing is approved, keep the verified reference, measurements and test result in the service record. Read the coil label first and measure voltage at the connector while the real machine command is active. The working reference for this page is 24V. Do not infer voltage only from battery count because converters, harness changes and mixed voltage fleets can create misleading assumptions. Record the verified value on the purchase order and incoming inspection label.
During a customer reports reversed machine response, keep the verified reference, measurements and test result in the service record. The 350 bar figure is a catalog or verified product reference, not permission to ignore the equipment hydraulic schematic. Confirm which ports see pressure in both de-energized and energized states, review return line conditions and follow the machine service limits. Pressure capability does not correct a wrong spool function, cartridge depth or manifold port relationship.
During a cross border quotation needs technical approval, keep the verified reference, measurements and test result in the service record. Provide the complete old label, machine model and serial number, confirmed voltage, connector face photo, cartridge or flange measurements, hydraulic function, required quantity and destination. For mixed fleets, separate each electrical and suffix version on the inquiry. This evidence allows a sample approval plan and prevents similar looking pilot operated two position two way solenoid valve variants from being combined in one bulk order.
During a controller output fault is suspected, keep the verified reference, measurements and test result in the service record. Verify commanded voltage under load, coil duty cycle, connector resistance and whether the hydraulic element reaches its intended position. Low voltage can prevent full magnetic pull, while excessive voltage or continuous energization can overheat the winding. Contamination that restricts cartridge movement can also increase operating stress, so correct the electrical or hydraulic root cause before fitting another coil.
During a bulk order moves from sample to production, keep the verified reference, measurements and test result in the service record. A controlled sample review should confirm physical fit, connector engagement, coil current, leakage and the machine response in both normal and energized states. For this pilot operated two position two way solenoid valve, record warm oil behavior and response time as well as cold start operation. Retain the approved label photos and measurements so the production lot can be checked against the same acceptance record.
During contaminated hydraulic oil has been discovered, keep the verified reference, measurements and test result in the service record. Treat every suffix as an engineering identifier until its meaning is proven. A suffix can change voltage, connector, spring calibration, spool geometry or mounting details while the base model remains similar. Keep the complete old marking on the quotation and do not shorten 9773535 in purchasing records. Accept a cross reference only after dimensional, electrical and hydraulic checks agree.
Send the complete old valve marking, confirmed voltage, machine model and serial number, connector photos, interface dimensions and required quantity for a fitment focused B2B quotation.
