S6082 Daihatsu DL51/DL52 9T Starter Motor Wholesale

S6082 Starter Motor Wholesale Fitment for Daihatsu DL51 and DL52 diesel applications

Daihatsu diesel-parts buyers can use S6082 as a defined 9T item for DL51 and DL52 demand, especially when a regional customer only provides a vehicle or engine description.

Application

Daihatsu DL51 and DL52 diesel applications

Commercial focus

Repeatable S6082 identification for Daihatsu diesel-parts importers and regional aftermarket wholesalers.

Control point

9T drive, mounting face and terminals.

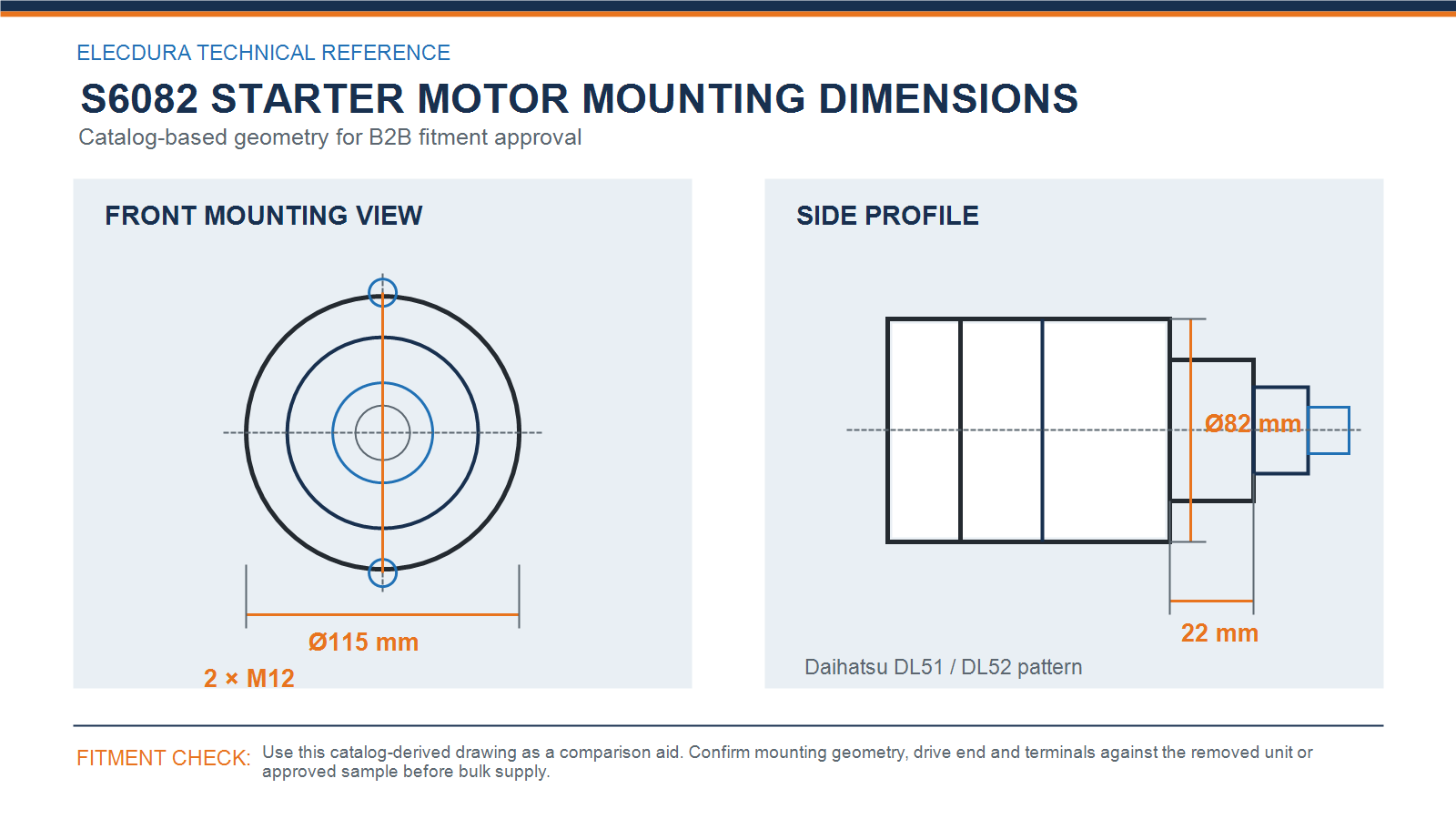

S6082 Starter Motor Technical Drawing for Distributor Approval

Technical mounting reference for comparison with the approved unit before sample or volume release.

The first incoming sample should confirm nine teeth, CW rotation, two M12 mounting points and terminal orientation before a buyer assigns the stock to Daihatsu sales channels. The drawing supports quotation and incoming inspection; the approved S6082 sample controls the final physical comparison.

S6082 Starter Motor OE Control for B2B Procurement

Place S6082, the complete engine code and 9T requirement on the RFQ, then compare the 115 mm mounting face, 82 mm drive-end reference and 22 mm axial control.

Short Toyota-family references can be carried across different diesel applications, so the two M12 mounting points and the 9T drive should be checked with the old starter.

Reference control: retain S6082 and every complete cross-reference with the item record.

Physical control: document the 9T drive, mounting face and terminals against the approved sample.

Stock control: keep any non-matching version on a separate quotation and SKU.

S6082 Starter Motor Bulk Supply, Sampling and Video

Include the DL51 or DL52 engine, full starter number, old-unit photographs, 9T confirmation, volume forecast and shipping destination in the wholesale enquiry.

Standard MOQ begins at 20 pieces. Neutral packing is available, and qualified private-label programs can be reviewed after the approved label, barcode, carton strength and protective inserts are confirmed for this exact item.

The video below introduces Elecdura starter-motor production and electrical-testing capability. The unit supplied under this page remains the S6082 configuration identified by the listed application, 9T drive and physical checks.

S6082 Starter Motor Buyer FAQ for Wholesale Orders

How should a distributor define S6082 for Daihatsu DL51 and DL52 diesel applications before asking for volume pricing?

For a dealer or branch replenishment decision, begin the S6082 inquiry with the complete reference and the stated Daihatsu DL51 and DL52 diesel applications scope. Place S6082, the complete engine code and 9T requirement on the RFQ, then compare the 115 mm mounting face, 82 mm drive-end reference and 22 mm axial control. Keep the machine or engine record beside the S6082 request because a shortened number or a housing photo does not define a reliable bulk-order configuration.

Why must the 9T pinion remain visible on S6082 dealer-order documents?

The key separator for this S6082 configuration is the 9T pinion with 12V, 2.2kW and CW rotation. Short Toyota-family references can be carried across different diesel applications, so the two M12 mounting points and the 9T drive should be checked with the old starter. Count the S6082 teeth on the removed unit and include a drive-end photo before approving a replacement or combining adjacent references in one stock code.

Which measured points matter when comparing the S6082 technical image with a master sample?

Use the S6082 technical image as a comparison aid, not as a scaled installation drawing for Daihatsu DL51 and DL52 diesel applications. The first incoming sample should confirm nine teeth, CW rotation, two M12 mounting points and terminal orientation before a buyer assigns the stock to Daihatsu sales channels. The removed starter or approved S6082 master sample remains the final reference for mounting face, nose profile, connection position and drive engagement.

How can a S6082 OE group be controlled across dealer and independent-service enquiries?

The references S6082, 28100-87700, 228000-8580 can locate demand for S6082, but they must remain tied to the defined Daihatsu DL51 and DL52 diesel applications record. Place S6082, the complete engine code and 9T requirement on the RFQ, then compare the 115 mm mounting face, 82 mm drive-end reference and 22 mm axial control. If a S6082 physical control differs, quote it on a separate line rather than turning it into a universal interchange claim.

What should a distributor sign off on before accepting a first S6082 lot?

For initial S6082 acceptance, document the 9T drive, mounting arrangement, terminal orientation, labels and carton protection on a sample. The first incoming sample should confirm nine teeth, CW rotation, two M12 mounting points and terminal orientation before a buyer assigns the stock to Daihatsu sales channels. The approved S6082 sample gives procurement and warehouse teams one consistent release definition.

Which Daihatsu DL51 and DL52 diesel applications records should appear on a detailed S6082 purchase request?

A useful S6082 enquiry needs more than a vehicle or machine name. Include the DL51 or DL52 engine, full starter number, old-unit photographs, 9T confirmation, volume forecast and shipping destination in the wholesale enquiry. Those Daihatsu DL51 and DL52 diesel applications details allow the supplier to review the exact S6082 configuration without assumptions from a broad application family.

When is private-label review appropriate for the S6082 wholesale program?

Neutral cartons can support standard S6082 wholesale orders, while private-label work starts after label, barcode, carton strength and protective inserts are agreed for this configuration. Daihatsu diesel-parts importers and regional aftermarket wholesalers should retain the S6082 version-specific references on purchase orders and warehouse labels.

What purchasing limitation should be remembered when viewing the S6082 factory video?

The product video introduces Elecdura starter-motor production and testing capability; it does not establish S6082 fitment. For Daihatsu DL51 and DL52 diesel applications, the S6082 release decision remains tied to the full OE reference, 9T drive and the physical comparison saved for the order.

How can a parts network avoid reopening S6082 fitment questions on repeat orders?

For a repeat S6082 purchase, archive approved sample photos, reference list and inspection result with the item master. Short Toyota-family references can be carried across different diesel applications, so the two M12 mounting points and the 9T drive should be checked with the old starter. That Daihatsu DL51 and DL52 diesel applications record prevents the same fitment question being reopened when a customer supplies an abbreviated number or a different description.

Request S6082 Starter Motor Wholesale Pricing

Include the DL51 or DL52 engine, full starter number, old-unit photographs, 9T confirmation, volume forecast and shipping destination in the wholesale enquiry. Elecdura will review the 12V, 2.2kW, 9T and CW configuration with the supplied application information before confirming sample, lead-time and wholesale-supply details.
