SKM6-G24D
SKM6-G24D
OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
50 pcs
7 - 15 Days
12 Months
SKM6-G24D
Kobelco excavator hydraulic control circuits using SKM6-G24D
Confirm 24v, connector, m14 x 1.5 cartridge interface shown, seals and hydraulic circuit before installation.
| Quantity: | |
|---|---|
SKM6-G24D is a 24V two position three way hydraulic solenoid valve for Kobelco excavator hydraulic control circuits using SKM6-G24D. Buyers should confirm the complete old marking, electrical version, connector, m14 x 1.5 cartridge interface shown and hydraulic function before approving replacement stock.
Specification | Value |
|---|---|
Product Type | Two Position Three Way Hydraulic Solenoid Valve |
Primary Reference | SKM6-G24D |
Cross References | SKM6-G24D |
Electrical Version | 24V |
Working Pressure Reference | Confirm from machine data |
Interface | M14 x 1.5 cartridge interface shown |
Application Scope | Kobelco excavator hydraulic control circuits using SKM6-G24D |
MOQ | 50 pcs |
Delivery Time | 7 to 15 Days |
Warranty | 12 Months |

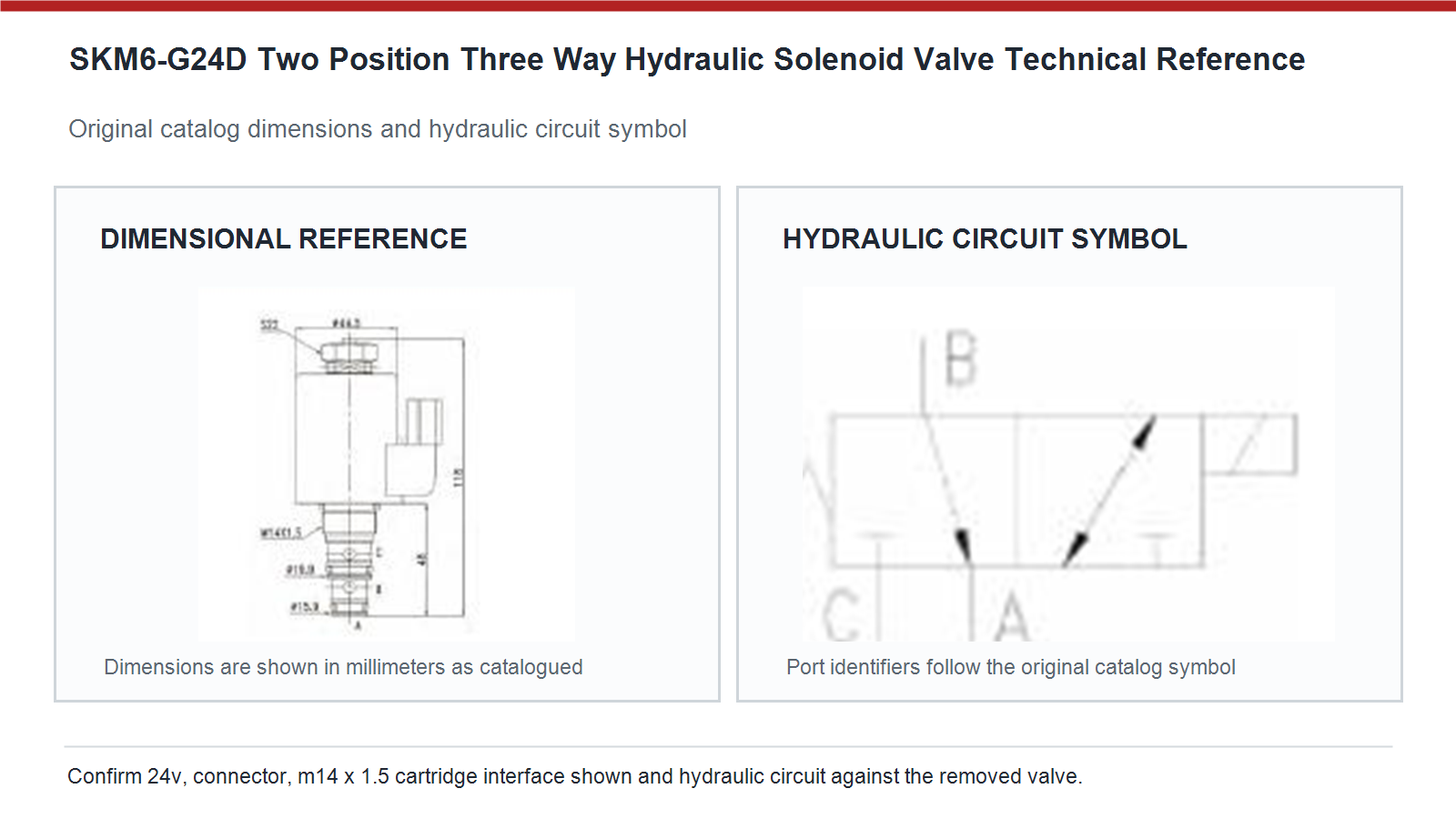

Use the original catalog dimensional reference and hydraulic symbol to compare the valve with the removed component and the machine schematic before purchase approval.
Complete every control point below before a sample or bulk order is released.
Approval Point | Buyer Review |
|---|---|
Reference | SKM6-G24D |
Electrical | 24V; verify at the loaded connector during the actual command |
Mechanical | Compare m14 x 1.5 cartridge interface shown, cartridge length, seals and installed clearance |
Hydraulic | Confirm normal state, energized state and manifold port relationship |
Machine Evidence | Kobelco excavator hydraulic control circuits using SKM6-G24D |
Separate electrical command, cartridge movement and machine response so the actual wiring or hydraulic fault is not hidden by a parts replacement.
Observed Condition | Recommended Check |
|---|---|
No movement | Check loaded connector voltage, ground, controller command and coil resistance. |
Slow response | Inspect oil cleanliness, filter condition, viscosity and cartridge movement. |
Reversed response | Stop operation and compare normal and energized port logic with the original valve. |
External leakage | Inspect seals, cartridge surface, manifold bore and correct seating depth. |
Repeated heating | Confirm voltage, duty cycle, connector resistance and full magnetic movement. |
During a new supplier lot enters dimensional inspection, keep the verified reference, measurements and test result in the service record. Approve SKM6-G24D from the complete old valve marking, 24v electrical version, connector keying, m14 x 1.5 cartridge interface shown, sealing lands and normal hydraulic state. A shared equipment model does not prove interchangeability because pump and manifold revisions can change during production. Send the machine model, serial number and clear removed part photos with the inquiry.
During a hydraulic manifold is rebuilt, keep the verified reference, measurements and test result in the service record. Read the coil label first and measure voltage at the connector while the real machine command is active. The working reference for this page is 24V. Do not infer voltage only from battery count because converters, harness changes and mixed voltage fleets can create misleading assumptions. Record the verified value on the purchase order and incoming inspection label.
During a dealer parts counter checks an old sample, keep the verified reference, measurements and test result in the service record. The Confirm from machine data figure is a catalog or verified product reference, not permission to ignore the equipment hydraulic schematic. Confirm which ports see pressure in both de-energized and energized states, review return line conditions and follow the machine service limits. Pressure capability does not correct a wrong spool function, cartridge depth or manifold port relationship.
During a machine serial range cannot be confirmed, keep the verified reference, measurements and test result in the service record. Measure supply and ground at the loaded connector, then check coil resistance and verify that the controller is actually issuing the command. If electrical input is correct, inspect oil cleanliness, filter condition, cartridge movement and manifold contamination. Separate electrical command from hydraulic response before replacing another valve, otherwise a harness or blocked pilot passage may be missed.
During a coil replacement is considered without changing the cartridge, keep the verified reference, measurements and test result in the service record. Serial number evidence is essential whenever the same equipment family used more than one pump, manifold or electrical harness. Use it with the parts diagram rather than as a substitute for physical checks. If the old valve label is damaged, collect connector, mounting, cartridge and installed location photos so the application can be narrowed without guessing from the machine name alone.
During a service team tests the de-energized state, keep the verified reference, measurements and test result in the service record. A controlled sample review should confirm physical fit, connector engagement, coil current, leakage and the machine response in both normal and energized states. For this two position three way hydraulic solenoid valve, record warm oil behavior and response time as well as cold start operation. Retain the approved label photos and measurements so the production lot can be checked against the same acceptance record.
During a repeat coil heating case is investigated, keep the verified reference, measurements and test result in the service record. The spring side of the circuit symbol defines what the machine does when electrical power is absent. That state can hold, unload, block or route pilot pressure, and the wrong choice may create movement or pump load at startup. Compare the original schematic with the catalog symbol and verify the safe normal condition before energizing the replacement in the machine.
Send the complete old valve marking, confirmed voltage, machine model and serial number, connector photos, interface dimensions and required quantity for a fitment focused B2B quotation.
