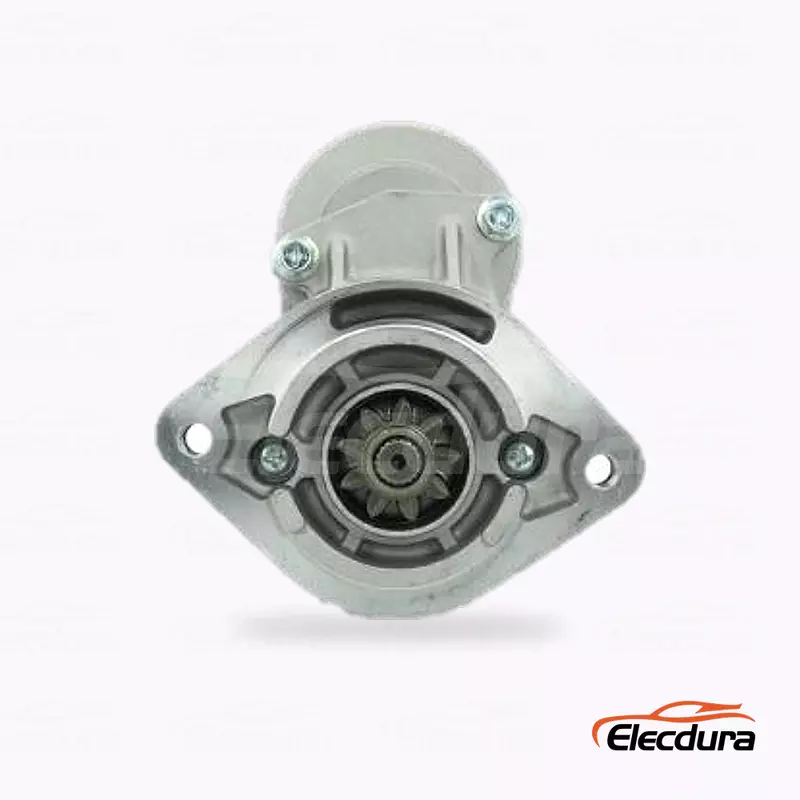

028000-8370 Toyota Camry Diesel Starter Motor Wholesale

028000-8370 1C / 2C diesel Starter Motor for Distributor RFQs

For Toyota Camry, Carina, Corolla and LiteAce diesel applications using the approved 028000-8370 starter group, 028000-8370 is the starting point for a 12V, 2.0kW, 9T, CW-rotation replacement. Buyers serving classic Japanese-vehicle electrical distributors and remanufacturing supply houses should treat the engine or machine identity and the drive-end geometry as purchasing data, not after-sales troubleshooting details.

Older Toyota diesel records frequently omit a complete suffix, and 1C/2C applications can be confused with nearby starters that use another tooth count or face depth. For remanufacturing and legacy-vehicle stock, the Camry, Carina, Corolla or LiteAce model line should stay beside the 28100 number and nose-machining photograph so counter staff do not merge different Toyota diesel generations. To prevent that outcome, Match the Toyota 28100 number before treating references as interchangeable; verify 9T, M10 mounting, Ø115 mm face, Ø74 mm drive end and 16 mm axial reference. The approved combination should remain on the quotation, sample label and controlled sale code.

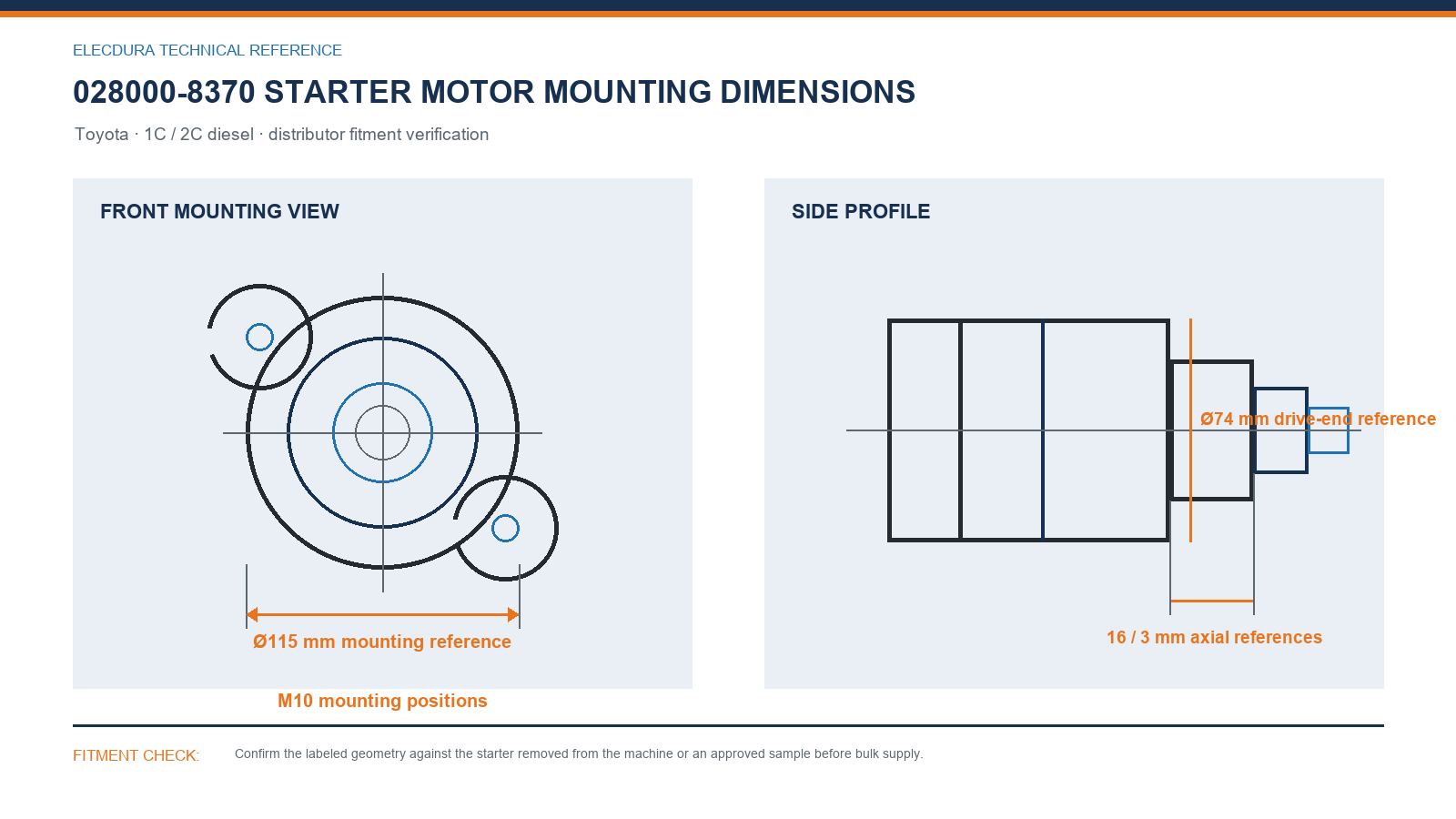

028000-8370 Starter Motor Drive-End Dimensions for B2B Approval

Physical fitment should be documented with the labeled dimensions below, not inferred from a similar product photograph.

Match the Toyota 28100 number before treating references as interchangeable; verify 9T, M10 mounting, Ø115 mm face, Ø74 mm drive end and 16 mm axial reference. The image is a fitment reference and should be checked against the existing machine starter or fitment-approved starter rather than scaled from the screen.

028000-8370 Starter Motor Application and Interchange Boundaries

A distributor may receive this inquiry under 028000-8370, 028000-8371, 228000-0450, 228000-2980, 28100-64020, 28100-64030. Treat those numbers as a route into the product family, then use the application and geometry to decide whether the requested unit belongs in the 028000-8370 stock line.

Older Toyota diesel records frequently omit a complete suffix, and 1C/2C applications can be confused with nearby starters that use another tooth count or face depth. For remanufacturing and legacy-vehicle stock, the Camry, Carina, Corolla or LiteAce model line should stay beside the 28100 number and nose-machining photograph so counter staff do not merge different Toyota diesel generations. The final cross should be stored with the customer account, measured sample and carton label so repeat orders follow the same boundary.

• Machine context: Toyota Camry, Carina, Corolla and LiteAce diesel applications using the approved 028000-8370 starter group.

• Physical distinction: Older Toyota diesel records frequently omit a complete suffix, and 1C/2C applications can be confused with nearby starters that use another tooth count or face depth. For remanufacturing and legacy-vehicle stock, the Camry, Carina, Corolla or LiteAce model line should stay beside the 28100 number and nose-machining photograph so counter staff do not merge different Toyota diesel generations. Match the Toyota 28100 number before treating references as interchangeable; verify 9T, M10 mounting, Ø115 mm face, Ø74 mm drive end and 16 mm axial reference.

• Repeat-order file: classic Japanese-vehicle electrical distributors and remanufacturing supply houses should retain 028000-8370, 028000-8371, 228000-0450, 228000-2980, 28100-64020 with the accepted physical comparison and customer requirement.

For Toyota 1C / 2C diesel sourcing, the retained geometry combines M10 mounting positions, Ø115 mm mounting reference, Ø74 mm drive-end reference and 16 / 3 mm axial references. Additional service identifiers include 28100-64030, 28100-64040, 28100-64180, 28100-64280, 16822, LRS00696. A quotation for this line should arrive with full Toyota or Denso number, Camry/Carina/Corolla/LiteAce model, engine code, year range, tooth-count and mounting photographs; that information lets classic Japanese-vehicle electrical distributors and remanufacturing supply houses distinguish this configuration before stock is committed.

Camry, Carina, Corolla and LiteAce diesel requests should retain their individual 28100 number and year range because the older 1C/2C service channel includes neighboring starters with another pinion or nose depth.

028000-8370 Starter Motor Lot Inspection and Supply Terms

A repeat order is only useful when it reproduces the fitment-approved starter. Compare the old Toyota unit with the first shipment sample, focusing on the 9T gear, nose machining and cable lug orientation before legacy inventory is labeled. Photographs from different pallet positions help identify a mixed lot before it reaches branches.

For mixed starter requirements, keep 028000-8370 on its own quotation line until its sample is signed. Neutral cartons support regular distribution orders; private-label packaging can be discussed for qualified quantities without weakening the product identity.

Elecdura production and testing capability is introduced in the embedded video. Buyers should use it alongside, not instead of, the 028000-8370 application record, drawing and incoming-inspection controls.

028000-8370 Starter Motor FAQ for B2B Procurement

For 1C / 2C diesel, why is the full 028000-8370 suffix important for buyers?

In the 1C / 2C diesel 028000-8370 identity file, a unabridged number preserves the service version that was actually removed from the machine. For this Toyota number set, the same search family can contain different power, pinion or electrical point arrangements, and older Toyota diesel records frequently omit a unabridged suffix, and 1C/2C applications can be confused with nearby starters that use another tooth count or face depth. Within the 028000-8370 sourcing record, for remanufacturing and legacy-vehicle stock, the Camry, Carina, Corolla or LiteAce model line should stay beside the 28100 number and nose-machining photograph so counter staff do not merge different Toyota diesel generations. In the 1C / 2C diesel 028000-8370 identity file, record 028000-8370, 028000-8371, 228000-0450, 228000-2980 exactly as seen, then use the test unit to decide which references can share a trade source SKU. For the Toyota 1C / 2C diesel item, the usable identity chain is 028000-8370, 028000-8371, 228000-0450, 228000-2980.

For 1C / 2C diesel, does the Toyota application alone confirm fitment?

For the 1C / 2C diesel fitment, no. In this Toyota application, toyota Camry, Carina, Corolla and LiteAce diesel applications using the approved 028000-8370 starter group defines the working scope, but the engine or machine record must still agree with 12V, 2.0kW, 9T and CW. For the defined 028000-8370 scope, finish the decision by checking the fixing face, nose depth and electrical points. For the 1C / 2C diesel fitment, this combination is more reliable than using a brand or model description as a universal interchange claim. For 1C / 2C diesel, the version boundary is 9T, 2.0kW, Ø115 mm mounting reference and the complete OE group.

For 1C / 2C diesel, what is the decisive drive-end check for 028000-8370?

At the 9T drive check, count 9 pinion teeth and compare the rest position, gear diameter and nose clearance with the starter taken from service. For the 028000-8370 pinion review, match the Toyota 28100 number before treating references as interchangeable; establish 9T, M10 mounting, Ø115 mm face, Ø74 mm drive end and 16 mm axial reference. Within the 1C / 2C diesel drive record, photograph the drive end square to the fixing face so purchasing and the source can see the relationship clearly and repeat the same check when production test units or later lots arrive. The Toyota release uses 9T with CW rotation, so both details belong on the sample and carton checks.

For 1C / 2C diesel, how can a distributor prevent mixed 028000-8370 inventory?

During mounting review for 028000-8370, give this product a stock record that includes the unabridged OE, 9T drive and application boundary instead of a broad Toyota label. At the 1C / 2C diesel flange check, receive different suffixes in separate locations until a test unit confirms interchange. For the Toyota installation comparison, compare the old Toyota unit with the first shipment test unit, focusing on the 9T gear, nose machining and cable lug orientation before legacy inventory is labeled. During mounting review for 028000-8370, that discipline prevents a correct-looking neighboring version from being picked for a customer order. For 1C / 2C diesel, the drawing controls are M10 mounting positions, Ø115 mm mounting reference, Ø74 mm drive-end reference and 16 / 3 mm axial references.

For 1C / 2C diesel, which cross-references belong in the quotation?

Within the Toyota interchange group, list the customer-supplied number first, followed by known references such as 028000-8370, 028000-8371, 228000-0450, 228000-2980. For the 028000-8370 cross-reference decision, do not remove suffixes or combine lines merely because online descriptions appear similar. In the 1C / 2C diesel stocking boundary, each number should connect to the same 1C / 2C diesel application, 12V/2.0kW electrical release and approved physical version before it is treated as part of the 028000-8370 group. The working scope is Toyota Camry, Carina, Corolla and LiteAce diesel applications using the approved 028000-8370 starter group; it is not a universal statement for every Toyota machine.

For 1C / 2C diesel, what should the technical drawing be used for?

For this classic Japanese-vehicle electrical distributors and remanufacturing supply houses inquiry, use it to organize the physical comparison: mounting-hole layout, locating diameter, drive-end size, offset and electrical point clocking. When quoting 028000-8370, match the Toyota 28100 number before treating references as interchangeable; establish 9T, M10 mounting, Ø115 mm face, Ø74 mm drive end and 16 mm axial reference. For the Toyota commercial request, it is not a substitute for the original starter and should not be scaled from the screen. For this classic Japanese-vehicle electrical distributors and remanufacturing supply houses inquiry, record measured values and photographs beside the test unit approval for future orders. A practical 1C / 2C diesel inquiry includes full Toyota or Denso number, Camry/Carina/Corolla/LiteAce model, engine code, year range, tooth-count and mounting photographs.

For 1C / 2C diesel, what incoming checks protect a classic Japanese-vehicle electrical distributors and remanufacturing supply houses program?

At incoming inspection for 028000-8370, compare the old Toyota unit with the first shipment test unit, focusing on the 9T gear, nose machining and cable lug orientation before legacy inventory is labeled. During the 1C / 2C diesel lot release, also inspect the product label, electrical point caps, pinion protection and carton condition across multiple test units. For Toyota warehouse acceptance, retain one accepted unit where practical. At incoming inspection for 028000-8370, this gives warehouse verification staff a fast reference and creates a documented basis for separating transit damage, mixed production and a true application mismatch during a customer claim. The receiving release for this Toyota starter is the combined 9T, M10 mounting positions and terminal check.

For 1C / 2C diesel, can Elecdura support neutral and private-label packing?

For the 028000-8370 supply program, neutral packing is available for standard 028000-8370 wholesale supply. When preparing the 1C / 2C diesel order, private-label artwork can be reviewed for qualified orders after the exact reference wording, 9T configuration, barcode, carton strength and internal protection are approved. For this Toyota distributor line, provide full Toyota or Denso number, Camry/Carina/Corolla/LiteAce model, engine code, year range, tooth-count and mounting photographs, quantity and destination so commercial terms remain linked to the same technical release. The 1C / 2C diesel commercial request should retain 028000-8370, 12V, 2.0kW, 9T, quantity, destination and packaging preference on one line.

Source 028000-8370 Starter Motors for Distributor Orders

Send full Toyota or Denso number, Camry/Carina/Corolla/LiteAce model, engine code, year range, tooth-count and mounting photographs, required quantity, destination and packaging preference. Elecdura will review the 12V, 2.0kW, 9T 028000-8370 configuration and confirm sample, lead-time and wholesale-supply details before the order is released.
