0430158000 Mitsubishi S16N Starter Motor Wholesale

0430158000 Starter Motor B2B Fitment Guide for Mitsubishi S12N and S16N industrial engines

Mitsubishi industrial-engine distributors, generator service companies and starter importers can use 0430158000 as the commercial identity for the starter required in Mitsubishi S12N and S16N industrial engines. The order should preserve the 15T pinion and the large Ø130 face and 15T module-4 drive for Mitsubishi S12N and S16N engines, avoiding a broad substitution based only on engine family or overall housing appearance.

Send the full 0430158000 application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

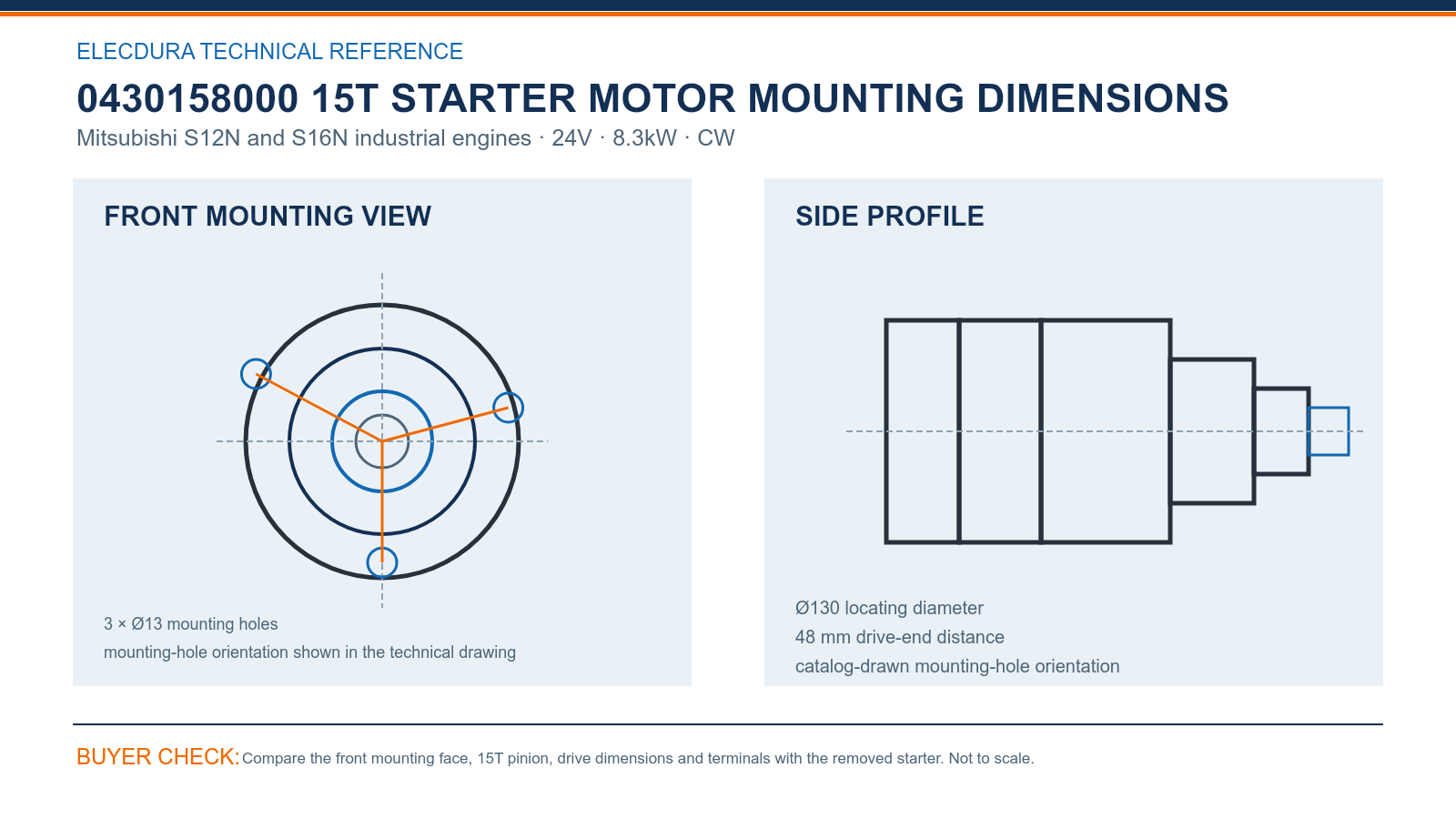

0430158000 Starter Motor Drive-End Drawing for Aftermarket Distributors

For 0430158000 first-lot sampling, place the old and new starters in the same front-facing position. Check 3 × Ø13 mounting holes, Ø130 locating diameter, catalog-drawn mounting-hole orientation and 48 mm drive-end distance. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

After the 0430158000 mounting check, verify 24V, 8.3kW, 15T and CW with module 4. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

0430158000 Starter Motor OE Number Guide for Aftermarket Supply

1. Search group: STW2790ML, 0430158000, 03306020510 can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 8.3kW, 15T, CW, the drawing and terminal photographs before accepting one physical unit.

0430158000 Starter Motor Bulk Order Packing and Lead-Time Support

For a bulk order of 0430158000, Elecdura confirms availability, packing, lead time and freight against the required quantity and destination. Standard terms begin at 20 pieces, normally require 7–15 days after confirmation and include an 18-month warranty under the final sales agreement.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted 0430158000 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

B2B buyers can use the video to review Elecdura’s starter-motor assembly and test process. The approved 0430158000 configuration remains defined by 24V, 8.3kW, 15T, CW, mounting geometry and terminals, which should be retained in the purchase record.

0430158000 Starter Motor Questions from Commercial Buyers

Why is a straight mounting-face photo useful for confirming 0430158000 during a Mitsubishi S16N dealer inspection?

Place the removed starter and 0430158000 on the same mounting-face orientation. Compare Ø130 locating diameter, catalog-drawn mounting-hole orientation, the 3 × Ø13 mounting holes and the 48 mm drive-end distance. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

Can 0430158000 be selected from the application name alone during dealer sourcing?

Confirm 0430158000 against the complete OE number, the stated Mitsubishi S12N and S16N industrial engines use and clear front, side and terminal photographs. The decisive points are 15T, 3 × Ø13 mounting holes and 48 mm drive-end distance. Those controls keep visually related starters from being combined in one order.

Which checks should follow an OE-number match for 0430158000 in a Mitsubishi S16N dealer sourcing program?

A number match narrows the search but does not finish it. For 0430158000, compare the stated application, electrical output, 15T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

Which cranking-circuit tests should precede replacement of 0430158000 in a Mitsubishi S16N dealer workshop?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing 0430158000. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

Which operating factors should guide a fleet's 0430158000 reserve quantity in a Mitsubishi S16N dealer program?

Review workshop consumption by the stated Mitsubishi S12N and S16N industrial engines population instead of pooling every visually similar starter. Record monthly issues, lead-time exposure and the reserve required at each branch. That information supports a practical 0430158000 reorder point and avoids holding the wrong drive-end version as emergency stock.

What carton-to-product checks are appropriate for 0430158000 during a Mitsubishi S16N dealer receiving check?

Use a first-lot sample to confirm 0430158000, 24V, 8.3kW, 15T and CW. Inspect the mounting face, terminals and protective packing, then retain the lot reference and images. This gives warehouse and sales teams a shared record before units are distributed to branches or workshops.

Which details allow Elecdura to quote 0430158000 without delay in a Mitsubishi S16N dealer sourcing program?

List 0430158000 together with the supported equipment record, 24V, 8.3kW, 15T and CW. Send old-unit photos, order volume, destination and requested timing, plus any private-label or staged-delivery requirement. This keeps the technical selection and the commercial offer aligned from the first response.

How can a distributor prepare a complete claim file for 0430158000 in a Mitsubishi S16N dealer review?

For 0430158000, provide the delivery lot, installation date, operating hours and a clear fault description. Include photographs of the label, pinion, mounting face and terminals, together with battery and voltage-drop results under cranking load. These records help separate product condition from application, installation, electrical-system or transport-related causes.

0430158000 Request a Starter Motor Fleet Supply Quote

Email info@elecdurauto.com with 0430158000, the supported Mitsubishi S12N and S16N industrial engines record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 24V, 8.3kW, 15T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
