10479616 Cummins 5.9 KAMAZ 4308 Starter Motor Wholesale

10479616 Starter Motor Wholesale Application Support for Cummins 5.9 and 4B3.9L engines in KAMAZ 4308

For Cummins 5.9 and 4B3.9L engines in KAMAZ 4308, 10479616 gives distributors a focused starting point for quotation and branch inventory. Confirm 24V, 4.5kW, 10T and CW, with particular attention to 24V 4.5kW 10T module-2.54 drive for the Cummins 5.9 and KAMAZ 4308 catalog record, before combining demand from different fleets or workshops.

Separate different old-unit numbers from the 10479616 enquiry and attach images for each configuration. State which line is a sample and which is a replenishment quantity, together with destination and timing. This gives the quotation a practical fitment boundary and a realistic packing and delivery plan.

10479616 Starter Motor Mounting Reference for Commercial Buyers

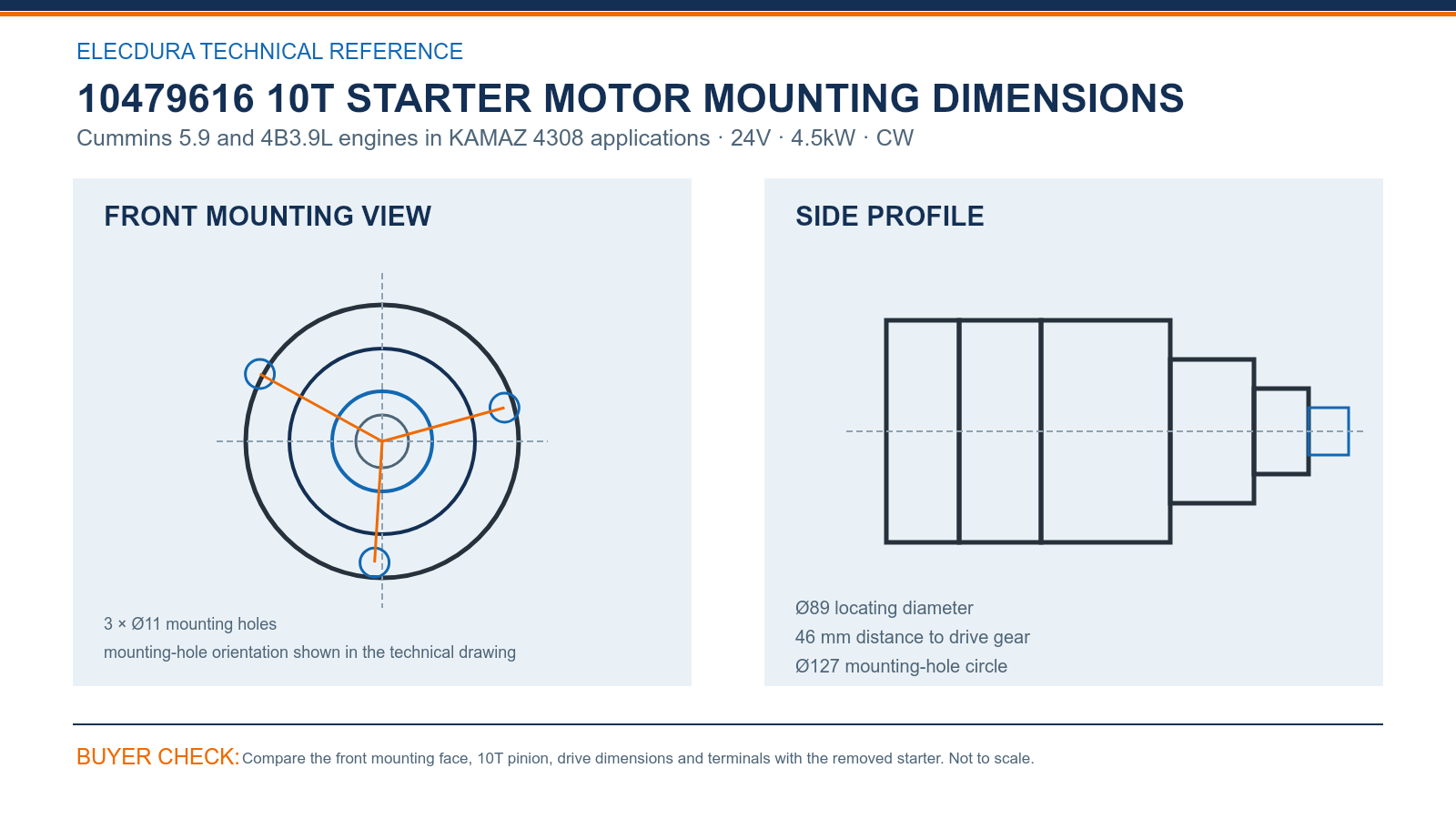

Check the 10479616 drawing against the removed starter at the mounting face and drive end. The critical references are 3 × Ø11 mounting holes, Ø89 locating diameter, Ø127 mounting-hole circle and 46 mm distance to drive gear. A physical mismatch should stop the unit from entering ordinary stock until the application is clarified.

The 10479616 drive-end decision is completed by 10T, module 2.54 and CW, together with 24V and 4.5kW. Confirm main-terminal and control-terminal positions under the actual cable routing. Similar dimensions do not compensate for the wrong rotation, pinion or electrical rating.

10479616 Starter Motor Cross-Reference Boundary for Importers

The 10479616 cross-reference group includes S1007, 3604677RX, 367520RX, 3909914, 3918377, 3918378, 3926932. These numbers improve search coverage across fleets and supplier systems, but they do not replace a check of 24V, 4.5kW, 10T, CW, mounting geometry and terminals.

If a mixed 10479616 enquiry contains different pinions, drive positions or connector layouts, list each complete reference and photograph separately. Elecdura can then return distinct offers instead of placing unlike starters under one broad reference family.

10479616 Starter Motor Wholesale Ordering and Export Support

Elecdura can prepare 10479616 orders for regional inventory, fleet workshops or industrial service demand. The standard starting point is 20 pieces, normally 7–15 days after order confirmation, with an 18-month warranty under agreed terms and packing selected for the destination and shipment method.

Buyers can state service urgency, supported equipment count and expected monthly use in the same RFQ. Elecdura can then discuss stock, production, packaging and staged delivery while maintaining the specified 10479616 drive end and electrical rating throughout the order.

For supplier evaluation, the video presents Elecdura starter-motor assembly and testing. A 10479616 order should still be released against the complete OE number, Cummins 5.9 and 4B3.9L engines in KAMAZ 4308 details, electrical specification and physical comparison, giving purchasing both capability information and a clear product boundary.

10479616 Starter Motor Questions from Commercial Buyers

Which first-lot checks protect a distributor receiving 10479616 during a Cummins 5.9 KAMAZ 4308 service-network receiving check?

For 10479616, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø11 mounting holes, Ø89 locating diameter and the specified 10T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

How should a buyer compare the old unit with the 10479616 technical image during a Cummins 5.9 KAMAZ 4308 service-network inspection?

For 10479616, sample the 3 × Ø11 mounting holes, Ø89 locating diameter, Ø127 mounting-hole circle and 46 mm distance to drive gear. Count the 10T pinion and photograph the terminal side in the same inspection. These points can be checked without dismantling the unit and give receiving teams a practical comparison with the approved sample.

How can an importer avoid mixing 10479616 with a similar drive-end version during service-network sourcing?

For 10479616, begin with the machine, truck or engine identification, then read the full old-unit label. The physical check should cover 10T, Ø127 mounting-hole circle, Ø89 locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item, even when an application description overlaps.

When does a cross-reference related to 10479616 need a separate quotation in a Cummins 5.9 KAMAZ 4308 service-network sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The 10479616 group is acceptable only when 24V, 4.5kW, 10T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

Why should voltage-drop results accompany an enquiry for 10479616 in a Cummins 5.9 KAMAZ 4308 service-network workshop?

Measure cranking voltage and voltage loss across the positive and negative paths, not only open-circuit battery voltage. Review the solenoid command, cable terminals, engine ground and ring gear. The results provide a useful baseline for 10479616 installation and for any later service discussion with the supplier.

How should Cummins distributors plan stock for 10479616 in a Cummins 5.9 KAMAZ 4308 service-network program?

Keep the 4.5kW rating visible on quotations and receiving records and separate it from other Cummins starter lines. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

What information should accompany a distributor RFQ for 10479616 in a Cummins 5.9 KAMAZ 4308 service-network sourcing program?

A useful RFQ states 10479616, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

What evidence separates an electrical-system fault from a concern involving 10479616 in a Cummins 5.9 KAMAZ 4308 service-network review?

For a service review of 10479616, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

10479616 Email for Starter Motor B2B Pricing

A complete RFQ for 10479616 should state the application, removed-unit number, physical photographs, quantity, destination and delivery target. Send these details to info@elecdurauto.com for a direct response on the correct 24V 4.5kW 10T CW starter, MOQ, packaging, warranty and shipping choices.
