1114059 Cummins 8.3L CCW Starter Motor Wholesale

1114059 Starter Motor B2B Fitment Guide for Cummins C Series 8.3L engines requiring CCW rotation

Cummins engine rebuilders, industrial distributors and technical purchasing teams can use 1114059 as the commercial identity for the starter required in Cummins C Series 8.3L engines requiring CCW rotation. The order should preserve the 11T pinion and the counter-clockwise drive that must remain explicit in every commercial document, avoiding a broad substitution based only on engine family or overall housing appearance.

Send the full 1114059 application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

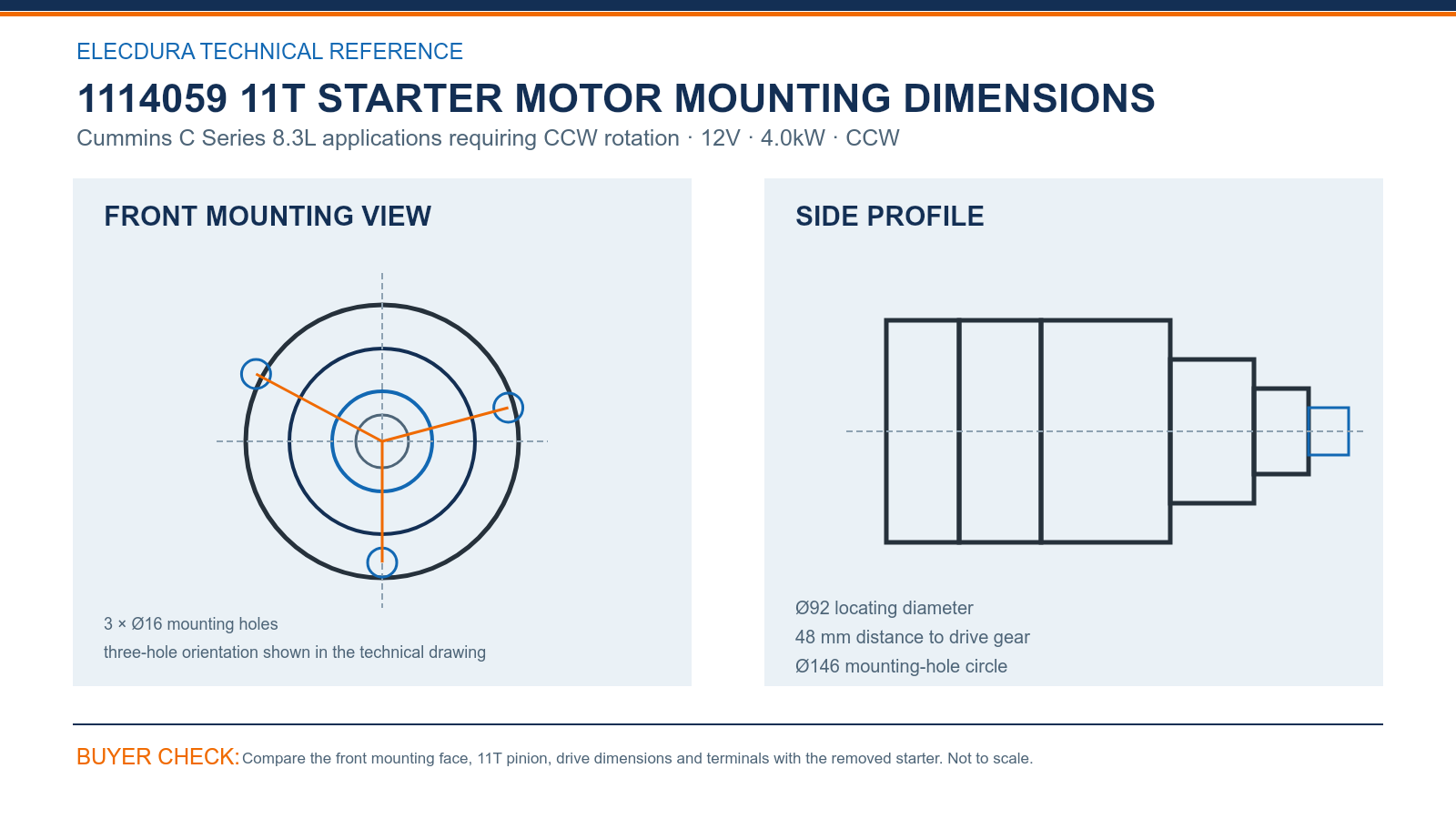

1114059 Starter Motor Drive-End Drawing for Aftermarket Distributors

1114059 Cummins C Series 8.3L 12V 4.0kW 11T CCW starter dimensions.

For 1114059 first-lot sampling, place the old and new starters in the same front-facing position. Check 3 × Ø16 mounting holes, Ø92 locating diameter, Ø146 mounting-hole circle and 48 mm distance to drive gear. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

After the 1114059 mounting check, verify 12V, 4.0kW, 11T and CCW with module 4.233. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

1114059 Starter Motor OE Number Guide for Aftermarket Supply

1. Search group: 1114059, 1114063, 1114080, 1114097, 1114106, 3290N can help distributor teams locate the relevant starter family.

2. Order boundary: Confirm the complete reference with 12V, 4.0kW, 11T, CCW, the drawing and terminal photographs before accepting one physical unit.

1114059 Starter Motor Bulk Order Packing and Lead-Time Support

For a bulk order of 1114059, Elecdura confirms availability, packing, lead time and freight against the required quantity and destination. Standard terms begin at 20 pieces, normally require 7–15 days after confirmation and include an 18-month warranty under the final sales agreement.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted 1114059 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

B2B buyers can use the video to review Elecdura’s starter-motor assembly and test process. The approved 1114059 configuration remains defined by 12V, 4.0kW, 11T, CCW, mounting geometry and terminals, which should be retained in the purchase record.

1114059 Starter Motor Questions from Commercial Buyers

Which mounting-face points distinguish the specified 1114059 version during a Cummins 8.3L CCW dealer inspection?

Place the removed starter and 1114059 on the same mounting-face orientation. Compare Ø92 locating diameter, Ø146 mounting-hole circle, the 3 × Ø16 mounting holes and the 48 mm distance to drive gear. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

How can 1114059 stock be separated by application risk in a Cummins 8.3L CCW dealer program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent 1114059 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Which details separate 1114059 from similar starters used around Cummins C Series 8.3L engines requiring CCW rotation during dealer sourcing?

For 1114059, ask the workshop for the removed starter label and the exact equipment record. Match 12V, 4.0kW, 11T and CCW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Can a purchasing team consolidate every 1114059 reference into one stock line in a Cummins 8.3L CCW dealer sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use 1114059, 1114063, 1114080, 1114097, 1114106 to locate possible matches, then confirm 12V, 4.0kW, 11T, CCW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

What pre-installation circuit review supports replacement with 1114059 in a Cummins 8.3L CCW dealer workshop?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for 1114059 helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

How should incoming 1114059 units be sampled before shelving during a Cummins 8.3L CCW dealer receiving check?

Use a first-lot sample to confirm 1114059, 12V, 4.0kW, 11T and CCW. Inspect the mounting face, terminals and protective packing, then retain the lot reference and images. This gives warehouse and sales teams a shared record before units are distributed to branches or workshops.

What makes the fleet quotation for 1114059 ready for review in a Cummins 8.3L CCW dealer sourcing program?

List 1114059 together with the supported equipment record, 12V, 4.0kW, 11T and CCW. Send old-unit photos, order volume, destination and requested timing, plus any private-label or staged-delivery requirement. This keeps the technical selection and the commercial offer aligned from the first response.

What records support an after-sales review of 1114059 in a Cummins 8.3L CCW dealer review?

For 1114059, provide the delivery lot, installation date, operating hours and a clear fault description. Include photographs of the label, pinion, mounting face and terminals, together with battery and voltage-drop results under cranking load. These records help separate product condition from application, installation, electrical-system or transport-related causes.

1114059 Request a Starter Motor Fleet Supply Quote

Email info@elecdurauto.com with 1114059, the supported Cummins C Series 8.3L engines requiring CCW rotation record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 12V, 4.0kW, 11T CCW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
