18239 Mitsubishi S6K Caterpillar 5.0kW Starter Wholesale

18239 5.0kW Starter Wholesale for Mitsubishi S6K Caterpillar

Caterpillar and Mitsubishi parts buyers may search 18239, 18239A, 10875, 0R1091, 1146864, M003T56174 or M008T60471. For this stock line, the quotation should keep those references attached to the specified 5.0kW output, S6K application and two-hole drive end.

The reference family can also appear beside other power ratings. A buyer should therefore identify this item as the 24V 5.0kW 10T module-3 clockwise version and compare the two-hole flange, locating diameter, drive projection, solenoid position and terminals with the removed starter before volume ordering.

18239 24V 10T Starter Drawing for Caterpillar Parts Buyers

The combined 24V, 5.0kW, 10T, module-3 and clockwise definition gives purchasing, sales and receiving teams a clear stock identity. Keeping all five values on the enquiry and carton label reduces the chance that an overlapping 10875-family number is treated as a complete fitment decision.

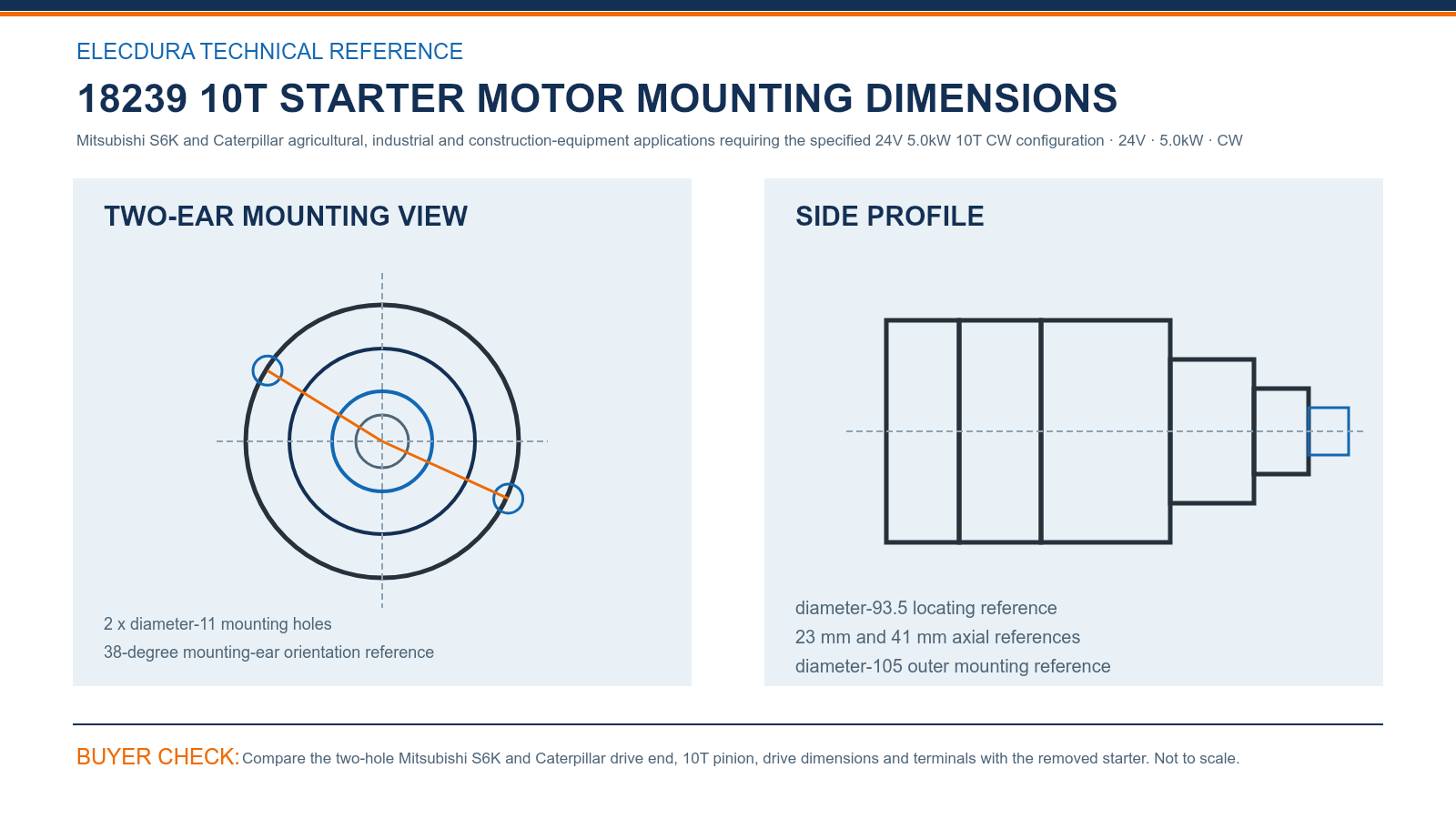

18239 5.0kW Starter Drawing for Mitsubishi S6K Buyers — compare the drawing with the removed starter before placing a volume order.

The drawing provides two diameter-11 mounting holes, a diameter-105 outer mounting reference, a diameter-93.5 locating reference, a 38-degree mounting-ear orientation and 23 mm and 41 mm axial values. These measurements support remote comparison when an equipment dealer cannot send the old starter to the supplier.

M3T56174 M8T60471 Starter Matching for B2B Replacement Orders

18239, 18239A, 10875, 0R1091 and 1146864 support commercial searching. M003T56172, M003T56174, M003T56181, M003T56182, M003T56183 and M008T60471 identify Mitsubishi build families, while the 32B66, 34366 and 34766 numbers help connect existing warehouse and service records.

This line is intended for Mitsubishi S6K requirements in Caterpillar agricultural, industrial and construction-equipment channels that call for the specified 5.0kW configuration. Distributors carrying another output version should use a separate item description, rating-label image and receiving checklist rather than merging both products under 10875 alone.

18239 Caterpillar Starter Receiving Checks and Factory Video

For the first shipment, receiving can sample the 10T pinion, two diameter-11 holes, locating face, drive projection, solenoid clocking, protected terminals and 5.0kW identification. Retaining the accepted images and lot result gives branch teams a repeatable check before urgent Caterpillar-equipment dispatches.

The Elecdura video presents starter-motor assembly and electrical testing for export supply. It supports a factory-capability review while each 18239 order remains tied to the 5.0kW rating, Mitsubishi S6K requirement, Caterpillar equipment details and accepted physical configuration.

18239 5.0kW Starter FAQs for Caterpillar Equipment Buyers

What identifies this 18239 5.0kW starter?

Identify the item by combining 24V, 5.0kW, 10T, module 3 and clockwise rotation with the Mitsubishi S6K and Caterpillar equipment details. Add the complete old-starter number, rating-label photograph, drive-end view and terminal view so the quotation is based on a measurable configuration instead of a short reference.

Why should the 5.0kW line stay separate from other 10875 variants?

An overlapping 10875-family number does not state the rated output by itself. Separate item descriptions, rating-label images and receiving records help sales and warehouse teams preserve the 5.0kW requirement and avoid shipping a visually similar starter from another output version. Mark 5.0kW on the quotation, shelf label and picking note.

How should 0R1091 and 1146864 support an enquiry?

Use 0R1091 and 1146864 as Caterpillar reference inputs, then add the machine model, serial range, S6K engine details and the number found on the removed starter. The specification and physical comparison remain necessary because one service reference does not describe every mounting and electrical detail.

Can M3T56174 and M8T60471 be quoted together?

They can support the same Mitsubishi-family enquiry when the removed unit and required specification agree. State the exact number, including prefixes and suffixes, and confirm 24V, 5.0kW, 10T, module 3, clockwise rotation, the two-hole flange and terminal arrangement. Record the matched number on the quotation and receiving label.

Which mounting dimensions should a remote buyer compare?

Compare the two diameter-11 holes, diameter-105 outer mounting reference, diameter-93.5 locating reference, 38-degree mounting-ear orientation, and 23 mm and 41 mm axial values. Square front and side photographs should also show the pinion position, solenoid clocking and terminals without perspective distortion. Keep the accepted measurements with later replenishment orders.

What should receiving inspect on the first 18239 shipment?

Sample the 10T pinion, two-hole mounting face, locating diameter, drive projection, solenoid position, terminal protection and 5.0kW rating label. Compare selected cartons with the accepted image set and order details before branch distribution. Retain the inspection result and supply-lot reference for repeat purchasing and after-sales traceability.

What evidence helps review an S6K starting complaint?

Send battery load results, positive and ground voltage-drop readings, start-signal voltage, relay findings, installed-terminal photographs and ring-gear observations. Note whether the solenoid clicks and whether cranking is slow or absent. Also provide the installed starter number and rating label so electrical diagnosis can be checked against the supplied configuration.

What should be sent for 18239 wholesale pricing?

Provide the Caterpillar machine and serial details, Mitsubishi S6K engine information, old-unit reference and label, clear mounting and terminal images, quantity, annual demand, packing preference, destination and required date. Elecdura can then review the 5.0kW configuration and prepare pricing, lead time, packing options and shipping terms for the requested volume.

Request 18239 Mitsubishi S6K Starter Wholesale Pricing

Email the Caterpillar machine and serial details, Mitsubishi S6K engine information, complete old-starter reference, rating-label and mounting photographs, quantity, packing request and destination to info@elecdurauto.com. Elecdura will review the 18239 5.0kW configuration and return wholesale pricing, lead time and shipping terms.
