19081108 Mitsubishi Caterpillar Kobelco Starter Motor Wholesale

19081108 Starter Wholesale Supply for Mitsubishi Caterpillar Kobelco

Equipment-parts enquiries may arrive under 19081108, 0R1091, 1146864, 5I7716, M3T56181 or 18239N. A useful quotation keeps the full searched number beside the machine or lift-truck identity, the 24V 5.0kW 10T rating and photographs of the installed drive end.

This reference family appears in industrial, material-handling and construction-equipment inventories. Before accepting a replacement, compare the two-hole face, 65-degree ear orientation, 10T module-3 pinion, locating diameter, solenoid clocking and terminal layout; a matching voltage and familiar housing do not establish the physical fit.

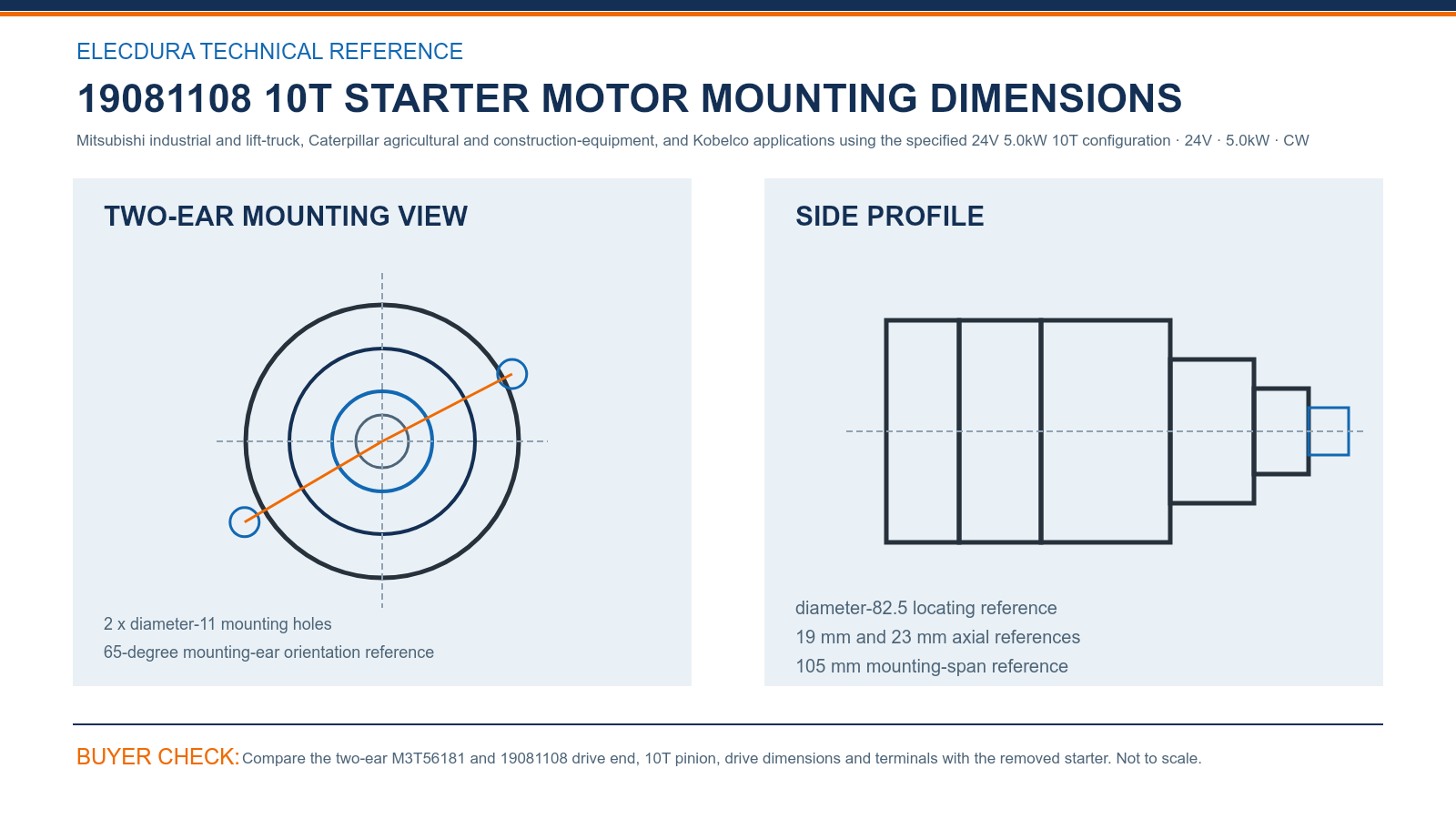

19081108 24V 5.0kW Starter Drawing for B2B Parts Buyers

The electrical and drive definition combines 24V, 5.0kW, 10 teeth, module 3 and clockwise rotation. Carrying all five values into the quotation and purchase order helps branches distinguish this OSGR configuration from related Mitsubishi-type starters with another output, pinion or mounting arrangement.

19081108 Starter Drawing for Mitsubishi Caterpillar Kobelco Buyers - use the 65-degree two-ear layout to compare this unit with the installed Caterpillar, Mitsubishi or Kobelco starter.

The drawing presents two diameter-11 holes, a diameter-82.5 locating reference, 65-degree mounting-ear orientation, a 105 mm span reference and 19 mm and 23 mm axial values. Straight front and side photographs let a remote buyer compare these checkpoints without scaling an angled product image.

0R1091 M3T56181 Reference Matching for Equipment Distributors

19081108 connects with Caterpillar 0R1091, 1146864 and 5I7716, Cargo 112323, AS-PL S5196 and the Mitsubishi M003T561 and M3T561 groups. Keep the exact number found on the removed starter because a cross-reference can locate the family but cannot describe previous field changes or terminal routing.

The same product family can reach Mitsubishi lift-truck workshops, Caterpillar agricultural or excavator service and Kobelco parts counters through different search terms. Record model, serial, equipment type and current starter on each enquiry so the quoted unit remains tied to the buyer's actual installation rather than a broad brand label.

19081108 Starter Receiving Checks and Factory Capability Video

For the first shipment, receiving staff can sample the rating label, 10T pinion, both mounting holes, locating surface, cable studs, trigger lead and protective packing. Saving the accepted photographs with the equipment record gives sales branches a practical reference for replenishment and after-sales review.

For buyers evaluating an additional heavy-duty starter source, the production video shows Elecdura's assembly and electrical-test process. Procurement teams can review manufacturing capability while each 19081108 order remains defined by the confirmed equipment identity, 24V 5.0kW 10T specification, mounting face and agreed terminal arrangement.

19081108 Starter FAQs for Equipment Parts Distributors

What defines the 19081108 starter configuration?

Use 19081108 together with 24V, 5.0kW, 10 teeth, module 3 and clockwise rotation. The physical identity adds two diameter-11 mounting holes, a diameter-82.5 locating surface, the 65-degree ear orientation and the actual terminal layout. Machine details and straight old-unit photographs complete the buying record for a dependable quotation.

How should 0R1091 and 1146864 be used in a Caterpillar enquiry?

Treat 0R1091 and 1146864 as Caterpillar search references connected to the 19081108 and M3T561 family. Add the machine model, serial, engine information and complete number on the installed starter, then compare the 10T drive, two mounting holes and cable side. This keeps a broad equipment listing from becoming an automatic fitment claim.

Why should forklift and excavator demand stay separate?

Material-handling and construction customers may reach the same reference group through different machine records, service histories and stocking patterns. Keep the equipment type, model, serial and installed starter with each order line. Separate demand records help branches allocate stock accurately and prevent one successful installation from being generalized across unrelated machines.

Which dimensions should be measured on the removed starter?

Measure both diameter-11 mounting holes, the diameter-82.5 locating surface, the 65-degree mounting-ear orientation, the 105 mm span reference and the 19 mm and 23 mm axial positions. Photograph the drive end square to the flange and show the pinion at rest. Retain the measurements with the quotation for repeat comparison.

Do M3T56181 and 18239N confirm the same physical unit?

They are strong search references within this Mitsubishi-type family, but the number match should still be supported by the rating and mounting evidence. Compare 24V, 5.0kW, 10T, module 3, clockwise rotation, the two-hole face and terminals. Previous service replacements can change what is installed on an older machine.

What should receiving inspect on the first 19081108 shipment?

Sample cartons from more than one position and inspect the full label, 10T pinion, both mounting ears, locating surface, solenoid orientation, cable studs and trigger connection. Compare selected units with the accepted photographs and order details before branch distribution. Record the shipment lot, inspection date and sampled carton numbers for later traceability.

What evidence helps review a no-crank complaint for this starter?

For a non-crank review, send the battery result under load, measured drop on both power and earth circuits, voltage at the trigger terminal, relay observations and clear installed-terminal photographs. Describe whether the solenoid clicks, cranking is slow or absent, and the visible ring-gear condition. Add the supplied label and equipment identity so the likely cause can be isolated.

What should a distributor send for 19081108 wholesale pricing?

Send the complete old-starter reference, equipment make, model and serial, clear rating-label, drive-end and terminal photographs, required quantity, annual demand, packing preference, destination and target date. If several branches or machine groups are involved, split quantities accordingly. Elecdura can then return pricing, lead time, packing options and shipping terms for the defined configuration.

Request 19081108 Mitsubishi Caterpillar Starter Wholesale Pricing

Email the complete old-starter number, machine or lift-truck model and serial, rating-label, drive-end and terminal photographs, quantity, packing request, destination and required date to info@elecdurauto.com. Elecdura will review the 19081108 configuration and return wholesale pricing, lead time, packing options and shipping terms.
