1K011-63010 Kubota V3000 Starter Motor Wholesale

1K011-63010 Kubota V3000 Starter Wholesale for Equipment Dealers

V3000 engines serve different machines, and the cost of a no-start event changes sharply during planting, harvest or contracted industrial work. A wholesaler needs the engine plate, equipment model and required date to decide whether the request is routine stock or a time-critical replacement.

A 9T module-3 pinion must remain tied to the asymmetric 75° and 35° mounting references. Another Kubota starter can share voltage and power while placing its ears differently, which makes a clean drawing comparison more valuable than a broad V3000 label.

1K011-63010 9T Starter Dimensions for Engine Parts Buyers

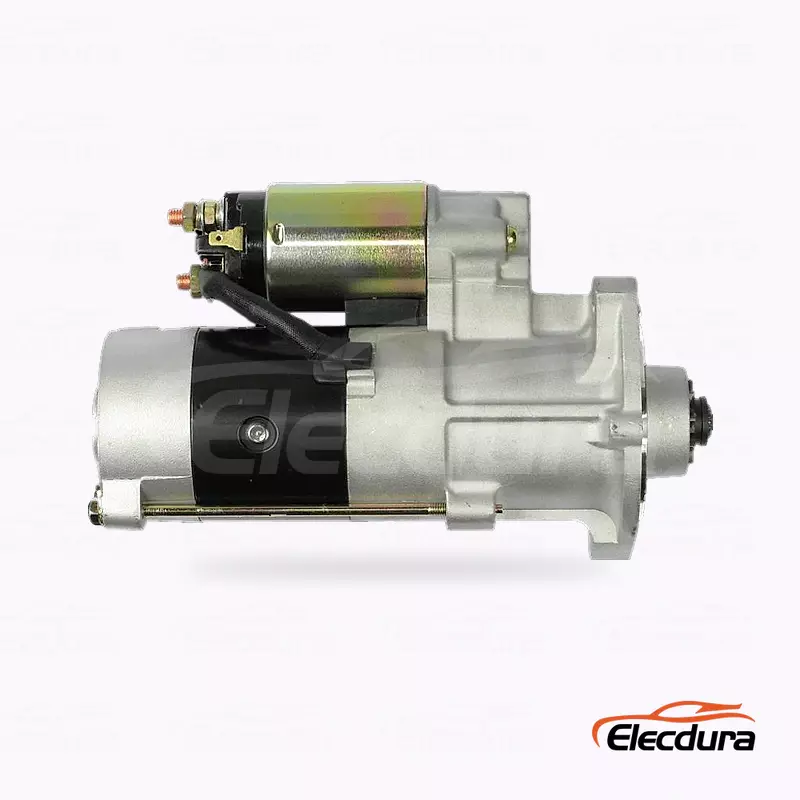

Identify 1K011-63010 as 24V, 3.2kW, 9T, module 3 and CW. This complete description supports purchase-order accuracy and lets receiving staff separate the correct V3000 unit from neighboring Kubota products before seasonal inventory is distributed.

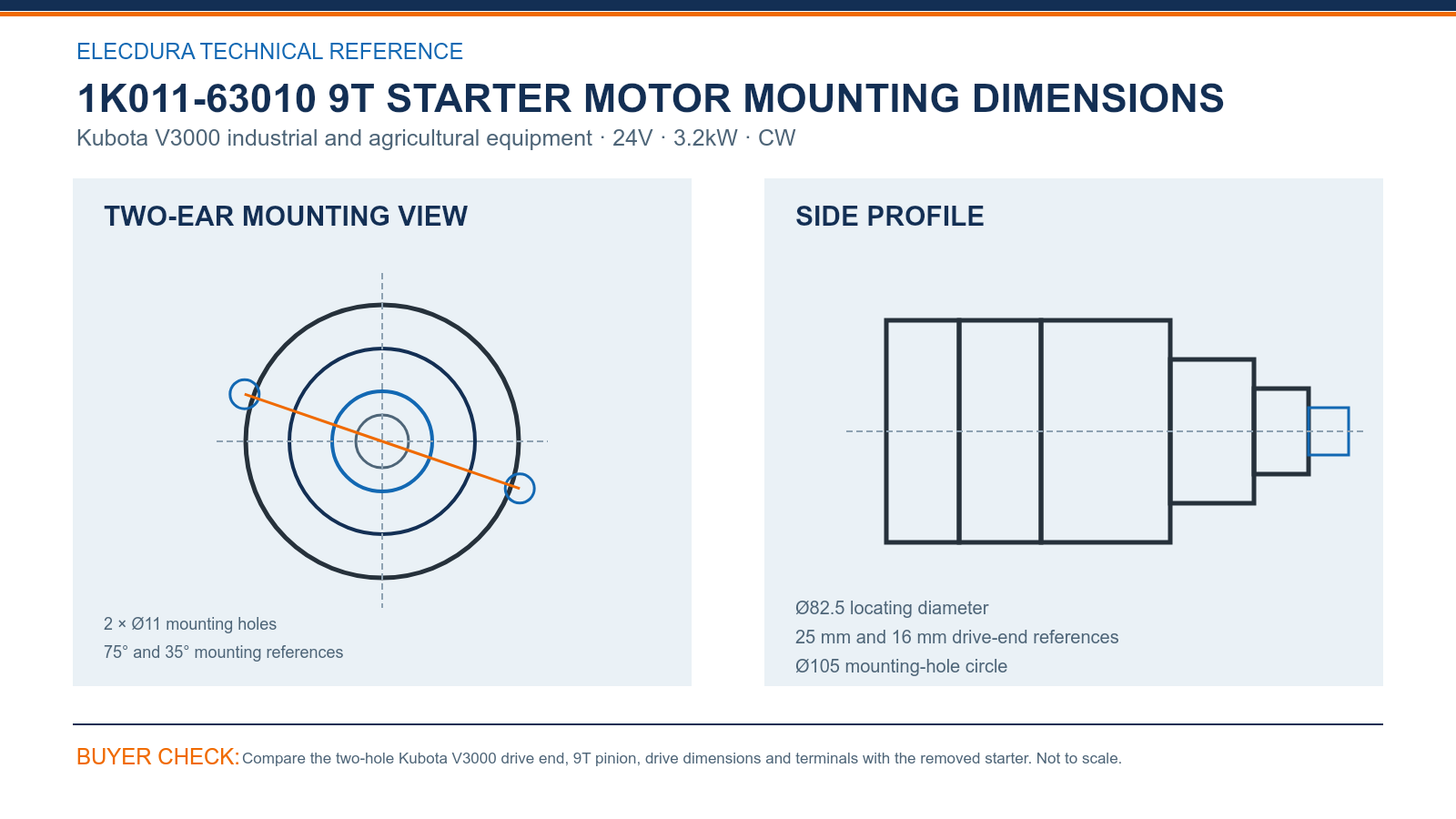

1K011-63010 Kubota V3000 Starter Drawing for Engine Parts Buyers — compare the drawing with the removed starter before placing a volume order.

Compare the two Ø11 holes, Ø105 circle, Ø82.5 locating diameter, 75° and 35° angles, and 25 mm and 16 mm drive-end references. Ask for a straight mounting-face image because the uneven ear orientation is difficult to judge from a side photograph.

1K011-63010 M8T80871 Matching for Kubota Distributors

1K011-63011, 1K011-63012, M008T80871 and CST35687 are useful sourcing references. Keep the V3000 engine, 9T drive and illustrated mounting angles attached to the enquiry rather than extending the product to every machine carrying a similar Kubota number.

Dealers can plan quantity around the installed V3000 population, seasonal usage and travel time to rural customers. A confirmed sample may support repeat orders across several machines only when their engine plates and mounting faces agree with the stored comparison.

1K011-63010 V3000 Starter Supply for Seasonal Demand

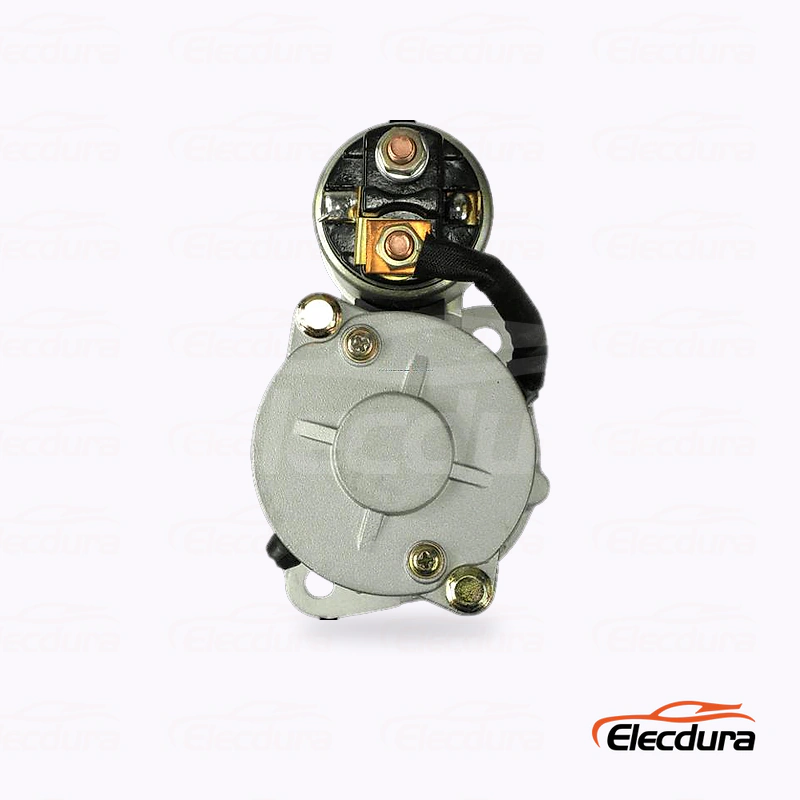

For incoming stock, count nine teeth and examine the locating face, mounting ears, solenoid studs and carton support. Place the accepted V3000 face image with the bin record so urgent counter sales can be checked without relying on memory.

The Elecdura video introduces starter assembly and electrical testing for distributor programs. Kubota buyers can combine it with their own requirements for seasonal forecasts, sample inspection, neutral or private-label packing and delivery into regional dealer networks.

1K011-63010 Starter FAQs for Kubota V3000 Wholesalers

Which V3000 information should accompany 1K011-63010?

Provide the Kubota V3000 engine plate, equipment make and model, machine serial if available, and all numbers from the removed starter. Add straight mounting-face, pinion and terminal photographs, required quantity and destination. This information helps Elecdura connect 1K011-63010 to the actual industrial or agricultural installation rather than assuming every V3000 machine uses the same starter.

Why do the 75° and 35° mounting references matter?

The 75° and 35° references show how the two mounting holes are positioned around the starter centerline. They help distinguish an asymmetric V3000 flange from another Kubota starter with a similar body and electrical rating. Compare those angles with a square front photograph, together with the Ø105 circle and Ø82.5 locating diameter, before accepting a sample.

How should 1K011-63011 and M8T80871 support the match?

1K011-63011, 1K011-63012 and M8T80871 are useful cross-references for locating the replacement family. Use them with the V3000 engine identity, 24V 3.2kW 9T specification and illustrated mounting angles. If a listing carries one reference but a different flange or pinion, keep it outside the 1K011-63010 order until physically compared.

How can dealers plan this starter before peak season?

Review the installed V3000 population, previous replacement rate, peak-season workload and lead time to rural customers several months before demand rises. Hold emergency units near high-utilization machines and replenish central stock on a planned schedule. A confirmed sample and clear bin description reduce the risk of finding a mounting difference only when a machine is already waiting.

Which photographs make a V3000 comparison useful?

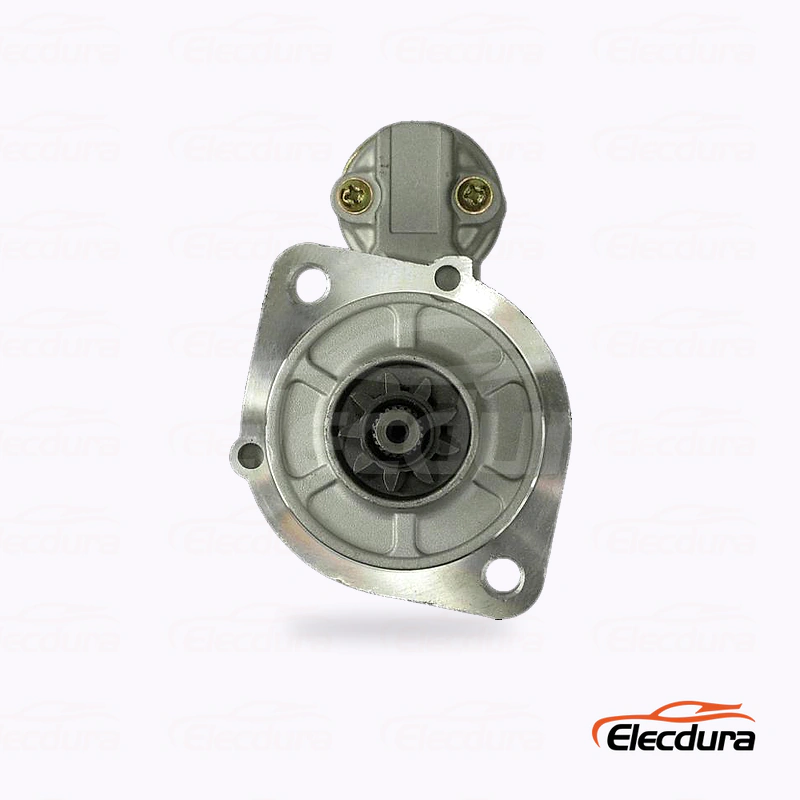

Request a square mounting-face image that shows both holes and their unequal angles, a side view showing the 25 mm and 16 mm drive references, a pinion close-up and a terminal-side view. Include the starter label and engine plate. These views let the wholesaler compare geometry and identification without relying on an angled installed photograph.

What should receiving inspect on 1K011-63010 cartons?

Count nine teeth and inspect the two Ø11 holes, Ø82.5 locating face, mounting ears, nose casting and solenoid terminals. Compare labels and images from cartons in different pallet positions, then check that the pinion and cable studs are protected. Record one accepted unit so later seasonal deliveries can be verified before they are distributed to dealers.

What equipment checks belong before replacing the starter?

Load-test the 24V batteries, check grounds and cable condition, and measure cranking voltage drop on both sides of the circuit. Confirm that the start command reaches the solenoid and inspect the ring gear where possible. These checks help separate a power-supply or wiring fault from a starter problem before replacing the V3000 unit.

What lets Elecdura price a V3000 wholesale forecast?

Send the V3000 engine and equipment details, all Kubota and Mitsubishi references, clear mounting and terminal photographs, required quantity, annual forecast and delivery location. State whether neutral or private-label packing is needed. Elecdura can then check the 24V 3.2kW 9T module-3 configuration and quote realistic wholesale pricing, packaging and lead time.

Request 1K011-63010 Kubota V3000 Starter Wholesale Pricing

Email the Kubota V3000 engine plate, equipment model, all old-starter references, mounting-face and terminal photographs, forecast quantity and destination to info@elecdurauto.com. Elecdura will review 1K011-63010 and return wholesale pricing and availability.
