20796052 Volvo EC240 EC290 Starter Motor Wholesale

20796052 Volvo EC240 EC290 Starter Wholesale for Heavy Equipment

An EC240 or EC290 stopped in earthmoving work can hold up trucks, operators and production targets. A distributor quotation should therefore include the exact excavator, machine serial range, service location and desired reserve quantity, not merely an urgent request for a Volvo starter.

Keep the 12T module-3 drive together with the Ø127 three-hole mounting circle and 28 mm drive-end reference. Heavy-duty Volvo starters with familiar housings or shared cross-references may differ at the pinion or flange, and the wrong version is expensive to send to a quarry.

20796052 12T Starter Dimensions for Distributor Verification

The consistent product line is 24V, 5.5kW, 12T, module 3 and CW. Use it beside 20796052 and the EC240/EC290 application on quotations, cartons and warehouse labels so each team works from the same technical definition.

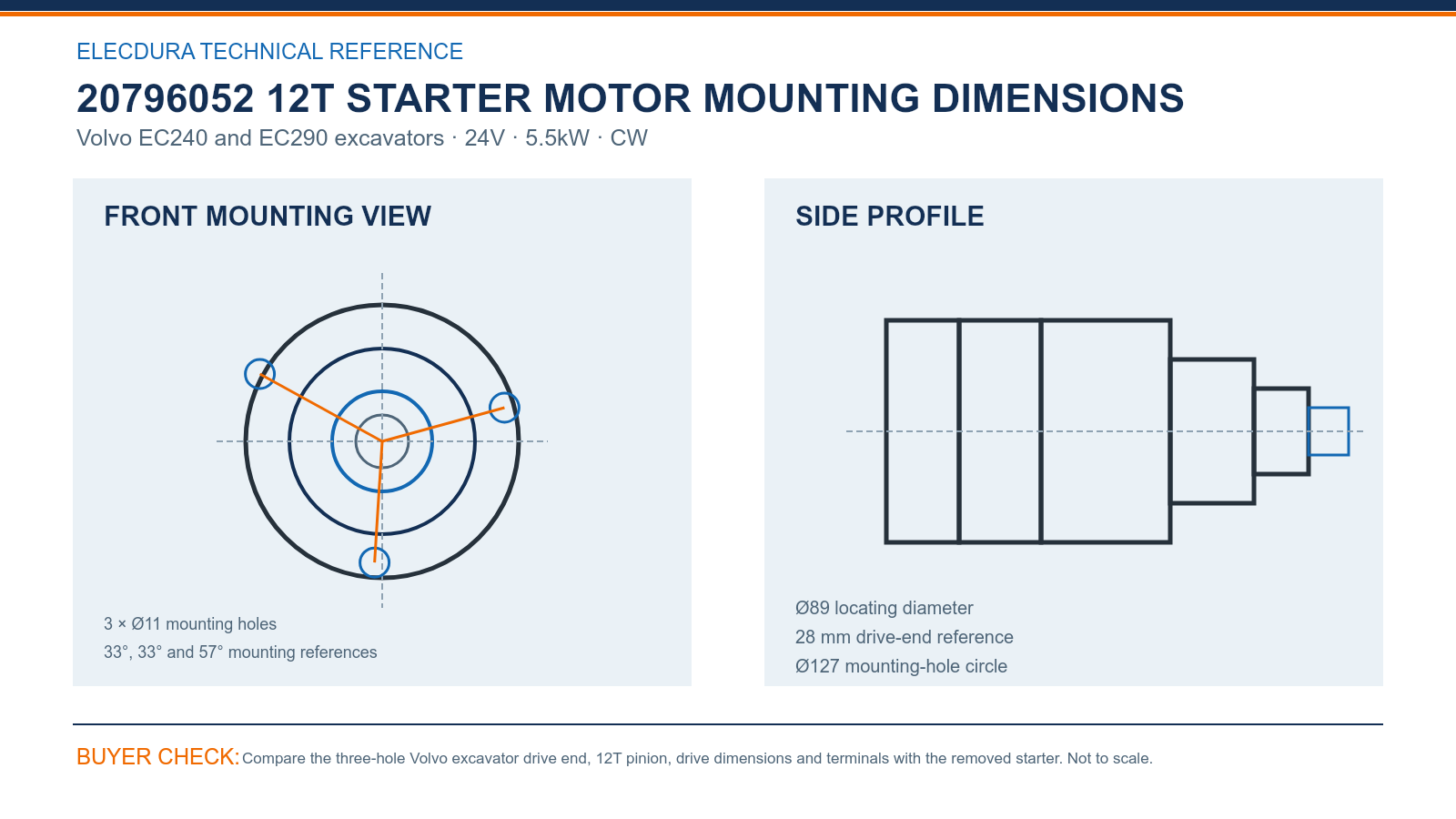

20796052 Volvo EC240 EC290 Starter Drawing for Equipment Fleets — compare the drawing with the removed starter before placing a volume order.

Check three Ø11 holes on the Ø127 circle, the Ø89 locating diameter, 28 mm drive reference and the 33°, 33° and 57° orientation. Front, pinion and terminal views should be taken before the removed unit leaves the workshop.

20796052 M009T62671 Fitment Support for Volvo Buyers

M009T62671 and its related Volvo numbers strengthen the sourcing path for 20796052. The final stock decision should still connect the exact EC240 or EC290, twelve-tooth gear and confirmed drive-end geometry.

Fleet planners can position reserve units by machine count, site remoteness and the cost of waiting for freight. If both EC240 and EC290 machines use the same accepted configuration, retain separate demand histories while maintaining one physical sample standard.

20796052 Excavator Starter Supply Checks for Fleet Orders

Sample heavy cartons from different pallet positions for pinion condition, casting impact, terminal insulation, label consistency and fitted support. Keep a verified drive-end photo with the lot so remote depots can distinguish a transport issue from a configuration mismatch.

Elecdura's production video shows heavy-duty starter assembly and electrical testing relevant to construction fleets. Volvo distributors can use it while defining first-lot checks, reinforced packaging, shipment labels and scheduled replenishment for high-utilization machines.

20796052 Starter FAQs for Volvo Excavator Parts Buyers

Which EC240 or EC290 details belong with 20796052?

Include the Volvo EC240 or EC290 model, machine serial range, engine information and every old-starter number, especially 20796052 or M009T62671. Add front, pinion and terminal photographs, jobsite location and quantity. This ties the request to the exact excavator and gives the distributor enough information to plan the correct unit and delivery urgency.

What should be verified on the Volvo excavator drawing?

Compare three Ø11 holes on the Ø127 circle, the Ø89 locating diameter, 28 mm drive-end reference and the 33°, 33° and 57° hole orientation. Use a square front view plus side and terminal photographs. These measurements help separate the requested EC240/EC290 starter from another heavy Volvo unit before it is shipped to a remote site.

How should M009T62671 support the 20796052 search?

M009T62671 is a useful Mitsubishi route to the Volvo 20796052 replacement family. Search both numbers, then keep the EC240 or EC290 identity, 24V 5.5kW 12T module-3 specification and matching three-hole face on the order. A cross-reference expands sourcing options but does not prove that every Volvo application uses the same configuration.

How can a quarry fleet position reserve starter stock?

Position reserve units according to the number of active excavators, the cost of interrupted loading or earthmoving, site remoteness and normal inbound freight time. A quarry may keep one checked unit on site and additional stock at the central workshop. Link each spare to the accepted 12T drive-end images so emergency dispatch remains reliable.

Which packing checks protect this 5.5kW starter?

Use fitted carton supports that prevent the 5.5kW starter from moving, and protect the pinion, nose casting and cable studs from carton contact. Inspect pallet edge and center cartons for impact or compression. Clear labels, moisture protection and a stored packing photograph help the distributor trace damage and maintain the same standard on repeat shipments.

What should a distributor sample when the first lot arrives?

Sample units from different cartons and confirm twelve teeth, module 3, the Ø127 three-hole face, label consistency, terminal insulation and nose-casting condition. Compare the accepted front and cable-side images, then record the sampled carton positions. This provides a practical receiving baseline before the heavy starters are transferred to branches or worksites.

Which excavator-side tests precede a starter claim?

Load-test the 24V battery bank, inspect master switches and grounds, and measure voltage drop across the positive and negative cables during cranking. Verify the solenoid start signal and check the ring gear for damage. These tests help distinguish a weak electrical supply or wiring fault from a failed 20796052 starter before a claim is opened.

What information completes a 20796052 wholesale request?

Send the EC240 or EC290 serial range, engine details, 20796052 and M009T62671 markings, clear drive-end and terminal photographs, quantity, site and required date. Add packing or labeling needs. Elecdura can then confirm the 24V 5.5kW 12T module-3 version and return wholesale pricing with a delivery plan suited to the jobsite.

Request 20796052 Volvo Excavator Starter Wholesale Pricing

Email the EC240 or EC290 model and serial range, engine details, 20796052 or M009T62671 markings, face and terminal photographs, quantity and jobsite destination to info@elecdurauto.com. Elecdura will prepare a wholesale offer and lead-time plan.
