20938971 Volvo D7E240 FL32 Starter Motor Wholesale

20938971 Volvo D7E240 FL32 Starter Wholesale Supply

Volvo fleet enquiries may use 20938971, 20997663 or a Mitsubishi number depending on the workshop's records. Adding the FL32 or D7E240 identity, chassis information and old-unit photographs gives purchasing one consistent product line for verification and replenishment.

A correct OE match still needs the auxiliary relay, three-hole face and terminal layout to agree with the removed starter. Buyers should not allocate the unit only from a Volvo model name when several FL and FE configurations can appear in the wider market.

20938971 10T Starter Dimensions for B2B Fleet Matching

Keep 24V, 5.0kW, 10T, module 3 and clockwise rotation beside 20938971 on every commercial document. This combined specification supports electrical review and prevents another 24V Volvo starter with a different pinion or drive-end position from entering fleet stock.

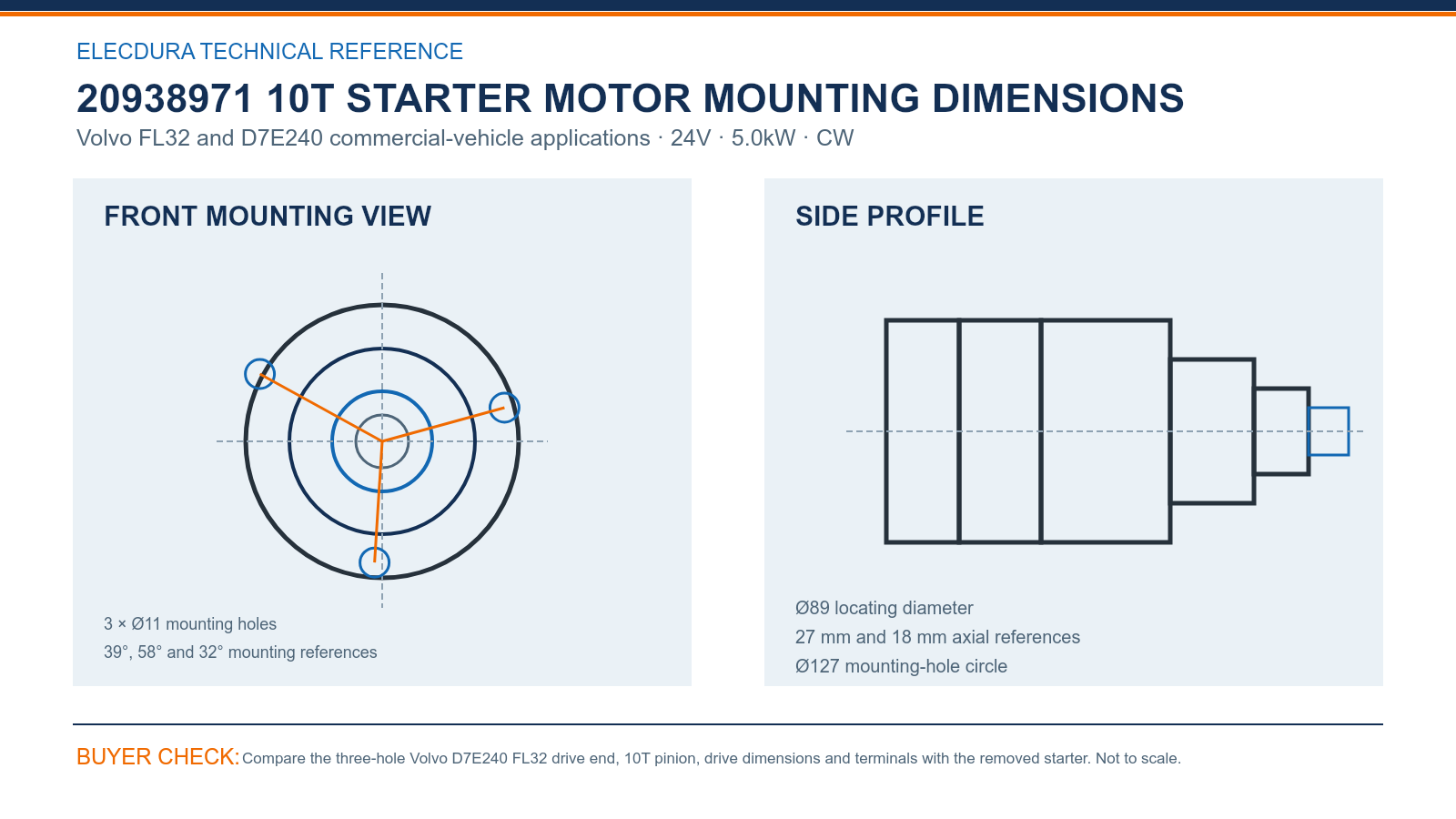

20938971 Volvo D7E240 Starter Drawing for Fleet Wholesalers — compare the drawing with the removed starter before placing a volume order.

Compare three Ø11 mounting holes, the Ø127 circle, Ø89 locating diameter, 39°, 58° and 32° orientation references, and the 27 mm and 18 mm axial positions. Include the relay and cable side in the same verification image set.

20938971 Volvo OE Cross-Reference Checks for Importers

20997663, 85000750, 7420997664, 7485003033, M008T62471, M008T62471AM, 438480 and LRS02528 form the useful search group. Keep the Volvo vehicle and D7E240 record visible so the reference list remains a lookup aid rather than a universal fitment claim.

For fleets serving several depots, store the accepted chassis range, engine plate, relay view and drive-end image with the item master. A later replenishment can then follow the same confirmed 20938971 definition even when the old unit is no longer available.

20938971 Starter Replenishment for Commercial Distributors

Incoming checks should cover the 10T pinion, three Ø11 holes, relay mount, terminal insulation and carton support. Distributors can add batch quantity, delivery rhythm and private-label requirements after the physical version is agreed with the fleet or service network.

The video below shows Elecdura starter-motor assembly and electrical testing for B2B supply. Volvo wholesalers can review manufacturing capability, sampled test records and packing needs while retaining the D7E240 vehicle and relay-equipped configuration as the matching basis.

20938971 Starter FAQs for Volvo Fleet Parts Buyers

Which Volvo chassis and engine details support 20938971?

For Volvo chassis matching, include the engine or machine model, old-starter numbers, mounting photographs, the D7E240 vehicle record, 10T drive, Ø127 three-hole face, relay and terminal side, quantity, packing request and destination. Compare the D7E240 vehicle record, 10T drive, Ø127 three-hole face, relay and terminal side, then carry 24V, 5.0kW, 10T, module 3 and CW rotation into the purchase order and stock description.

Why should the auxiliary relay appear in verification photographs?

For Volvo FL32 and D7E240 commercial-vehicle applications, provide straight drive-end, side, terminal and rating-label photographs, plus compartment views where housing length or cable clearance is important. A dependable 20938971 match combines the D7E240 vehicle record, 10T drive, Ø127 three-hole face, relay and terminal side with 24V, 5.0kW, 10T, module 3 and CW rotation, not one visible feature.

How do 20997663 and M008T62471 support the search?

To review the reference variants, compare the D7E240 vehicle record, 10T drive, Ø127 three-hole face, relay and terminal side with the removed starter, using the drawing and square photographs rather than judging the housing from one angled view. This ties the D7E240 vehicle record, 10T drive, Ø127 three-hole face, relay and terminal side to 24V, 5.0kW, 10T, module 3 and CW rotation when the item moves into branch stock.

What mounting values confirm the D7E240 drive end?

To verify the drive position, compare the D7E240 vehicle record, 10T drive, Ø127 three-hole face, relay and terminal side with the removed starter, using the drawing and square photographs rather than judging the housing from one angled view. Confirm the D7E240 vehicle record, 10T drive, Ø127 three-hole face, relay and terminal side and keep the 24V, 5.0kW, 10T, module 3 and CW rotation values visible on the quotation.

How can depots preserve a confirmed Volvo configuration?

Start with Volvo FL32 and D7E240 commercial-vehicle applications, the complete 20938971 marking and clear photographs of the removed starter from matching angles. Pair the D7E240 vehicle record, 10T drive, Ø127 three-hole face, relay and terminal side with the 24V, 5.0kW, 10T, module 3 and CW rotation set in purchasing and receiving records.

Which relay and terminal checks belong at receiving?

For Volvo FL32 and D7E240 commercial-vehicle applications, sample several cartons from the first lot and compare the rating label, pinion, mounting face, housing and terminals with the accepted product details. This checks the D7E240 vehicle record, 10T drive, Ø127 three-hole face, relay and terminal side while preserving the 24V, 5.0kW, 10T, module 3 and CW rotation definition for the buyer.

What fleet electrical checks should occur before replacement?

Check batteries under load, cable voltage drop, grounds, relay operation and the ring gear before replacing the starter matched to the D7E240 vehicle record, 10T drive, Ø127 three-hole face, relay and terminal side. For 20938971, physical evidence must support the D7E240 vehicle record, 10T drive, Ø127 three-hole face, relay and terminal side and the 24V, 5.0kW, 10T, module 3 and CW rotation combination.

What documents help Elecdura quote 20938971 accurately?

For a documented wholesale request, include the engine or machine model, old-starter numbers, mounting photographs, the D7E240 vehicle record, 10T drive, Ø127 three-hole face, relay and terminal side, quantity, packing request and destination. Keep 20938971, the D7E240 vehicle record, 10T drive, Ø127 three-hole face, relay and terminal side and 24V, 5.0kW, 10T, module 3 and CW rotation together from enquiry through receiving.

Request 20938971 Volvo Starter Motor Wholesale Pricing

Send the Volvo FL32 or related chassis details, D7E240 engine record, 20938971 and other readable numbers, relay, flange and terminal photographs, quantity and destination to info@elecdurauto.com. Elecdura will review the product definition and return wholesale pricing, packing options and lead time.
