21103722 Volvo Penta TAD1345GE Starter Motor Distributor

21103722 Volvo Penta Starter Motor Supply for Generator Distributors

Generator operators value starting reliability differently from ordinary vehicle stock because one unavailable unit can delay commissioning or emergency power. Pairing 21103722 with TAD1345GE, generator duty and site location helps the supplier plan samples, spares and replenishment around the buyer's operating risk.

M9T83879 appears across a broad Volvo Penta engine range. For TAD1345GE demand, retain the twelve-tooth module-3.175 pinion, 7.0kW label, three-hole mounting face and cable arrangement rather than allocating stock from an engine-family description alone.

21103722 Starter Motor Specifications for TAD1345GE Buyers

The purchasing definition combines 24V, 7.0kW, 12T, module 3.175 and clockwise rotation. Recording all five points helps generator-service teams distinguish cranking capacity from the gear and mounting details required at the engine flywheel housing.

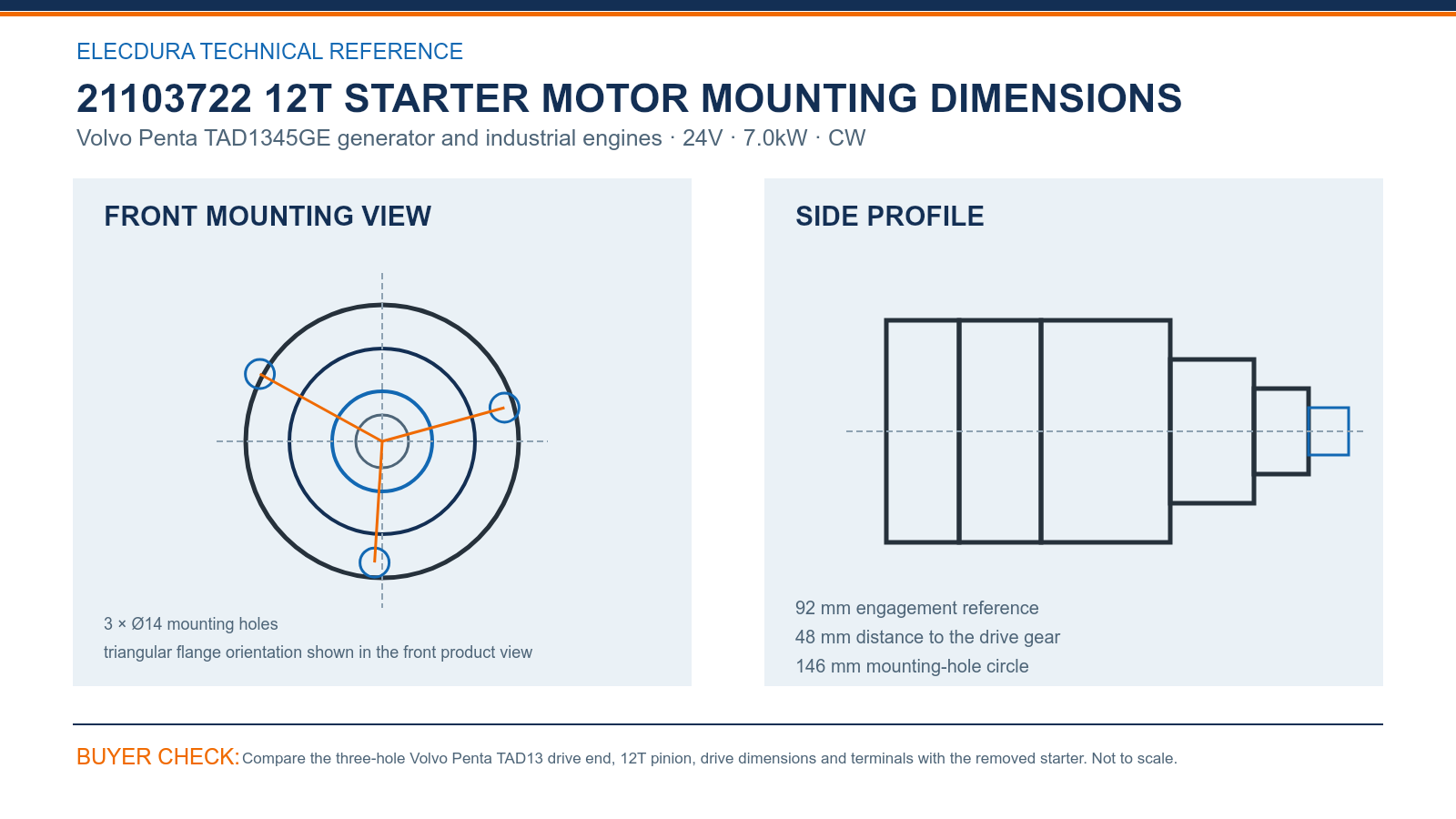

Compare the 92 mm engagement reference, 48 mm distance to the drive gear, three Ø14 holes and the 146 mm mounting circle. A straight front image and a side view taken from the same datum give remote technical teams a practical dimensional comparison.

21103722 Starter Motor Cross References for Power-System Purchasing

21103722, 23288365, 3801273 and 3801289 connect with M009T83879, M009T83879AM and M9T83889. Keep TAD1345GE and generator duty beside those numbers so offers remain relevant to the intended power-system installation.

A service distributor can hold one verified item for supported TAD13 generator customers while assigning quantities by site criticality, running profile and response time. This keeps emergency spares visible and prevents general industrial stock from consuming units reserved for standby-power contracts.

21103722 Starter Motor Service Stock for Generator Programs

Receiving should inspect drive-end protection, terminal caps, reference marking and carton condition before starters enter generator service inventory. A sampled electrical result and accepted dimensional image can accompany the item entry, supporting faster site dispatch without reopening every carton.

Elecdura's video presents starter assembly and electrical testing for wholesale programs. Volvo Penta buyers can use it to discuss sampled documentation, production scheduling and export protection while the 21103722 purchase remains linked to TAD1345GE service requirements.

21103722 Starter Motor FAQs for Volvo Penta Generator Buyers

Which TAD1345GE details make a 21103722 request actionable?

Provide the Volvo Penta TAD1345GE engine designation, generator-set model, serial information and duty type, such as standby or prime power. Include the removed starter’s labels plus drive-end and terminal photographs. State site location, quantity and required date so the 21103722 request can be matched to the correct 24V 7.0kW 12T configuration.

How should buyers use M9T83879 without broadening the application?

M9T83879 helps connect Mitsubishi markings to the 21103722 Volvo Penta reference group. Use it to compare offers and identify older units, then keep the TAD1345GE engine and generator-set details on the enquiry. The 12T module-3.175 drive, 146 mm mounting circle, 24V supply and 7.0kW output still require confirmation.

Why are 12T and module 3.175 important for generator service?

The twelve-tooth pinion and module-3.175 gear form work together with the generator engine’s ring gear. Changing either value can alter engagement depth and tooth contact even when the starter housing appears similar. Service buyers should therefore record 12T and module 3.175 beside 24V, 7.0kW and clockwise rotation on every 21103722 order.

What do the 92 mm and 48 mm drawing references show?

The 92 mm reference locates the drive-end engagement area, while 48 mm describes the distance to the drive gear in the side view. Together with the 146 mm mounting circle and three Ø14 holes, they help a technician compare pinion position and flange depth. Measurements should be taken from the same faces shown in the drawing.

How should standby-power spares be allocated across sites?

Allocate spares according to generator criticality, distance from service support, installed population and commonality of the confirmed starter configuration. A hospital, data facility or remote prime-power site may justify local reserve stock, while nearby low-hour sets can share a central spare. Keep each 21103722 unit linked to its supported TAD1345GE sets and serial records.

What storage practices protect a slow-moving generator starter?

Store the starter indoors in a dry carton, keep terminals capped and prevent the heavy unit from resting on the drive or solenoid. Rotate stock by receipt date and inspect for corrosion, moisture or damaged packaging during scheduled inventory checks. Preserve the 21103722 label and TAD1345GE allocation so slow-moving stock remains identifiable when finally needed.

Which incoming checks help a Volvo Penta service distributor?

Check the product label, twelve-tooth pinion, three-hole flange, terminal position and housing condition on samples from the shipment. Verify free mechanical movement where the inspection procedure allows, and review the supplied electrical-test record. The sampled units should match 24V, 7.0kW, module 3.175, clockwise rotation and the confirmed 21103722 photographs.

What belongs in a 21103722 project or wholesale enquiry?

Include the TAD1345GE engine and generator-set details, operating duty, all readable starter references, drive-end and terminal photographs, required quantity, project schedule, packing needs and destination. For multi-site projects, show quantities by site and expected commissioning dates. Elecdura can then prepare 21103722 pricing and delivery planning around the actual power-system requirement.

Request 21103722 Starter Motor Distributor Pricing

Email the Volvo Penta engine model, generator duty, complete 21103722 or M9T references, straight mounting and terminal photographs, spare quantity, project schedule, packing needs and destination to info@elecdurauto.com. Elecdura will compare the required TAD1345GE starter and return distributor price, lead time and freight options.
