21542662 Volvo FM13 FH13 Starter Motor Distributor

21542662 Volvo FM13 FH13 Starter Distributor Supply

FM13 and FH13 fleets may spread vehicles across several depots and long routes, so one starter failure can trigger towing, late freight and an unplanned workshop slot. Buyers should state chassis range, engine and quantities by depot before choosing an emergency or scheduled replenishment plan.

The reference family is broad, but the required product retains a 12T module-3.175 drive, Ø83 locating diameter and the illustrated three-hole flange. A same-voltage starter should not enter the order unless its pinion, face and terminal positions agree.

21542662 12T Starter Dimensions for Heavy Truck Buyers

Use 24V, 5.5kW, 12T, module 3.175 and CW as one line beside 21542662. Keeping the full identity on purchase orders and stock labels helps branches distinguish this FM13/FH13 product when several Volvo starter families share the warehouse.

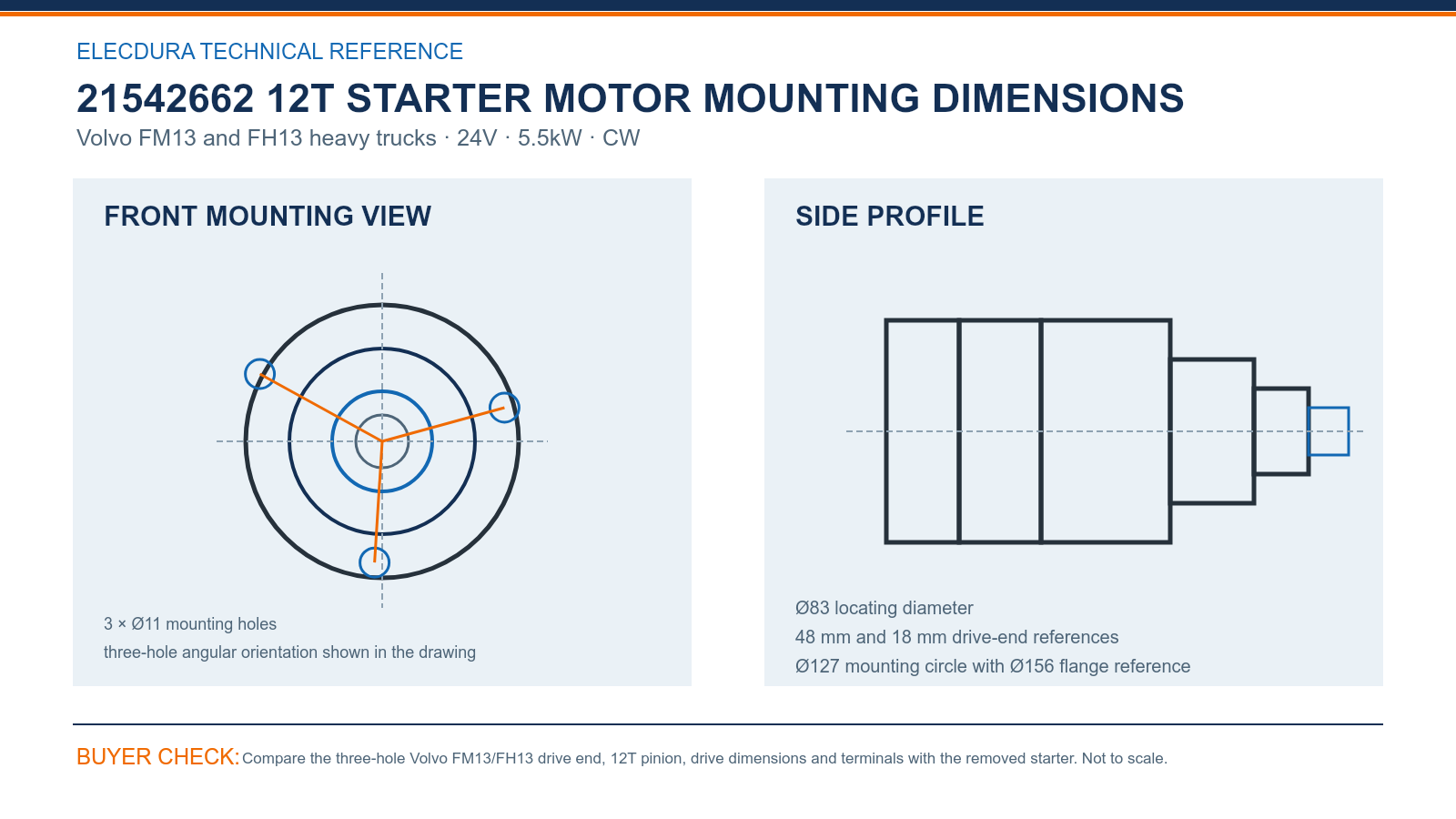

21542662 Volvo FM13 FH13 Starter Drawing for Truck Distributors — compare the drawing with the removed starter before placing a volume order.

Compare three Ø11 holes, the Ø127 circle and Ø156 flange reference, Ø83 locating diameter, and 48 mm and 18 mm drive-end positions. Include a square front view plus a terminal-side image showing cable access for the truck installation.

21542662 M009T66771 OE Matching for Volvo Fleets

21542660, 22602935, 23036253, 23261936 and M009T66771 provide useful cross-reference routes. Vehicle chassis and the confirmed 12T module-3.175 drive should remain attached so the number group does not become a universal Volvo claim.

Fleet buyers can hold central reserve stock and smaller depot quantities based on vehicle population, route exposure and overnight transfer capability. Attach the accepted face and terminal images to each location's record so transfers do not create a version mix.

21542662 Highway Starter Stock Planning for Volume Orders

Inspect labels, twelve teeth, flange damage, stud insulation and pallet support across the first shipment. Record cartons from both the edge and center of the pallet because the weight of heavy starters makes transport protection part of the receiving decision.

The Elecdura video presents heavy-duty starter assembly and electrical testing for B2B programs. Volvo truck distributors can use it while agreeing on sample rates, carton reinforcement, lot marking and replenishment schedules across multiple depots.

21542662 Starter FAQs for Volvo FM13 FH13 Fleet Distributors

Which FM13 or FH13 details should accompany 21542662?

Provide the Volvo FM13 or FH13 model, chassis range, engine designation and every number on the removed starter. Add square face, pinion and terminal photographs plus quantities by depot and the required date. These details let Elecdura review 21542662 against the actual fleet rather than treating a broad Volvo reference family as proof of fitment.

Why must 12T and module 3.175 stay together?

Twelve teeth define the count, while module 3.175 defines the tooth size and pitch. Both must agree with the ring-gear application. A 12T starter with another module may share voltage, power and housing shape but still engage incorrectly. Keep 12T, module 3.175 and clockwise rotation together on the quotation, carton and stock label.

What should be compared on the 21542662 mounting drawing?

Compare the three Ø11 holes, Ø127 mounting circle, Ø156 flange reference, Ø83 locating diameter, and 48 mm and 18 mm drive-end positions. A straight mounting-face photograph should show all three holes; a terminal-side view should confirm cable access. These checks are more reliable than matching a heavy starter by overall length.

How should M009T66771 and later Volvo numbers be used?

Use M009T66771, M009T66772 and the later Volvo OE numbers to locate possible replacements for 21542662. Then confirm the FM13 or FH13 chassis, 24V 5.5kW 12T module-3.175 specification and illustrated flange. Shared references should support sourcing while the vehicle and physical comparison decide which stock line is correct.

How can fleets distribute 21542662 stock across depots?

Set central and depot quantities from each location’s active FM13/FH13 population, route exposure, breakdown history and overnight transfer capability. Keep one accepted face and terminal image set with every depot record. This allows a branch to confirm a transferred starter quickly and reduces the chance of mixing adjacent Volvo products during an urgent request.

Which areas deserve attention during first-lot receipt?

Confirm labels, twelve teeth, the Ø127 face, locating diameter and terminal protection on samples from several cartons. Inspect the heavy-unit supports and compare cartons from the pallet edge and center for movement or impact. Record the accepted product and packing views before the shipment is split among depots, where later comparisons may be harder.

What truck-side checks help prevent a false return?

Load-test the 24V battery pair, inspect battery links, grounds and master-switch connections, and measure voltage drop while cranking. Confirm the start signal at the solenoid and inspect the ring gear if accessible. A weak battery bank or high-resistance cable can slow cranking and overheat components even when the 21542662 starter itself is serviceable.

What makes a 21542662 distributor request ready to quote?

A complete request includes the FM13 or FH13 chassis and engine, every Volvo and Mitsubishi reference, clear face and terminal photographs, quantities by depot, destination and delivery date. Add labeling and packing preferences. Elecdura can then confirm the 12T module-3.175 configuration and provide distributor pricing, sample terms and a realistic replenishment schedule.

Request 21542662 Volvo FM13 FH13 Starter Distributor Pricing

Email the FM13 or FH13 chassis and engine details, complete old-starter references, mounting and terminal photographs, quantities by depot and required date to info@elecdurauto.com. Elecdura will review 21542662 and provide distributor pricing and delivery terms.
