21855436 Volvo Penta HDE11 Starter Motor Wholesale

21855436 Volvo Penta Starter Motor Wholesale for Reach Stackers

Port-equipment downtime can affect an entire handling schedule, so an 21855436 request should include the Sany SRSC45H1 fleet unit or Volvo Penta HDE11 engine identity and the required service date. That context helps prioritize a sample, breakdown shipment or planned reserve.

M9T67979 and 60267718 identify the same procurement family, yet the three-hole drive end and cable arrangement still deserve comparison. Retain 5.5kW, eleven teeth, module 3.175 and the 127 mm mounting circle before allocating units to a reach stacker.

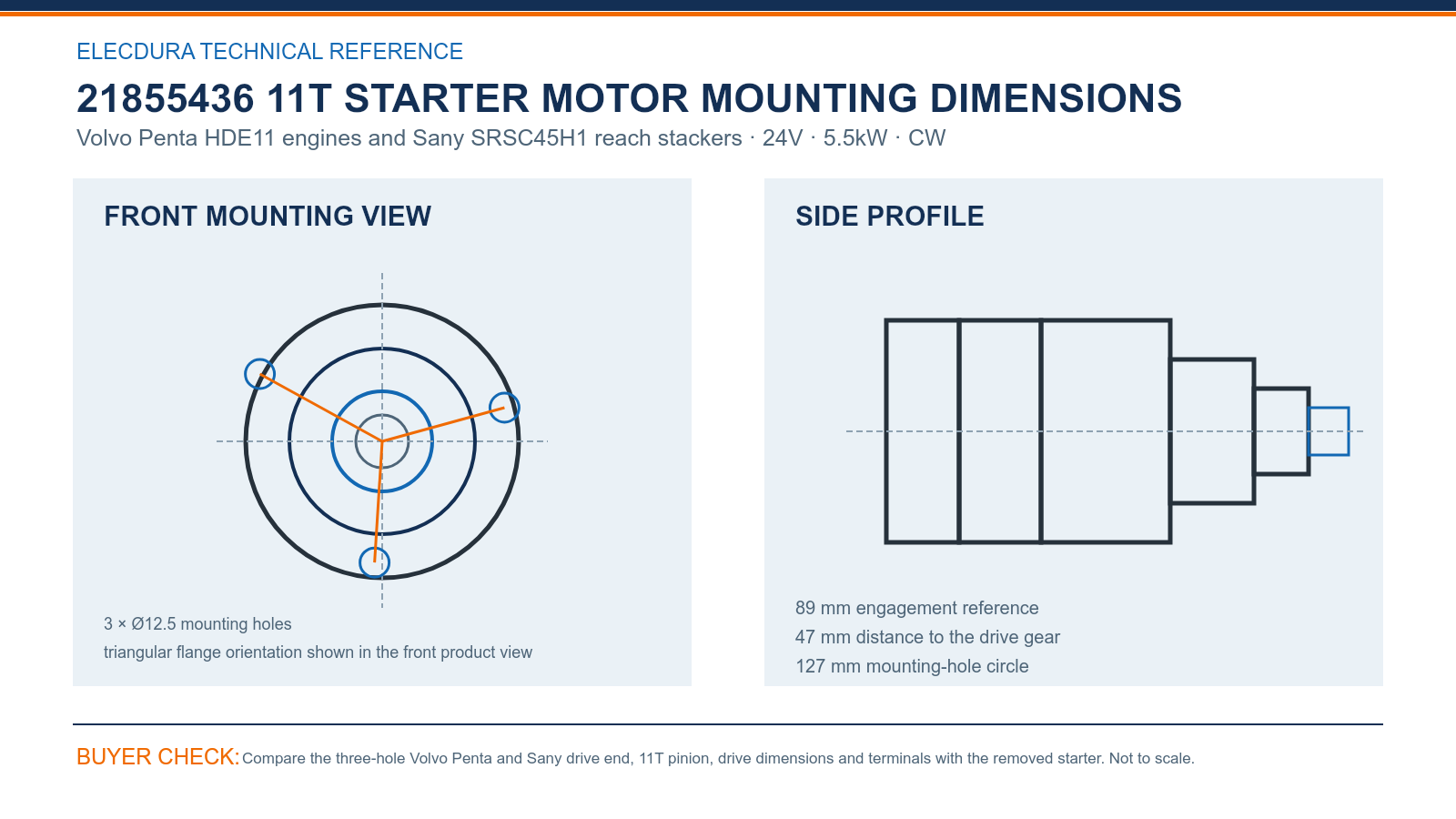

21855436 Starter Motor Drawing for HDE11 Equipment Buyers

The product specification combines 24V, 5.5kW, 11T, module 3.175 and clockwise rotation. These values describe both cranking output and gear interface, giving maintenance and purchasing teams one consistent line for fleet spares and service orders.

Compare three Ø12.5 holes on the 127 mm circle, the 89 mm engagement and 47 mm distance to the drive gear. Square front and direct side photographs give a remote service team useful reference points before the starter travels to a port terminal.

21855436 Starter Motor OE Matching for Sany Service Networks

21855436 and 23288375 connect with M009T67979, M009T67989 and Sany 60267718. List the reach-stacker model or HDE11 engine beside those numbers so each quotation remains tied to the intended equipment rather than a broad Volvo search result.

A port fleet may divide stock between workshop reserve and operational-area response kits. Assign quantities by machine count, shift intensity and acceptable downtime, while keeping the same verified 21855436 dimensional and electrical definition across each storage location.

21855436 Starter Motor Support for Port-Equipment Fleets

Rigid packing should protect the three ears, drive nose, solenoid and exposed studs from container vibration. Receiving can inspect pallet condition, reference markings and sampled pinions before units move to a port warehouse, recording any transit damage against the affected cartons.

The Elecdura video presents starter assembly and electrical testing for wholesale programs. Sany and Volvo Penta buyers can use it to review production capability, sampled results and packing while the 21855436 order remains linked to their equipment and response plan.

21855436 Starter Motor FAQs for Port-Equipment Buyers

Which reach-stacker details strengthen an 21855436 enquiry?

Identify the Sany SRSC45H1 model, fleet-unit or serial number, Volvo Penta HDE11 engine details and every number on the removed starter. Add drive-end, terminal and installed-clearance photographs. State whether the request is for a breakdown or reserve stock, with quantity and destination, so 21855436 sourcing can follow the actual port-equipment need.

How does Sany 60267718 relate to the Volvo Penta reference group?

60267718 is a Sany equipment reference that supports the same sourcing group as Volvo Penta 21855436. It is useful when a removed unit or service record carries the machine-maker number. Buyers should still confirm the HDE11 application, 24V 5.5kW rating, 11T module-3.175 drive and 127 mm three-hole face.

Why should HDE11 buyers retain the 5.5kW rating?

Keep 5.5kW visible in the quotation, purchase order and carton description because reach-stacker buyers must distinguish electrical output as well as the drive end. Pair that rating with the 11T module-3.175 pinion, 127 mm three-hole face, cable position, 24V supply and clockwise rotation so branch stock retains the complete 21855436 definition.

What should a workshop compare on the three Ø12.5 holes?

Check the diameter and location of all three Ø12.5 mounting holes, the 127 mm mounting-hole circle and the triangular flange orientation. Use a straight front photograph to compare the pattern, then confirm the 89 mm engagement and 47 mm drive distance from the side view. Include the terminal position because reach-stacker clearance can be tight.

How can a port fleet size its starter reserve?

Size reserve stock from the number of reach stackers, operating hours, site isolation, previous starter demand and acceptable equipment downtime. A busy container terminal may hold a local emergency unit plus planned replenishment stock. Each reserve starter should remain linked to confirmed SRSC45H1 or HDE11 equipment records rather than a generic port-machine label.

Which packaging points protect a starter during container transport?

Use a rigid carton with fitted supports that carry the starter’s weight without loading the pinion, solenoid or terminals. Cap electrical studs, protect the drive end, add moisture protection and prevent movement inside the carton. Palletize the cartons securely and keep the 21855436 identification visible for receiving after a long sea shipment.

What details help prioritize a reach-stacker breakdown order?

Send the affected reach-stacker fleet number, Sany model, Volvo Penta engine identification, old-starter references, fault symptoms and clear product photographs. Add the destination, local time window and required arrival date. This lets Elecdura confirm 21855436 while separating an urgent machine-down requirement from routine reserve-stock quantities and packing plans.

What supports a practical 21855436 wholesale supply plan?

A practical plan combines confirmed 21855436 fitment, monthly or annual demand, emergency reserve level, normal replenishment quantity, destination ports and packing requirements. Identify whether stock will serve one terminal or several branches. Elecdura can then discuss samples, production timing and repeat-order quantities around the buyer’s real reach-stacker service pattern.

Request 21855436 Starter Motor Wholesale Pricing

Send the Sany SRSC45H1 unit or Volvo Penta HDE11 details, 21855436, 60267718 or M9T markings, straight drive-end and terminal photographs, quantity, urgency, packing needs and destination to info@elecdurauto.com. Elecdura will compare the required starter and return wholesale price, lead time and freight choices.
