23300-5X00A Nissan YD25 Starter Motor Distributor

23300-5X00A Nissan YD25 Starter Distributor Supply for LCV Buyers

YD25DDTi demand can come from several Nissan light-commercial platforms, so the enquiry should identify model, year, drivetrain and VIN rather than stopping at the engine code. This gives the distributor enough context to separate an 11T Navara or Cabstar requirement from another YD25 starter family.

The 11T module-3.175 pinion and the flange with two M10 × 1.5 threaded points plus one Ø9.5 hole define this version. A neighboring 12T YD25 starter can share voltage and power, making tooth count and mounting style essential warehouse identifiers.

23300-5X00A 11T Starter Dimensions for Wholesale Matching

Write 23300-5X00A as 12V, 2.2kW, 11T, module 3.175 and CW on quotations, purchase orders and stock bins. Keeping these values together makes the distinction visible before a carton reaches the workshop.

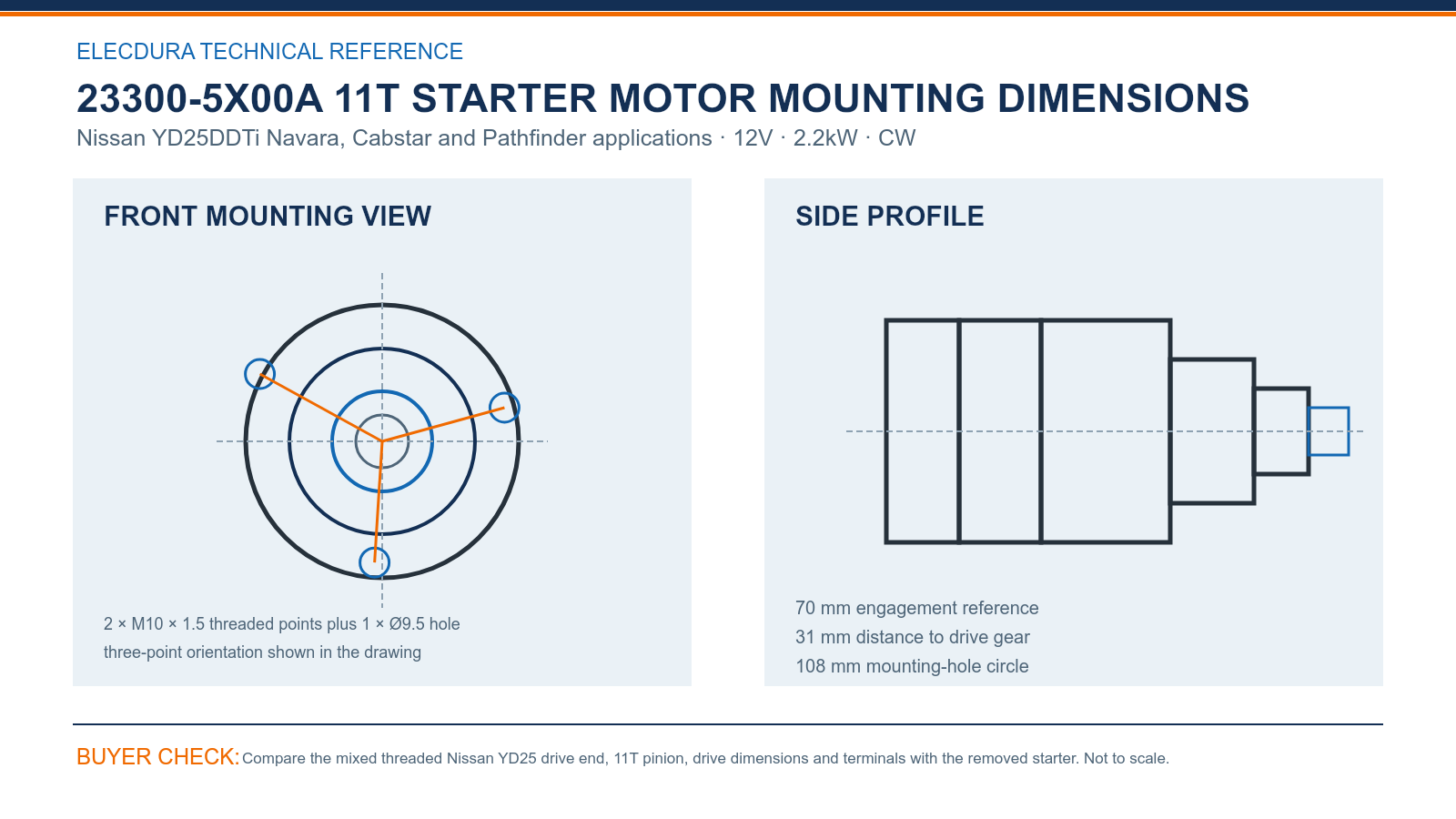

23300-5X00A Nissan YD25 Starter Drawing for Distributors — compare the drawing with the removed starter before placing a volume order.

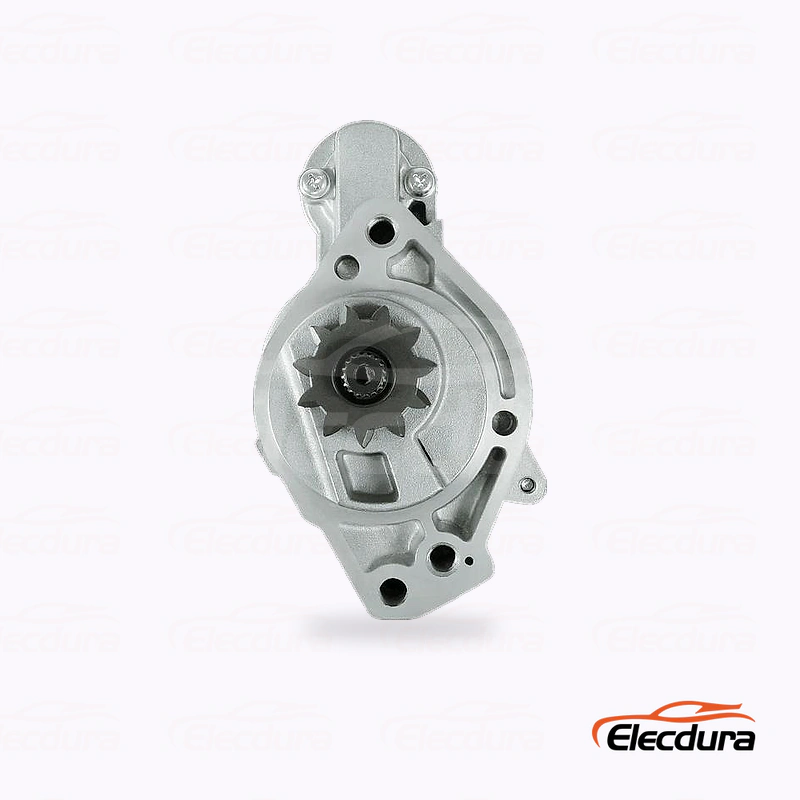

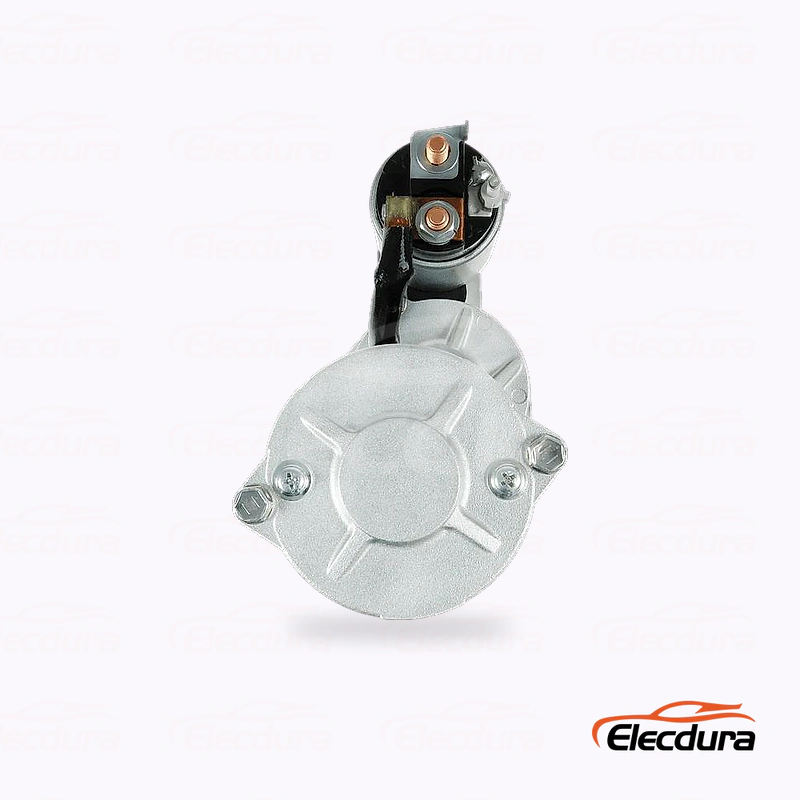

Compare the 70 mm engagement reference, 31 mm drive distance and 108 mm mounting circle. The front photograph should show the two threaded points and Ø9.5 hole clearly, while the terminal view should be square enough to compare connector and cable-stud positions.

23300-5X00A M002TS0671 OE Fitment Support for Distributors

M002TS0671, 23300-5X00B, 23300-5X00C, LRS2698 and 30404N support the same 11T search path. Use the complete reference group to find stock, then use VIN, pinion and flange evidence to determine whether it belongs to the requested Nissan vehicle.

A distributor serving Navara, Cabstar and Pathfinder workshops can keep one reference family while retaining separate vehicle-fitment notes. When a confirmed sample repeats, link the sample images to that vehicle group rather than extending the fitment to every YD25 installation.

23300-5X00A Nissan Starter Supply Checks for Volume Orders

First-lot sampling should cover eleven teeth, threaded-hole condition, Ø9.5 mounting hole, connector shape and protected terminals. Record cartons from different pallet levels so receiving can identify transport damage separately from a product mismatch.

Elecdura's starter assembly and electrical-testing video supports B2B discussions about lot consistency, test documentation and export packing. Nissan distributors can combine it with their own vehicle-fitment review and branch replenishment schedule.

23300-5X00A Starter FAQs for Nissan YD25 Parts Distributors

Which Nissan vehicle details belong with a 23300-5X00A enquiry?

State whether the request is for a Navara, Cabstar or Pathfinder, then add the model year, drivetrain, VIN and YD25DDTi engine details. List every old-starter number and provide front, pinion and connector photographs. Those details are necessary because several 12V 2.2kW Nissan starters serve YD25 applications with different tooth counts and mounting faces.

How is this 11T family separated from the 12T YD25 starter?

The 23300-5X00A family uses an 11T module-3.175 pinion and a mounting face with two threaded points plus one Ø9.5 hole. The nearby 23300-VK500 family uses 12 teeth and a different two-thread face. Keep these identifiers on stock labels so equal voltage and power do not cause an incorrect substitution.

What should buyers compare on the 23300-5X00A drawing?

Compare the two M10 × 1.5 threaded points, the Ø9.5 third hole and their 108 mm circle. Check the 70 mm engagement and 31 mm drive-distance references as well. A clear front photograph should show thread condition and ear orientation; the connector-side image should reveal whether cable and plug positions agree.

How do M002TS0671 and LRS2698 help distributors?

M002TS0671 and LRS2698 help locate the 23300-5X00A family across Mitsubishi and aftermarket cross-reference listings. Use the wider group for sourcing, but retain the Nissan vehicle, 11T pinion and three-point mounting evidence. If only one reference matches while the physical features differ, the candidate should not enter confirmed stock.

Can Navara, Cabstar and Pathfinder demand share one stock bin?

The same confirmed starter configuration may support demand from several YD25DDTi platforms, but the stock record should retain vehicle-specific evidence. Record which Navara, Cabstar or Pathfinder sample was checked and its VIN range. New applications can share the bin only after the 11T drive, threaded face and terminal layout match.

Which first-lot checks matter for 23300-5X00A?

Count eleven teeth and inspect both threaded points, the Ø9.5 mounting hole, connector housing and terminal insulators. Sample units from different cartons, paying attention to pinion damage and threads affected by transport. Photograph the accepted face and label so later Nissan deliveries can be compared before they are distributed to customer branches.

What vehicle-side tests should precede a YD25 starter return?

Test battery capacity, cranking voltage and voltage drop on both supply and ground paths under load. Check the starter relay, trigger signal, cable ends and engine-ground connection, then inspect the ring gear and confirm free engine rotation. These results help a YD25 workshop separate a vehicle fault from a defective 23300-5X00A unit.

What completes a 23300-5X00A distributor quotation request?

Provide the Nissan model, year, VIN, drivetrain and YD25DDTi information, together with 23300-5X00A family numbers and clear front and terminal photographs. Include quantity, customer type, packaging or label needs, destination and required delivery date. Elecdura can use this evidence to prepare a distributor quotation for the correct 11T version.

Request 23300-5X00A Nissan YD25 Starter Distributor Pricing

Email the Nissan model, year, VIN or chassis, YD25 engine details, old-starter references, mounting and terminal photographs, quantity and destination to info@elecdurauto.com. Elecdura will review the 23300-5X00A version and prepare distributor pricing.
