30051600003 Daewoo 225-7 Starter Motor Distributor

30051600003 Daewoo 225-7 Starter Distributor Supply

A disabled 225-7 can hold up an operator, transport plan and jobsite schedule. The buying team needs the machine identity, old-unit references, site location and required date together so the supplier can distinguish an emergency replacement from a replenishment order for workshop stock.

The reference family also appears around other Daewoo and Doosan equipment. For this product, 11T module 3 must agree with the three Ø13 holes, Ø140 circle and Ø105 locating diameter before 30051600003 is allocated to the 225-7 application.

30051600003 Excavator Starter Drawing for B2B Matching

Describe the unit as 24V, 5.0kW, 11T, module 3 and CW. That complete line gives purchasing, field technicians and receiving staff a shared product identity and prevents a nearby 29MT-style starter from being accepted only because several cross references overlap.

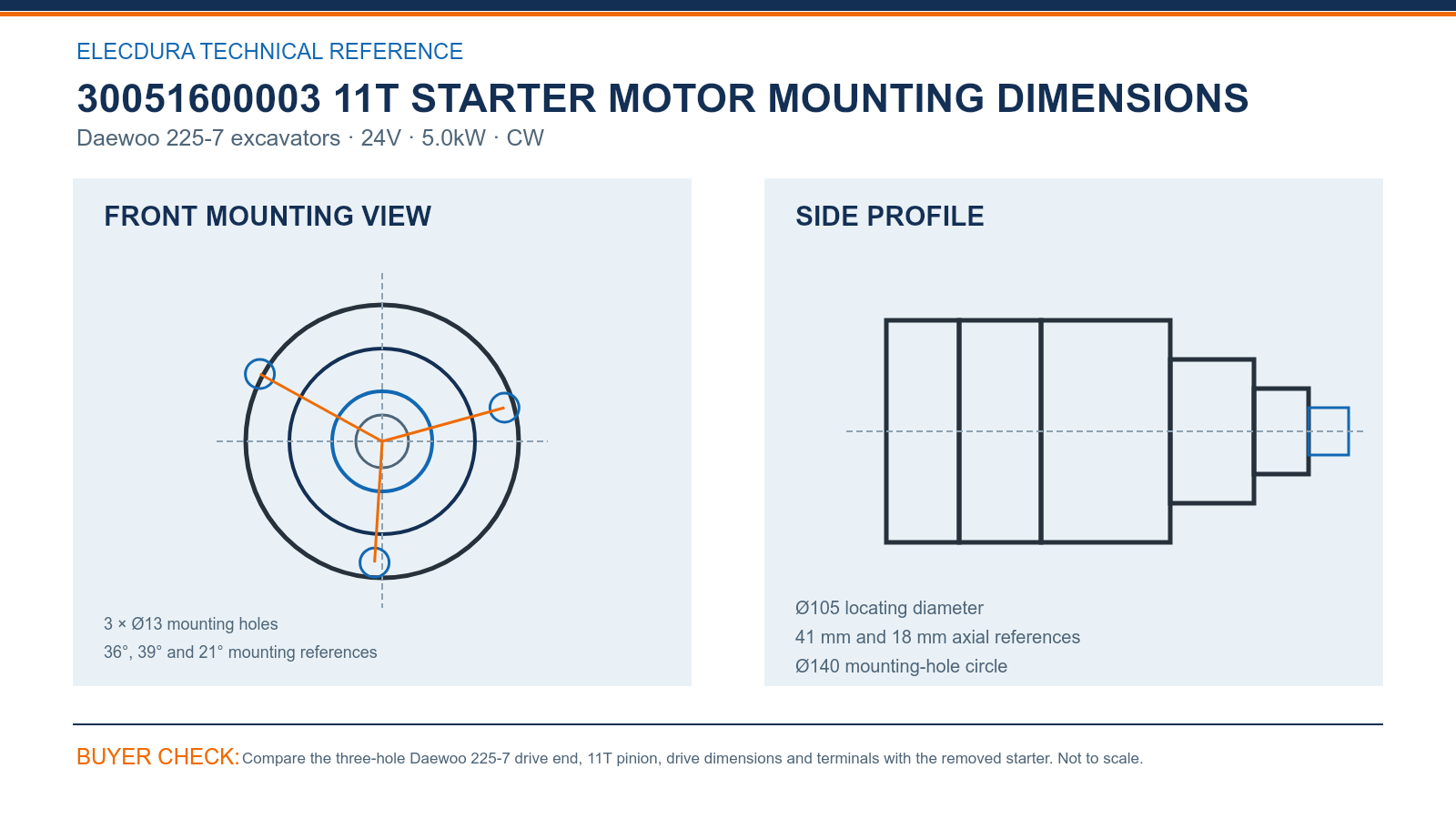

30051600003 Daewoo 225-7 Starter Drawing for Excavator Distributors — compare the drawing with the removed starter before placing a volume order.

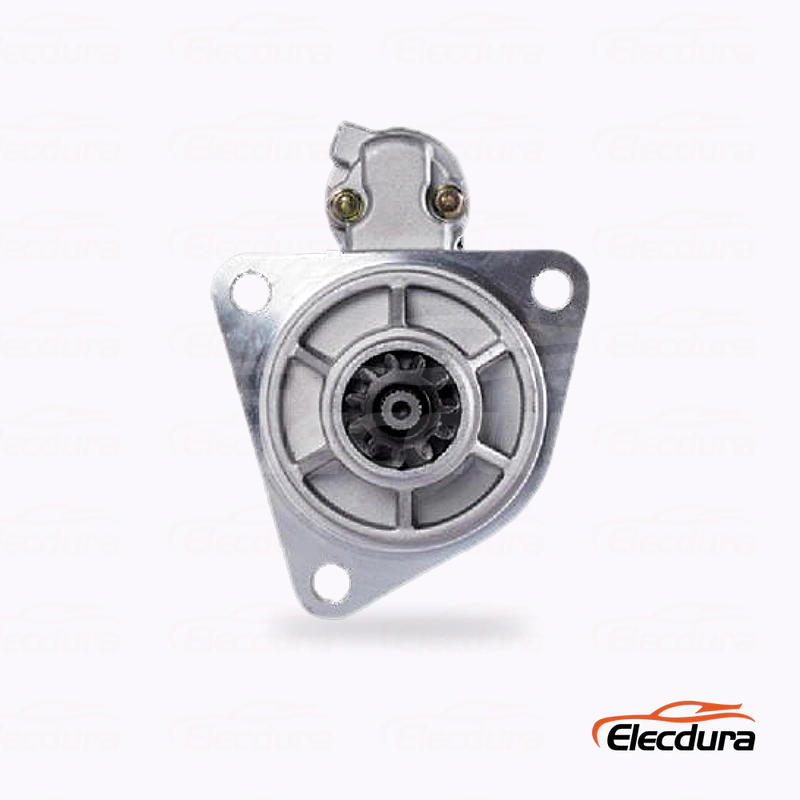

Use a square drive-end photograph to verify three Ø13 mounting holes on the Ø140 circle, the Ø105 locating surface, the 36°, 39° and 21° positions, plus the 41 mm and 18 mm axial references. These values matter when the old unit stays at a remote site.

30051600003 Doosan Reference Matching for Equipment Buyers

Doosan numbers 30051600015, 30051600041, 65262017076 and 65262017077, together with UD12909S and SRL762, broaden the supply search. The 225-7 machine record and measured flange should remain attached whenever one of these numbers leads the enquiry.

Equipment dealers can hold a dedicated 225-7 stock line and keep other Doosan models under separate fitment notes. Add another machine only after its removed starter matches the stated 5.0kW rating, eleven-tooth drive, three-hole face and terminal arrangement.

30051600003 Field Spare Planning and Incoming Inspection

For site spares, inspect the pinion, Ø105 register, three holes, solenoid terminals and labels before dispatch. Heavy-unit packing should support the body without loading the drive end, and the accepted images should travel with the shipment when the receiving workshop is off site.

Elecdura's production video introduces assembly and electrical testing for heavy-duty starter supply. Excavator-parts distributors can combine that manufacturing view with first-lot sampling, rigid export packing, lot identification and delivery planning for working sites or regional service centres.

30051600003 Starter FAQs for Daewoo Excavator Distributors

What makes a 30051600003 enquiry specific to Daewoo 225-7?

Identify the Daewoo 225-7 machine, engine, serial information where available, old-starter markings and jobsite. Clear drive-end and terminal photographs should accompany the request. These details keep 30051600003 tied to the 5.0kW 11T product rather than a broad Doosan reference family. Keep the matched images and the Ø140 three-hole face, Ø105 register and 11T drive beside the 30051600003 stock record.

Which dimensions define the 225-7 three-hole drive end?

The drawing shows three Ø13 holes on an Ø140 circle, an Ø105 locating diameter, 41 mm and 18 mm axial references, plus 36°, 39° and 21° orientations. Measure the removed unit and photograph it squarely so camera perspective does not disguise the flange. Use the Ø140 three-hole face, Ø105 register and 11T drive on the purchase order for 30051600003.

How do 30051600041 and 65262017076 help parts sourcing?

30051600041 and 65262017076 broaden searches across Doosan and Daewoo references when 30051600003 is unavailable. Purchasing should carry the complete number found on the machine, then retain the 225-7 identity and measured three-hole face so the alternative route returns to one configuration. Preserve the confirmed Daewoo 225-7 excavators mounting comparison in the customer's 30051600003 reorder notes.

Can the reference group automatically cover other Doosan excavators?

No. The public reference group appears around several excavators, but another model may use a different output, flange or terminal arrangement. Add a new application only after its old starter matches 24V 5.0kW 11T, module 3, the Ø140 face and the illustrated positions. Carry the Ø140 three-hole face, Ø105 register and 11T drive through packing and branch transfers for 30051600003.

How can a contractor plan starter spares for remote machines?

Plan reserve quantity from the number of active 225-7 machines, site distance, failure impact and normal replenishment time. Mark each spare with the accepted machine and flange images. Remote-project cartons should protect the heavy body, pinion and electrical studs throughout handling. Retain the Ø140 three-hole face, Ø105 register and 11T drive with the 30051600003 delivery lot for after-sales review.

What packing and receiving checks protect this heavy starter?

Check carton support before removing the unit, then examine the eleven-tooth pinion, Ø105 locating surface, three holes, labels and terminals for transport damage. Record sampled electrical results and accepted photographs. This gives the field workshop evidence before the starter travels to the machine. Include the Ø140 three-hole face, Ø105 register and 11T drive in forecasts and repeat purchases for 30051600003.

Which excavator-side faults may imitate starter failure?

Measure battery condition, positive and ground voltage drop, relay output and cable connections, and confirm that the engine can turn freely. A weak supply circuit or mechanical resistance can imitate a starter fault. Save the results with the 225-7 service record for warranty review. Retain the confirmed 225-7 machine record and flange images for later 30051600003 replenishment.

Which information helps Elecdura quote 30051600003 accurately?

Send the 225-7 machine and engine details, all 300516 or 652620 references, straight flange, pinion and terminal photographs, quantity, site destination, packaging request and deadline. Elecdura can then assess the exact 30051600003 construction and provide distributor terms and shipment options. Attach the Daewoo 225-7 excavators comparison to the 30051600003 quotation so receiving can review the same version.

Request 30051600003 Daewoo Starter Motor Distributor Terms

Send the Daewoo 225-7 machine and engine details, all readable 300516 or 652620 numbers, clear pinion, flange and terminal photographs, quantity, site destination and required date to info@elecdurauto.com. Elecdura will review the exact version and provide distributor pricing.
