32B66-00202 Mitsubishi S6S Forklift Starter Motor Wholesale

32B66-00202 Mitsubishi S6S Forklift Starter Wholesale

Forklift parts requests often arrive under an engine code without the truck series, capacity or old-starter view. Pairing 32B66-00202 with the S6S or S6E engine record and the four-hole face gives counter staff a defensible basis for quotation.

A related Mitsubishi and Caterpillar reference group appears elsewhere with a two-hole face. This product must remain the four-hole Ø105 version, so buyers should not merge records simply because both starters are 24V, 5.0kW and 10T.

32B66-00202 Four-Hole Starter Dimensions for B2B Matching

Use 24V, 5.0kW, 10T, module 3 and clockwise rotation as the complete operating definition. The engine identity narrows the application, while the four Ø11 holes and Ø82.5 register verify the physical interface required by the forklift.

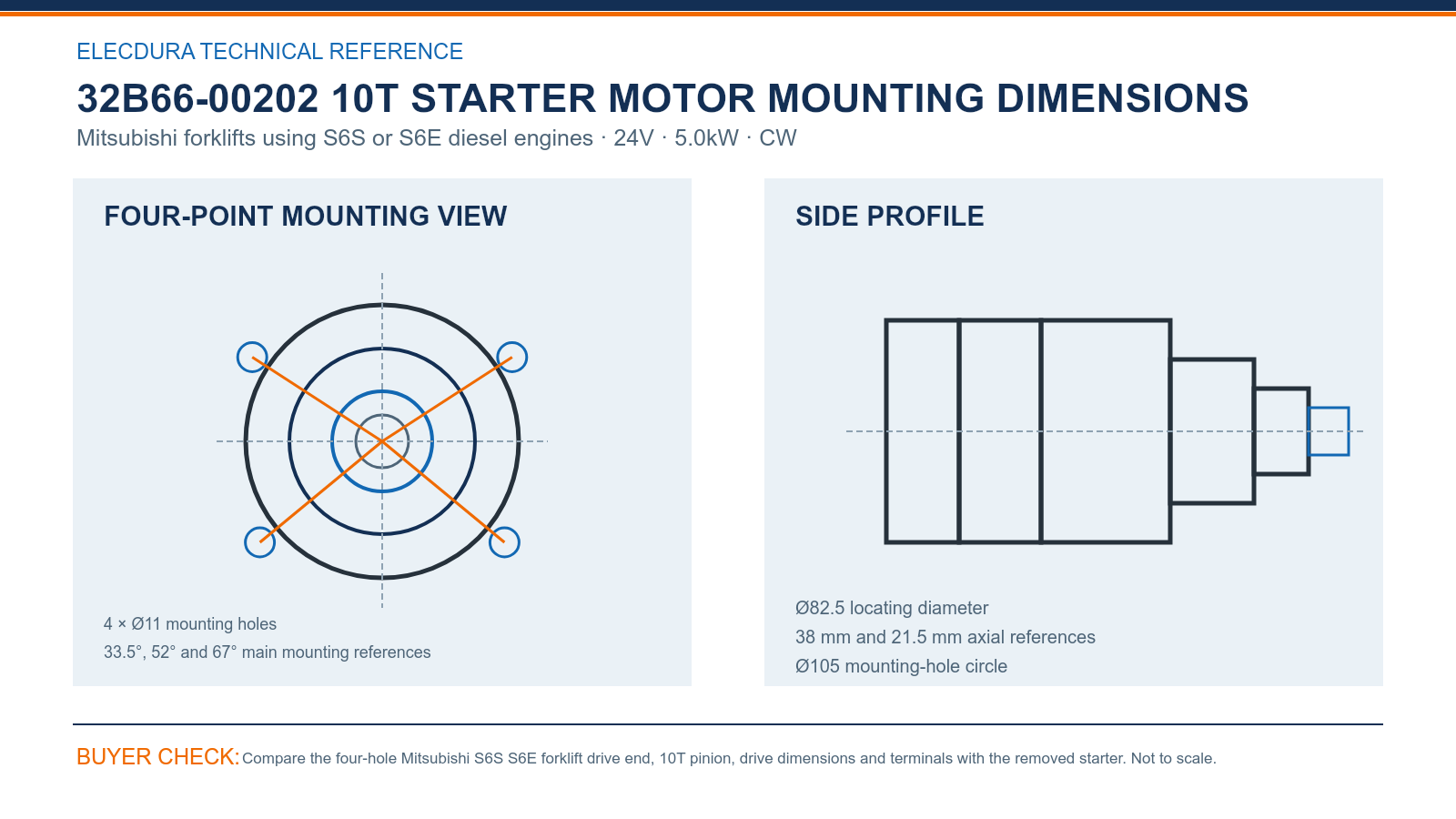

32B66-00202 Mitsubishi S6S Forklift Starter Drawing for Wholesalers — compare the drawing with the removed starter before placing a volume order.

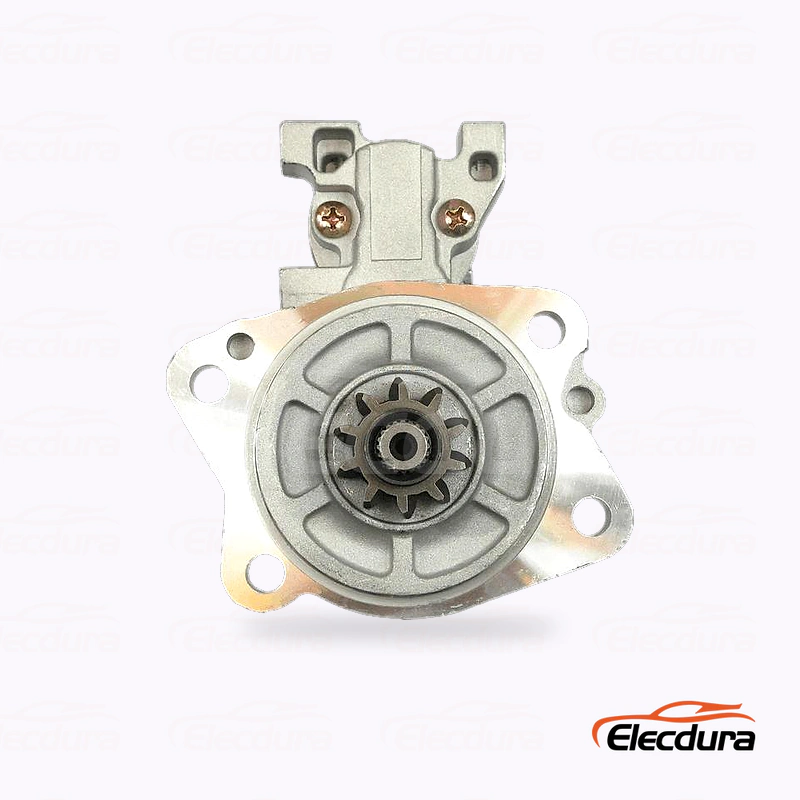

Compare four Ø11 mounting holes, the Ø105 circle, Ø82.5 locating diameter, 33.5°, 52° and 67° main references, plus the 38 mm and 21.5 mm axial positions. Photograph the face squarely so all four ears remain visible for dimensional confirmation.

32B66-00202 S6S S6E OE Checks for Forklift Distributors

32B66-00200, 32B66-00204, 32B6600402, 32B6602302, M008T60371, M008T60372, M008T60375 and 18246N support cross-reference searches. The four-hole flange and S6S or S6E application must still accompany 32B66-00202 during purchasing and replenishment.

Material-handling distributors should save the forklift model, serial range and engine plate with the accepted starter images. That record reduces pressure on a future salesperson to infer fitment from a familiar 32B66 or M8T number during an urgent breakdown.

32B66-00202 Starter Inventory Planning for Service Networks

Receiving can sample four mounting holes, the 10T pinion, locating surface, terminals and trigger wiring before units enter branch stock. Cartons should protect every ear because a small impact can prevent alignment even when the electrical test remains acceptable.

The Elecdura video shows starter assembly and electrical testing for B2B supply. Forklift distributors can review production capability and sampled inspection needs while the 32B66-00202 product remains defined by its S6S or S6E application and four-hole face.

32B66-00202 Starter FAQs for Mitsubishi Forklift Buyers

Which forklift and engine records confirm 32B66-00202?

To identify the Mitsubishi forklift, start with Mitsubishi forklifts using S6S or S6E diesel engines, the complete 32B66-00202 marking and clear photographs of the removed starter from matching angles. For 32B66-00202, physical evidence must support the four Ø11 holes, Ø105 circle, Ø82.5 register and 10T module-3 drive and the 24V, 5.0kW, 10T, module 3 and CW rotation combination.

Why must buyers distinguish four-hole and two-hole versions?

To separate two flange versions, start with Mitsubishi forklifts using S6S or S6E diesel engines, the complete 32B66-00202 marking and clear photographs of the removed starter from matching angles. Keep 32B66-00202, the four Ø11 holes, Ø105 circle, Ø82.5 register and 10T module-3 drive and 24V, 5.0kW, 10T, module 3 and CW rotation together from enquiry through receiving.

Can S6S and S6E enquiries use one stock description?

Yes, S6S and S6E can support the Mitsubishi forklifts using S6S or S6E diesel engines parts search, but the numbers do not prove interchangeability by themselves. Compare the four Ø11 holes, Ø105 circle, Ø82.5 register and 10T module-3 drive, then carry 24V, 5.0kW, 10T, module 3 and CW rotation into the purchase order and stock description.

What makes a square flange photograph useful for fitment confirmation?

For Mitsubishi forklifts using S6S or S6E diesel engines, provide straight drive-end, side, terminal and rating-label photographs, plus compartment views where housing length or cable clearance is important. A dependable 32B66-00202 match combines the four Ø11 holes, Ø105 circle, Ø82.5 register and 10T module-3 drive with 24V, 5.0kW, 10T, module 3 and CW rotation, not one visible feature.

How should M008T60371 support this product search?

Compare the four Ø11 holes, Ø105 circle, Ø82.5 register and 10T module-3 drive with the removed starter, using the drawing and square photographs rather than judging the housing from one angled view. This ties the four Ø11 holes, Ø105 circle, Ø82.5 register and 10T module-3 drive to 24V, 5.0kW, 10T, module 3 and CW rotation when the item moves into branch stock.

Which mounting-ear defects should receiving reject?

For Mitsubishi forklifts using S6S or S6E diesel engines, sample several cartons from the first lot and compare the rating label, pinion, mounting face, housing and terminals with the accepted product details. Confirm the four Ø11 holes, Ø105 circle, Ø82.5 register and 10T module-3 drive and keep the 24V, 5.0kW, 10T, module 3 and CW rotation values visible on the quotation.

How should service branches label four-hole forklift stock?

Label each bin and carton for Mitsubishi forklifts using S6S or S6E diesel engines with 32B66-00202, the electrical rating, pinion and housing version instead of a broad engine-family name. Pair the four Ø11 holes, Ø105 circle, Ø82.5 register and 10T module-3 drive with the 24V, 5.0kW, 10T, module 3 and CW rotation set in purchasing and receiving records.

What evidence speeds a 32B66-00202 wholesale quote?

Include the engine or machine model, old-starter numbers, mounting photographs, the four Ø11 holes, Ø105 circle, Ø82.5 register and 10T module-3 drive, quantity, packing request and destination. This checks the four Ø11 holes, Ø105 circle, Ø82.5 register and 10T module-3 drive while preserving the 24V, 5.0kW, 10T, module 3 and CW rotation definition for the buyer.

Request 32B66-00202 Forklift Starter Motor Wholesale Pricing

Send the Mitsubishi forklift model and serial, S6S or S6E engine plate, complete old-starter references, square four-hole flange and terminal images, quantity and destination to info@elecdurauto.com. Elecdura will review the 32B66-00202 version and return wholesale pricing, packing options and lead time.
