32G66-10100 Mitsubishi Kobelco Starter Motor Wholesale

32G66-10100 Kobelco Starter Wholesale for Excavator Parts Buyers

A Kobelco ED150 starter enquiry usually begins with the excavator model or the 32G66-10100 marking. Adding the Mitsubishi D07FR engine identity and the old unit’s two-hole face helps a distributor quote the correct version without broadening the request to unrelated 24V starters.

The reference group includes Mitsubishi, Nikko and aftermarket numbers, but the usable product definition remains 24V, 5.5kW, 10T and module 3.175. The two mounting holes, locating surface and terminal side separate this configuration from nearby Mitsubishi-series housings.

32G66-10100 10T Starter Specifications and Mounting Drawing

For stock purchasing, keep the 5.5kW output beside the 10T pinion and module-3.175 gear data. This combination gives sales and receiving teams a clearer description than voltage alone, especially when an urgent excavator repair is supplied from shared rotating-electrical inventory.

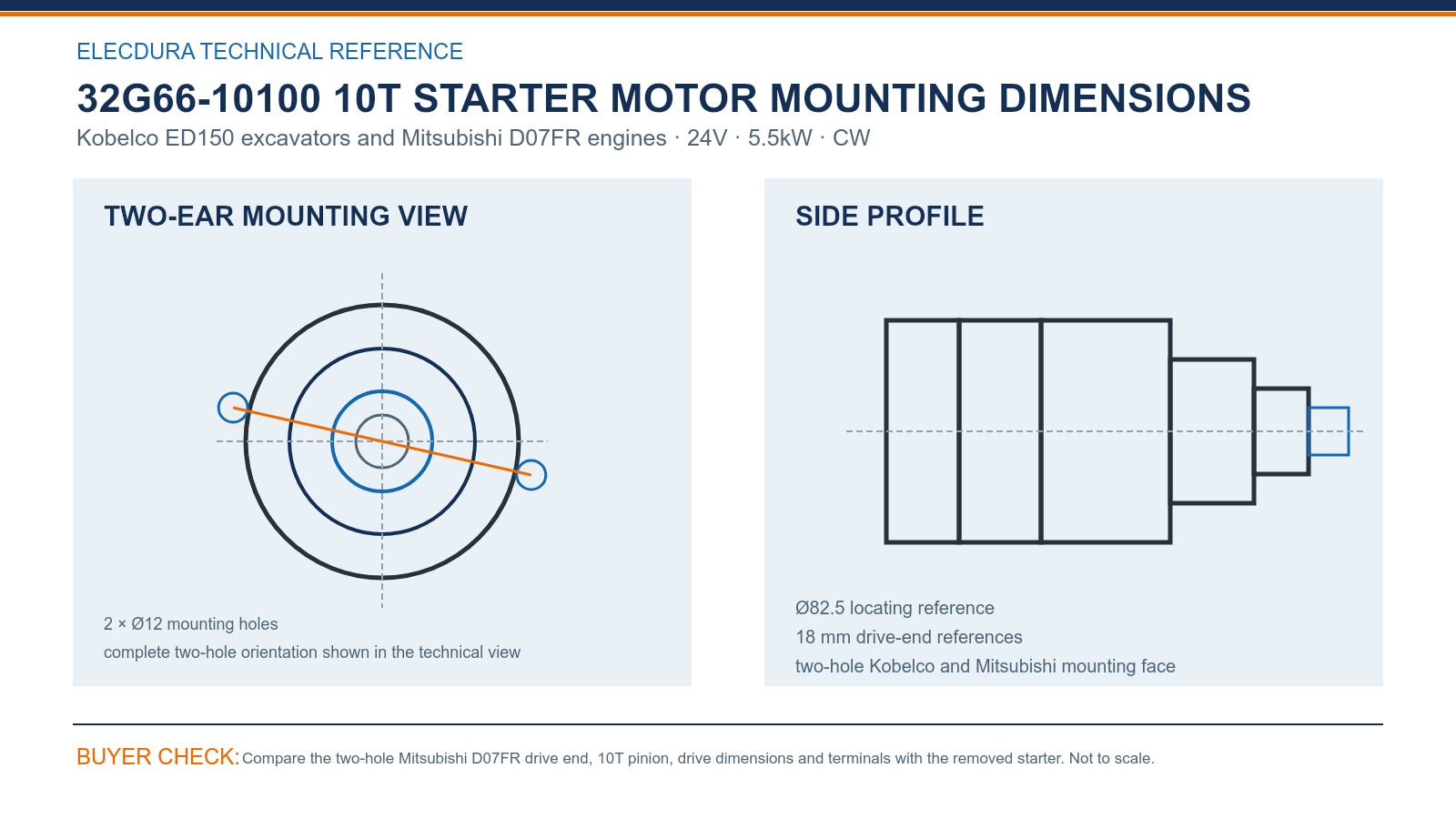

32G66-10100 Mitsubishi Kobelco Starter Drawing for Excavator Buyers — compare the drawing with the removed starter before placing a volume order.

The recreated technical view highlights the two Ø12 mounting holes, Ø82.5 locating reference and 18 mm drive-end positions. A straight drive-end photograph from the removed starter gives the most useful comparison because angled images can hide flange offset and terminal clearance.

32G66-10100 Mitsubishi D07FR OE Matching for Distributors

32G66-10101, STW6688WD, 0240000188, 0240000218, 0240000228 and S9472 provide additional purchasing routes around 32G66-10100. Use the complete number found on the old unit and retain the ED150 or D07FR application on the quotation line.

Excavator fleets may hold the same engine family across machines built for different markets. Recording the machine model, serial range and accepted drive-end image lets a branch replenish this starter confidently without turning a confirmed Kobelco item into a generic Mitsubishi listing.

32G66-10100 Excavator Starter Supply and Packing Options

Elecdura can support sample orders, distributor quantities, neutral packing and private-label review for the confirmed configuration. Export cartons should protect both mounting ears, the exposed pinion and electrical posts, while receiving teams can sample the rating label and flange before shelving the lot.

The Elecdura video introduces starter-motor assembly and electrical testing for wholesale programs. Construction-equipment buyers can use it when discussing production capacity, sampled inspection and packing, while the supplied unit remains the defined 32G66-10100 version for the recorded machine.

32G66-10100 Starter FAQs for Kobelco Excavator Buyers

Which Kobelco details should accompany a 32G66-10100 enquiry?

Provide the ED150 model, machine serial range, Mitsubishi D07FR engine plate and every readable number from the removed starter. Add straight drive-end and terminal photographs. These details let a distributor connect 32G66-10100 to the actual excavator instead of quoting from a broad Kobelco or Mitsubishi description.

Why should the Mitsubishi D07FR engine record remain on the order?

The D07FR identity explains which Mitsubishi engine installation established the product match, while the ED150 identifies the machine. Keeping both on the order is useful when a service network supports several excavator generations, because a familiar 32G66 prefix does not show the complete engine, flange and terminal arrangement.

What makes the two-hole mounting face important for this starter?

The two Ø12 holes and Ø82.5 locating reference provide a fast physical distinction from three-hole Mitsubishi-series starters. A square front photograph should show both ears without perspective distortion. Compare the 18 mm drive references and pinion position at the same time, not the housing silhouette alone.

Can the Nikko numbers be used to search for 32G66-10100?

Yes. 0240000188, 0240000218 and 0240000228 can support supplier and inventory searches around 32G66-10100. They should remain lookup routes rather than stand-alone fitment evidence. The accepted order should still show the ED150 or D07FR application, 10T pinion and two-hole flange. Use the result only after physical comparison.

Which specification should appear on a Kobelco branch stock label?

Use 32G66-10100 together with 24V, 5.5kW, 10T, module 3.175 and CW. Adding a short two-hole identifier helps warehouse staff distinguish the unit during urgent picking. The label should support the full product record, not replace the recorded machine serial and accepted mounting photographs. Add an image reference where the system allows.

What should receiving inspect on the first wholesale shipment?

Sample the product marking, ten-tooth pinion, both mounting ears, locating surface, terminal protection and visible shipping damage. Compare several cartons with the accepted photographs before the lot enters saleable stock. This catches handling problems and confirms that the shipment carries one consistent 32G66-10100 configuration. Note the cartons and samples inspected.

Which excavator checks help avoid an unnecessary starter replacement?

Measure battery condition under load, voltage drop across the positive and ground cables, trigger voltage at the solenoid and ring-gear condition. A slow or intermittent crank can originate outside the starter. Recording these readings gives the distributor better after-sales context if the new 32G66-10100 unit is questioned.

What information enables a firm 32G66-10100 wholesale quotation?

Send the ED150 model and serial, D07FR engine plate, old-starter numbers, front and terminal-side photographs, required quantity, delivery date, packing preference and destination. A forecast is useful for repeat demand. Elecdura can then return pricing and lead time for the defined configuration rather than a provisional generic offer.

Request 32G66-10100 Kobelco Starter Motor Wholesale Pricing

Email the Kobelco model and serial, Mitsubishi engine plate, all readable starter numbers, clear drive-end and terminal photographs, quantity, packing request and destination to info@elecdurauto.com. Elecdura will review the 32G66-10100 requirement and return wholesale pricing, lead time and supply options.
